Large Capacity High Quality Hemp Extraction Centrifuge
Large Capacity High Quality Hemp Extraction Centrifuge

Large Capacity High Quality Hemp Extraction Centrifuge

Share on (60643622797):


Price:$3,000.00 - $5,000.00

Quantity:


Product Overview

Description



Product Overview

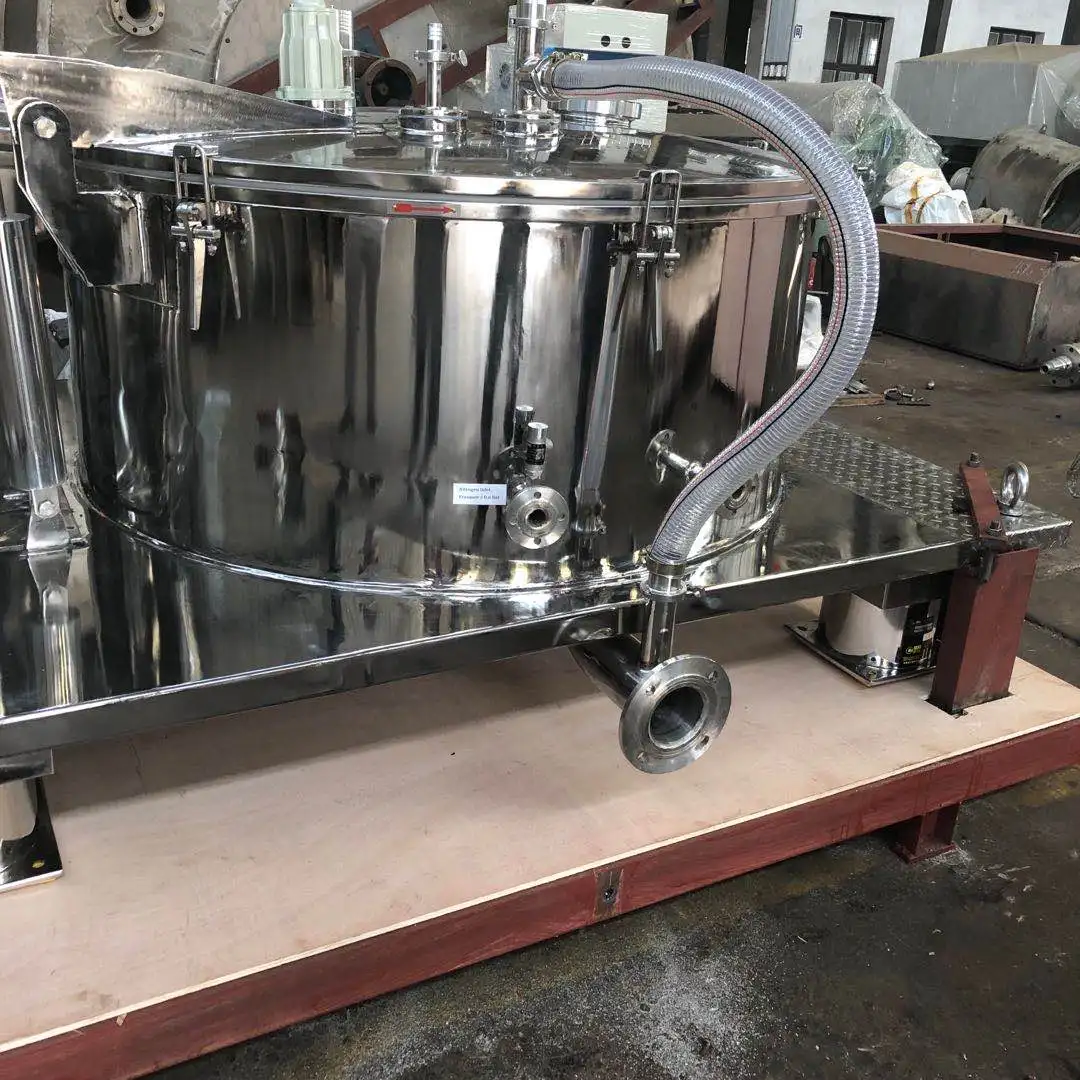

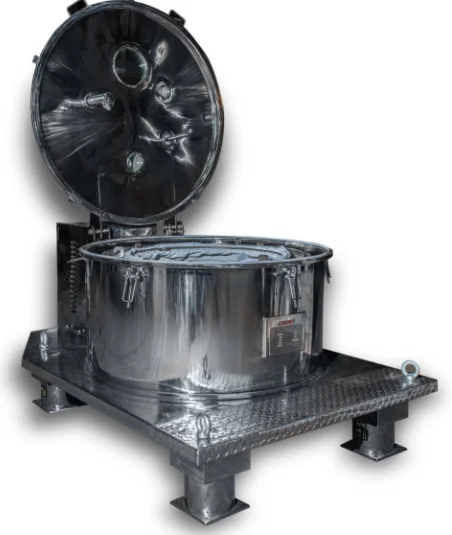

Large capacity high quality hemp centrifuge
This centrifuge is used for hemp oil extraction( biomass and liquid separation) with highest quality . It can be equipped with jackets to keep the liquid cooling,


PRODUCT CONFIGURATION


Flood-able with high performance
Explosion proof
Simple control
No base installation
Resistant to temp -100 to 200 C
Electric elements with UL
Made from stainless steel 304 , or customized


PRODUCT SPECIFICATIONS
There are other models PS450, PS600,PS1000,PS1250,PS1500.


Model
PS1000N
PS1250N
PS1500N
Basket
Diameter  mm
1000
1250
1500
Height  mm
425
500
705
Volume   L
146
294
550
Max.loading  lbs
300
500
1000
Speed  rmp
1000
900
800
G.force
806
700
538
Jacket  thickness
mm
4
4
4
Motor
Power    kw
11
18.5
22
Power rating
3 phase 220v/380v
3 phase 220v/380v
3 phase 220v/380v
Explosion proof
Yes
Yes
Yes
Size
mm
2120*1490*950
2230*1600*1140
2800*2275*1265




Structure
Manually top discharge
Batch operation
Equipped with feed pipe, wash pipe, explosion proof lamp,sight glasses,jackets
All made of stainless steel and external is all polishing treatment




SALES AND SERVICE NETWORK


Inner .
There are feed pipe, wash pipe, sight glasses on the lid and etc on the lid.

The basket is made of stainless steel ,andthe dynamic balance precision is with grade G 6.3, and the total weight should not exceed 1/400 of the total weight of the basket.
.
External .
The casing is all made from stainless steel , there are jackets in the casing for cool liquid .
Skid-prood flatform ensure the operator more safe
Gerb brand damper on each point to make less noise .


Whole.

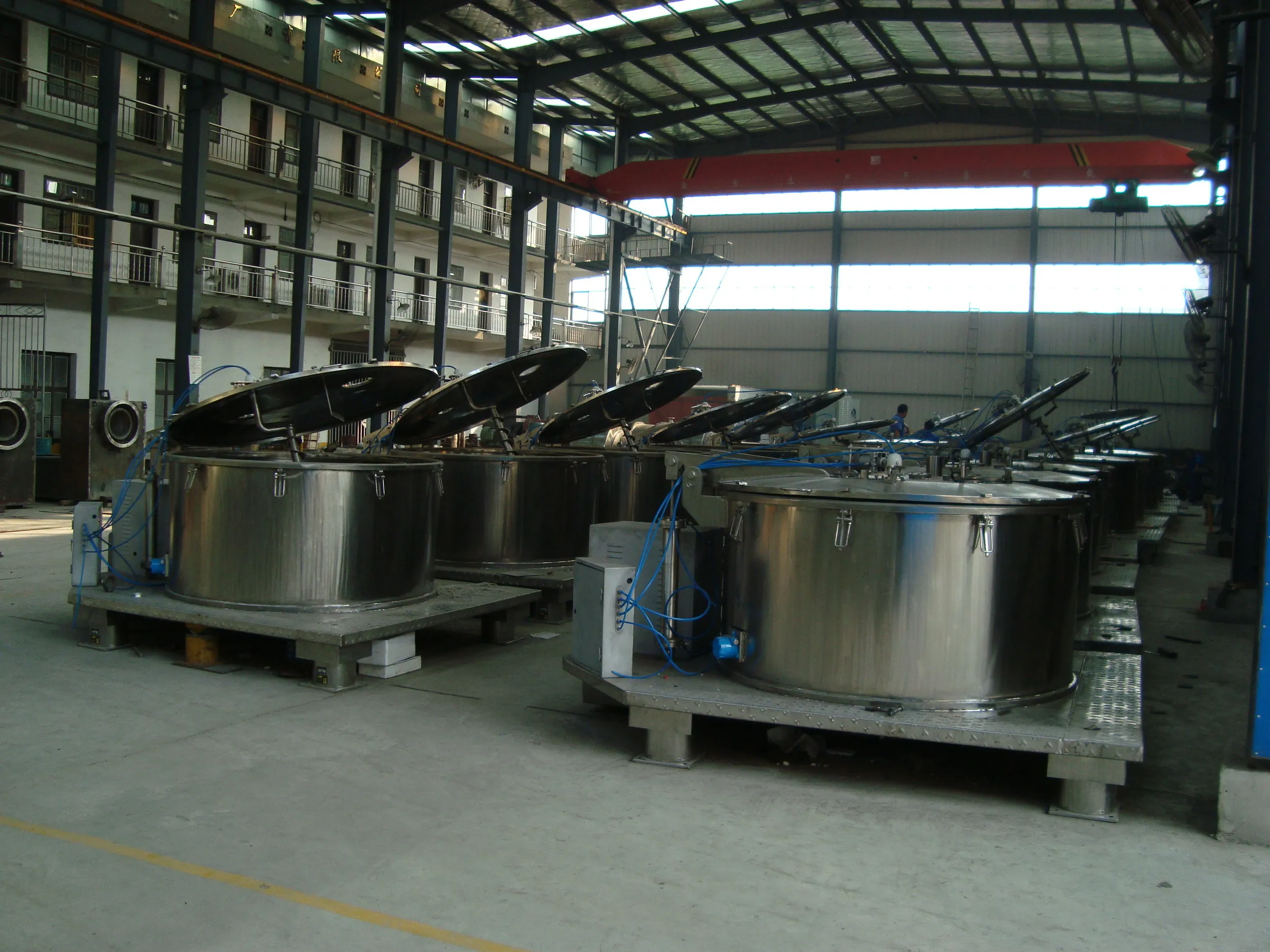

It is built by the professional workers with rich experience.
From raw material to finished products, We process each step involving cold working, welding , assembling, testing to show the highest quality .









FAQ



1.What’s the application of centrifuge?
This machine is widely used in many fields such as environmental, pharmaceutical food, chemical industry for
separation/washing/dewatering . It can separate almost all liquid and solid with proper feature.
2.How to clean the machine?
The machine has self-cleaning function. When the processing is finished, you just put one button and the machine will do the cleaning automatically.
3. How to choose the machine material?
For the material, we have stainless steel 304, 316 and 321 for your option. Generally SS304 is used. If there’s suspension with corrosion, then SS 321 /316 or Ti is needed.
4.What’s the capacity of the machine?
Firstly we have different model with different capacity for this machine.
Secondly, the capacity will be customized according to concentration of the suspension. Higher the concentration, lower the capacity.
5. How is the processing result?
The finished cake moisture and solid lost rate is based on the material feature. And different machine just brings different
processing capacity. Also we can offer testing service to get realistic results.
