Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
Best sell powerful industrial copper tube straightener machine
- Category: Metal Straightening Machinery >>>
- Supplier: Yantai Haige Machine Tools Co. Ltd.
Share on (60644564145):
Product Overview
Description
Product Description
Introduction
Series JY straightening machine is mainly used forprecision straightening for the metal bar after peelingor granding and pre-straightening for the metal bar.
The machine adopted special curve between upper concave and the lower convex two straightening rolls to realize calendering and straightening at the same time,which greatly improved the working efficiency.
Series JY two-rolls Straightening Machine consists of two-beams and four-columns structure,prestressed structure and frame structure.
Characteristics
1,fast feeding and straightening speed,which can reach 10-30m/min.
2,with special carves ,it can straighten and calender materials at the same time.
3,highe precision.straighteness can be 0.15-0.4mm/m,surface roughness Ra≤0.8μm.
The most vital part of a straightener is the two
straightening rollers, which desigined by our qualified engineers.The up roller is concaveand the lower one is convex,which formed a special curve to press strongly onto thematerials to realize straightening,as well as
straightening
Components

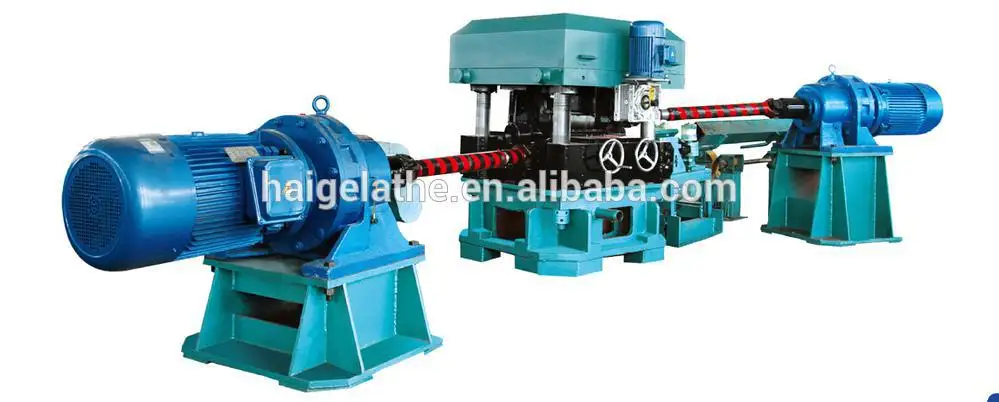

Main Machine
The upper and lower body respectively
install a straightening roller,the upper roller is concave ,the lower roller is convex.
According to the diameter and the material properties of the bar,respectively to adjust upper and lower straightening roller angle,electric lift part adjust the gap between the two straightening rolls,start the cooling lubrication system,driven by main motor,to complete calendering and straightening at the same time.
Frequency conversion stepless speed,real-time display the gap between upper roll and lower roll.Guide sleeves are installed in the inlet and outlet.Its location can be adjusted,playing guide and support role.During processing,the bar can accurately enter and leace the straightening rolls.
Cooling Lubrication System
Cooling lubrications by cooling pump suction,through multiple pipelines from the front spray mozzle to the roll gap and the bar,playing cooling and lubricationing role.After converging,follow together into the coolant tank.Coolant tank design three layer protection filter,to ensure lubricating coolant cleaness.
Electrical System
The transmission system adopts frequency conversion stepless speed regulation,feeding system,adjustment system,cooling and lubricating system controled by AC power.
The main power supply is AC380v 50Hz,control power supply is AC220V 50Hz.Control system for low voltage power supply(DC24v).
Entry Guide System and Exhaust System
The upper and lower cylinders respectively control the upper and lower nylon rollers lifting,meanwhile,two motors drive two nylon rollers rotating.Then clamp the bars entering the entrance of the guide sleeve.
Two nylon rollers clamp the workpieces and asssure the workpiece not easy to slip,reliable work.
Auxiiliary Machine
Automatic loader and unloader,greatly saving labor cost.
After straightening,all the collection racks are equiped with protective layer to avoid any scratches.
Main Technical Parameters:
Specification | JY160AY | |||
Raw Material | Diameter Range(mm) (excluding drawing material) | Tensile Strength σb≤450(M pa) | Φ40≤d≤Φ160(L ≥3000) | |
|
| TensileStrengthσb≤1000(Mpa) | Φ40≤d≤Φ150(L ≥3000) | |
| Surface Hardness | ≤HB380(≤HRC42) | ||
| Straightness(mm/m) | Bright steel:≤3 black bar:≤4 | ||
| Diameter Tolerance | Bright steel:≤IT10 black bar:d-2-GB/T702-2004 | ||
| Circular Degree | d≤50 | ≤50% ofdiameter tolerance | |
|
| 50<d≤80 | ≤65% of diameter tolerance | |
|
| d>80 | ≤70% of diameter tolerance | |
| Surface Roughness(Ra) | Bright steel≤6.3mm | ||
Finished goods | Straightness(mm/m) | Bright steel:≤0.50 Black steel:≤1.0 | ||
| Diameter tolerance | Bright steel≤IT9 black bar :soft stock improved | ||
| Surface roughness(Ra) | Bright steel≤0.8μm black bar :soft stock improved | ||
Roller Quantity (Pcs) | 2 | |||
Roller Diameter (mm) | Φ550 | |||
Straightening feeding speed(stepless speed)(m/min) | 2~10(m/min) | |||
Main motor power(kW) | 110X2 | |||
Lift motor power(kW) | 5.5 | |||
Outline Dimension(m)(reference) | Main machine 11X3.4X4.6
| |||
weight(t)(reference) | Main machine 44t | |||
Total Capacity (kw)(reference) | 200 | |||
Compressed Air Source (user prepare by themselves) | 0.5~0.8MPa,1.8m3/min,two-stage oil-water separator | |||
Company profile
Company Profile:
Yantai Haige Machine Tools Co.,Ltd was built in 1999,which specializes in producing steel finishing equipment,such as series WXC Centerless Lathe(Bar Peeling Machine),Series JY Bar Straightening Machine,Abrasive Belt Grinder(Belt Sander Polishing Machine),Drawing Machine,Shot Blasting Machine,Centerless Grinding Machine,CNC Skiving and Roller Burnishing Machine and Auxiliary Machine etc.We also engage in plating equipment and heat treatment equipment.
Based on 15 years manufacture and design experience,our machines have been exported to Russia,Vietnam,India,Pakistan,South Korea,North Korea,Taiwan Province and other countries and regions.
We regard customer's satisfaction as our unremitting pursuit.
About our service
About Our Service:
A.Warranty period:1 year except for fast-wearing parts.
B.Immediate response when get informed of machine problem.
C.The machine operators of buyer's can be trained in our factory for free.
D.Provide long term free technical support.
E.If necessary,we can dispatch our well-trained and professional engineers to our customer's factories to help them with the machine installation and commissioning.
F.Customized design is available.OEM&ODM are welcomed.
Application:
Bright steels,Non-ferrous metals such as copper,titanium,magnesium,aluminum,Fasteners,Auto parts,Springs,Hydraulics,Bearings,Machining.
