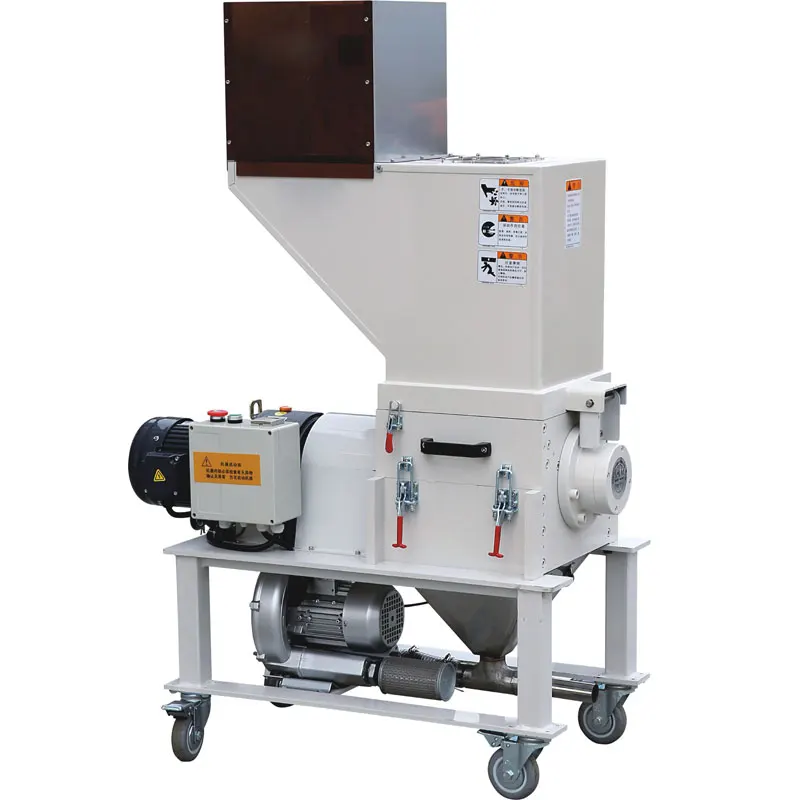

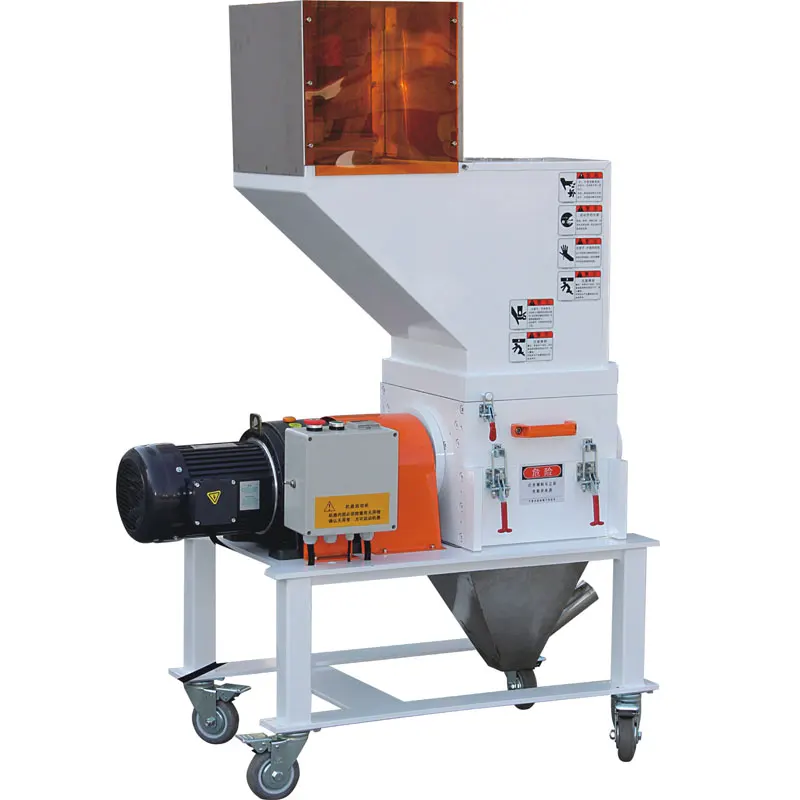

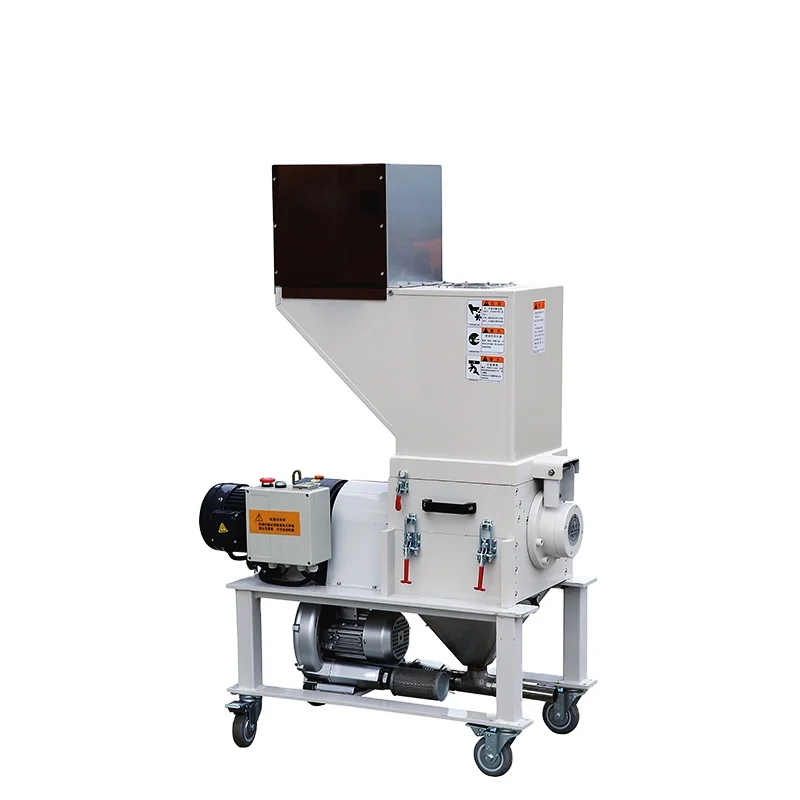

Низкоскоростной звукостойкий гранулятор из отработанного пластика
- Category: Plastic Raw Material Machinery >>>
- Supplier: Dongguan Mitex Automation Machinery Co. Ltd.
Share on (60647284447):
Product Overview
Description
Product Description
This is the online screenless crusher for the plastic sprue or runers.
Low speed at 23RPM,On-the-spot grinding and recycling,space saved.
Full Open structure, easy to clean and maintan.
Special desiged on rotery cutting blade,which makes even grinding no powder left,no screen filter required.
Power Saving, it could be set to working 3minutes then stop, and then start up.
Full Open structure, easy to clean and maintan.
Special desiged on rotery cutting blade,which makes even grinding no powder left,no screen filter required.
Power Saving, it could be set to working 3minutes then stop, and then start up.
For Loader connection
Standard hopper for receiving the crushed pellets

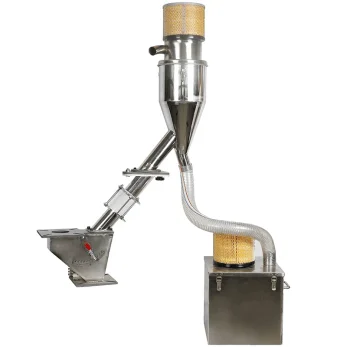

Optional: automatic vacuum and dust removal device

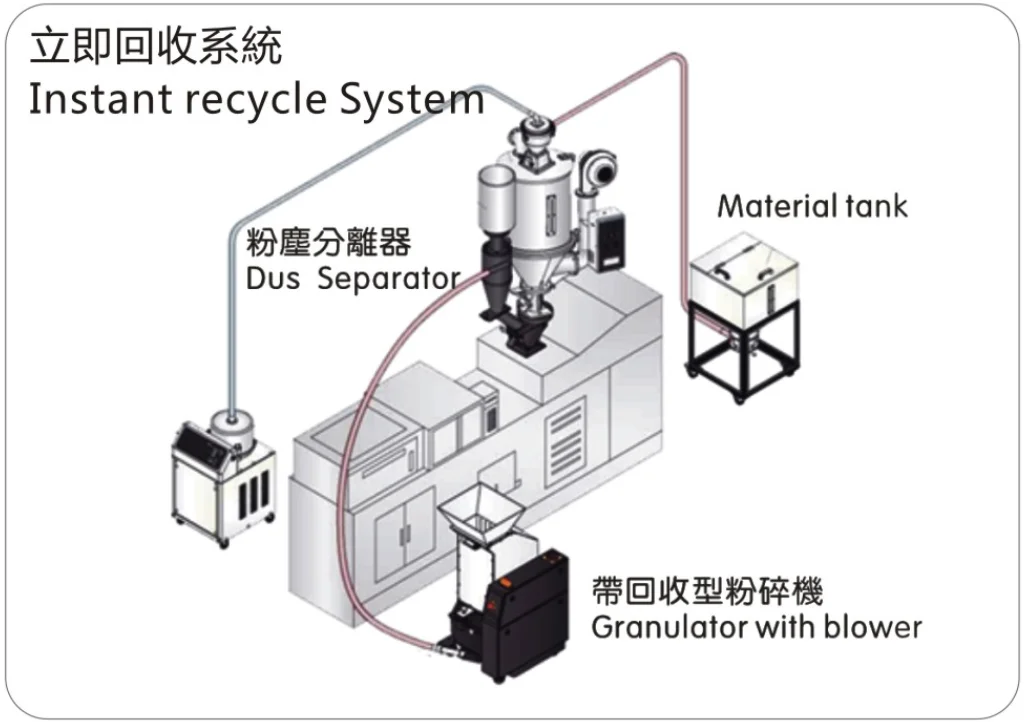

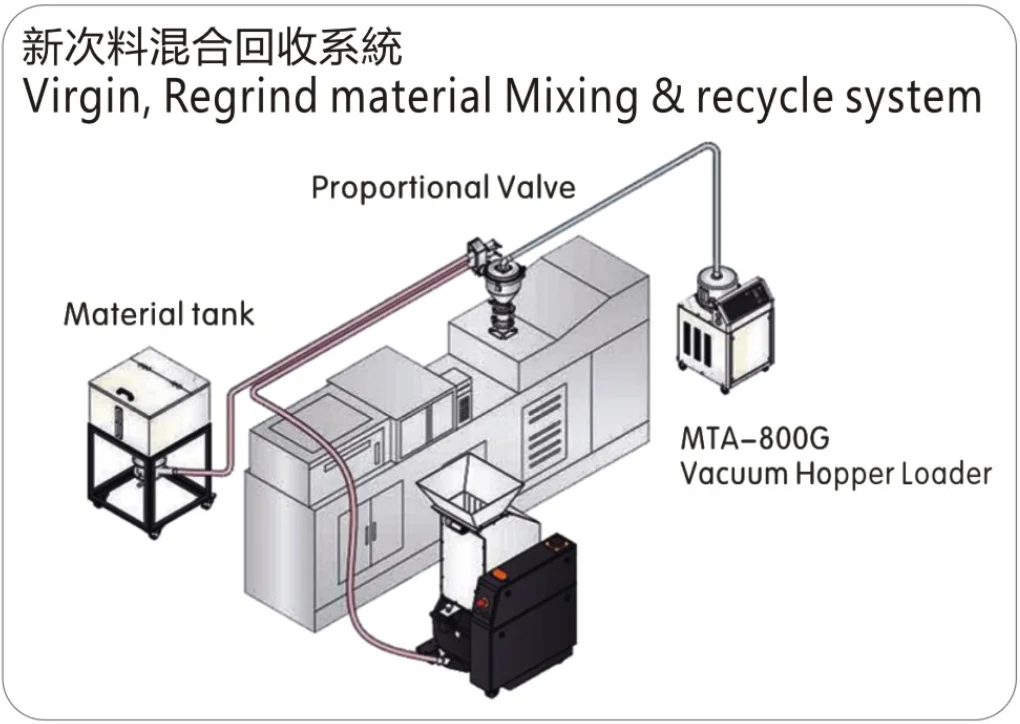

Two Installation for reference
Detailed Images
Multilayer open means, convenient cleaning.
High quality steel, durable and broken more thorgoughly
Limit switch, protect the safety of operating personnel
High quality power system, mute at low speed
Controller parts with high quality electrical components, reliable performance
Sound proof steel used for feeding hopper reduces noise pollution
Product Paramenters
Model | MS-1HP | MS-2HP | MS-3HP | ||
Voltage | 380V, 3 phase, 50hz (can be customized) | ||||
Power | 1.1KW | 1.5KW | 2.2KW | ||
Fixed knife | 6 pcs | 6 pcs | 8 pcs | ||
Rotary knife | 2 pcs | 2 pcs | 3 pcs | ||
Rotating knife | 3 pcs | 3 pcs | 4 pcs | ||
Rotating speed | 23 RPM | 23 RPM | 23RPM | ||
Crushed particles | 5-6MM | 5-6MM | 5-6MM | ||
Crushing capacity | 15-20kgs/hr | 20-25 kgs/hr | 20-30kgs/hr | ||
Input size | 315*248mm | 315*315mm | 410*315mm | ||
Body size | 900*450*1200mm | 1100*500*1480mm | 1200*500*1560mm | ||
Machine weight | 205kgs | 275kgs | 315kgs | ||

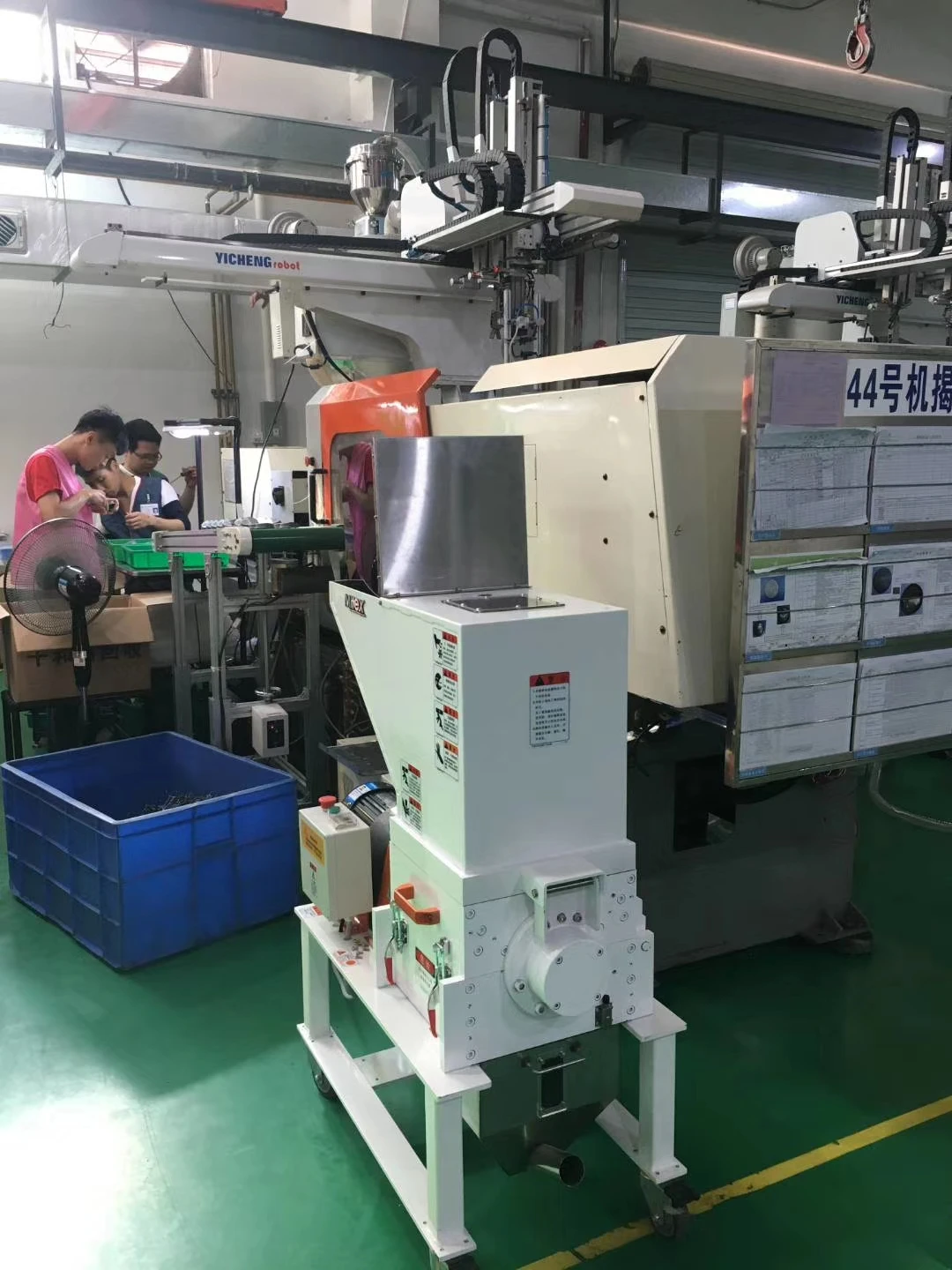

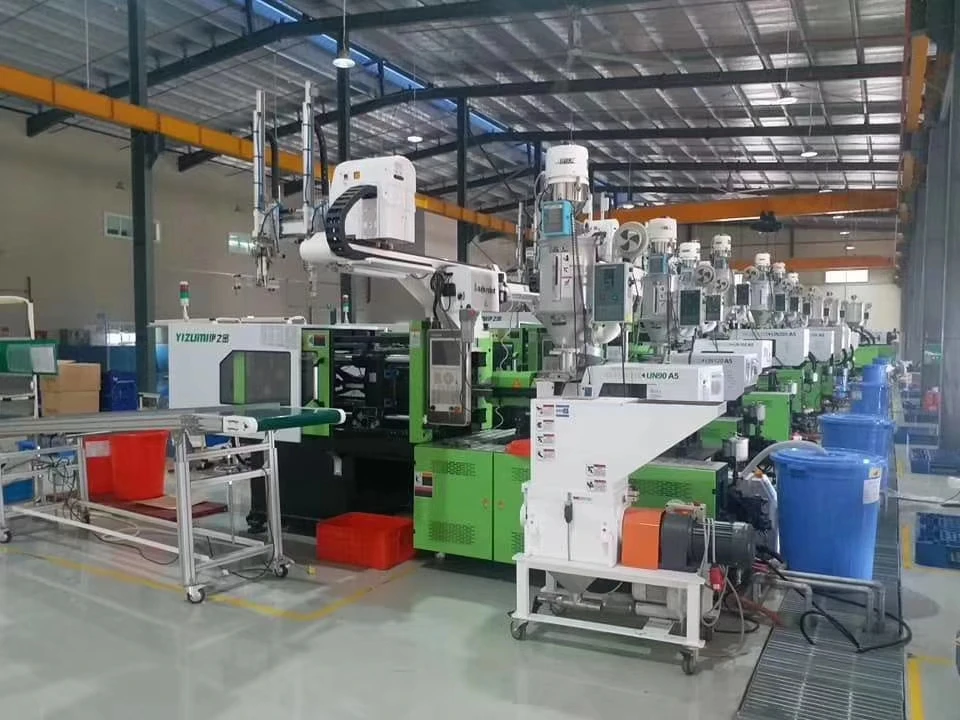

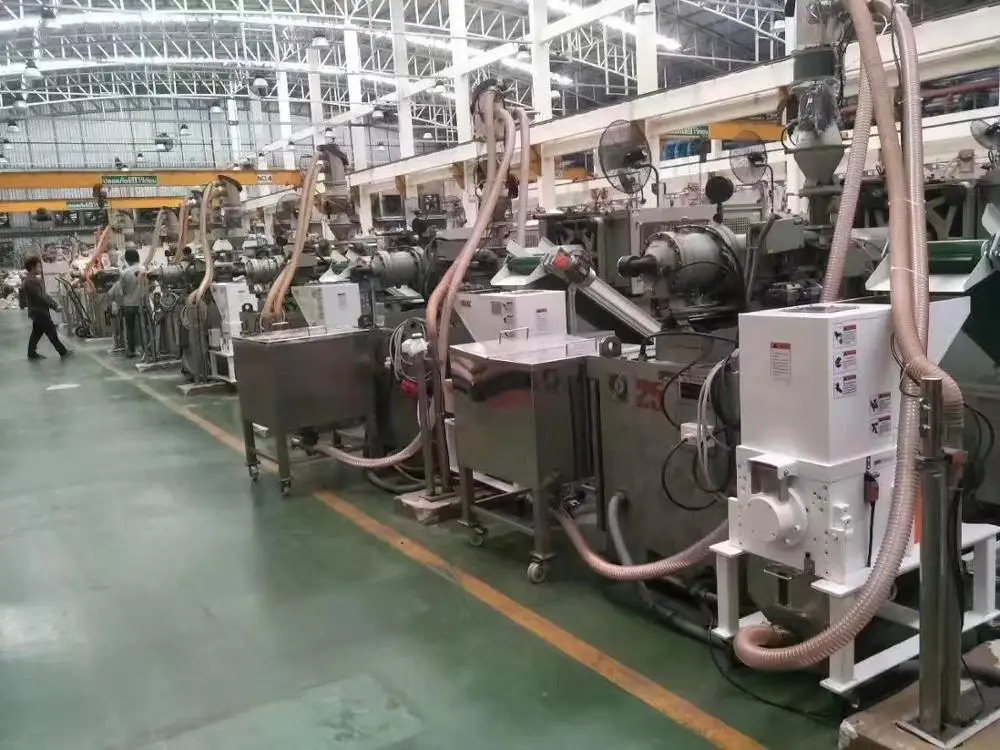

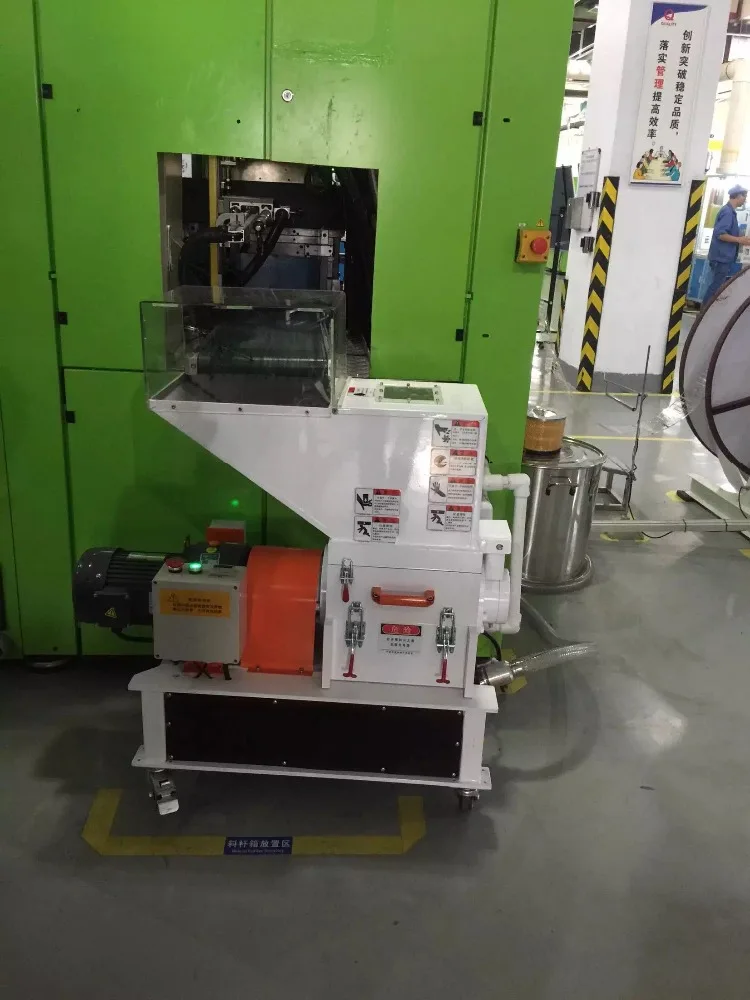

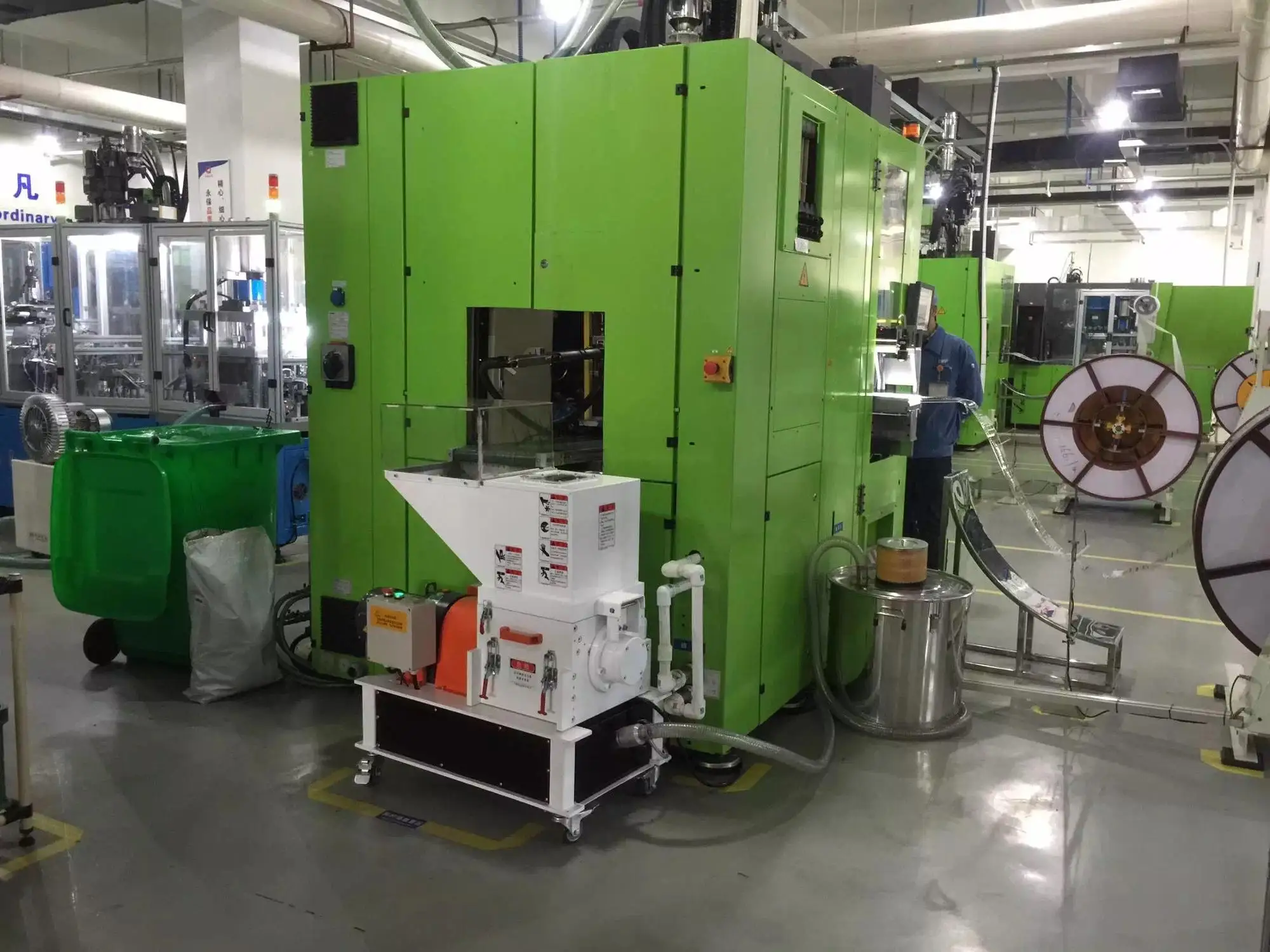

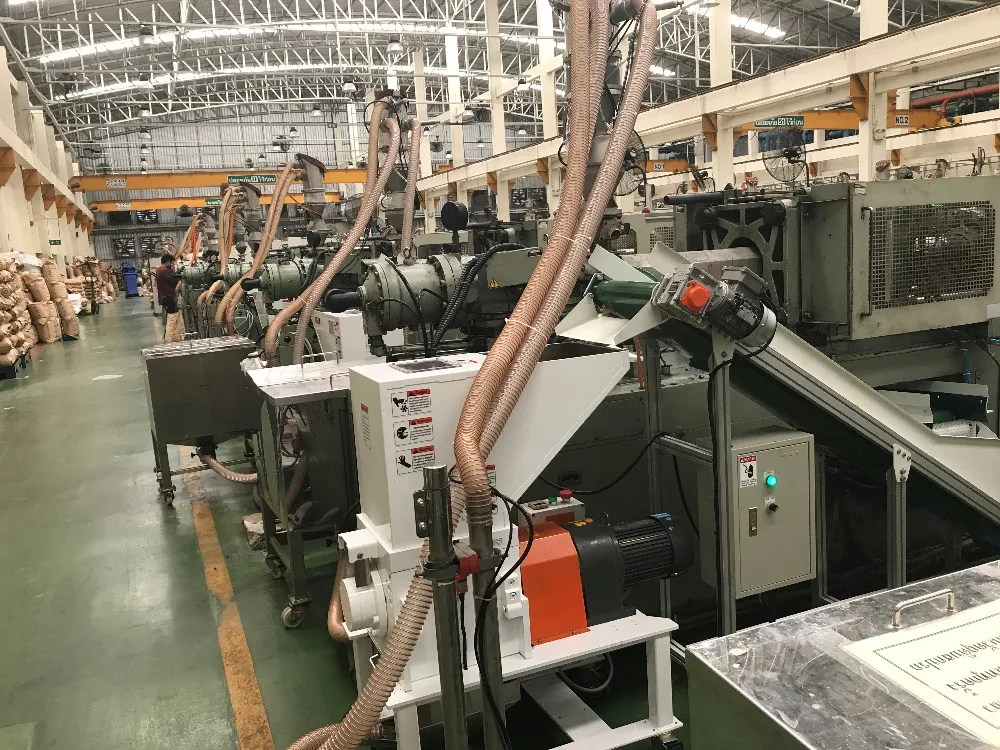

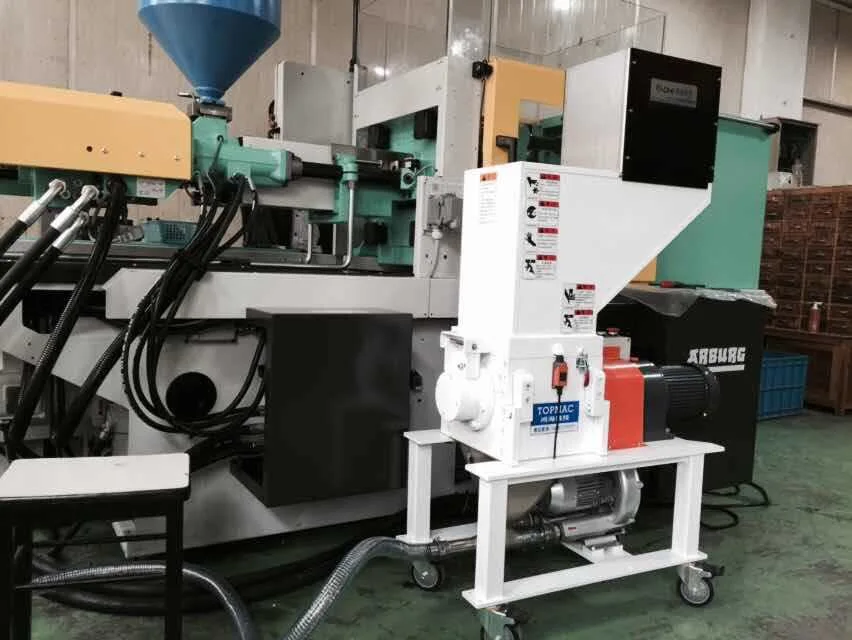

Customer cases
Related Products
Packing&Shipping
Export wooden packing
Plywood packing
Company Introduction
Mitex Automation Machinery Co., Ltd is a national-level High-Tech enterprise that established in July, 2007. Also a plastic
machinery manufacturer specializes in R&D, production and sales to the customer for plant project, design modern industry 4.0
resolution.
The main products include: Centrazed feeding system, dehumidifying and drying system. automatic metering and mixing sytem,
crushing and recovery system, mold temperature controll system and automation solution etc.
machinery manufacturer specializes in R&D, production and sales to the customer for plant project, design modern industry 4.0
resolution.
The main products include: Centrazed feeding system, dehumidifying and drying system. automatic metering and mixing sytem,
crushing and recovery system, mold temperature controll system and automation solution etc.
