Products description: lathe center, solid dead center, face drive center, drive center.
Item
Content
Selection Guidance
1, The model of machine's spindle or tailstock 2, The weight and OD of workpiece. 3, Machining range and accuracy requirement.
Products Advantage
1, The hardness of center shaft or the body is HRC 60±3. 2, The TIR is less than 0.005mm. 3, Waterproof design prevent cutting fluid and dust from entering into the center.
Use Tips
1, For oiling type, please fill in lubricating oil of SKF-LGMT2 per 4 hours. 2, The radial force is referred to the workpiece weight and turning force. 3, The axial force is referred to the hydraulic pressure of the tailstock.
Price Description
1, The price is just for one set of TSC-96880-3"-3A. other spec need inquiry. 2, "A" of the center model denotes a draw-off nut attached. 3, The price includes the accessories.
Products Details
Item
Description

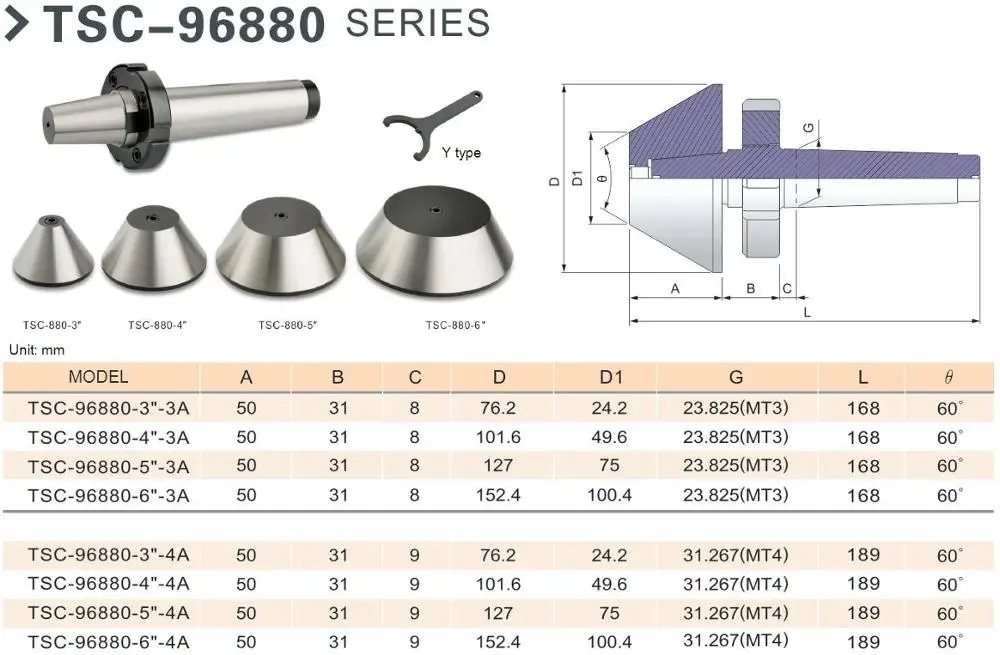

TSC-96880 Series
Changeable bull nose dead center.
Application Machine
CNC lathe and other machine tool.
Working Usage
Applicable for big size inner diameter workpiece turning process.
Structure
Adopted the design of the rotary structure of the tailstock
TIR
Less than 0.005mm
Mores Taper shank
3MT, 4MT
Accessories
Y type spanner and TSC-880-3 4 5 6 bull nose cone.
Quality Promise
Item
Omatei Promise on Quality
1
100% inspected and 100% qualified
2
In case of quality defects before use, buyer should notify Omatei within a week after receiving goods, Omatei is responsible for returning and resending freight charge. Buyer should package the goods firmly for returning transportation safety.
3
If buyer need changing before use, buyer should notify Omatei within a week after receiving goods, Buyer is responsible for returning and resending freight charge, Buyer should package the goods firmly for returning transportation safety.
Contact us
Packing & Delivery
Packing Details : Our packing is firm and safe and suitable for air or sea shipping way. Lead time: 1 day after received payment if in stock, otherwise, the lead time is 30 days.
