Toowei water resistance 3 position 6 terminal 15a/250vac toggle switch
Toowei water resistance 3 position 6 terminal 15a/250vac toggle switch
Toowei water resistance 3 position 6 terminal 15a/250vac toggle switch
Toowei water resistance 3 position 6 terminal 15a/250vac toggle switch

Toowei water resistance 3 position 6 terminal 15a/250vac toggle switch

Share on (60647712896):


Price:$2.00 - $2.23

Quantity:


Product Overview

Description


Product Description

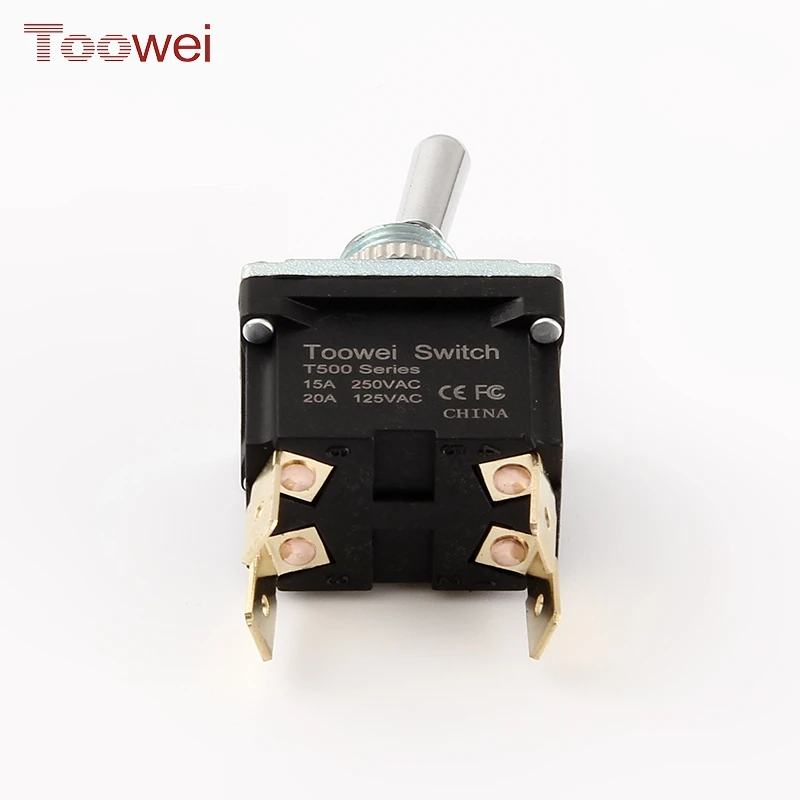

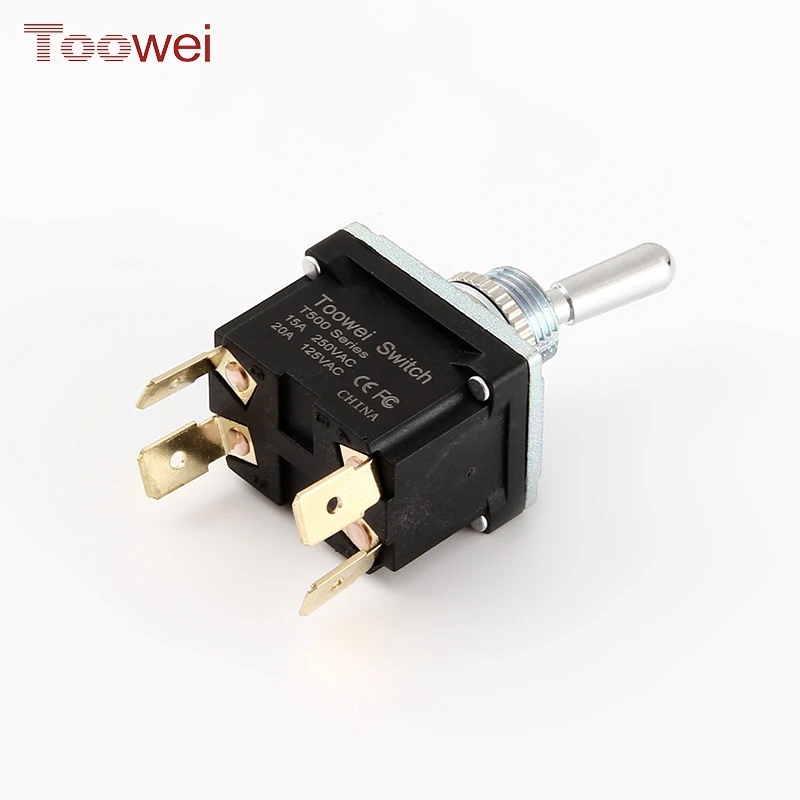

T500 series toggle switch is suitable for 50Hz/60Hz. This switch is used as the switching mode and reset mode in the circuit. The terminal block has screws, quick-connect terminals and soldering terminals. The waterproof level reaches IP67 with dustproof, waterproof and oil proof functions.
Pole code
Double Group
Function code
ON-OFF
Terminal form
Quick connect terminal
color
Black
Technical parameters
Technical parameters
1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Protection degree: IP67
8. Humidity： below 85% RH
9. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
