Laboratory emergency eye washer and shower

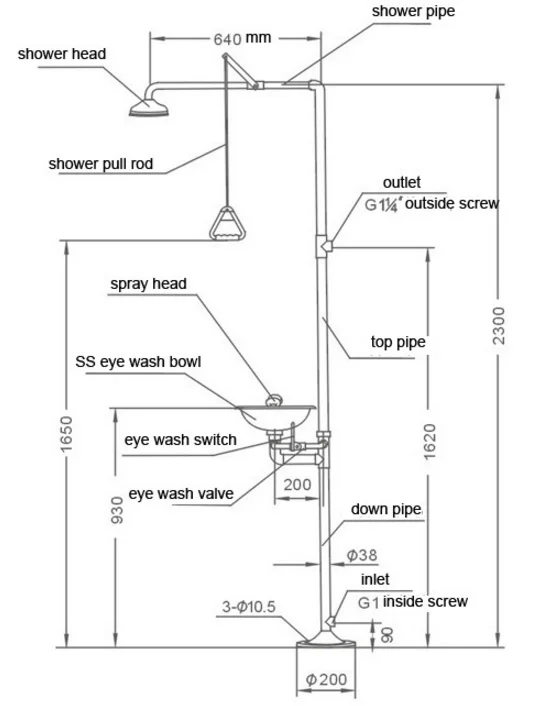

Spray section

Nozzle Height: 220cm (shower curtain can cover the entire body of water.)

Shower range :208-243cm

Spray water curtain width: 50cm range :50-60cm

Hand shower boot device height: 115cm (arms stretched upward, stretched forward, just touch the switch device)

Height range :105-120cm

Recoil starter shower height: 165cm range :160-175cm

Eyewash section

Wash nozzle height: 105cm (45-degree bend forward user, just touch the water)

Height range :103-115cm

Hand wash boot device height:

80cm

Arms stretched forward, just touch the switch device

Range :75-85cm

Water curtain spray eye height: 2cm

Eyewash generated water curtain can just cover the stoop labor eyes, width of the inner corner and outer corner of the eye that contains

Water curtain range: 2.5-11.7cm 2.3-12cm

Optional device: foot pedal ABS coating Lighting devices Emptying antifreeze device Customized according to customer requirements

Detailed Images

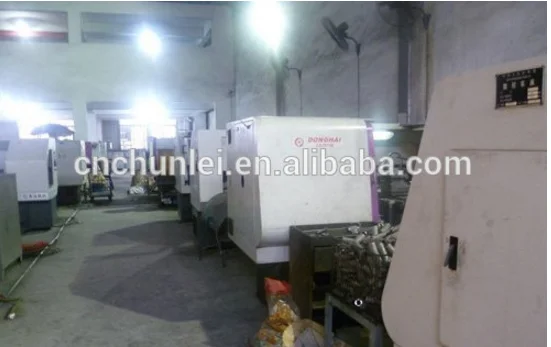

Production workshop

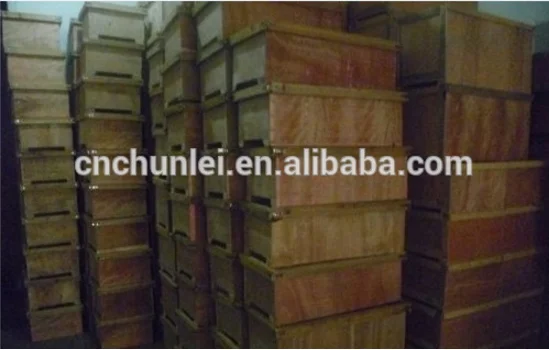

Goods warehouse

Packing & Delivery

Packaging Details: Packing: Bubble film+Foam+Carton/wooden case

each piece in a carton

Delivery Detail: Three days or as per order quantity
