Product Overview

Description


Product Description

Standard

BS 6004: PVC insulated, non-armoured cables for voltages up to and including 450/750V, for electric power, lighting and internal wiring

Application

This copper conductor PVC insulation building wire 2x4+1.5mm2 is used in fixed applications of rated voltage 300/500V and below such as house wiring, lighting, etc.

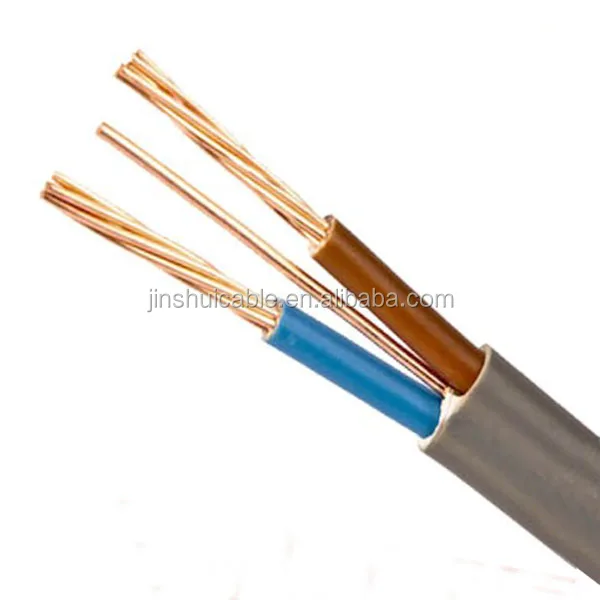

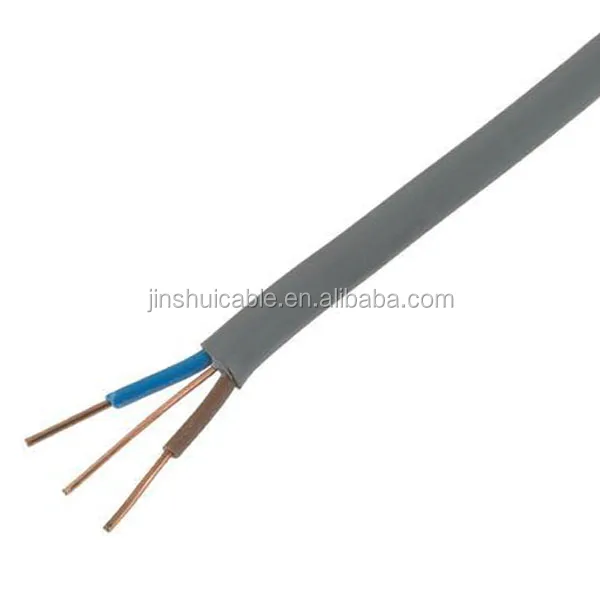

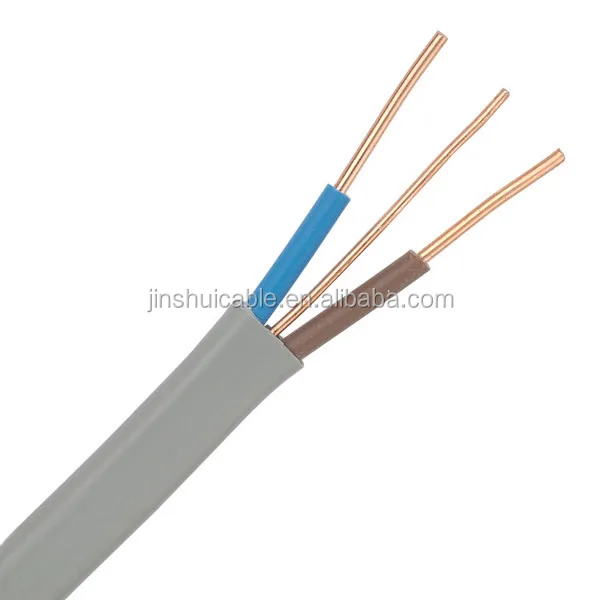

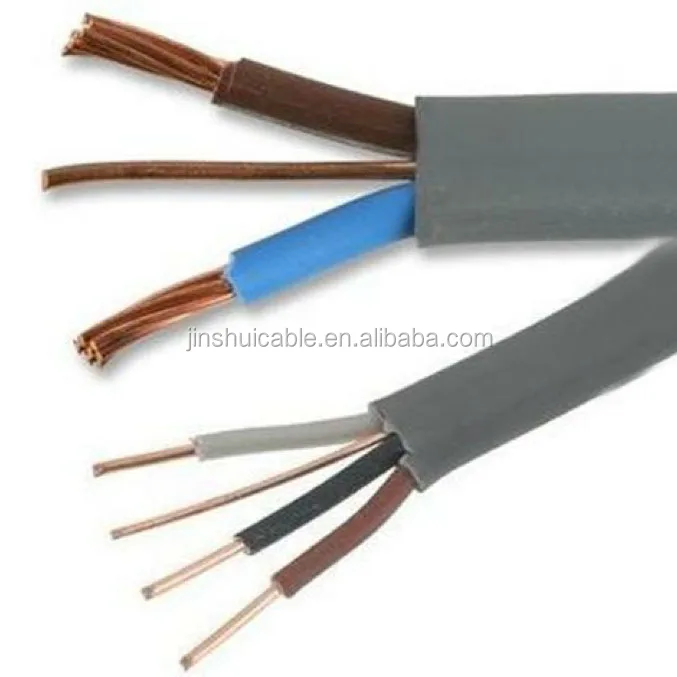

Product Details

1) Conductor: stranded copper, 4mm2

2) Insulation: PVC, 0.8mm

3) Earth conductor: bare solid copper, 1.5mm2

4) No. of cores: twin core + earth conductor

5) Overall dimension: 6.5x11.9mm

6) Approx. weight: 165 kg/km

7) Max. DC resistance at 20 degrees (ohm/km): 7.41/12.1 (twin core/earth core)

8) Working temperature: 70 degrees

Certifications

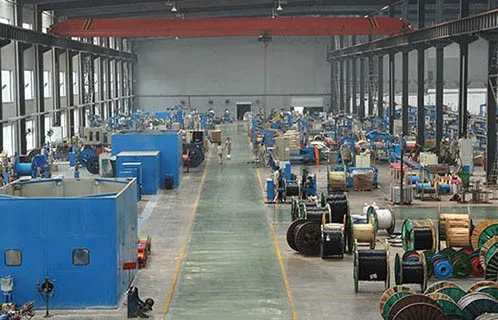

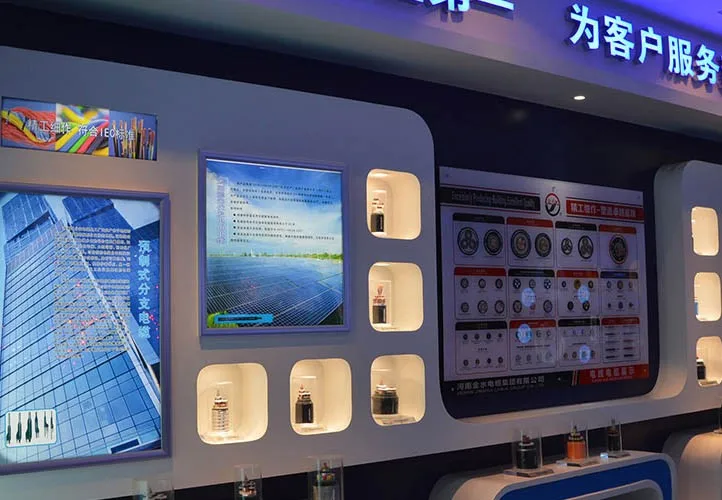

Factory & Equipment
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Provide one-step cable solution according to customer's requirements

After-Sales Service

* Provide installation guidance.

* Engineers available to service overseas.

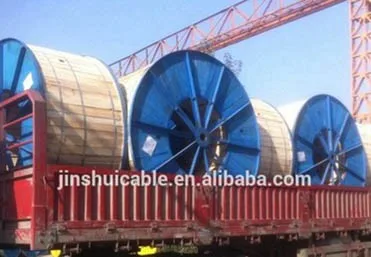

Packing & Delivery
\t
Packaging
\t
Size
\t
50cm (L) * 50cm (W) * 20cm (H) and below
\t
Weight
\t
30 kg and below
\t



Packaging Details
\t
1) Usually used for cables with a diameter less than 10mm.

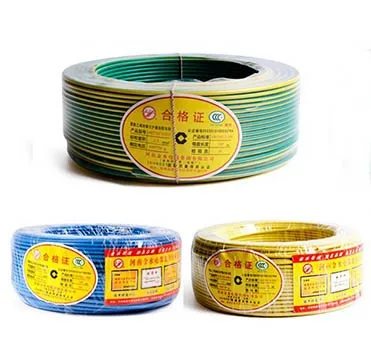

2) 100 meters (or other length required by the customer) per roll.
3) Polyethylene film or tape is used for the outer packaging.
\t
Packaging
\t
Size
\t
180cm (L) * 110cm (W) * 180cm (H)
\t
Weight
\t
3 T
\t



Packaging Details
\t

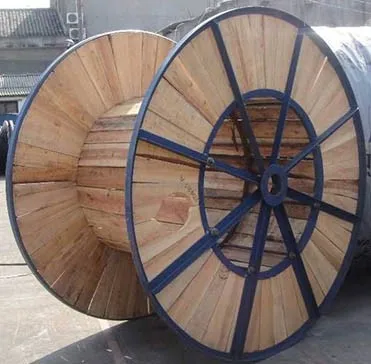

1) Wood or wood drum (110cm and smaller size) or steel-wood drum (over 110cm) is used for packaging the cables with a diameter of 10mm and above.
2) Packing length as per customer's requirements
