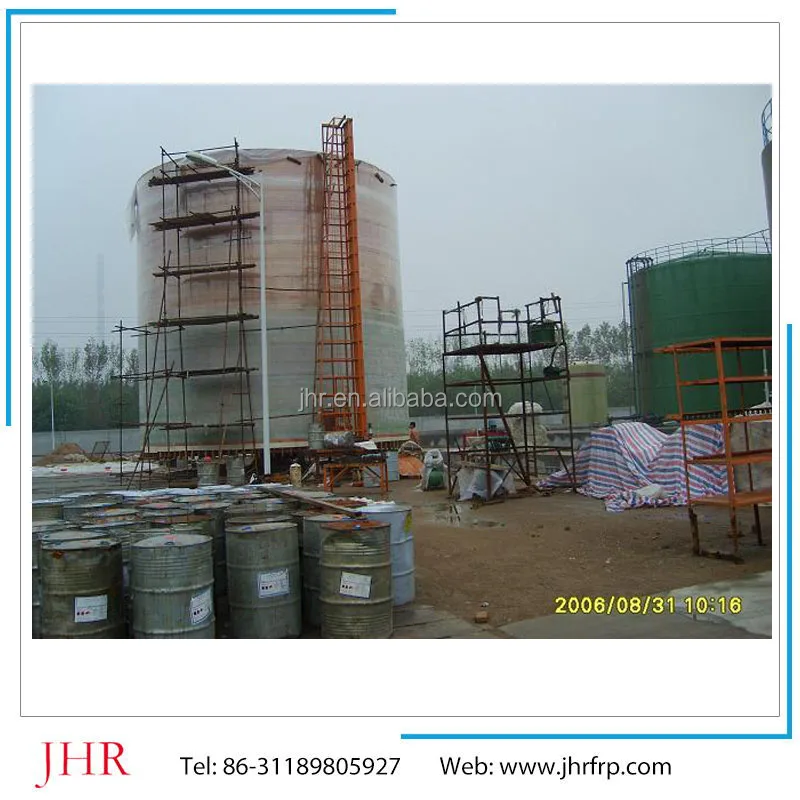

1.Used to produce and manufacture the FRP horizontal winding molded vessels as well as the related winding molded products, such as FRP storage tank, fermentation tank, integral septic tank,large FRP chimney, FRP transportation tank, FRP tank for water treatment and etc.
2.This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient.

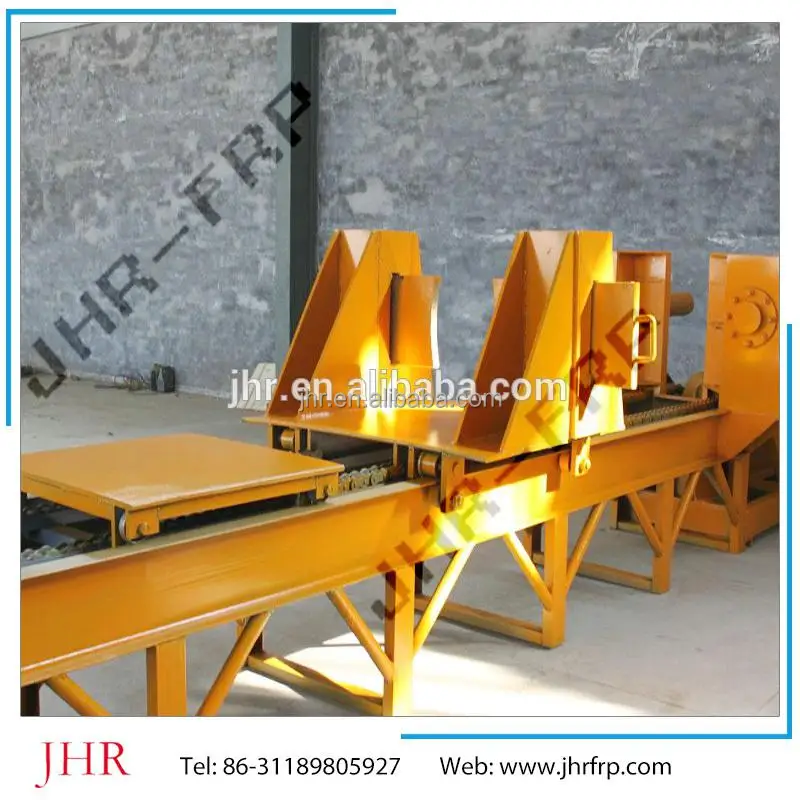

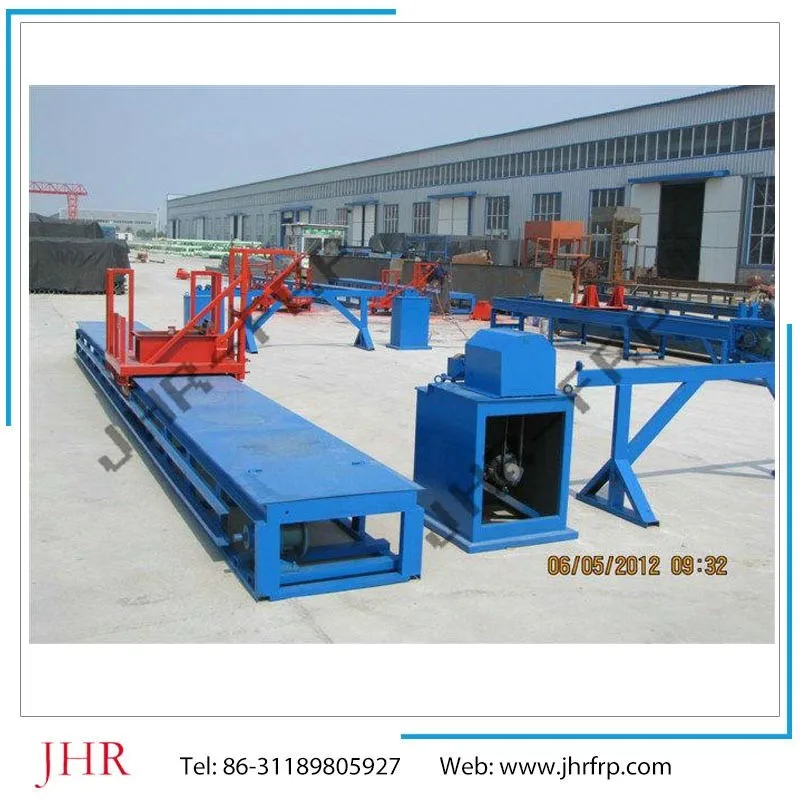

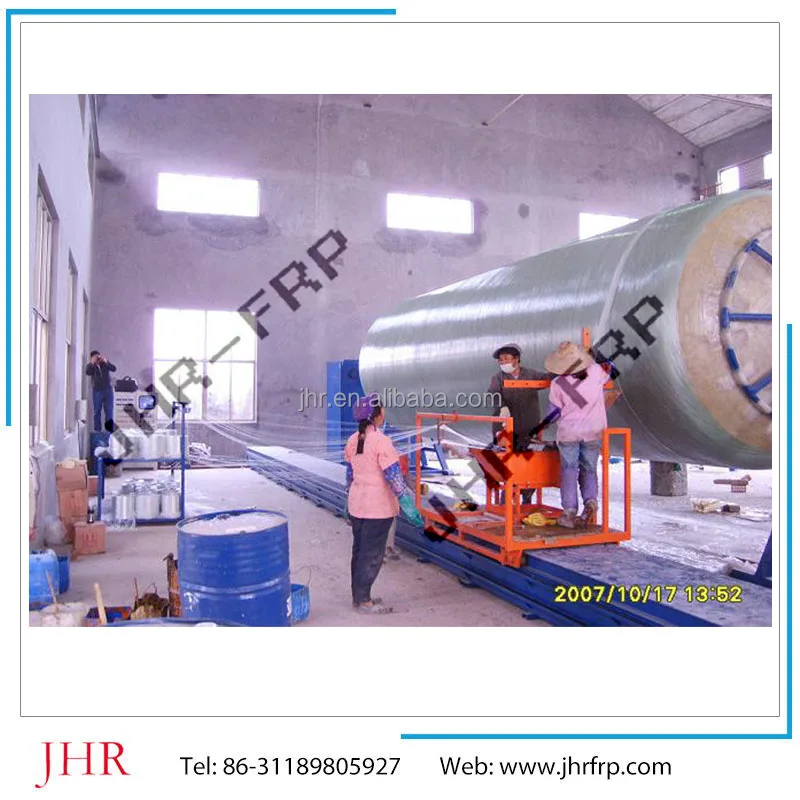

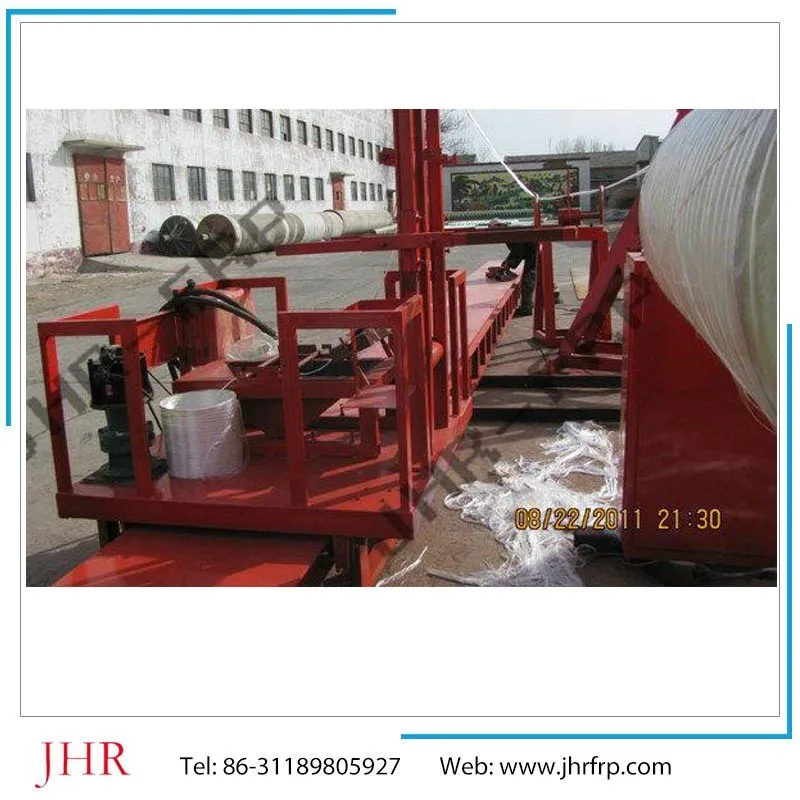

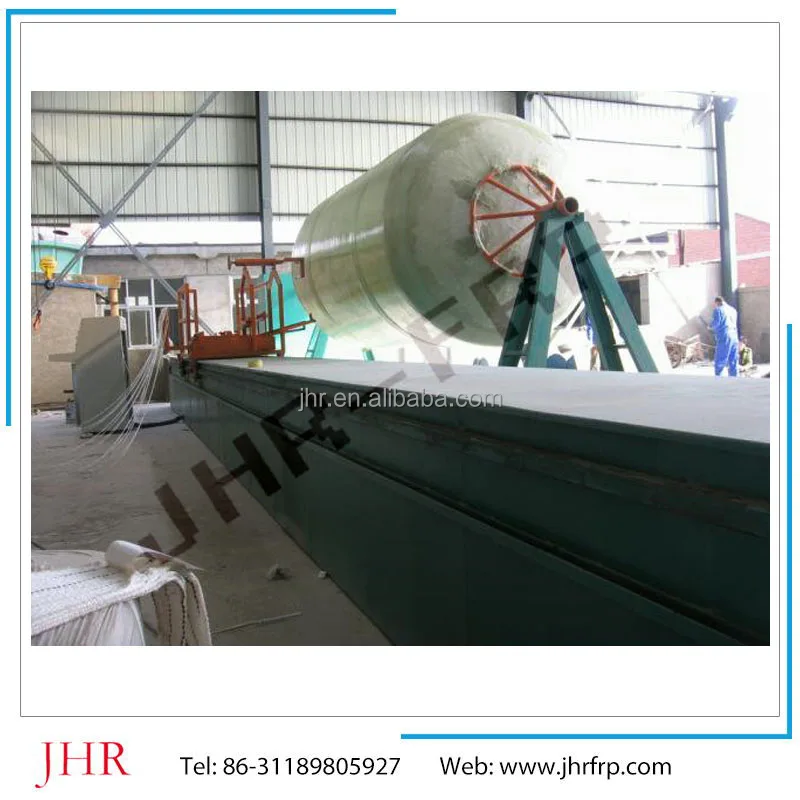

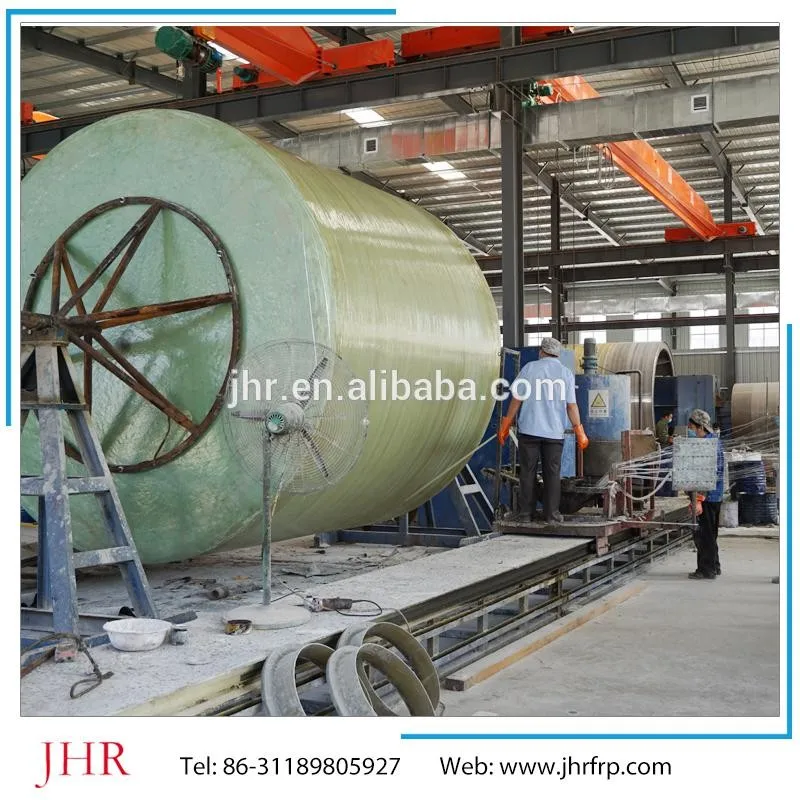

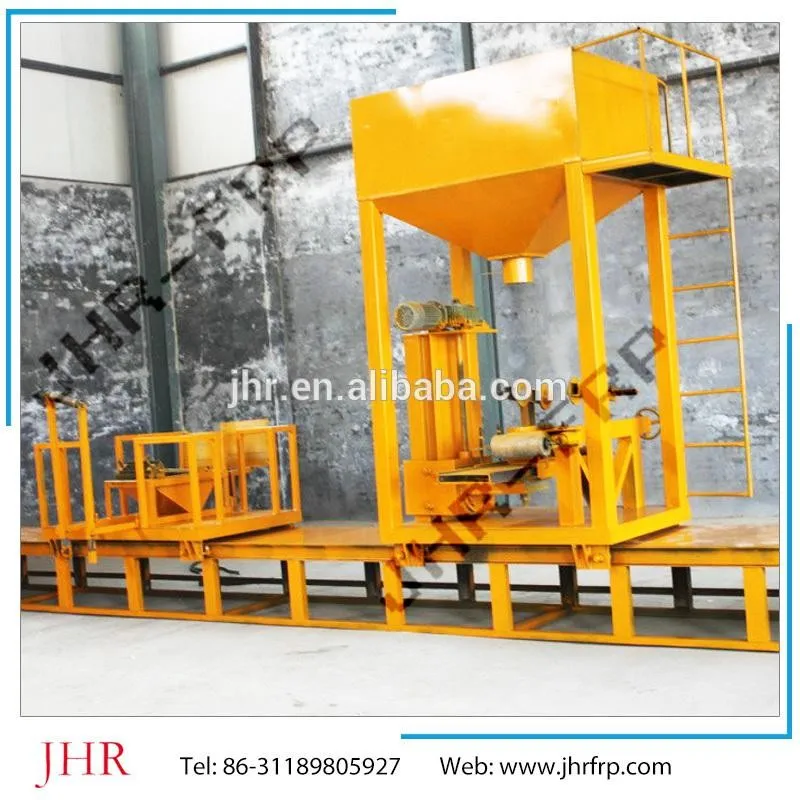

Horizontal Winding Machine of FRP Tanks
Equipment No
Item Name
FWWS-2500
FWWS-4000
FWWS-10000
Pipe diameter,IDmm
Φ500-Φ2500
Φ800-Φ4000
Φ4000-Φ10000
Product length,mm
≤12000
≤12000
≤12000
Winding angle
45 º90 º
45 º90 º
45 º90 º
Max weight of product ,kg
8500
12000
28000
Rotating speed of main shaft ,r/min
≤45
≤35
≤18
Transmission method
Pinion and rack
Pinion and rack
Pinion and rack
Control method
manualsemi automaticautomatic
manualsemi automaticautomatic
manualsemi automaticautomatic
Coordinate speed of vehicle ,m/min
45
45
45
Precision of lining up yarn ,mm
±1
±1
±1
Repositioning accuracy ,mm
0.2
0.2
0.2
Max speed of pulling yarn ,m/min
90
90
90
Max width of yarn tape ,mm
200
200
200
Winding type
Reciprocating cross, hoop direction
Reciprocating cross, hoop direction
Reciprocating cross, hoop direction
Winding roving capacity,each
60
60
80
Resin type
Unsaturated polyester, vinyl ester, etc.
Unsaturated polyester, vinyl ester, etc.
Unsaturated polyester, vinyl ester, etc.
Yarn framea kind of inner pulling yarn
Tension adjustable yarn frame of mechanical type
Tension adjustable yarn frame of mechanical type
Tension adjustable yarn frame of mechanical type
Impregnation groove,stainless steel
Roller impregnation or immersion impregnation
Roller impregnation or immersion impregnation
Roller impregnation or immersion impregnation
Production capacity ,kg/h
800
1200
2000
Total installed capacity , kw
10.5
12.5
18.5
Areas covered by production linelength × width × heightm
