220V/380V High Pressure Portable PU Foam Spray Machine for Wall and Roof
- Category: Foam Machinery >>>
- Supplier: Shandong Hightop Group
Share on (60651783086):
Product Overview
Description
Introduction of Foam Spray Machine for Wall and Roof

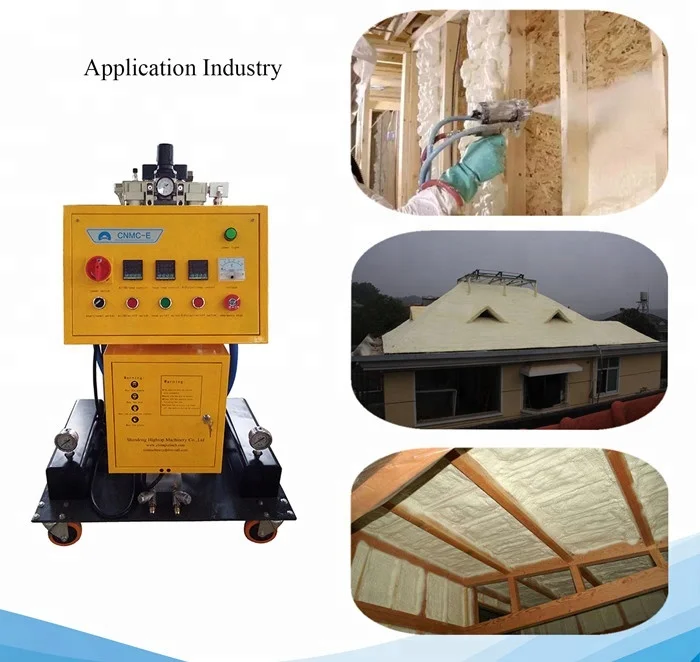

Polyurethane spray: the construction of the external walls of spraying, spraying products, cold storage spray, refrigerated trucks spraying, roof spraying, industrial anti-corrosion, cabin, carriages, cars, tanks. Foam Spray Machine for Wall and Roof, Foam Spray Machine for Wall and Roof
Polyurethane casting: solar water heaters, insulation tanks, refrigerators, security doors, cabin, insulation boards, pipe joints, product packaging, road construction, wall noise.
1. The machine has a small size, light weight, low failure rate, simple operation, easy to move and so on.
2. Use the most advanced pneumatic booster devices, the maximum degree to ensure stability of equipment work.
3. Multiple raw material filter device to minimize the spray plug problem.
4. Multiple leakage protection system to protect the safety of the operator.
5. With an emergency switch system, to the most rapid response to emergencies.
6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state, to meet the normal construction of equipment.
7. The feeding volume can be adjusted, and has a regular, quantitative function, especially suitable for high-precision small batch of polyurethane casting to improve production efficiency.
8. The latest no-clean spray gun with small size, light weight, low failure rate.
9. Material taken pump use large ratio method, automatic mention material, high viscosity of winter raw materials can also easily feed.
Parameter of Foam Spray Machine for Wall and Roof
Model: CNMC-E
Power source: single phase 220V 50Hz
Heating power: 7.5 KW
Driven mode: pneumatic
Air source: 0.5~0.8 MPa ≥0.9 m³/min
Raw output: 2-12 kg/min
Maximum output pressure: 11 MPA
AB material output ratio: 1:1
Spray gun: 1 Set
Feeding pump: 2 Sets

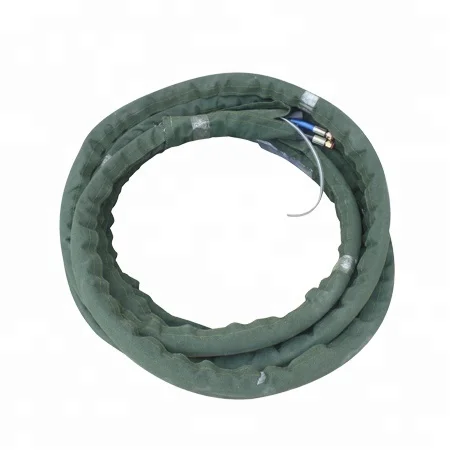

Heating hose: 15 Meters
Gun connection pipe: 2 Pieces
Feed delivery pipe: 2 Pieces
Pneumatic pipe: 5 Meters
Spare parts: 1 Set
Packing size: 750x560x1130 MM
Machine weight: 109 KG
Images of polyurethane foam filling machine
