Grade A High Density Non Asbestos Fashion Fireproof Magnesium Oxide Board

Grade A High Density Non Asbestos Fashion Fireproof Magnesium Oxide Board

Category: Magnesium Oxide Boards >>>
Supplier: Trusus Technology (Beijing) Co. Limited [Beijing China]Trusus

Price:RUB 45.13 - RUB 1,594.98

Quantity:

Product Overview

Description

Product Description

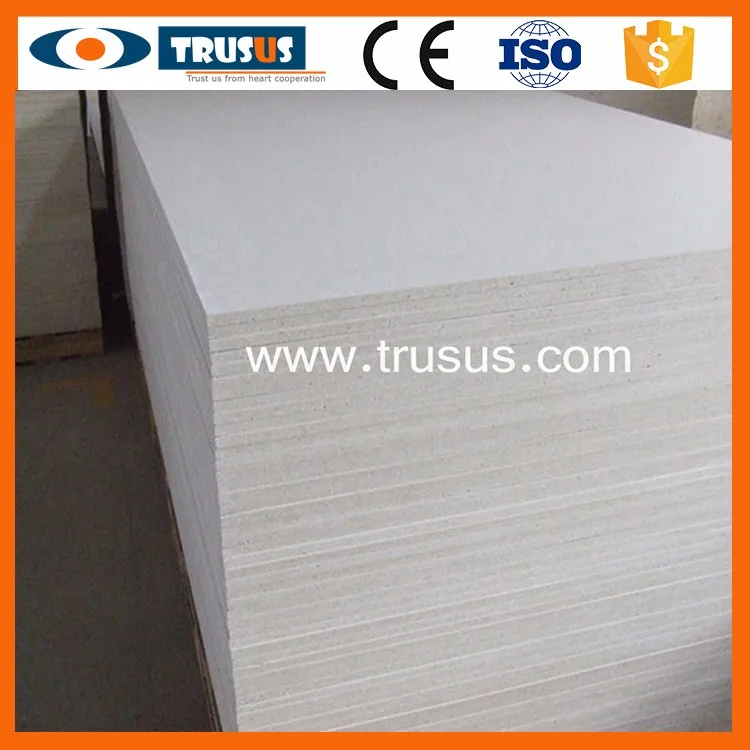

Mgo Board is made from Magnesium Oxide(MgO), Magnesium Chloride (Mgcl2), fiberglass mesh, sawdust, perlite etc., using highly purified active MgO as the main fireproof material of board, high-quality MgCl2 as the main cementing material to solidify othermaterials, alkali-resistance fiberglass mesh to ensure the high strength of board, soft sawdust and light noncombustible perlite as filling materials. It is suitable for a wide range of general building uses and for applications that require fire resistance, mold and mildew control, as well as sound control applications and many other benefits. As an environmentally friendly building material, magnesium oxide board has strength and resistance due to very strong bonds between magnesium and oxygen atoms that form the magnesium oxide molecules( Slurry paved board is a kind building material to further process.Suit to stick thin decorative material or paint on the board.)

APPLICATION

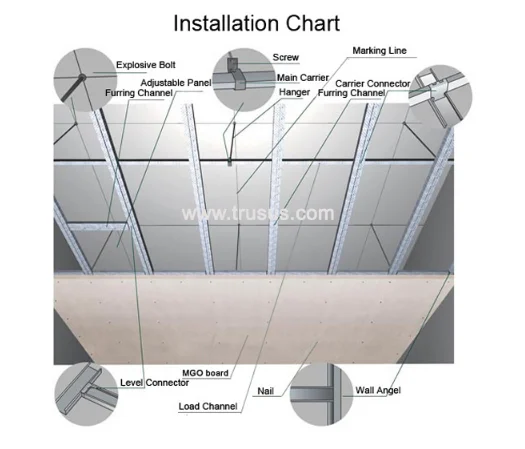

1) Non-Combustible Class A1 Waterproof Impact Resistant And Sound Insulation Mgo Board can be used for interior or exterior partition and ceiling.
2) Exterior sheathing
3) Trim Materials
4) Fascias
5) Soffits
6) Shaft-liner & area separthing wall board
7) Tile backing( backer board) and underlayment
8) Substrates for coating and insulated system such as Direct-Applied Finish Systems,EIFS, SIPS, Portland type Stucco and Synthetic Stuccos.

SPECIFICATION		QUANTITY PER 20 GP (PCS/20GP)
Convenient construction	Magnesium oxide board is a kind of environmental friendly light weight construction material, and this new frameless decorative material is 100% no Asbestos Contained and no radioactivity.	5MM	1600
Raw material	The materials of magnesium oxide board are Magnesia(MGO),	6MM	1330
Size	12002400/ 12202440/ 1200*3000mm	8MM	1000
Thickness	3-20mm	10MM	800
Product capacity	10,000/day	12MM	630
Notes	Other specifications are available	15MM	544

MAIN FEATURES

1). Fireproof

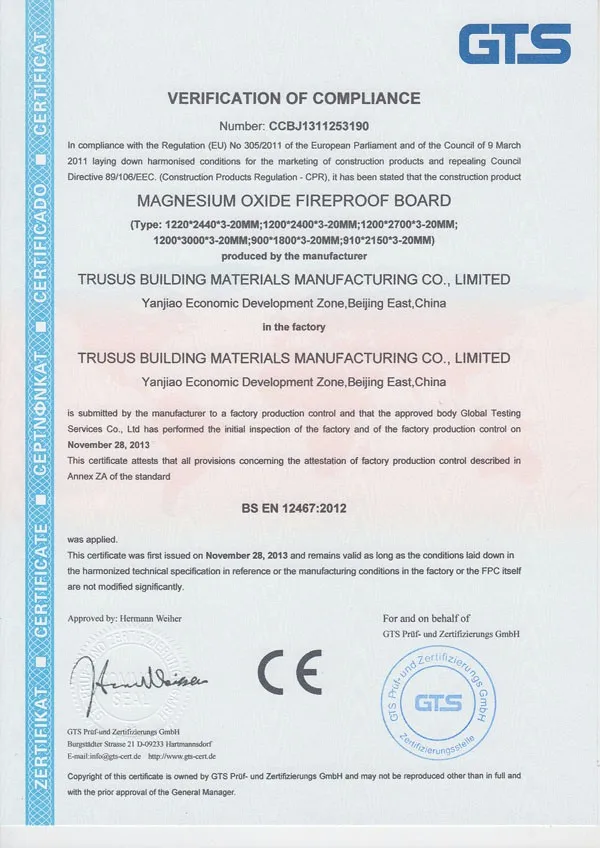

Fire Resistance Environment-Friendly Building Materials High Strength Mgo Partition Wall Board was tested by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). Its fireproof level is rated level A (nonflammable level).
2). Dam proof
Fire Resistance Environment-Friendly Building Materials High Strength Mgo Partition Wall Board is excellent in moisture-resistance. Dry bending strength is 15Mpa. Bending strength under absorbed moisture is 22Mpa.
3). Heat insulation
Fire Resistance Environment-Friendly Building Materials High Strength Mgo Partition Wall Board has heat prevention material incorporated and great feature of heat prevention. Thermal resistance is 1.14m2k/w.
4). Soundproof
Fire Resistance Environment-Friendly Building Materials High Strength Mgo Partition Wall Board is proved to have good noise insulation property after inspected by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). The noise insulation factor of the wall canreach 44dB and 47dB. It has the best noise insulation constitution in China, especially the 95mm wall comprised by the 10mmboard. It is light, it can save time, space, weight and expense. It is a new and high efficient wall.
5). Compact resistance
Fire Resistence Environment-Friendly Building Materials High Strength Mgo Partition Wall Board is a light board. Its density is less than 1.0×1.03kg/m3. At the same time its bending strength and impact resistance is excellent. Also, it will maintain its' quality during construction.

TECHNICAL DATA:

Density		0.95g/cm³
Bending strength		19.5MPa
Typical moisture content		6%
Drying shrinkage		0.26%
Moisture movement		0.50%
Impact strength		6.2KJ/m²
Pull put force of Screw		37.1N/mm
Non combustible performance		According to GB8624-1997, Combustibility is A1 Class.
Fire rating limited		6mm:>2Hours; 12mm:>4Hours;
Thermal Coefficient		0.109W/(m.k)
