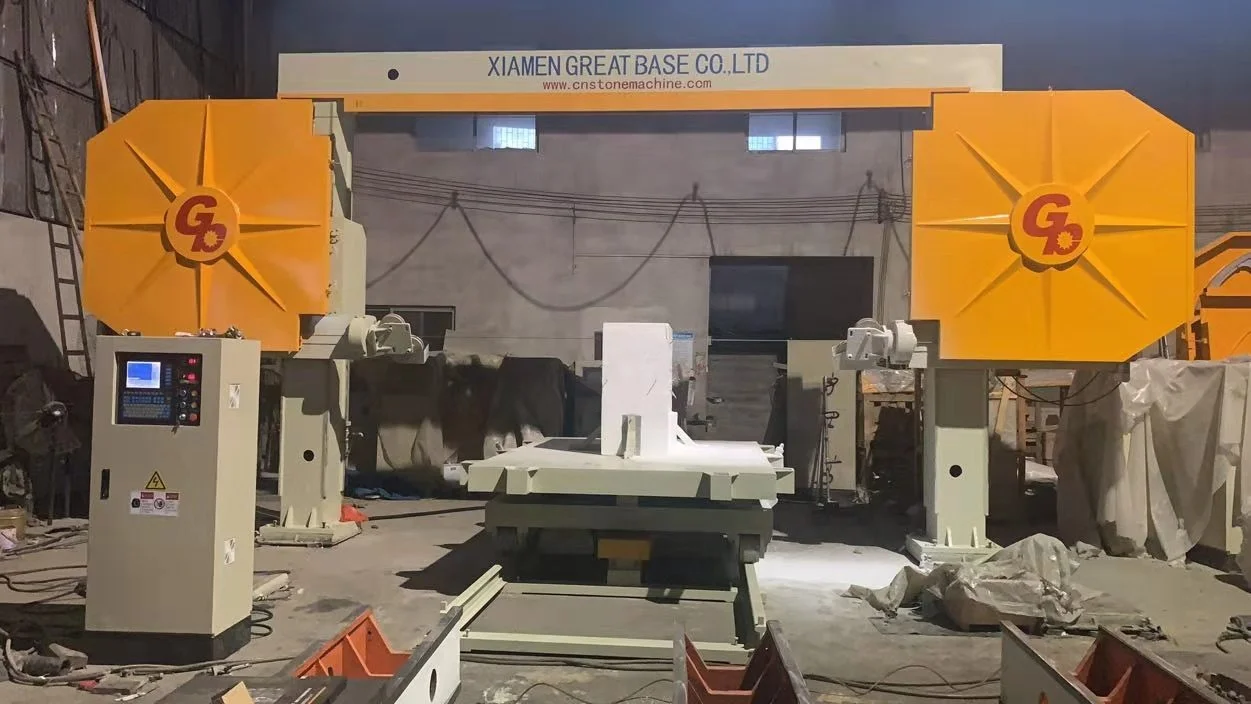

Single Diamond Wire Saw for Stone Cutting

Name

KXJ-1500

KXJ-2200

Saw diameter

Φ8-Φ11mm

Φ8-Φ11mm

Saw gross length

17200mm

21350mm

Line speed

0-40m/s

0-40m/s

Lifting travel of cutter

1600mm

2200mm

Maximum process size

3000X2000X1500mm

3600X2000X2100mm

Production efficiency

1-2m²/h(marble)

0.5-1 m²/h(granite)

1-2m²/h(marble)

0.5-1 m²/h(granite)

Full size

8200X6000X3800mm

9800X7000X5200mm

Gross power

15.74KW

18.49KW

Gross weight

7T

14T

Worktable whether revolve

NO

360º

Function

Major on fixing the side of block and cutting slabs
