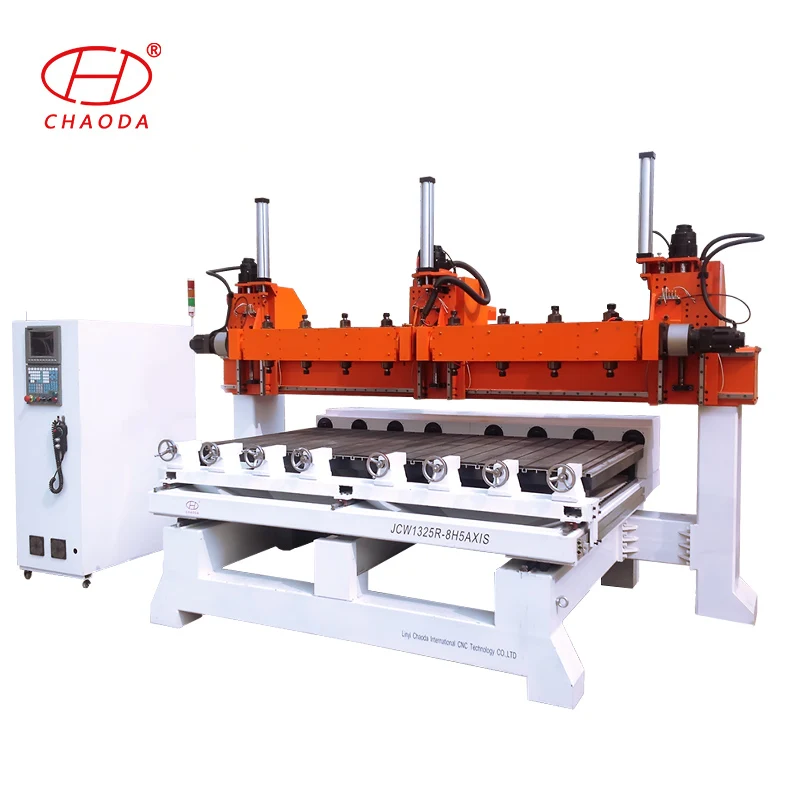

4 6 8 10 12 Heads 5 Axis 3D Rotary Multi Spindle CNC Router, Wood Chair CNC Router

Product Overview

Description

4 6 8 10 12 Heads 5 Axis 3D Rotary Multi Spindle CNC Router, Wood Chair CNC Router



our products include cnc router of 3 axis, 4 axis, 5 axis and 5+1 axis

as well as 3d scanner, laser machine and plasma cutting machine

 we supply not only cnc machines !

but also best solution to your specific project !!

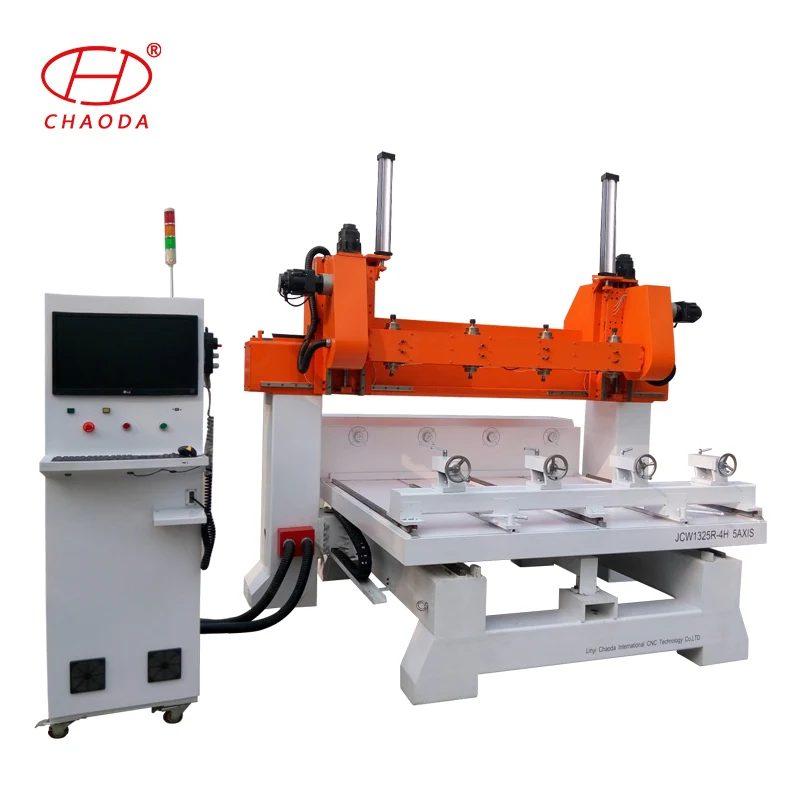

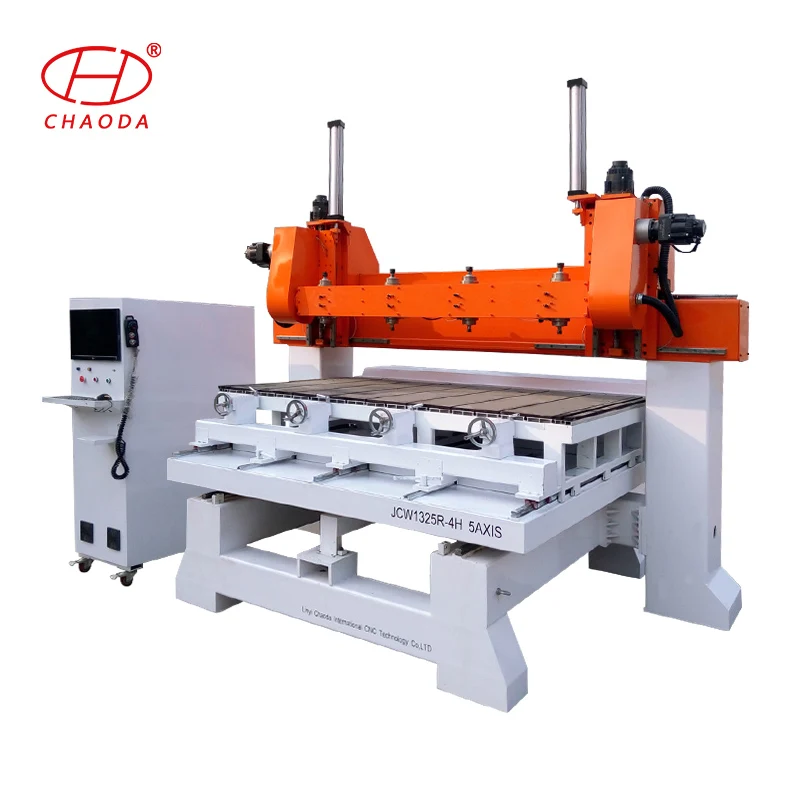

                          Model No. JCW1325R-4H 5AXIS







                                        Machine Features

            a) This item is very suitable for furniture bulk production, multi heads can work at

the same time, also can work alone, many times increasing efficiency.

          b)it is with a movable table,when you produce the panel furniture,you can put the table on.

This saved cost of buying another flat machine with multi head.

c) table movement, long time use no distortion, more precise positioning accuracy.

                                       d)  well compatibility in software: all kind of 3D carving softwares.

                                      Technical Parameter

Rotary working size	1200mm ( L)* 500mm (D)* 4 pieces
Flat working size	1200mm ( L)* 500mm (W)* 4 pieces
Spindle power	3.5KW air cooled spindle (4 pieces)
Table	Removable,T-slot with clamps
Working mode	Japan YASKAWA servo motor and driver
Operating system	5 axis Syntec
Command code	G code(*uoo,*nc,*mmg, *plt)
Working voltage	3 phase AC380V 50Hz
Running circumustance	Temperature: 0°C~45°C relative humidity: 30%~75%

                                        Product Samples

                    this machine can make different kinds of sofa legs, table legs, bed legs, cabinet legs,

 stair handrails, also can make 3D sculptures and complex artworks, can easily engrave

360 degree Human body, Buddhist statues,etc.

>> products made by rotary device



>> products made by flat table

                             Related Machines You May Like

>> 4 axis multi spindle cnc machines

>> 3d scanner



                        Product Certificates (CE,BV,TUV,SGS)

                            Customer Visiting & Training



                                       Customer Feedback



                                      Company Information

 Our factory was established in 2002 and covers 40000 Square meters. we have experienced and

professional engineers who devote themselves to machines' research, development, production,

and after- sale service .Our machines have won praise from customers worldwide and with very

good reputation in this field.
