FM600 low temperature vacuum bee extractor honey processing machine
- Category: Honey Processing Machines >>>
- Supplier: Xinxiang Sanyuantang Machine Co. Ltd.
Share on (60655281179):
Product Overview
Description

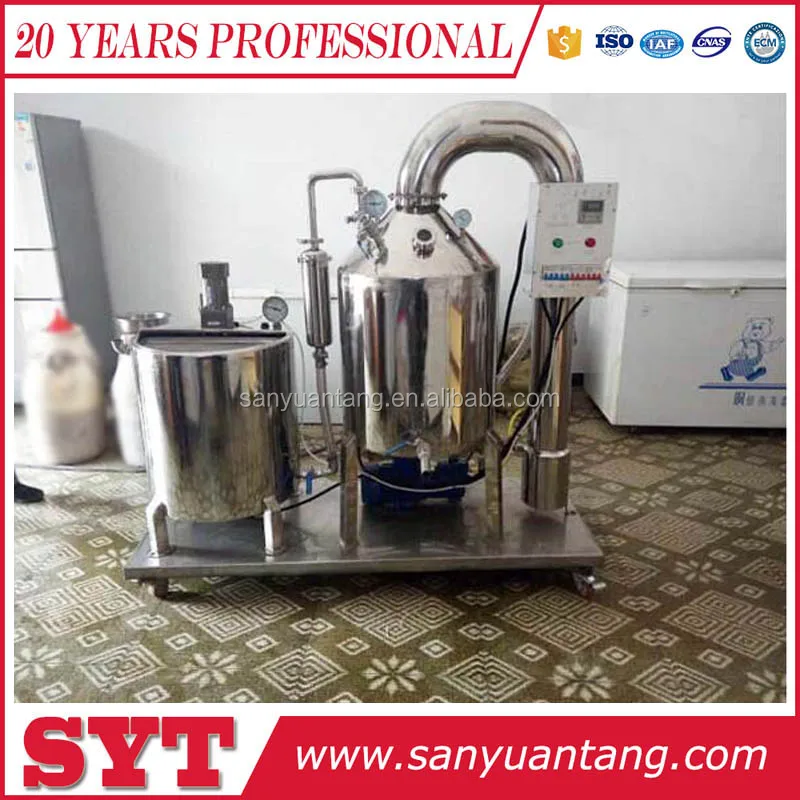

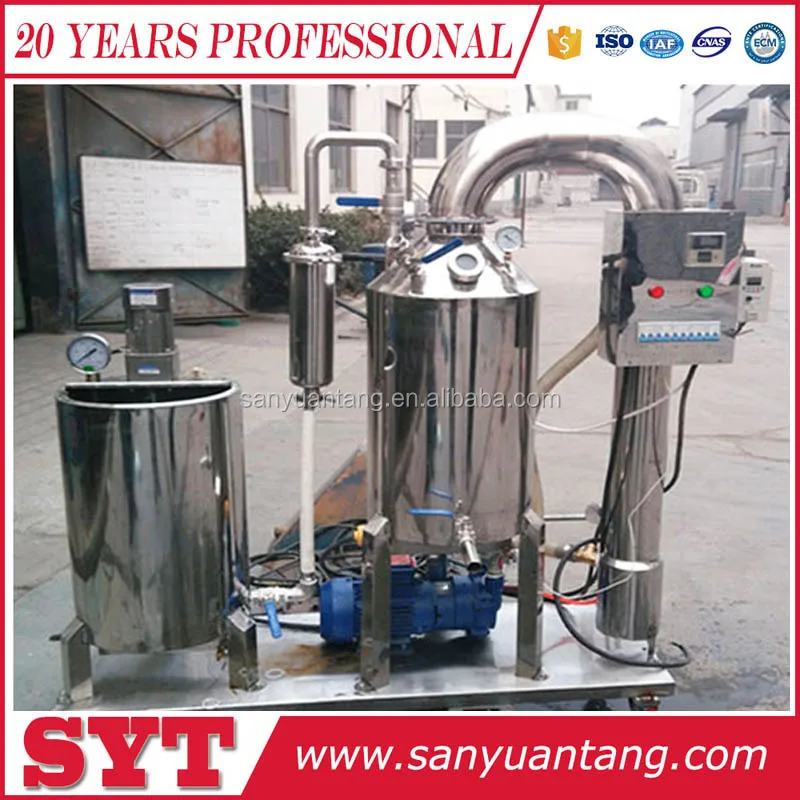

FM600 low temperature vacuum bee extractor honey processing machine
Product Description
Characteristics of honey processing equipment
honey extrator video,visit to https://youtu.be/2HvREerZdpE
| 1 | This equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey |
| 2 | Achieve high vacuum and low concentration temperature |
| 3 | Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump |
| 4 | After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good. |
| 5 | Good designed of the structure make the machine small, low noise |
| 6 | Honey thickener vacuum concentrator to increase the concentration of honey |
Honey processing equipment technological process
Preheat - melt crystal filter -- -- -- -- -- -- enrichment
Honey vacuum concentrating equipment technical parameters
Structural drawing:
1. Thermometer 2. Pipe filter 3. Exhaust port 4. Thermometer 5. Viewing port
6. Vacuum gauge 7. Electric control box 8. Condenser pipe 9. Concentrate tank
10. Water outlet 11. Water outlet 12. Honey outlet 13. Vacuum pump
14. Heater 15. Water outlet 16. Pedestal 17. Heater 18. Preheating tank
19. Filter net 20. Motor
Honey processing equipment parameters
600 mm diameter
The height to 600 mm
The overall volume of 138 l
The effective volume of 100-100 l
A single heating tube (preheating tank and vacuum concentrator) power is 6 kw
Vacuum pump SK - 0.8 voltage 380 v power 2.2 KW
Vacuum is approximately equal to 0.09
: preheating tank motor slowdown micromotor voltage 220 v power 250 w ratio 1:25 60 r/min
Production capacity: class from 1.2 to 1.5 t
Concentrated temperature: 50 ℃ or less
Vacuum: 0.092 Mpa or less
The maximum total power/power: 14.5 Kw / 380 v

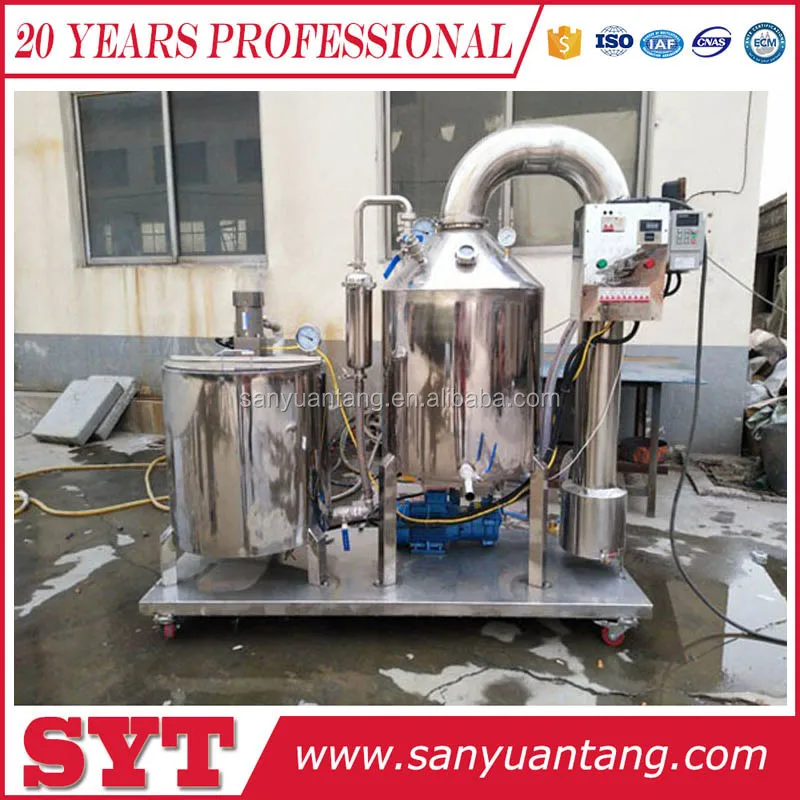

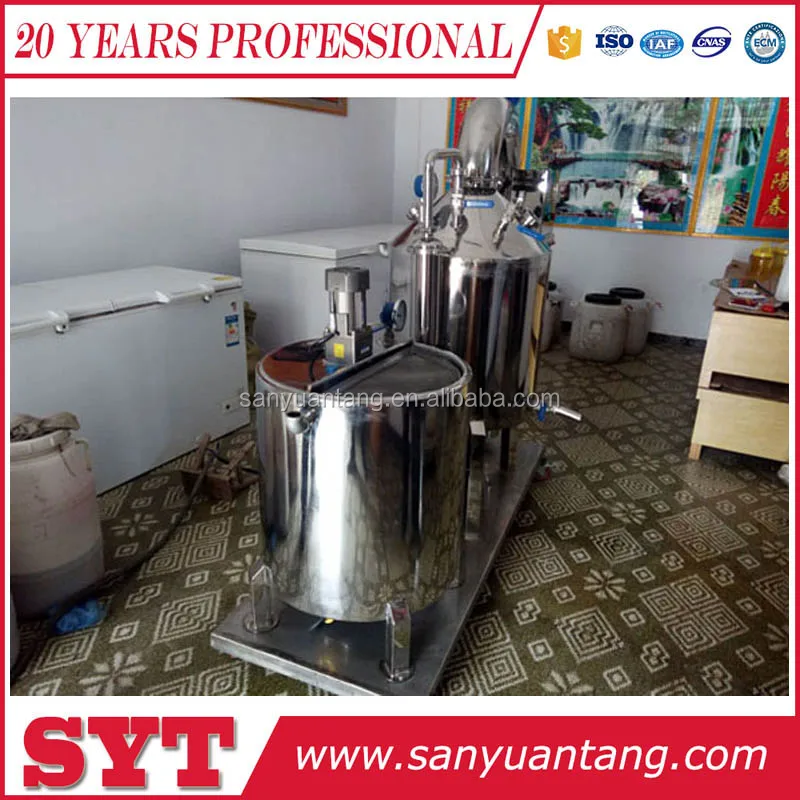

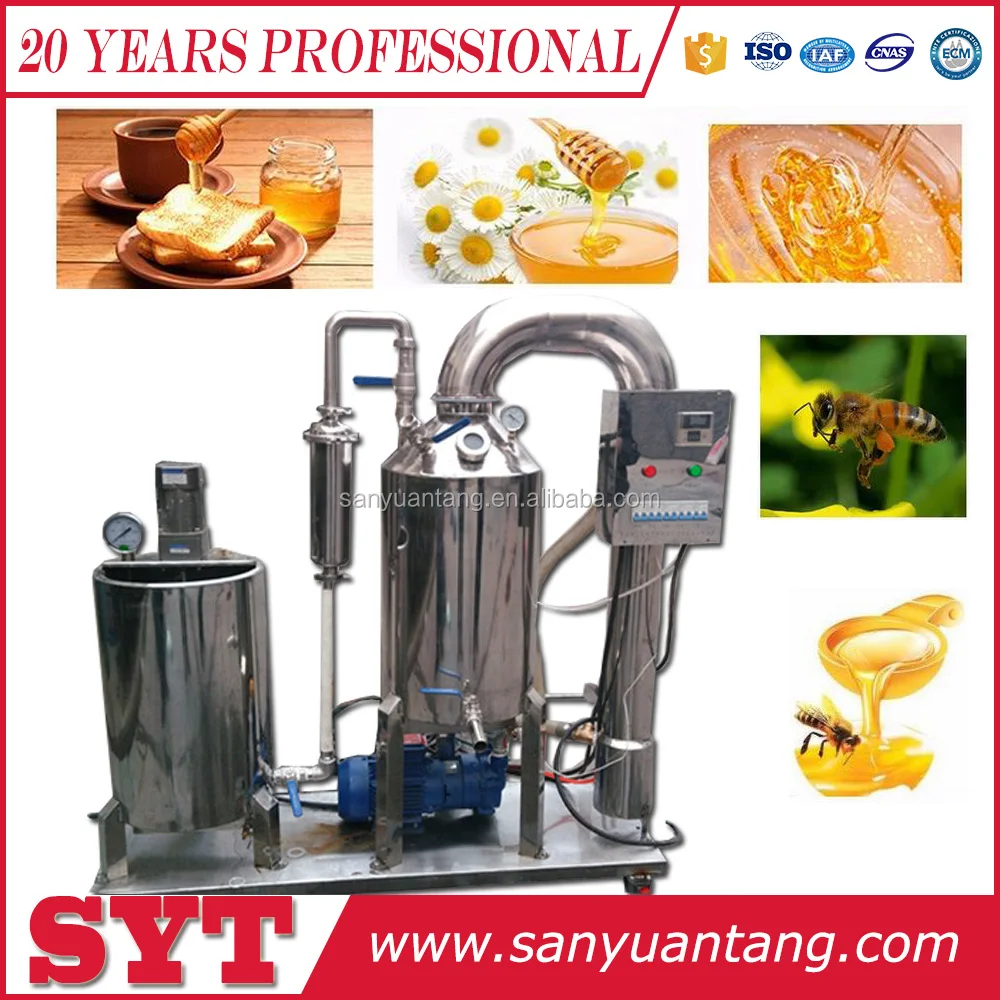

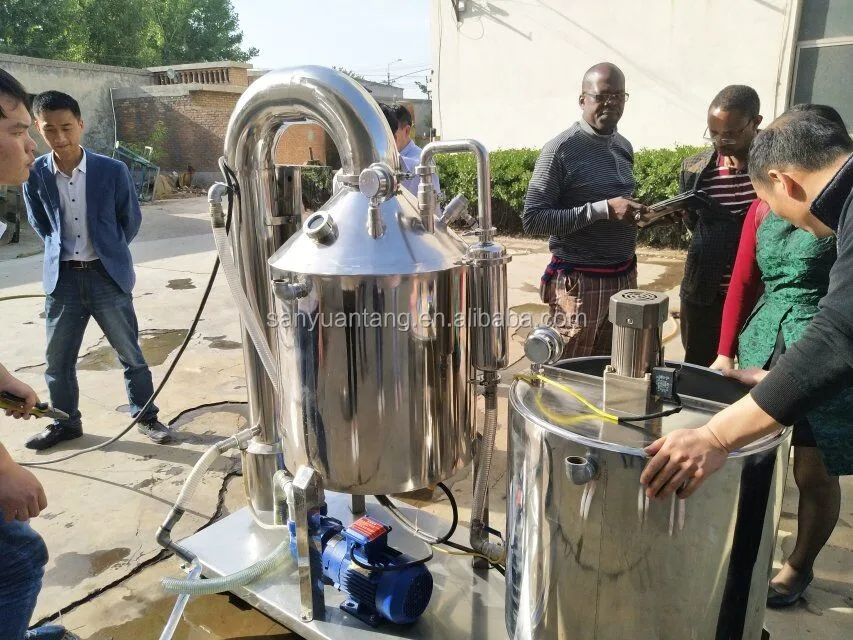

Honey processing equipment display
Our Services
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
Packaging & Shipping
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship Screw Conveyor by sea way.

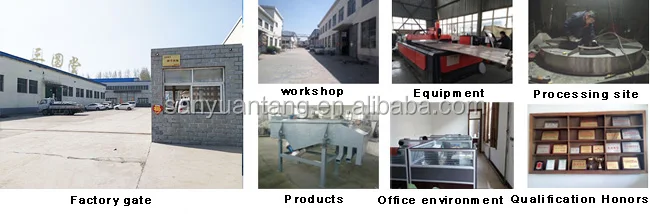

Company Information
Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.
At present, the main range of products include kinds of series of Vibrating screens, Vibrating separator-filter, Ultrasonic vibrating screens, Sifting machines, Filtering machines, Linear vibrating screens, Testing screens, Vibrating conveyers, etc.
These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc. Our products have seven national patents. CE and ISO certification.The quality and technology of our products have reached the international advanced standard.
FAQ
1: What are the payment terms?
A: We usually accept payment by T/T, Western Union.2 .size any of the products be custom imprinted?
A: The mold is available to be customized.
3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company,
4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping and before packing, we will
confirm product undamaged, otherwise, please contact within 2days.
Because we've bought insurance for you, we or shipping company will be responsible!
5.If you are interested in our spiral conveyer, pls provide me answers of the following question:
a. What is your apply field?
b. What materials to be trasport?
c. How many is yours material size?
d. How many capacity do you need?
e.How far is yours transporting distance?
