China square tube cutting machine with automatic feeding

Product Overview

Description

China square tube cutting machine with automatic feeding



Main specification

1.The machine adopt man-machine interface, PLC control or Single-chip computerl, operating simple.

2.Using HSS saw web:250-400mm,Standard saw web is Φ350mm.

3.Special design, multiple gears, suitable for heavy cutting ,precision and stability.

4.Feeding, clamping, cutting off with automatic circulation.

5.PLC or Single-chip control, can choose many times feeding(One time 6-700mm).

6.Using cooling fluid. cooling motor 0.09KW to ensure the smooth workpiece section.

7.Using hydraulic pressure oil.

8.Using special clamp mold, several pipes could be cut together according to the different size of pipe diameter.

Technical parameter

Specification/Model	MC-425CNC
sawing scale	Applicable sawblade 250-400mm
	rectangle pipe		120mm x 90mm
	square pipe		110mm×110mm
	round pipe		125mm
	round bar		75mm
	square bar		65mm×65mm
Size	1600×1850mm×1600mm
Weight	800kg
Main motor(KW)		3.5-4.0KW
Main shaft speed(RPM)		88/44
Feeding length Standard		5-700mm*time after time
Oil motor system		3.5KW motor,18L pump
Cooling system		0.09KW motor

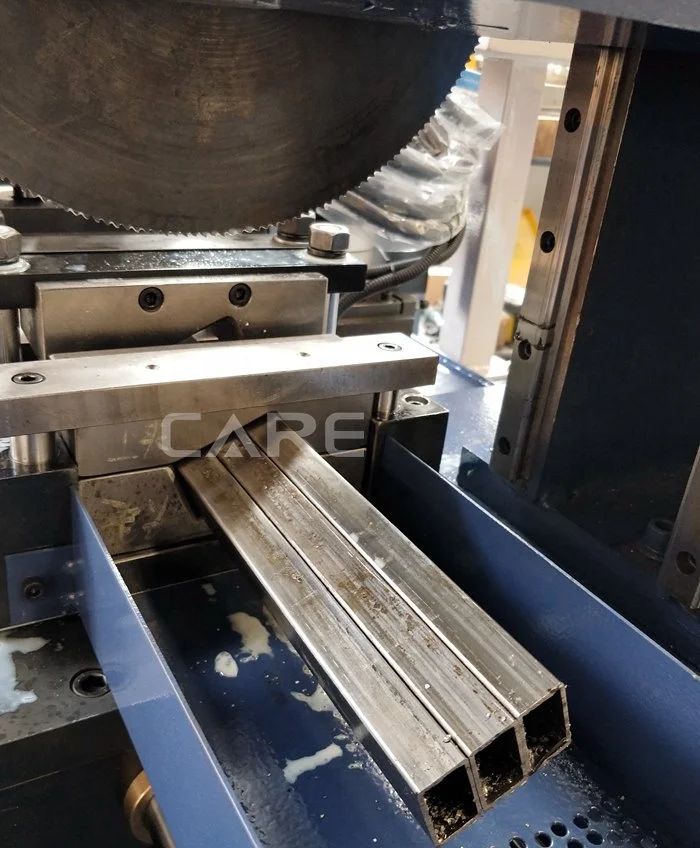

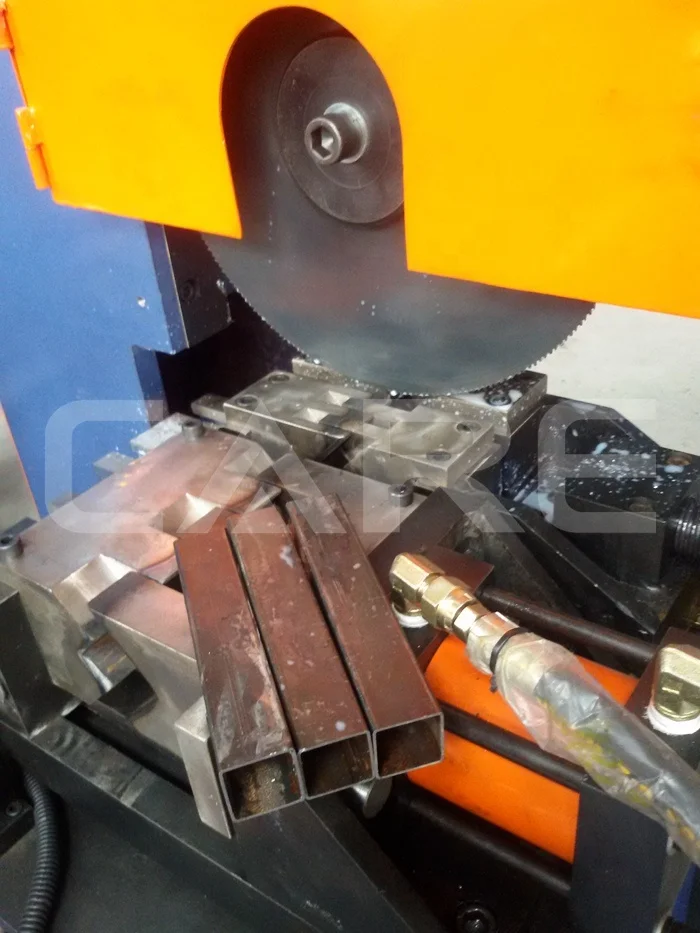

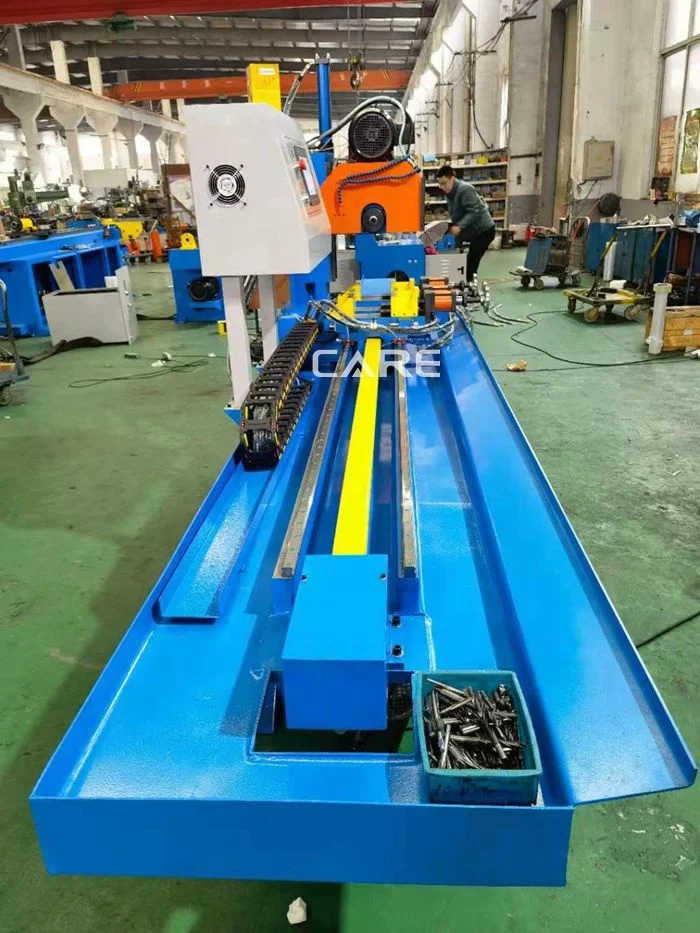

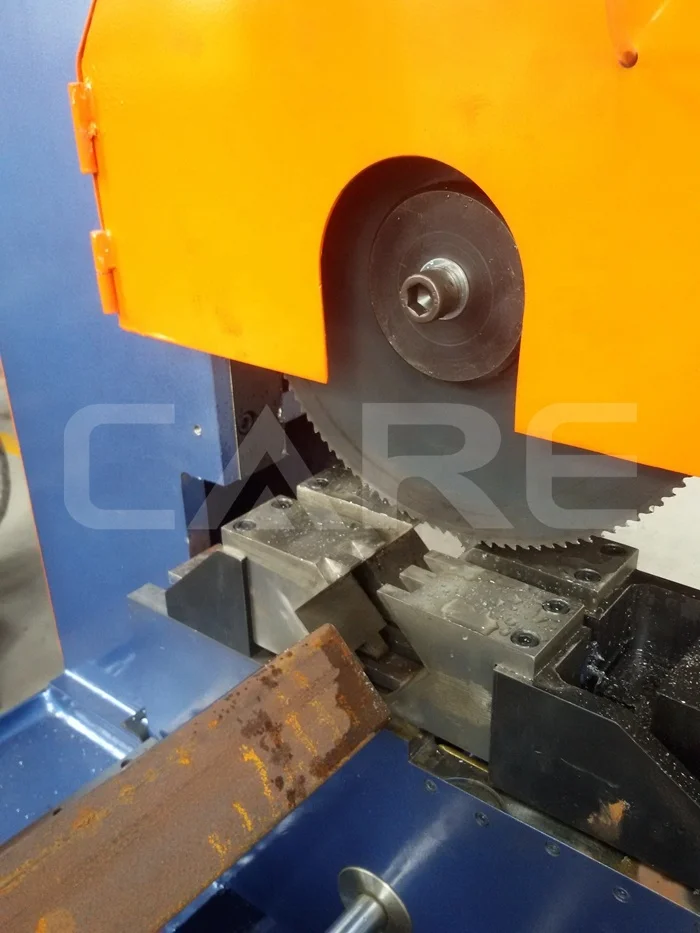

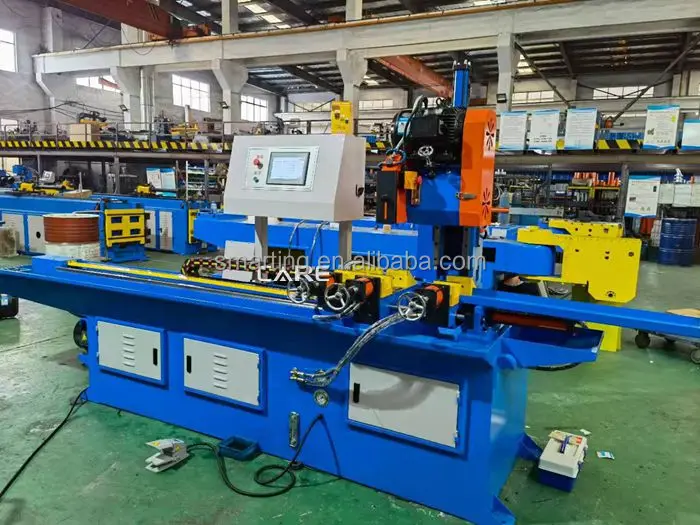

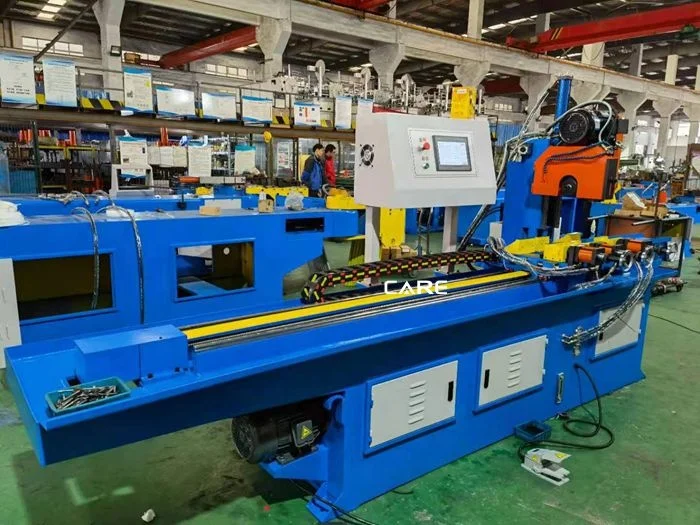

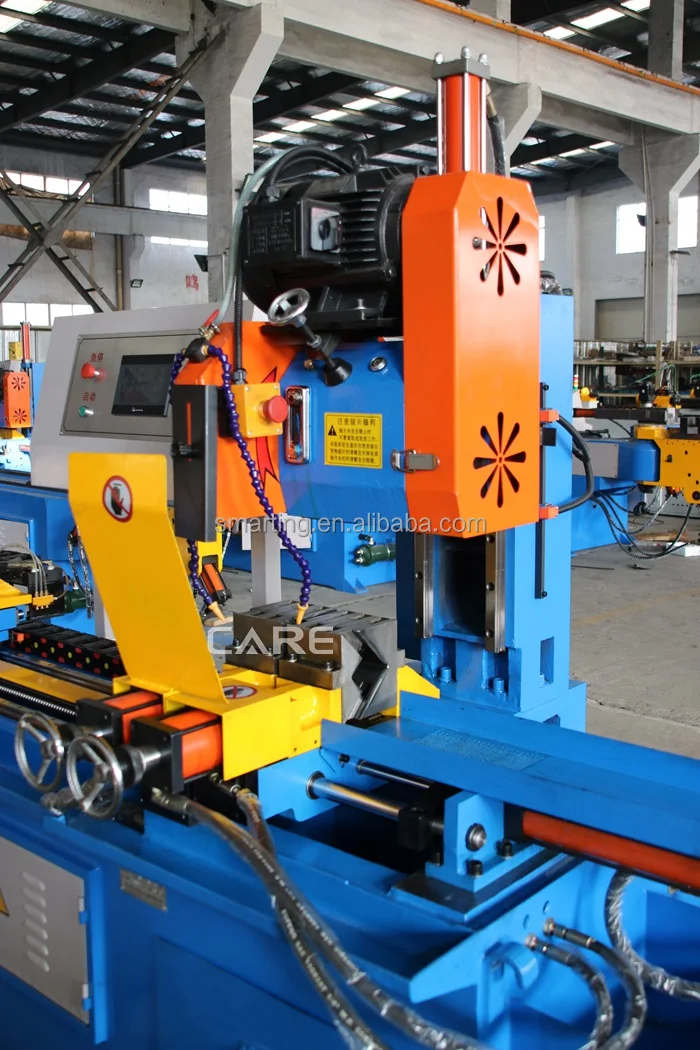

Machine photo
