Flat Roof Triangle Solar Structure solar panel clamp Roof Mount Solar Power Plant Rack Aluminium Tracker Support Clamp N7 C7
- Category: Solar Mounting System >>>
- Supplier: Xiamen Nacyc Energy Technology Co. Ltd.
Share on (60655708005):
Product Overview
Description
Solar Panel Modules Orientation :
Style 01 - Landscape
Style 02 - Portrait
Installation Instructions:

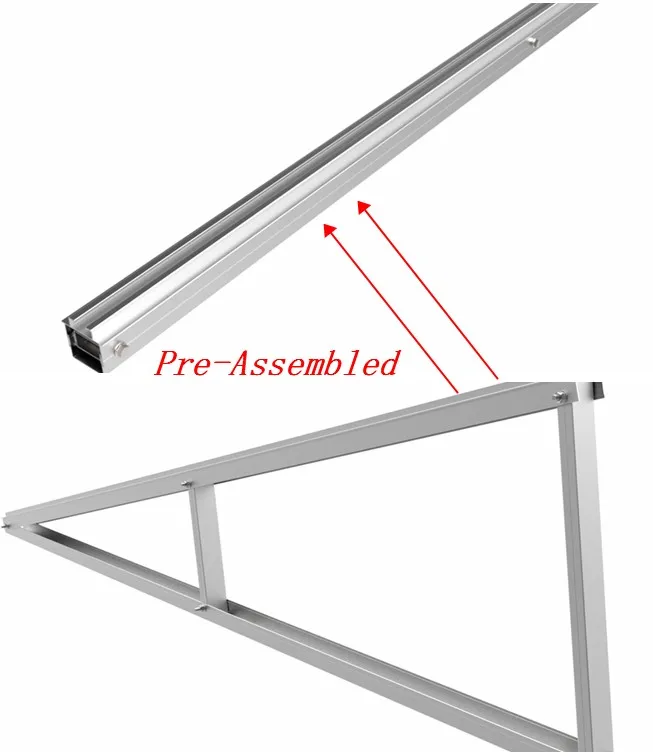

Step 1.Placing the Pre-assembled Tripod
Put the tripod on concrete block (refer to the size on the drawings).
Step 2.Unfolding the Tripod
Loosen the screws in the support end
and the middle .
Pull up the rail
Pull up the rail
Completed Tripod Bracket
Unfold the front suppport leg
and rear support leg, to match
the hole sites on rail and mudsill,
tighten M8×80 bolts.
and rear support leg, to match
the hole sites on rail and mudsill,
tighten M8×80 bolts.

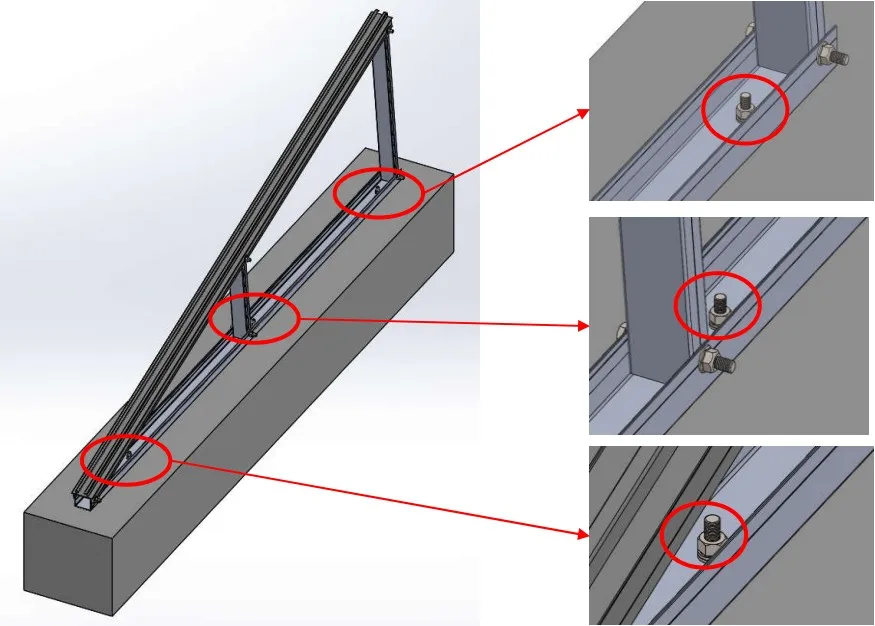

Step 3.Fixing the Tripod
Use three M8 expansion bolts to fix tripod on the concrete block.
Step 4.Mounting the Modules and Clamps

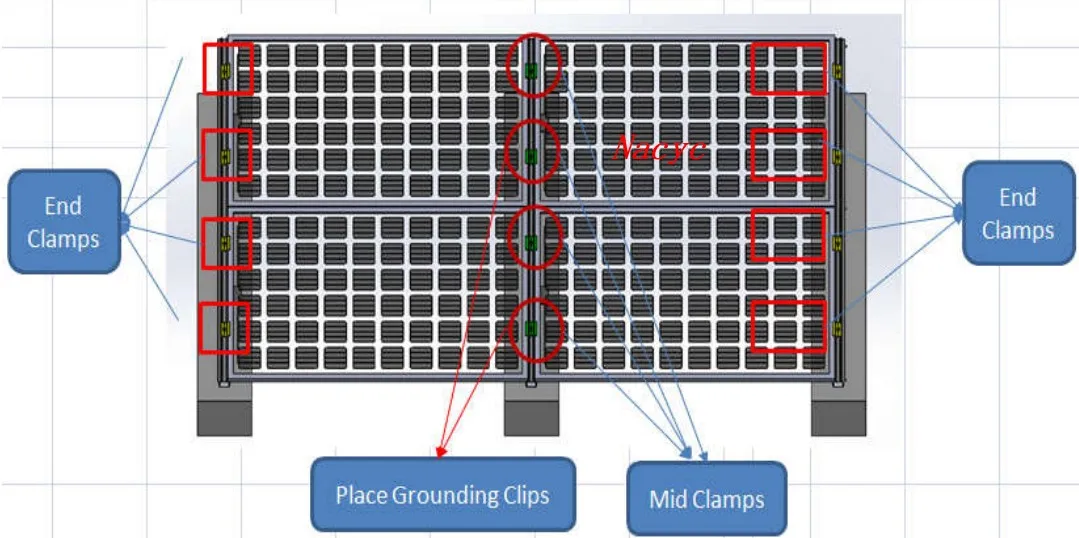

Put end clamps and mid clamps at the 1/4 and 3/4 length of module
and put the grounding clips between modules.
Tighten the mid clamps
(mid clamps are used between modules）
Install the end clamp
（use end clamp to fix the ends of arrays）
Step 5.Completed
The installation are finished when all steps completed.
Application :
Solar Panel Bracket-Tripod (Pre-assembled )
Install on Ground (Concrete Block)
Install on Flat Roof (Drill the Bolts&Nuts)
