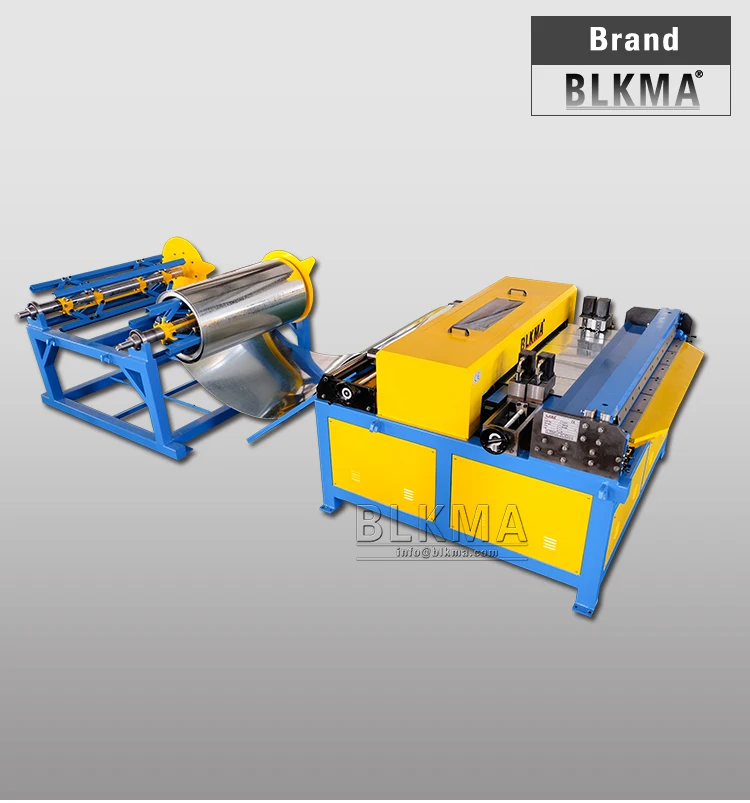

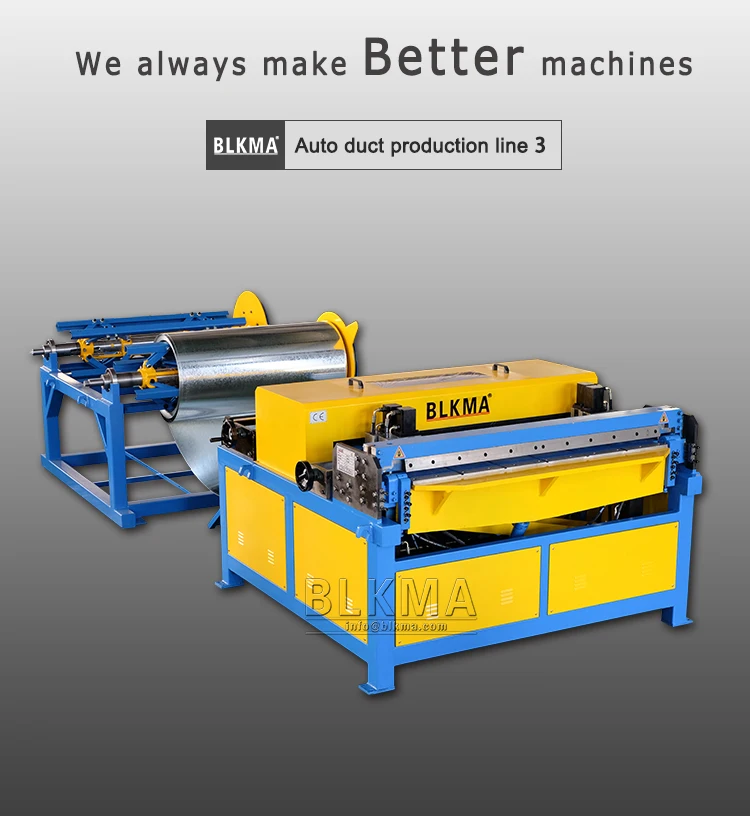

ventilation auto duct metal sheet forming machine / air duct production line

Product Overview

Description

ventilation auto duct metal sheet forming machine / air duct production line

YOUTUBE VIDEO

https://youtu.be/yJkN4pOt_vg



Main imported Configuration:

1. Japan Mitsubishi CNC system+Schneider electrical system

2. Beijing Huade or hydraulic system from Taiwan

3. Japan Omron encoder



Basic Configuration:

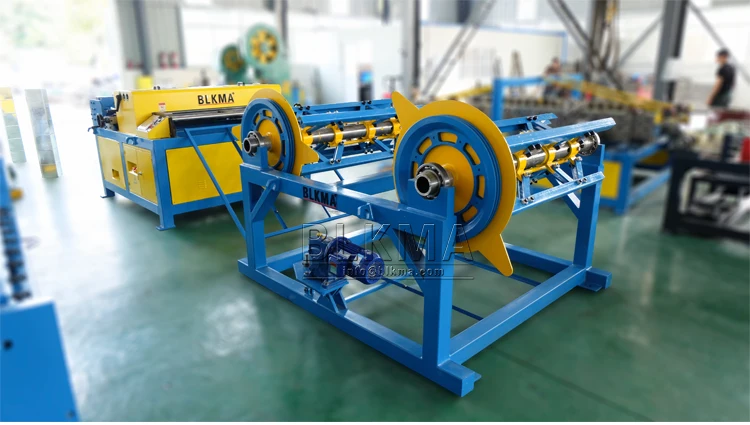

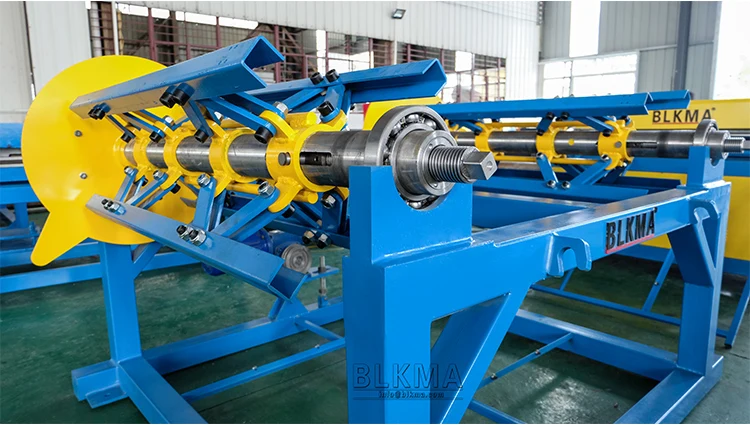

1. One electric coil cradle(two material trays)

2. One set leveling and beading equipment

3. Hydraulic angle-shearing machine with four sets of die

4. Hydraulic sheet-shearing machine,hydraulic bending machine,hydraulic press machine

5. A set of CNC computer control system and production software

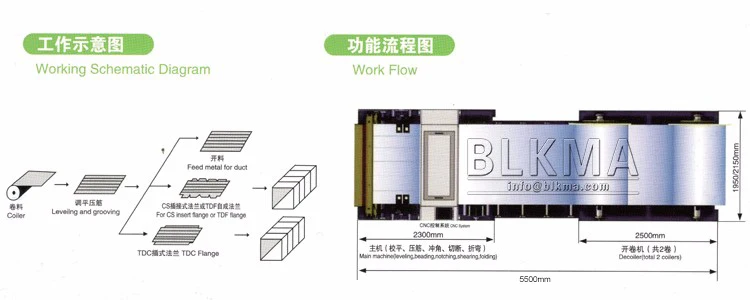

Working Flow:

Main Technical Parameters:

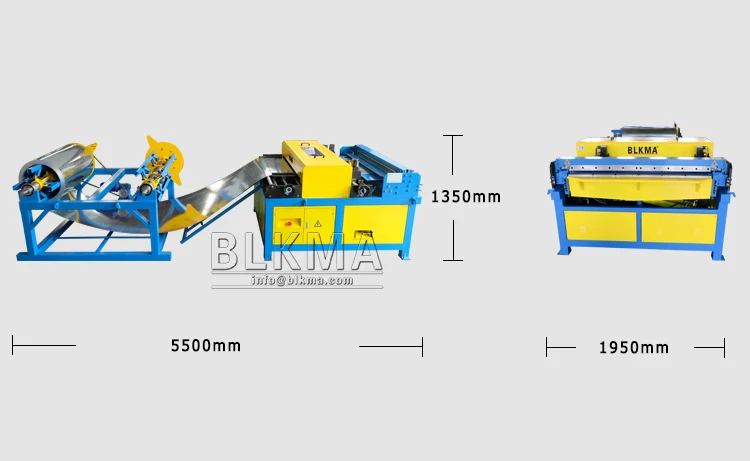

Model	Sheeting thickness (mm)	Max width (mm)	Max working speed (m/min)	Max weight of sending coil (T)	Dimension L*W*H (mm)	Power (kw)	Weight (T)
ADL-3-1300	0.5-1.2	1300	15	7	5500*1950*1350	7	3.5
ADL-3-1500	0.5-1.2	1500	15	7	5500*2150*1350	8.5	4

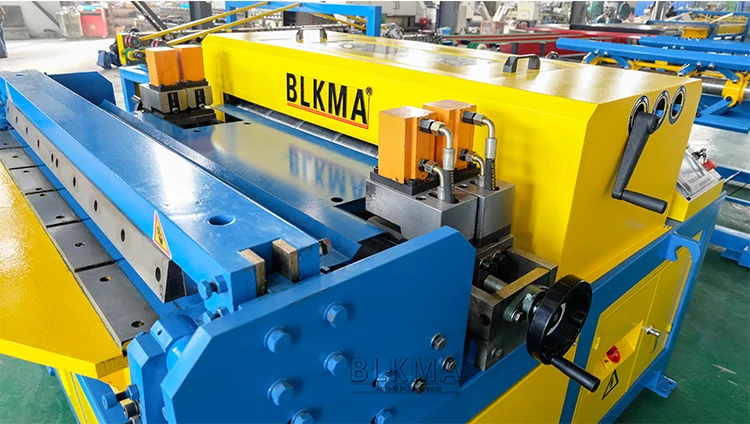

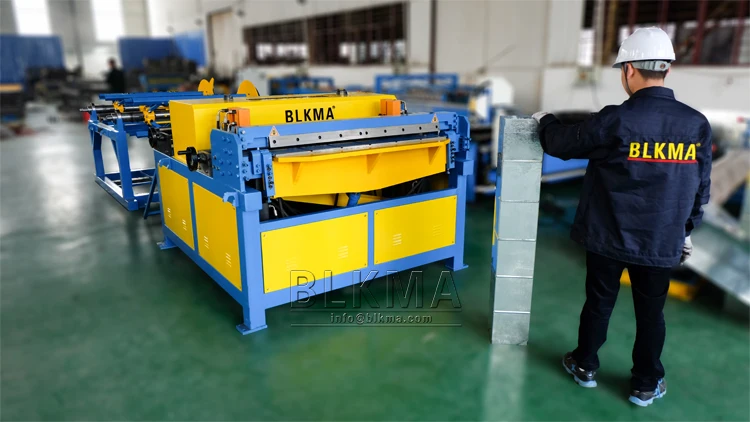

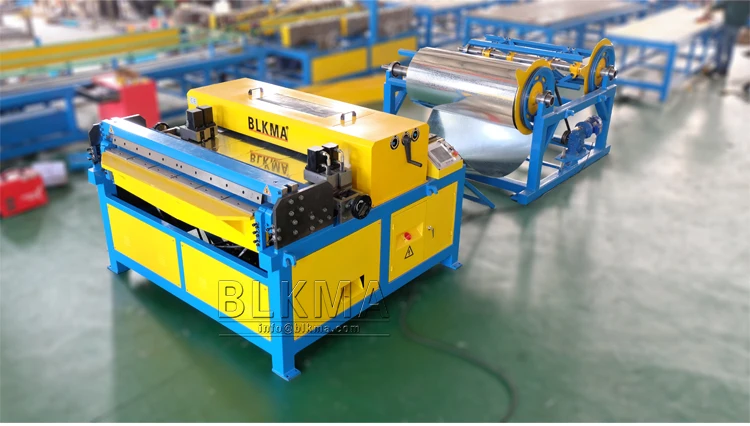

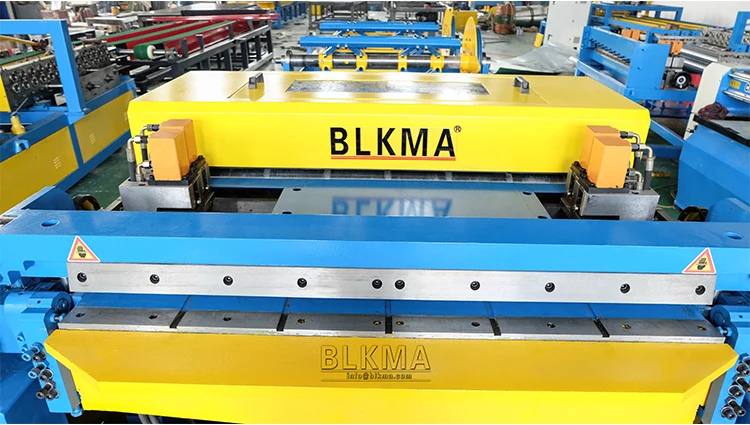

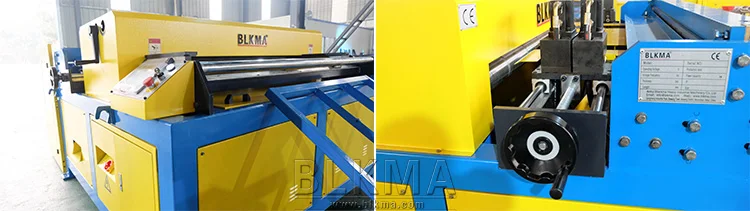

Detailed Images:







FAQ:

1. Are you manufacturer or trading company?

    We are manufacturer.

 2. What shall we do if don't know how to operate your machine?
    We can dispatch our engineers to your country and you can also send your engineers to our

    factory for learning operation. Besides, there are detailed installation and operating instructions

    attached, it is very simple. We have telephone and email support at 24 hours per day.



 3. What are your payment terms?
    We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance

    before the shipment.



 4. OEM is available?

    Yes.



 5. What's your package?

    There're two package methods. One method is that machines will be fixed directly in a whole

    container without wooden box when total machines dimensions need a container, in this

    situation, machines will be transported by FCL (full container load). Another method is that

    machines will be packaged with wooden box when total machines dimensions are small which

    does not need a whole container, in this situation, machines will be transported by LCL (less

    than container load).

    Both of these two package methods are safe.
