Electrical composite silver contact points for switch socket
- Category: Electrical Contacts and Contact Materials >>>
- Supplier: Wenzhou Saijin Import And Export Co. Ltd.
Share on (60656178158):
Product Overview
Description
Product Description
| Product Description | electrical composite silver contact points | ||
| Capabilities Applied/Processes | Progressive Die Metal Stamping
| ||
| Equipment Used to Manufacture Part | 45 Ton Punch Press Cold Heading Toggle | ||
| Test Equipment | Hardness tester,Chemical analysis,Digital Measuring Projector, Dynamic Balancing Tester, Plating Tester | ||
| Tightest Tolerances | Flatness of ±0.05 | ||
| Material Used | Terminal: Brass-CDA260,Copper ,Phosphor copper ,Beryllium Copper Rivet:
| ||
| Surface Treatment | Silver/Zinc/Nickel/Tin/Chrome Plating, Pickling, Powder Coating,Hot Galvanized,Polishing,Brushing, etc. | ||
| In process testing/inspection performed | Full Dimensional Contact Torque | ||
| Features | Customized Design, Small Order Allowed, Sample Product Available, Competitive Price | ||
| Industry for Use | Automotive Switch , Socket, Relay | ||
| Delivery Location | China | ||
| Standards Met | Customer supplied print, 2D,3D CAD Drawing | ||
| Product Name | movable contact plate for home wall switch |
1.Certification: ISO9001, SGS, RoHS
2.Material: AgSnO2, AgSnOInO, Ag/Cu, AgCdO, AgZnO2, Ag,Cu,etc
3.Place of origin: Wenzhou,China(mainland)
4.Specification: All dimensions are fully according to customers requireme

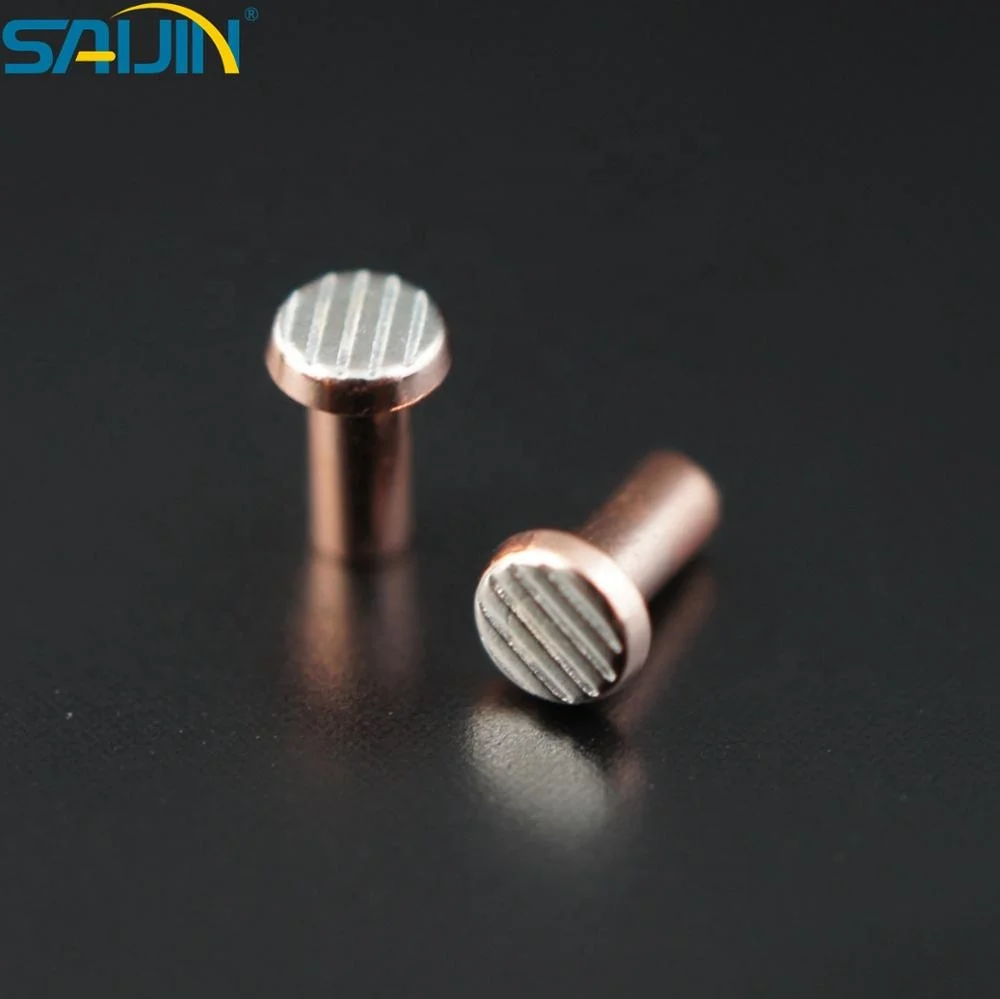

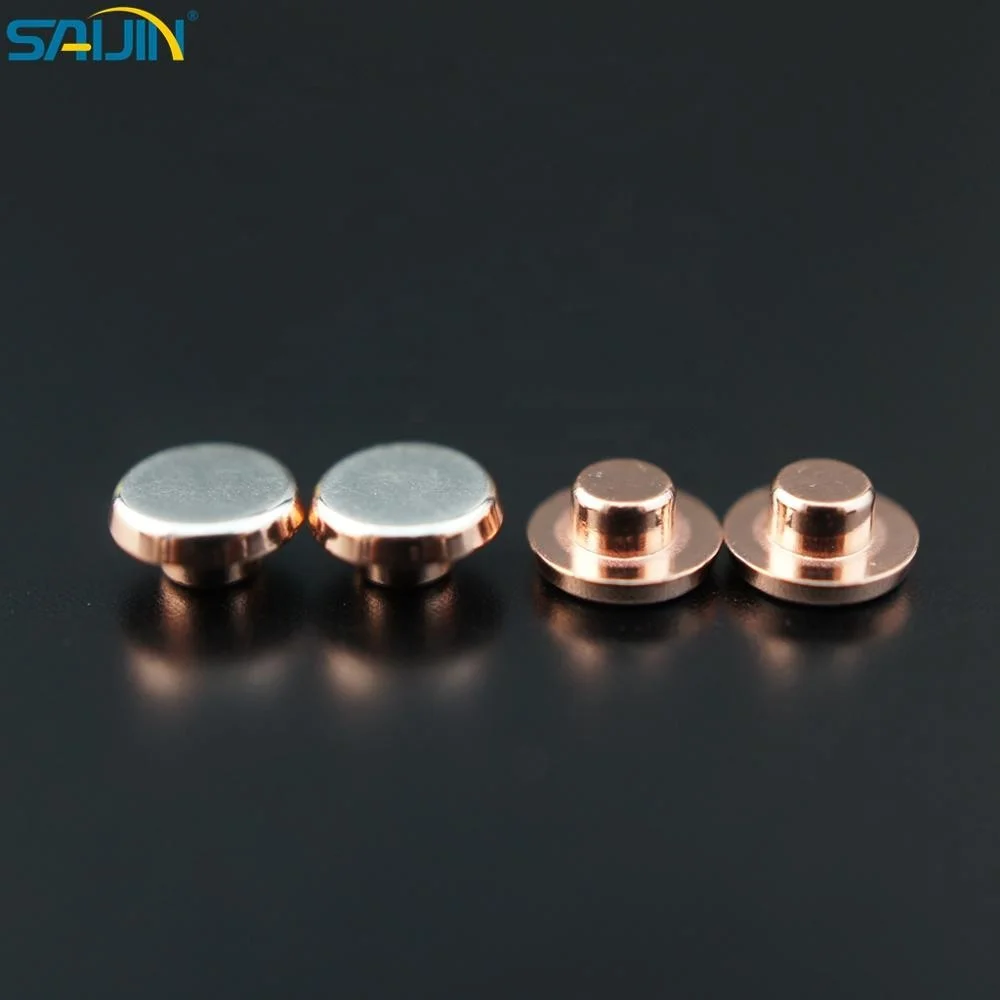

1.Silver rivet and Ag/Cu copper contact bimetal rivet:
Pure silver has a high level of electrical and thermal conductivity, good plasticity and arc corrosion resistance, as well as a very low contact resistance.
2.AgCu copper electrical rivet:
This contact has good electrical conductivity and its surface is not liable to oxidization.
3.AgNi /Cu copper electrical bimetal contact rivet:
In low voltage engineering, this contact is widely used in AC switches as an electrical contact.
4.AgSnO2 and AgSnO2 In2O3 and electrical bimetal copper contact rivet:
AgSnO2 and AgSnO2In2O3 are the ideal environment-protecting materials for substituting AgCdO.
5.AgCdO/Cu electrical bimetal contact rivet:
This contact includes AgCdO10, AgCdO12, AgCdO15, and this kind of electrical contact has one of the most important materials in silver - metal oxide contact material.
6.AgZnO rivet and AgZnO/Cu electrical bimetal contact rivet:
The oxide of this contactor is more thermally stable than CdO.
