Product Overview

Description



Product Description

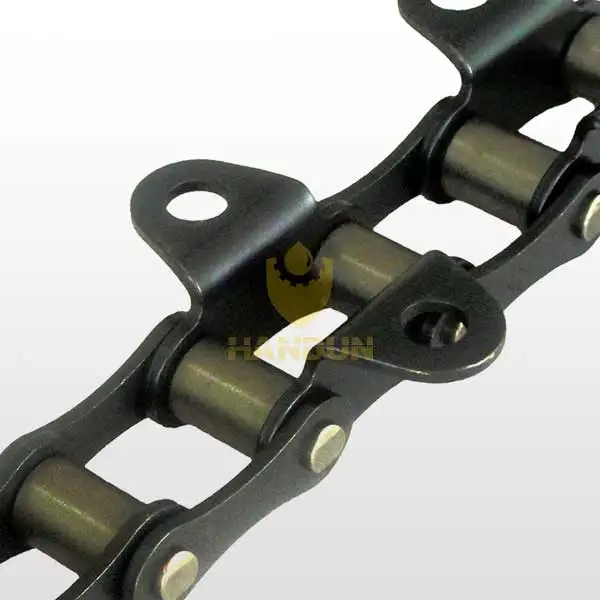

Agricultural Combine Harvester ZGS38 chain with A1 attachment


Chain No
ZGS38, S38, TRD38
Plate type: S type, Straight PlateStrength: 2.5mm, 3.0mm, 3.2mm
Material
Carbon Steel
Color
Grey, Black, Blue
Standard
GB, GOST
Note
If your applications need higher strength also good wear resistance, Please contact with us for special materials.




Chain Application:
Agricultural Combine Harvester ZGS38 chain with A1 attachment

Our RSH Series roller chains are suitable for high speed, heavy load impact or dirt applications such as steel mill, agricultural machine, etc. It need high strength, impact and wear resistance.

If you need our RS or RSE type roller chain for lower speed and light load applications, please contact with us.

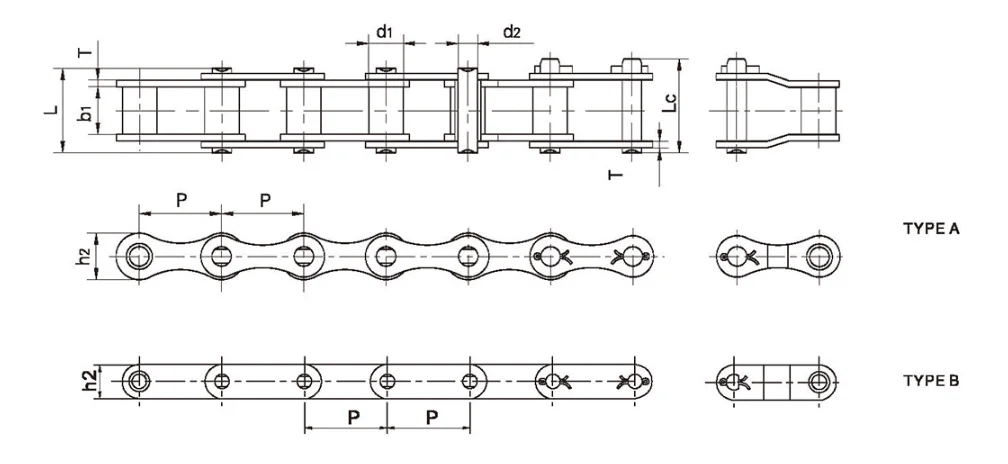

Size Information


If you can not find the same size from below form, please contact with us directly.




Chain SIze
Pitch
mm
Roller Diameter
mm
Inner Width
mm
Plate Thickness
mm
Tensile Strength(kN)
S38
38
16
22
21.5
3.0
ZGS38-3
38
15.88
22
21.3
2.5
ZGS38L-3
38
16.5
22
21.3
2.5
ZGS38-4
38
15.88
22
21.3
2.8
ZGS38L-4
38
16.5
22
21.3
2.8
ZGS38-5
38
15.88
22
21.3
3.2
ZGS38L-5
38
16.5
22
21.3
3.2
ZGC38-3
38
15.88
22
21.3
2.5
ZGC38L-3
38
16.5
22
21.3
2.5
ZGC38-4
38
15.88
22
21.3
3.0
ZGC38L-4
38
16.5
22
21.3
3.0
ZGC38-5
38
15.88
22
21.3
3.2
ZGC38L-5
38
16.5
22
21.3
3.2

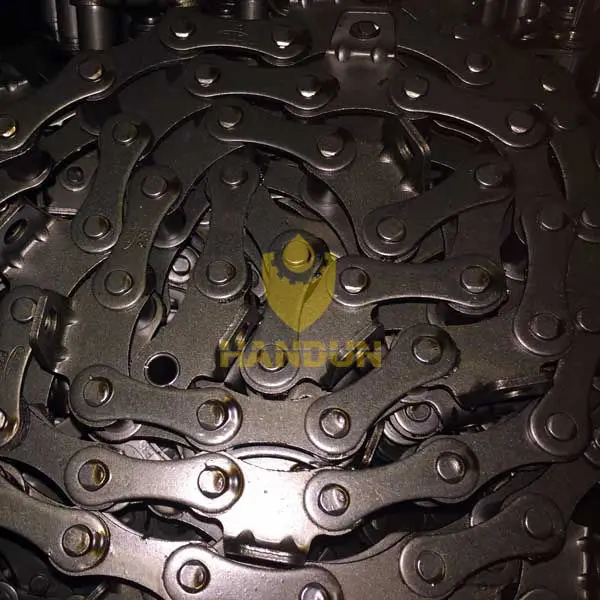

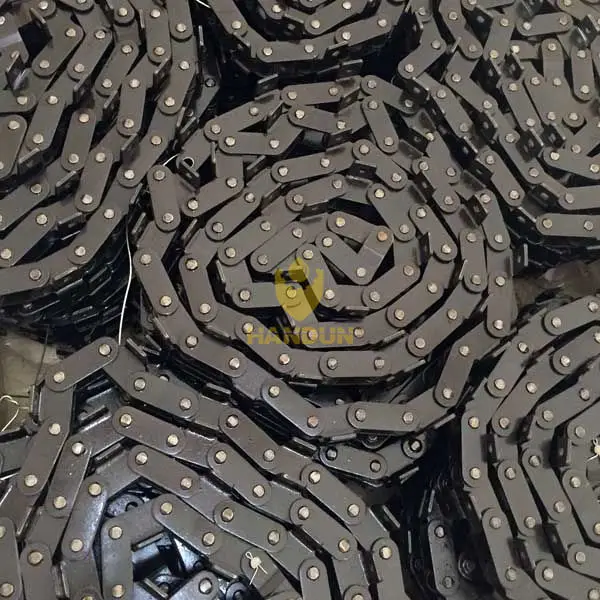

Detailed Images

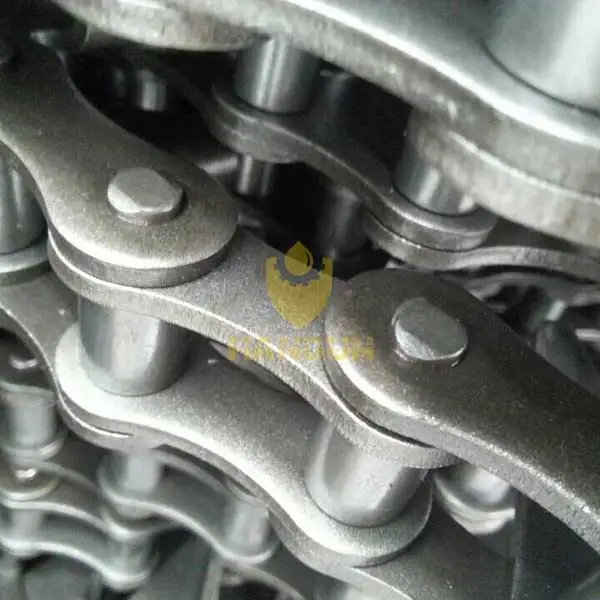

Our RSH series chain with good apperance, perfect clearance between chain parts, two sides riveted pin as usually. Four sides riveted pin also are available.






Related Products




Packing&Shipping


Usually the standard roller is cut into 5 meter(roller link each end) or 10FT(including 1 CL), then in plastic bag and carton box. Outer packed in pallet, poly-wood cases or steel net cases. Special links or reel packing also are available. If you need special packing way, please contact with us.




After Sales Service


Technical Support
The above chart shows the most common chain failures and causes, but not the only ones.

If you face problem of chain broken, it is best to contact with us with broken parts photoes and chain application information.


Company Introduction


Hangzhou Handun Machinery Co., Ltd is the trading company of Zhuji Chain General Factory. As China engineer chain specialist, our factory has started in 1972, produced full range of industry chains. Since 2005, we started to cooperate with HITACHI, focusing on design and produce high quality engineer chains. Now, our products have been extended to industry chain, engineer sprockets, couplings and chain conveyor system.
We have 3 brands to serve our customers: HANDUN brand for roller chain and agricultural chain, TJ brand for conveyor chain. Since 2018, we start to supply JOSO brand for high precision top quality engineer chain in China.
Serving lots of industry in China and cooperating with many famous company in the world, we hope to less the cost of ender chain users, not only by quality but also by service.




High Precision Punch Machines
Roller Chain Assemble Machines
CL OL Assemble Machines


Germany Optical Spectrum Anlyzer
Fatigue Performance Tester
Microhardness Tester







Our Advantage

1. Rich Experiences in Engineer chains.
More than 45 years experiences in Engineer Chain, more than 500 handred workers, 25 engineers in conveyor chain team and chain conveyor team, we serve for handreds of industry in China. As an industry partner, we cooperated with many famous companies in China.
We are familiar with working conditions in various industries.
2. High quality with Guarrantee.
We use high precision machines from Germany, Japan and Taiwan. Under the instruction of HITACHI, our engineer chain quality has reach a high level in the world.
There are several Top Engineer Chain Brands in the world cooperated with us. We learn from them to improve the quality step by step.
3. The target of our service is less cost for user.
It is impossible to produce high quality engineer chain according to drawings and specifications. Our engineers check the chain running site and find the solution to extend the chain working life and reduce downtime. For us, quality means "VALUE FOR MONEY".


FAQ


Q: Why the prices are very different for same size chain in China chain factories.
A: There are lots of ways to less the cost in chain production.
-The prices from some steel factory are cheaper but the physical properties are poor.
-Reduce production process: Plate material annealing, twice punching plate hole, centerless grinding,
shot peening, chain pre-strength, etc.
-Use cheaper material for pin, bush and roller.
-Use thinner chain plates.
-Shorter the heat-treatment time or overload in furnace each time.
Q: Why we can say we are China engineer chain specialist.
A: We have more than 45 years experiences in engineer chain, serving lots of industry giants in China.
During analysis lots of imported conveyor chain, we are familiar with the chain design and producing
process from the world first class chain factories.
