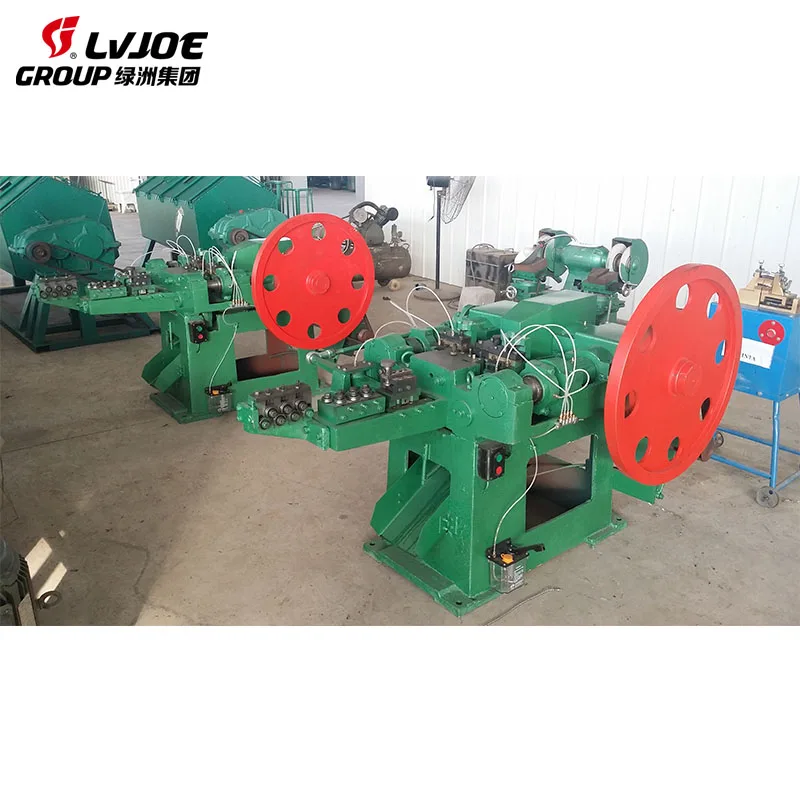

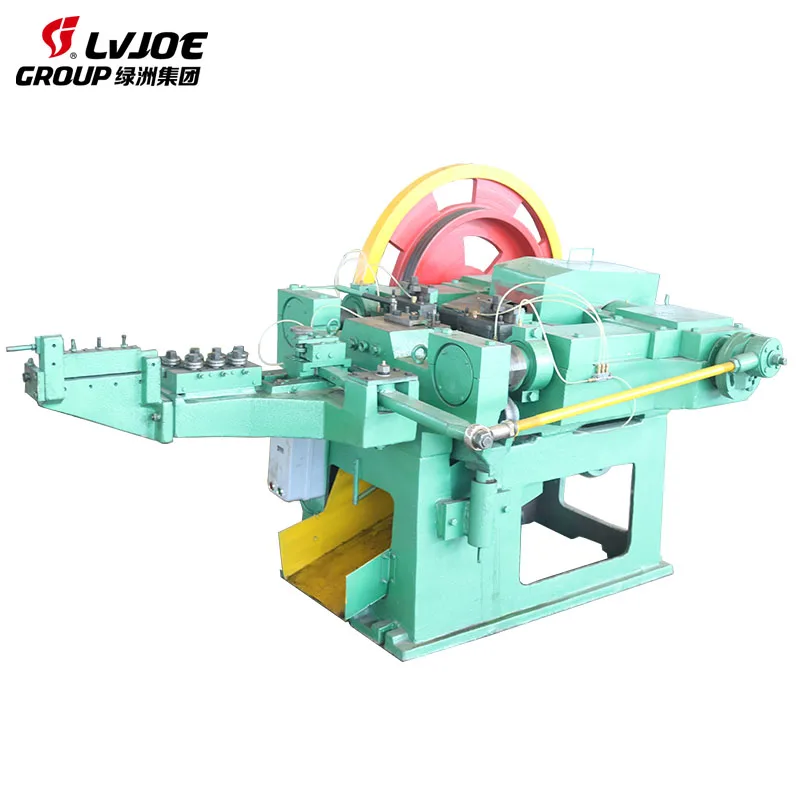

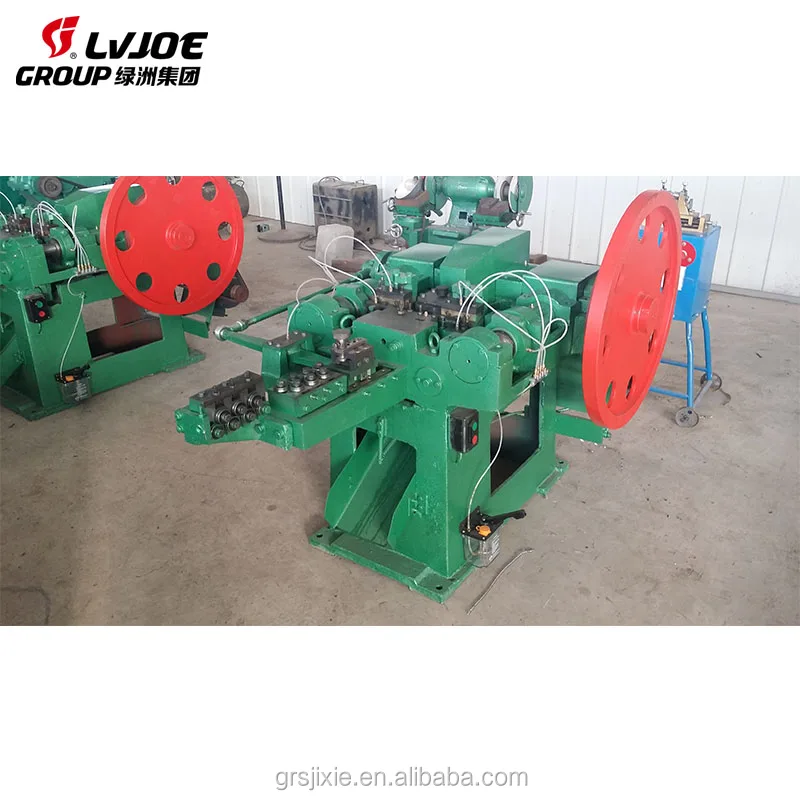

common iron nails making machine,steel wire rod making machine,used wire nail making machine

Product Overview

Description

common iron nails making machine,steel wire rod making machine,used wire nail making machine









Process of manufacture wire nail making machine:







Raw Wire-Rod → Wires Drawing machine→ Nail-Making machine → nail Polishing → nail Packing → Delivery







Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5C
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.8mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min
L*W*H	1.5*1.3*1.2m	1.7*1.3*1.4m	2.0*1.4*1.4m	2.2*1.6*1.65m	2.5*1.6*1.5m
Weight	1.2tons	1.45tons	1.8tons	2tons	2.3tons





 Features of nail making machine

1. It has advanced design and compact conformation.

3. It has attractive appearance.

3. It is easy and safe to operate.

Function of nail making machine

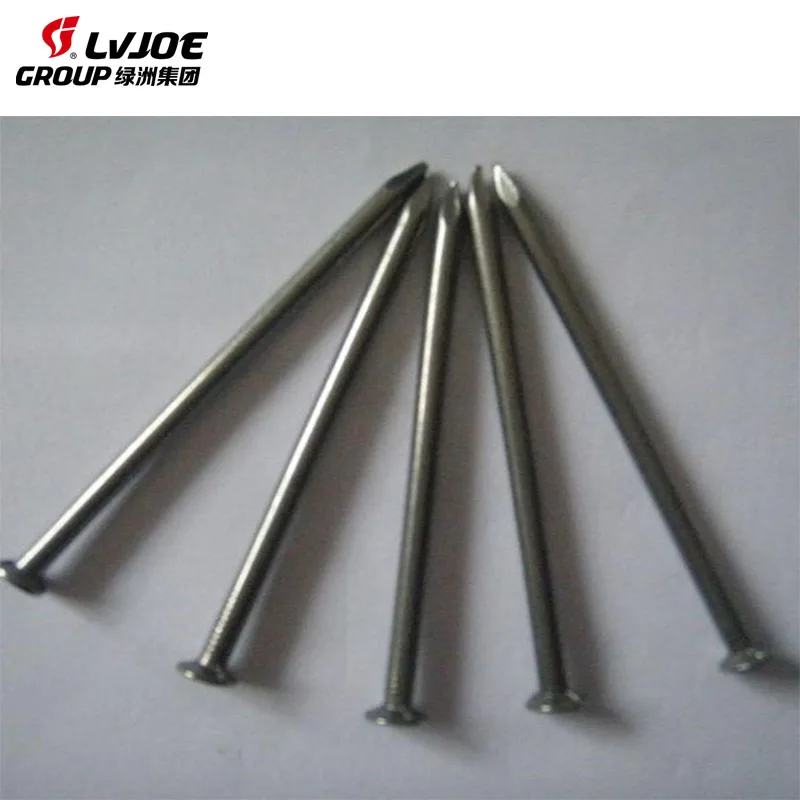

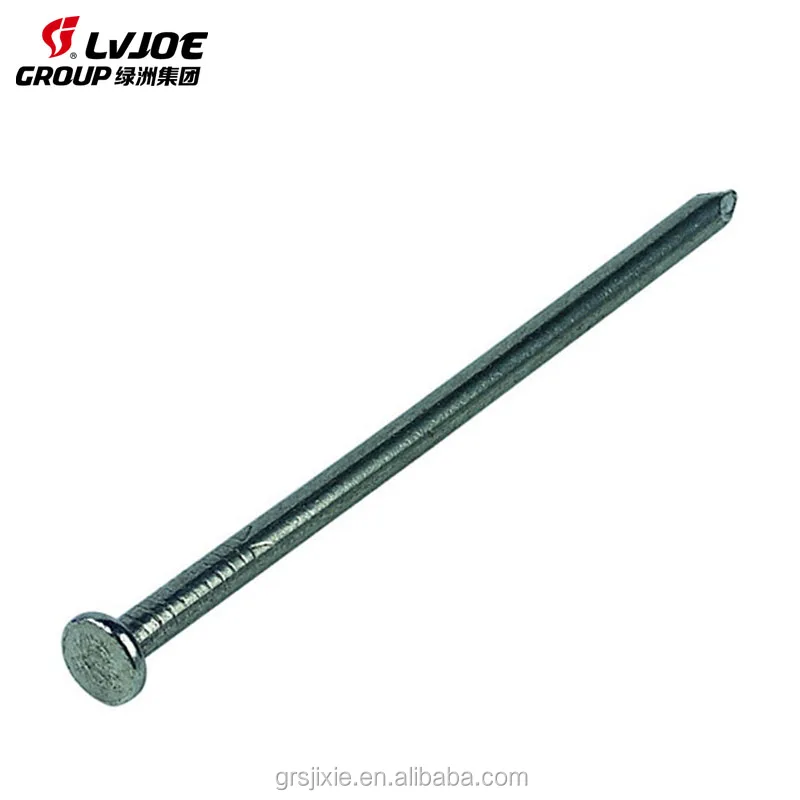

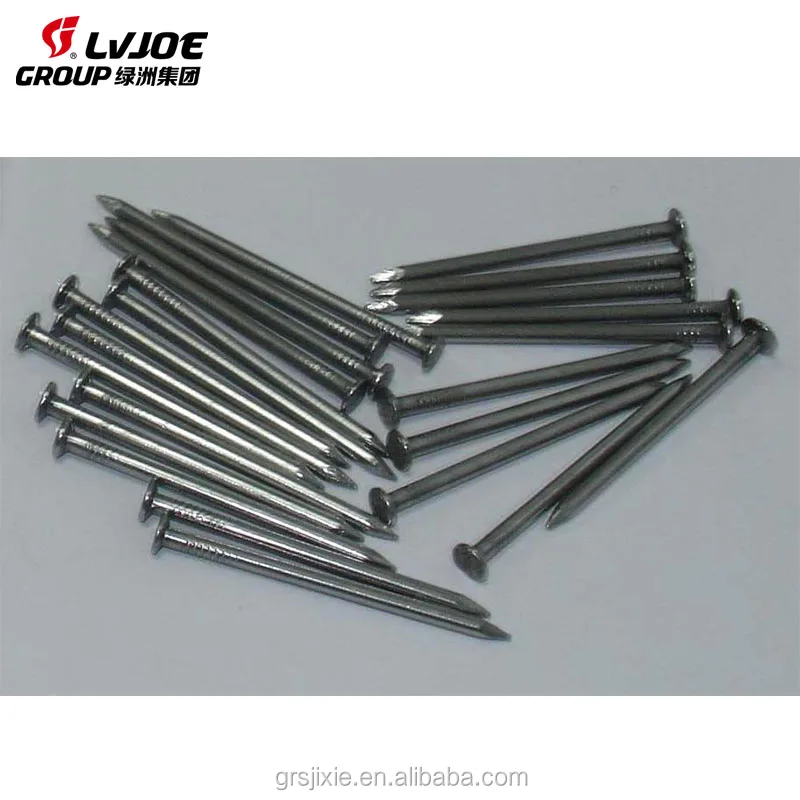

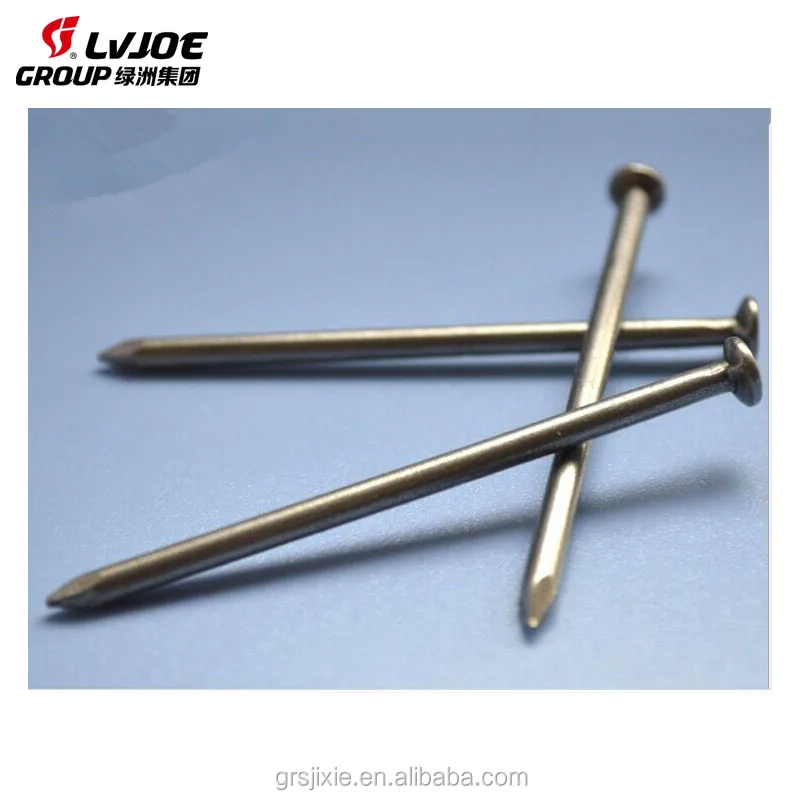

It can make the high quality coil nails used in the nail gun. It can produce nails with different sizes, which are widely used in construction.

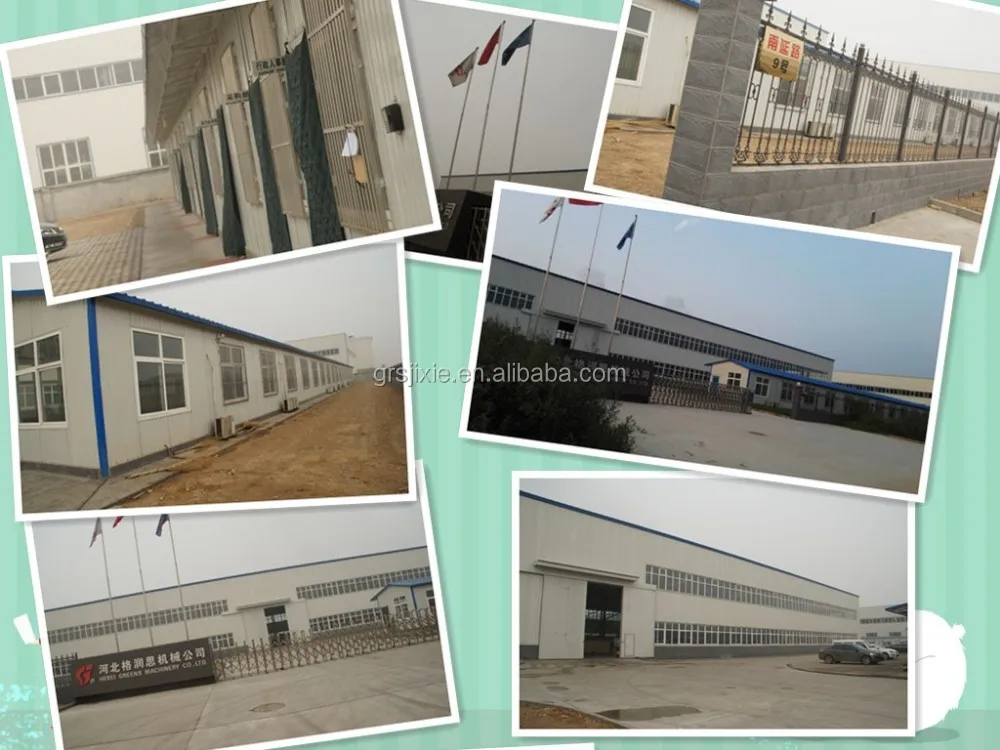

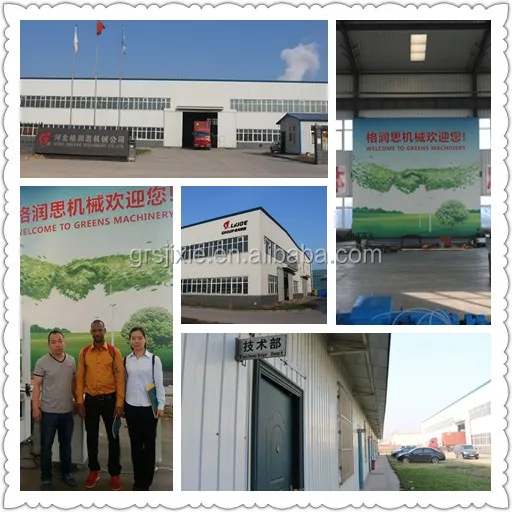

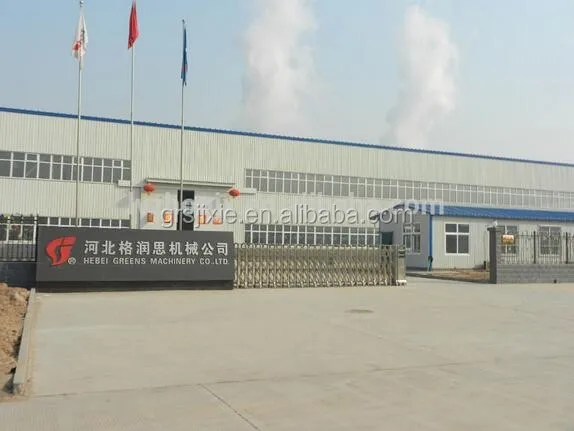

Welcome to visit our factory in Shijiazhuang city, Hebei Province, China!
