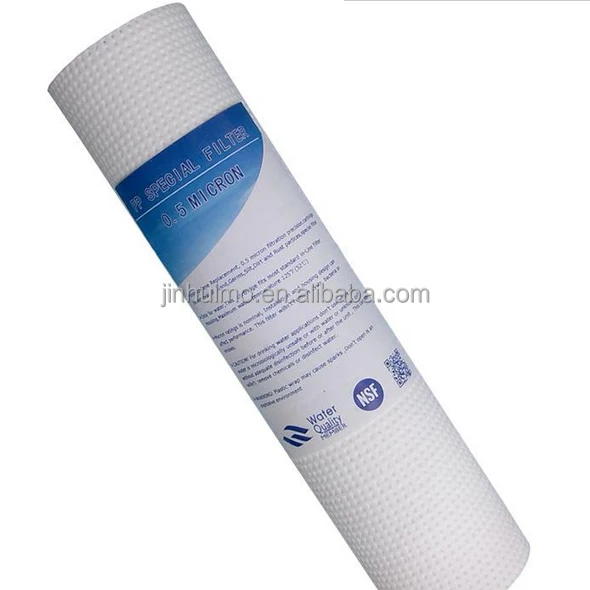

5 micron filter 20 inch sediment melt blown pp filter cartridge for whole house water filter system





Product introduction





PP filter is also called the PP meltblown filter, meltblown filter made of polypropylene superfine fiber tangles made of hot-melt, fiber randomly in space to form a three-dimensional porous structure, pore dimension filtrate flows along the gradient distribution in surface, deep, fine filter in one, can retain different size impurities. The filter accuracy range of 0.5 100 m, the flux is 1.5 times more than the same precision real peak filter, can be configured to cover different types of connectors to meet the various needs of engineering installation.















Features & Benefits

A. Economically priced

B. Provides sediment filtration and adsorption finished in one time process

C. High dirt-holding capacity

D. Recommended for chlorinated water application

E. Adsorption of organic substances





Applications

A. Plating solution

B. Solution of photograph developing

C. Solution to remove oil and aromatic

D. Oil and aromatic series in solution

E. Removing dissociative chlorine and volatine organic compounds(VOC) in solution

F. Drinking water and R.O pure water treatment

G. Remove smell,odor,organic pigment

H. Remove organic chemical









alkaline water filter




Products parameter






















































Item



PP meltblown filter



Shape



Plain, needled ,embossed



material



polypropylene



Micron Rating



1µm, 5µm



Length



10" ,20" ,30",40"



OD (Outer Dia.)



 61-65mm/110-115mm



ID (Inner Dia.)



28mm; 30mm



Gasket/O-ring



Silicone/EPDM/Viton/TEV



End Cap



226/Fin,222/Fin,222/Flat 226/Flat O-Ring



Maximum differential pressure



  3 kg f/cm²



Maximum operating temperature



80℃ (172℉) at P≤1.0 bar (14psi)



service life



4000~6000 hours

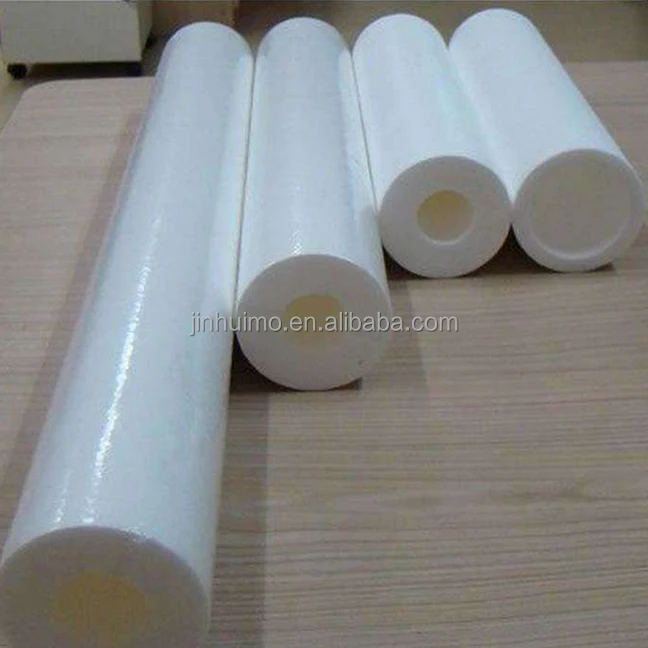

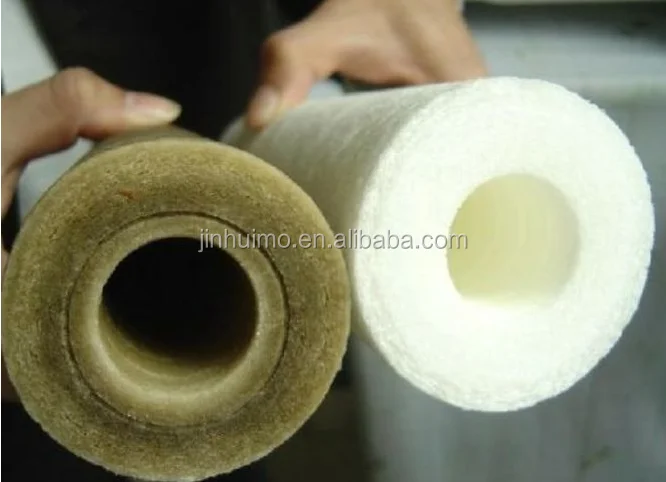

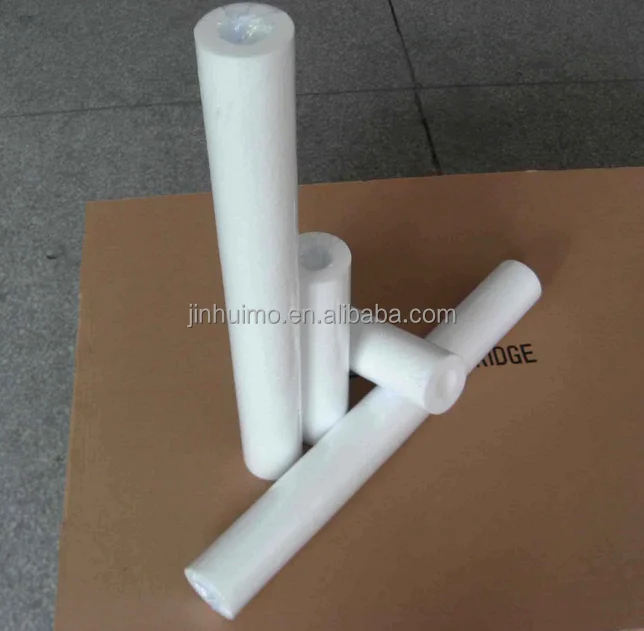

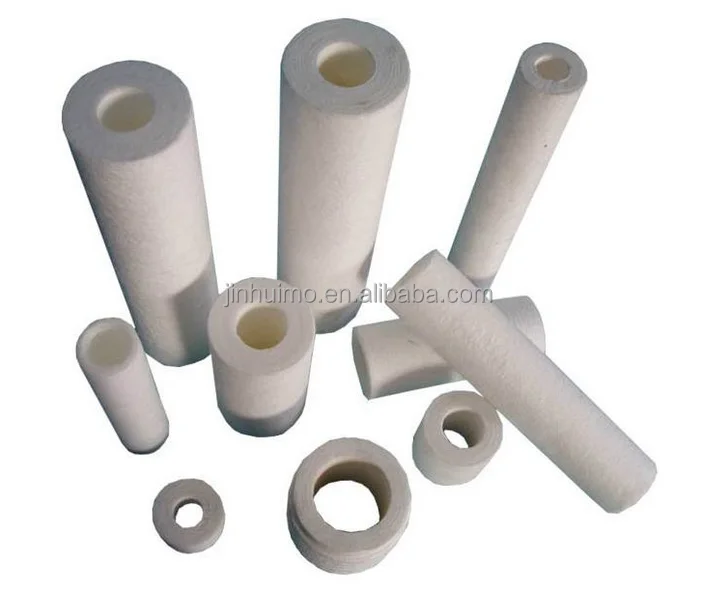

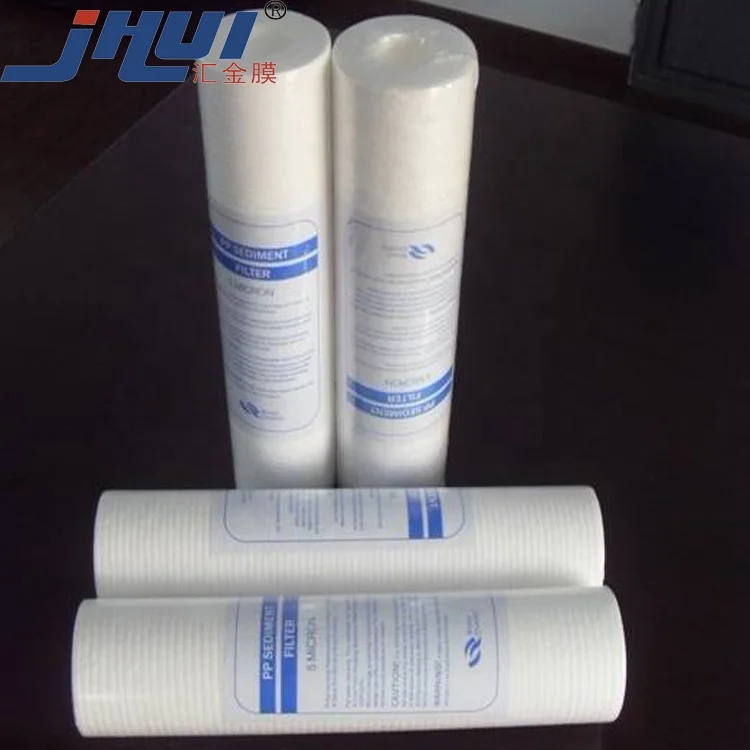

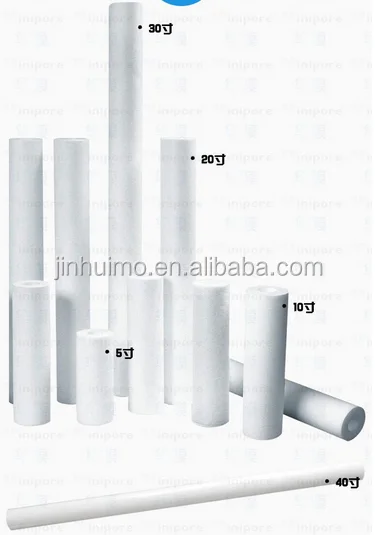

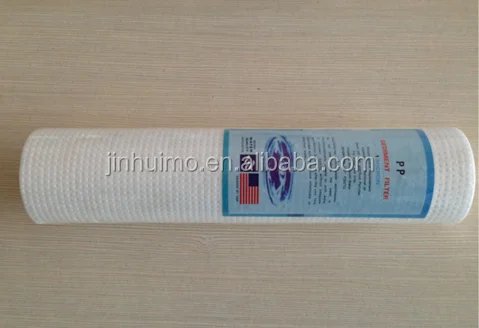

Products Photos





alkaline water filter

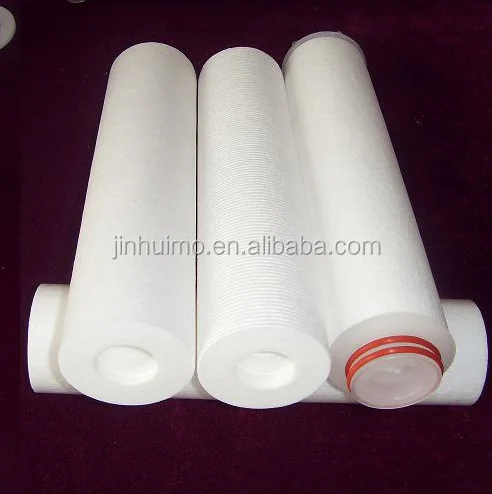

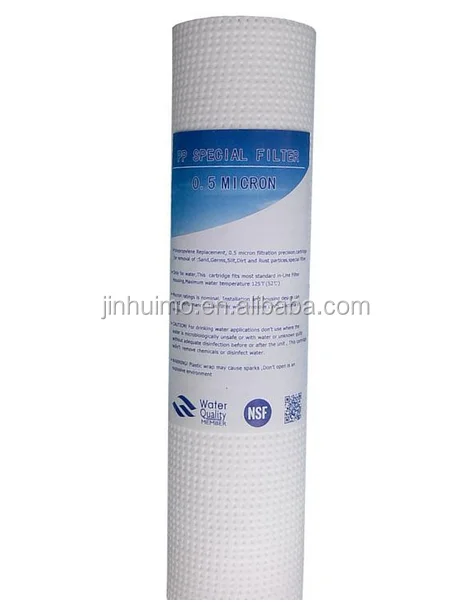

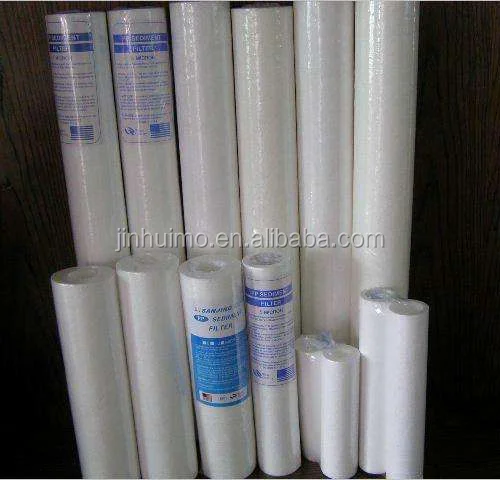

 2.png 8.png 9.pngJHM-PPCF-10N.png

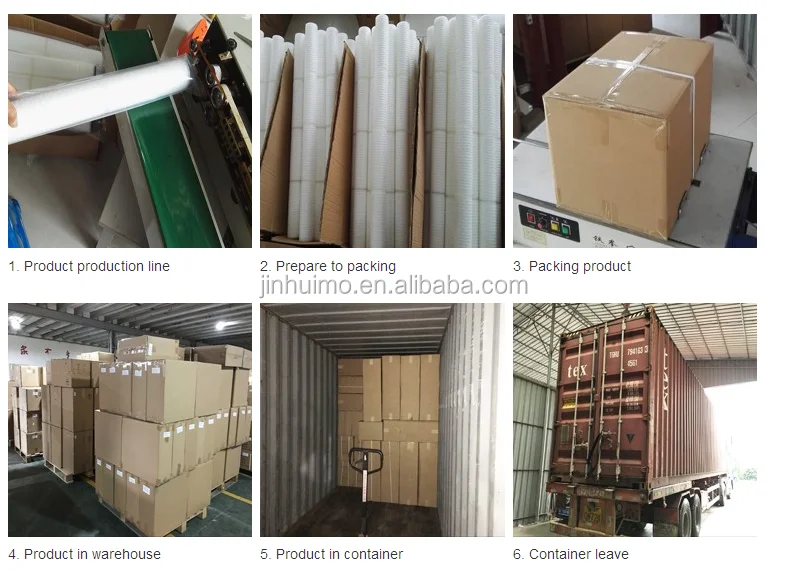

Packing way





alkaline water filter





Project Case






alkaline water filter





alkaline water filter
