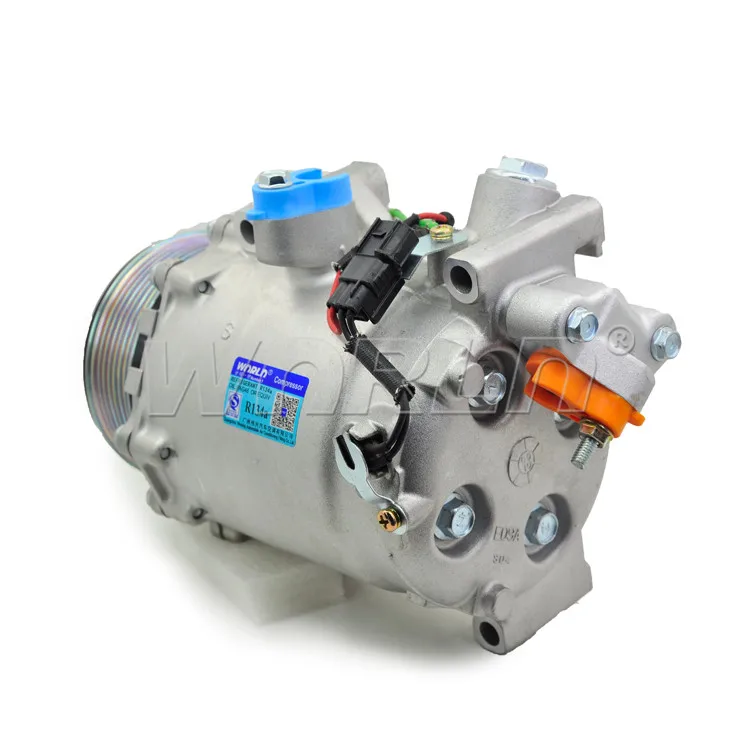

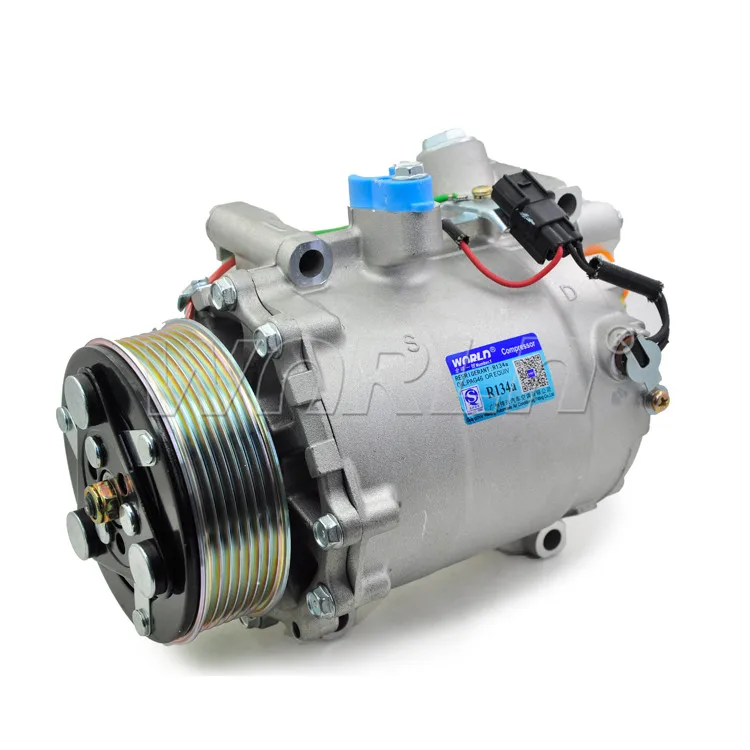

Auto Ac Compressor for Honda CRV 2.4 2007 38800RZYA010M2 38800RZYA010 38810 RZA A01 WXHD013
- Category: Air Conditioning System >>>
- Supplier: Guangzhou Weixing Automobile Air Conditioning Fitting Co. Ltd.
Share on (60660209563):
Product Overview
Description
Auto Ac Compressor for Honda CRV 2.4 2007 38800RZYA010M2 38800RZYA010 38810-RZA-A01 WXHD013
Product Description
Weixing Number | WXHD013 |
Car Make | For Honda CRV 2.4L 2007-2009 Spirior 2.4 CU2 |
Compressor Model | TRSE09 |
Pulley Groove Number | 7PK |
Pulley Diameter | 105MM |
Voltage | 12V |
Year Model | 2007-2009 |
OEM | 38800RZYA010M2 38800RZYA010 38810-RZA-A01 |
Refrigerant | R134A |
Theory
Principles of Air Conditioning
(Expansion Valve System)
1)High pressure side
Low pressure R134a vapor entering the compressor is compressed to become high pressure/temperature R134a vapor. This is then
circulated along with lubricant oil to the condenser. As the high pressure/temperature vapor travels through the condenser, heat
is released to the cooler ambient air passing over the condenser tubes condensing the vapor into a liquid. This high
pressure/temperature liquid then travels through the filter drier onto the expansion valve where a small variable orifice provides
a restriction against which compressor pushes.
2) pressure side
Suction from the compressor pulls the high pressure/temperature liquid R134a through small variable orifice of the TX valve and
into the low-pressure side of the A/C system.
The R134a is now under low pressure/temperature vapor where heat from the cabin being blown over the evaporator coil surface is
absorbed into the colder low pressure refrigerant The R134a is then pulled through the evaporator and into the
compressor.
The A/C cycle begins again as the R134a vapor is compressed and discharged under pressure.
3)Heat transfer
R134a in the LOW-PRESSURE side is COLD and can absorb large quantities of heat from the air moving over the evaporator.
R134a in HIGH-PRESSURE side is HOT and the cooler ambient air moving over the condenser can absorb the heat from it.
Summary
- When the R134a pressure is low, the R134a temperature is low.
- When the R134a pressure is high, the R134a temperature is high.
1)High pressure side
Low pressure R134a vapor entering the compressor is compressed to become high pressure/temperature R134a vapor. This is then
circulated along with lubricant oil to the condenser. As the high pressure/temperature vapor travels through the condenser, heat
is released to the cooler ambient air passing over the condenser tubes condensing the vapor into a liquid. This high
pressure/temperature liquid then travels through the filter drier onto the expansion valve where a small variable orifice provides
a restriction against which compressor pushes.
2) pressure side
Suction from the compressor pulls the high pressure/temperature liquid R134a through small variable orifice of the TX valve and
into the low-pressure side of the A/C system.
The R134a is now under low pressure/temperature vapor where heat from the cabin being blown over the evaporator coil surface is
absorbed into the colder low pressure refrigerant The R134a is then pulled through the evaporator and into the
compressor.
The A/C cycle begins again as the R134a vapor is compressed and discharged under pressure.
3)Heat transfer
R134a in the LOW-PRESSURE side is COLD and can absorb large quantities of heat from the air moving over the evaporator.
R134a in HIGH-PRESSURE side is HOT and the cooler ambient air moving over the condenser can absorb the heat from it.
Summary
- When the R134a pressure is low, the R134a temperature is low.
- When the R134a pressure is high, the R134a temperature is high.
