4WD accessory tractor car 12v roof top air conditioner for truck cab
Model
AC05
Cooling capacity
5000W(17000Btu/h-4300Kcal/h)
Type
Roof mounted , one body unit
Refrigerant
R134a
Compressor
Model
12/24 volt
Displacement
36cc/r
Evaporator
Type
Copper tube&Aluminum fins
Blower type
Double Axle centrifugal flow
Blower output
850m³/h
Blower quantity
1
Condenser
Type
Copper tube&Aluminum fins
Fan type
Axial flow
Fan quantity
2
Fan output
680m³/h
voltage
DC 12V /24V
weight
32kgs
Overall dimension
755mm*745mm*190mm
Total current
12V/70A, 24V/35A
Applying vehicle
truck , tractor , forklift , general macinery ,etc

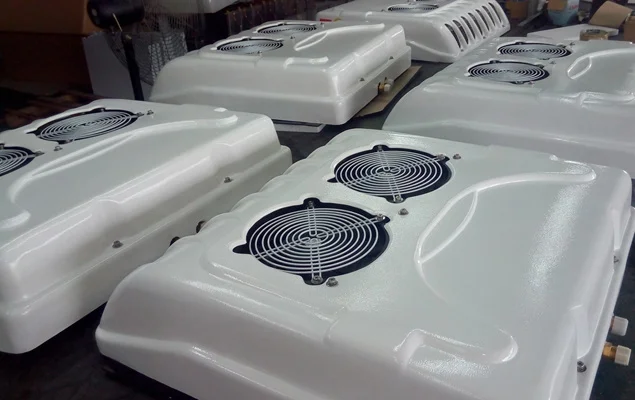

Condenser, evaporator, filter drier, pressure switches and control devices are all contained in the one unit. This unit to be connected to a compressor through 2 hoses. The AC05 air conditioner for truck cab in white color, is available in 12 and 24V,

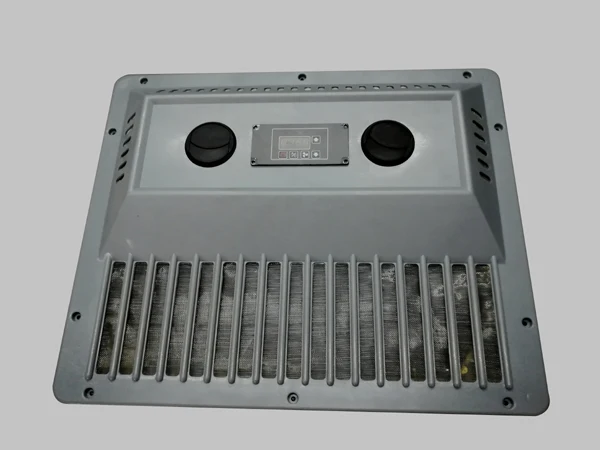

AC05 ceiling panels
The ceiling panel is fitted with:
1 three-speed fan selector
1 digital thermostat control selector
1 air conditioning on/off switch 2 closable and multi-directional louvers
1 air intake and air filter access grille
FAQ
Q1. What is your terms of packing? A: Generally, we pack our goods in neutral brown cartons or wooden box . Q2. What is your terms of payment? A: T/T. We'll show you the photos of the products and packages before delivery. Q3. What is your terms of delivery? A: EXW, FOB, CFR, CIF, Q4. How about your delivery time? A: Generally, it will take 3 to 10days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q5. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery
