Product Overview
Description
China Mineral Separator Gravity Spiral Concentrator, Spiral Chute Separator
Gold Recovery Spiral Concentrator Gold
1. Principle and Application of Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold
Spiral Concentrator Gold is new equipment with the domestic advanced level, successfully invented by Beijing General Research Institute of Mining and Metallurgy. It is applied for processing iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.
Gold Recovery Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold
2. Descriptions of Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold
Spiral Concentrator Gold is our company's concentrating scientific product, good for concentrating sand ore in beach, riverside, seashore and stream.
Gold Recovery Spiral Concentrator Gold

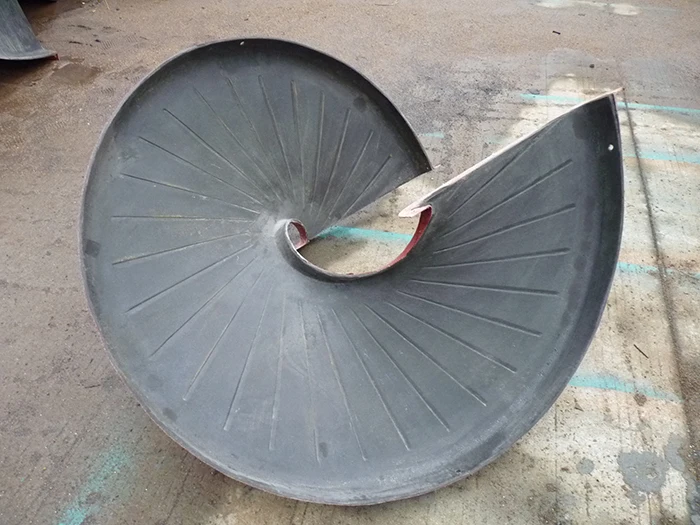

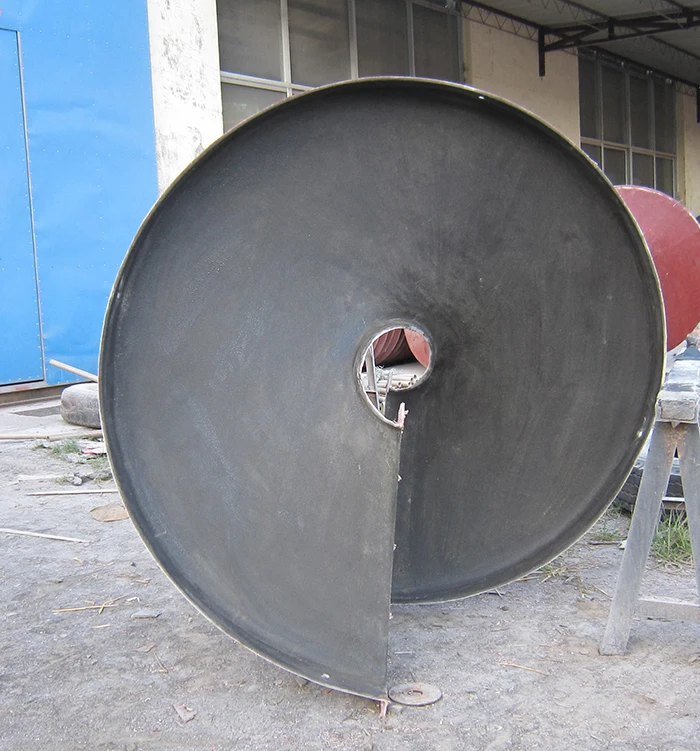

The product is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; The advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
Gold Recovery Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold

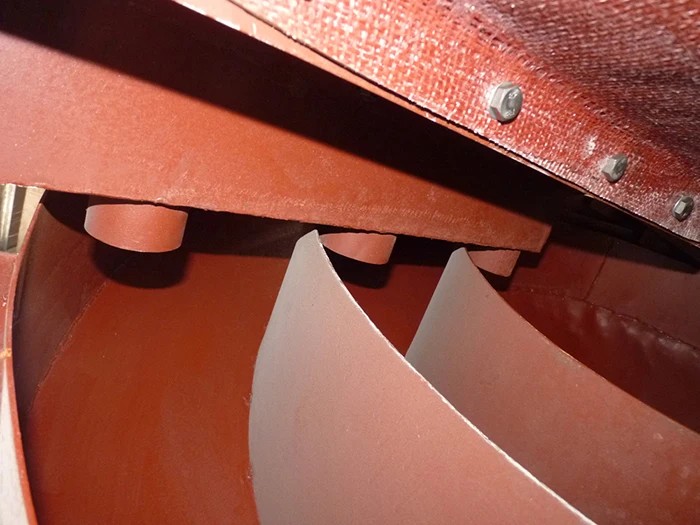

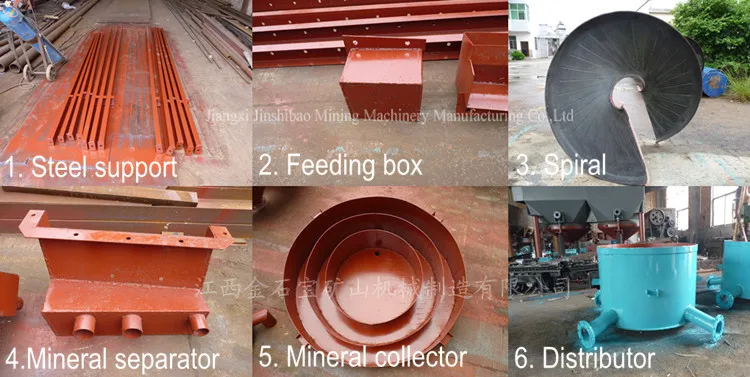

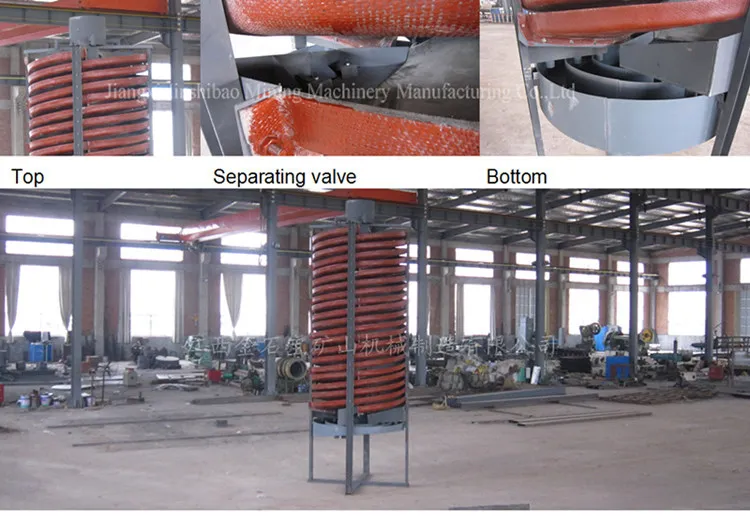

3. Structure of Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold
1. Channel steel support 2. Feeding box 3. Helical sluice
4. Product separator 5. Collector 6. Distributor
Gold Recovery Spiral Concentrator Gold
4. Technical Specifications of Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
Feeding size(mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
Feeding density(%) | 20-45 | 25-50 | 25-55 | 25-55 | 25-55 | 25-55 | |
Capacity(t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.8-1.2 | 0.1-0.2 | |
Size | Length (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
Width (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Height (mm) | 6500 | 5230 / 4360 | 5230/4360 | 4000 | 2150 | 1500 | |
Weight(kg) | 1400 | 800 | 600 | 450 | 350 | 140 | |
Gold Recovery Spiral Concentrator Gold
Though we have the model 5LL-2000 Spiral Concentrator Gold, we still suggest you to take 5LL-1500 Spiral Concentrator Gold as it is with a better performance.
Gold Recovery Spiral Concentrator Gold
5. Features of Spiral Concentrator Gold
- Non-required power
- Simple installation and Minimal maintenance requirements
- Strong adaptability to fluctuation of feeding amount, density, size and grade.

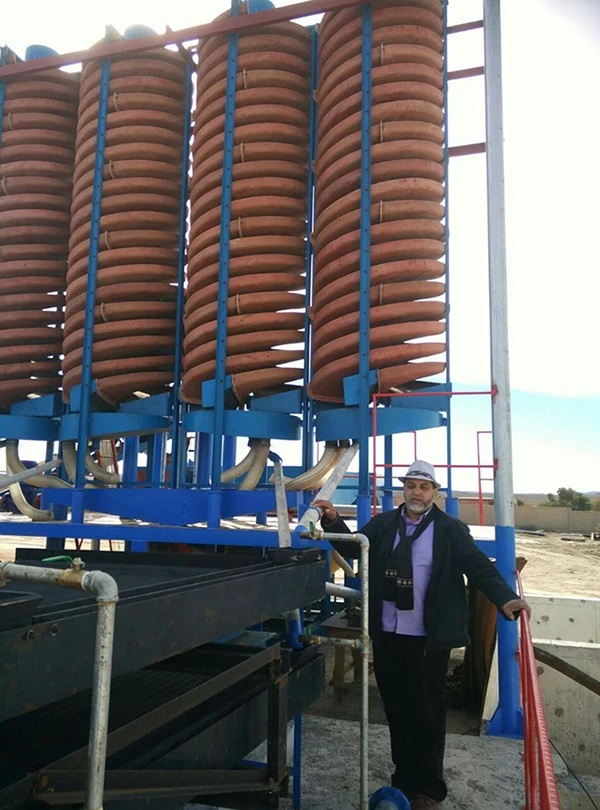

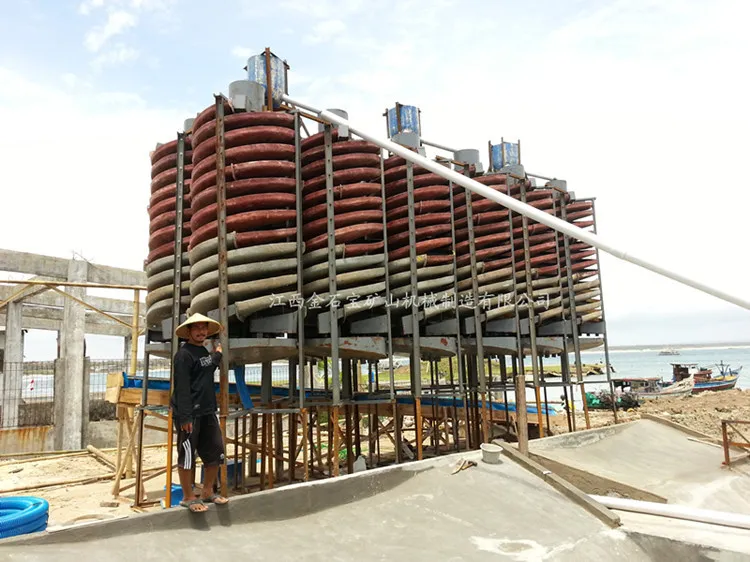

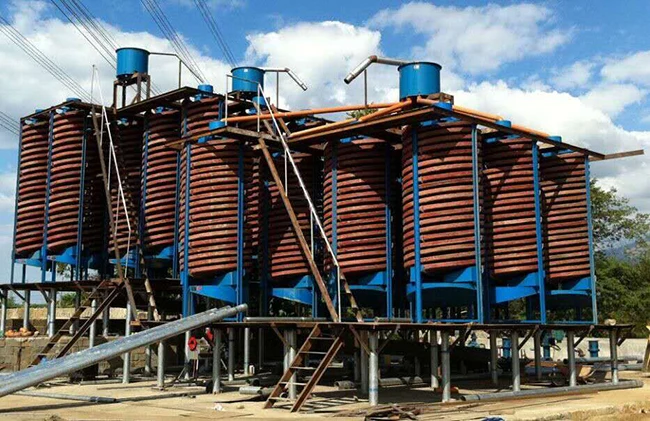

6. Mining site applied in Southeast Asia
Gold Recovery Spiral Concentrator Gold
In Penang
Gold Recovery Spiral Concentrator Gold
In Indonisia
Gold Recovery Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold

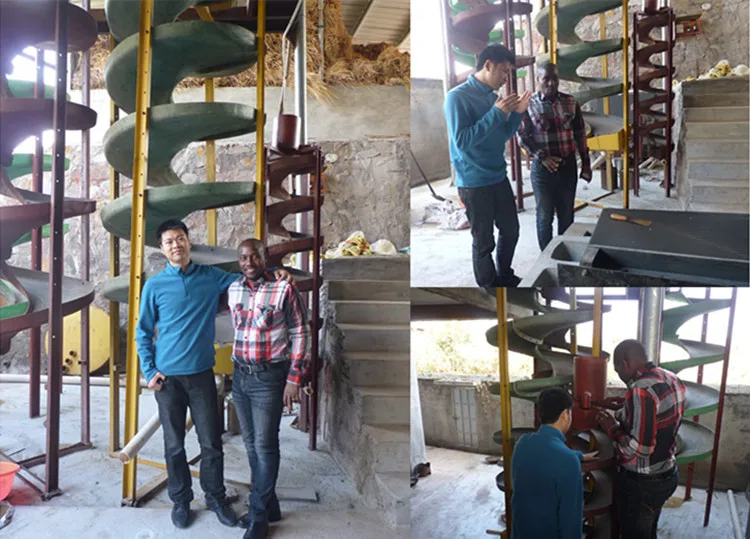

7. The most popular models Spiral Concentrator Gold
Gold Recovery Spiral Concentrator Gold
5ll-900 Spiral Chute 5ll-1200 Spiral Chute

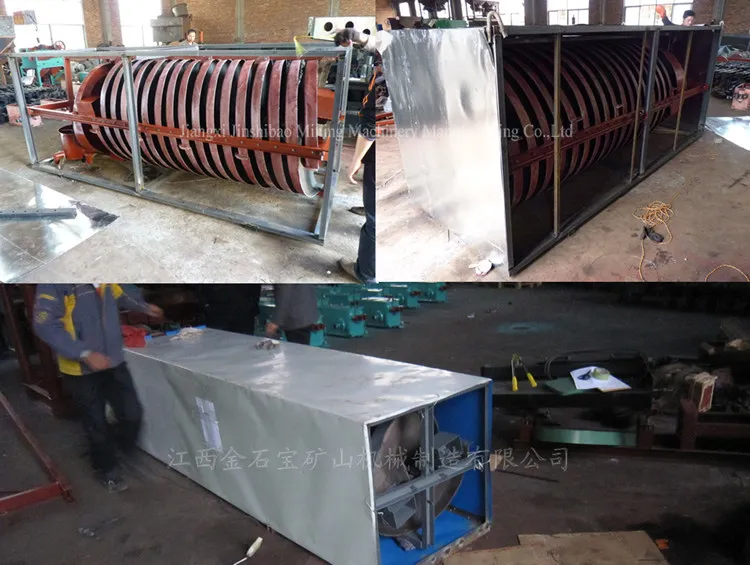

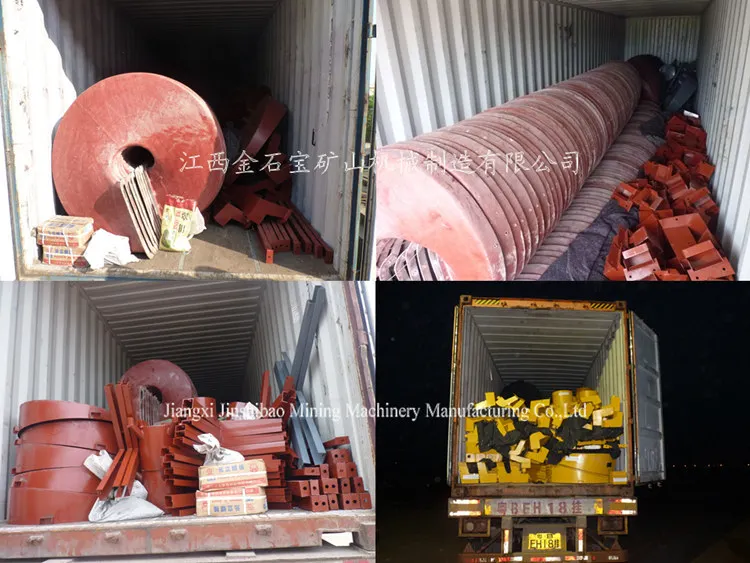

Packaging & Shipping
LCL for Spiral Concentrator Gold
FCL for Spiral Concentrator Gold
