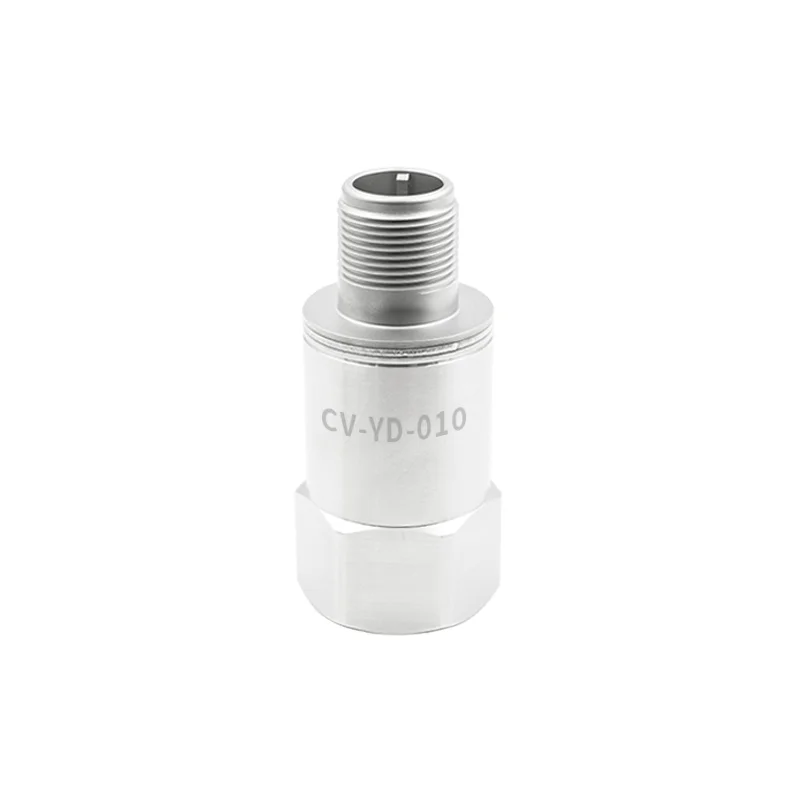

4 20mA output velocity accelerometer for pump velocity transducer
- Category: Sensors >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (60660528050):
Product Overview
Description
We are a factory located in China.
Above price are negotiable.
If you need other sensors, please send us your inquiry.

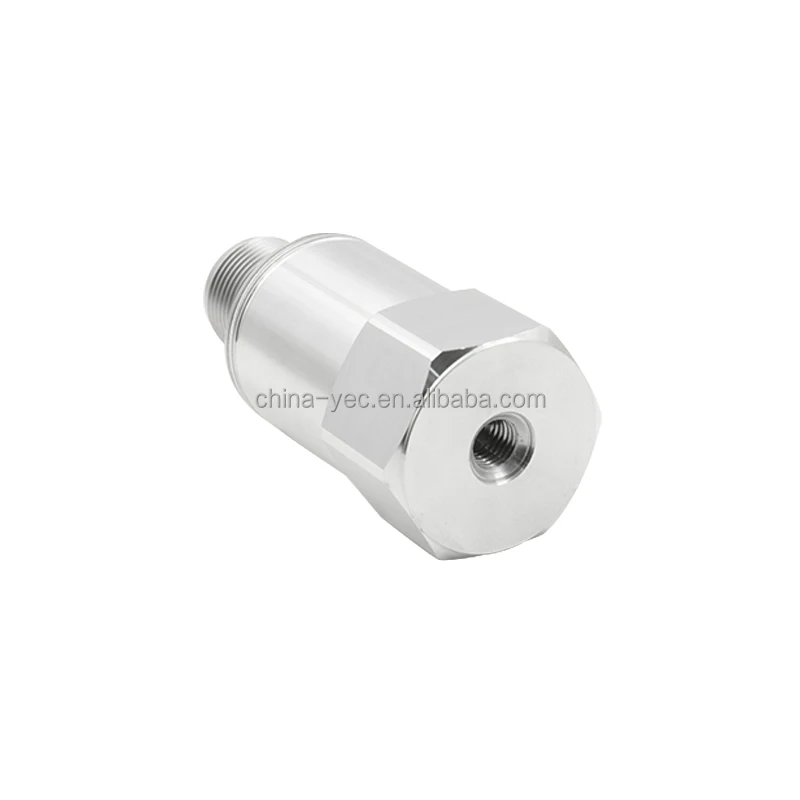

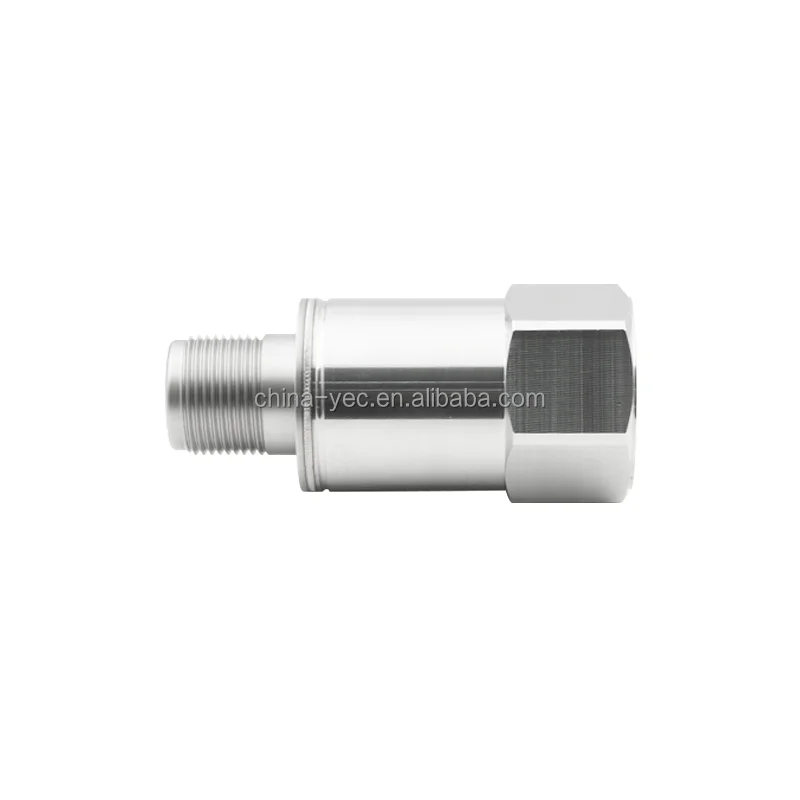

4-20mA output Vibration Transmitter
Based on piezoelectric accelerometers, the CV-YD-series have the extra character of built-in precise circuit of integration and velocity output. Wider frequency response range, mechanical moving parts not easily damaged, light weight and good dynamic response than magnetoelectric velocity transducers.
Features:
Use piezo material direct piezoelectric effect
Built-in precise integral circuit, current output
Used in absolute vibration velocity measurement in machine fault
Mount in vertical, horizontal or any direction
Specifications:
Sensitivity | 0.8mA/mms |
Zero Output | 4±0.1 mA |
Full Range Output | 20±0.2 mA |
Output Current Range | 4~20mA |
Transverse Sensitivity | <5% |
Frequency Range(±3dB) | 10~1,000Hz |
Measurement Range (Peak Value) | 0-20 mms-1 (Measurement range can be customized) |
Amplitude Linearity | ≤2% |
Supply Voltage | +15V~36V DC |
Mounting Insulation to GND | ≥108Ω |
Shock Limit (Peak Value) | 2000g |
Operation Temperature | -20 ℃~80℃ |
Case Material | 304 Stainless Steel |
Weight | 138g |
Mounting | 1/4-28 |
Piezo Material | Piezo Ceramics |

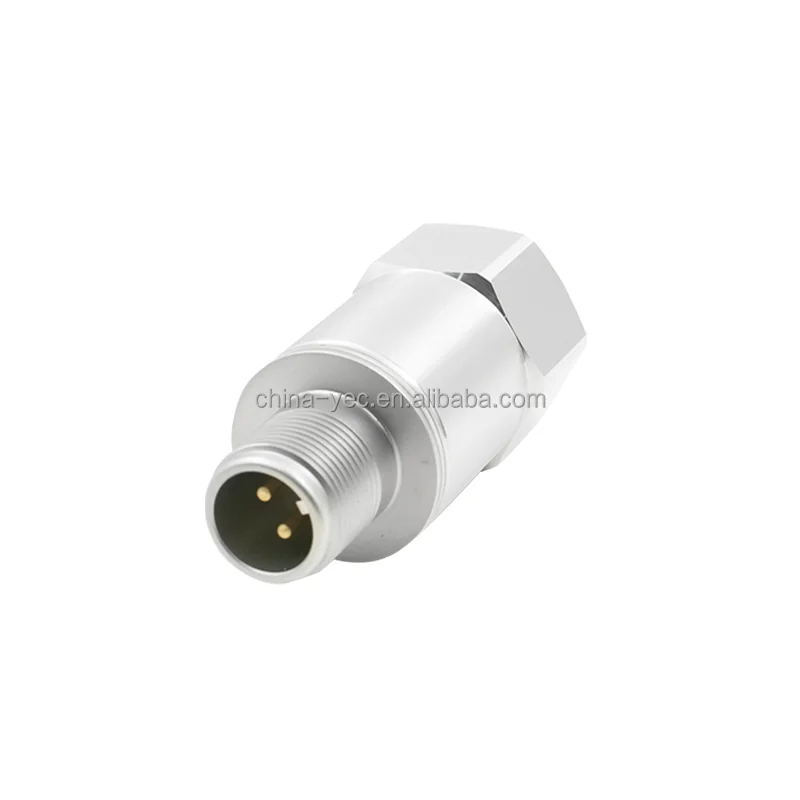

Output Method | Top 5/8-24 2-Pin Socket |
Accessories |
|
Certificate | Calibration Parameters, Frequency Response |
1/4-28 convert M6 | One |

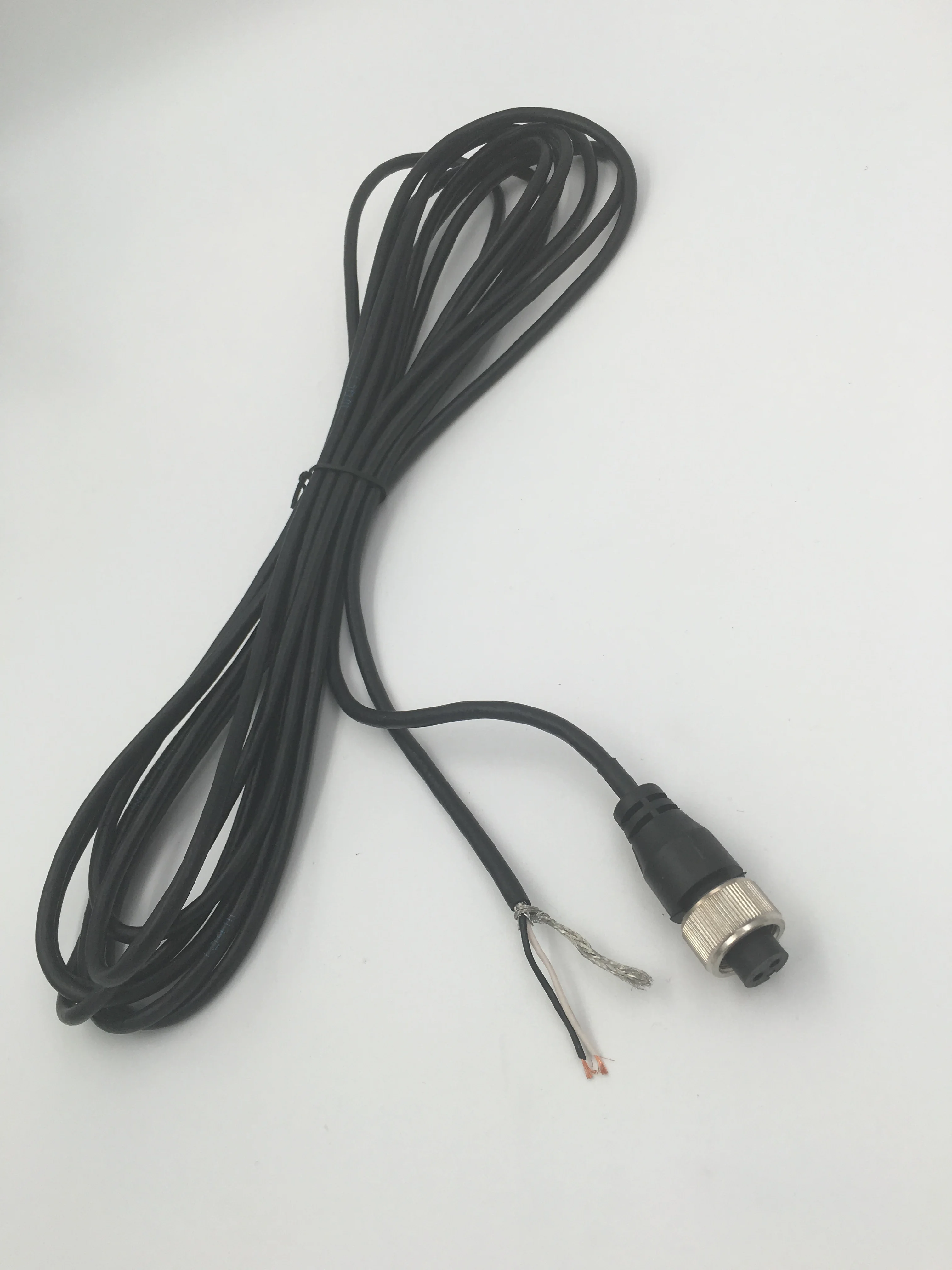

Optional : 3106A(5015) Plug, 2-Pin(RVVP) Cable | One (3m), one end empty |
