Product Overview

Description

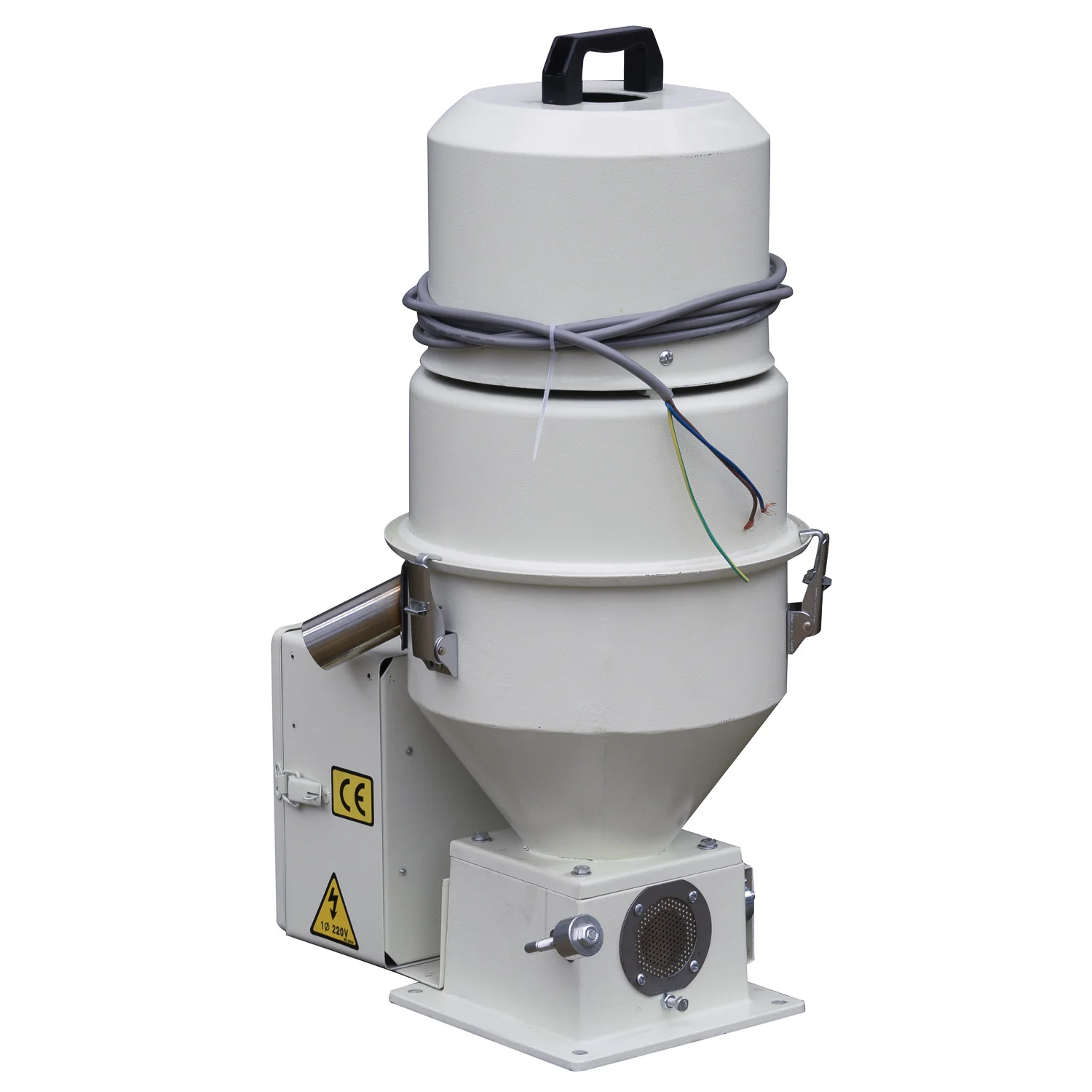

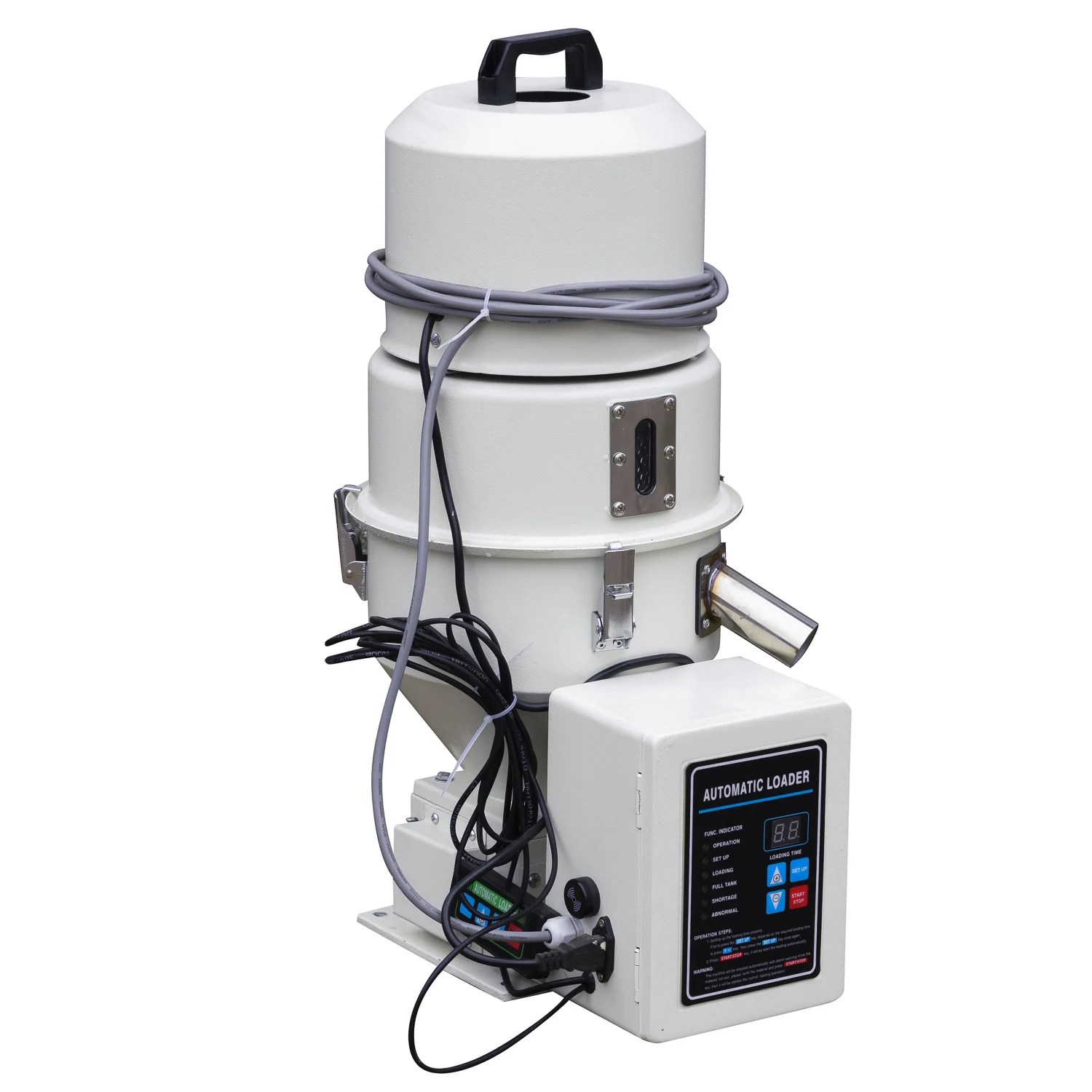

plastic material hopper loader XTL-300GE











Features:
•The main engine and the material hopper are designed separately,and thus it is safe,easy and convenient to be opperated.
•The whole operation is controlled by MicroTrip computer.
•Equipped with an independent filter,which is very convenient to clean up dust.
•The equipped muffler reduces the noise in operation.
•Stainless steel material hopper is light in weight,durable and very convenient for cleaning the device.
•The control box,being designed separately,is easy to be well maintained.
•Auto-buzzer will give alarm while lacking material.
•Auto-protective device protects motor against overloading.
The bunker with electronic eye can be installed on the charging inlet of molding machine directly.
The air revolving dust arrester reduce the clean times of filter is suitable for the grinded material conveying.
Can select two-material proportional valve ,used for new material mixed grinded material using or instant receiving of grinded material.





















































Model


XTL-300GE


Motor


Type



Carbon Brush


Specification



1.1kw, 1Ø


Conveying Capacity(kg/hr)


350


Static wind pressure(MAX)


1500mmAq


Filter


Ø185×90H


Volume of Material Hopper(L)


6


Inside Diameter of Conveying Pipe(mm)


Ø38


External size(mm)


Main Body L W H


500×400×600


Material Hopper
L W H


500×400×600


Weight(KG)


Main Body


34
