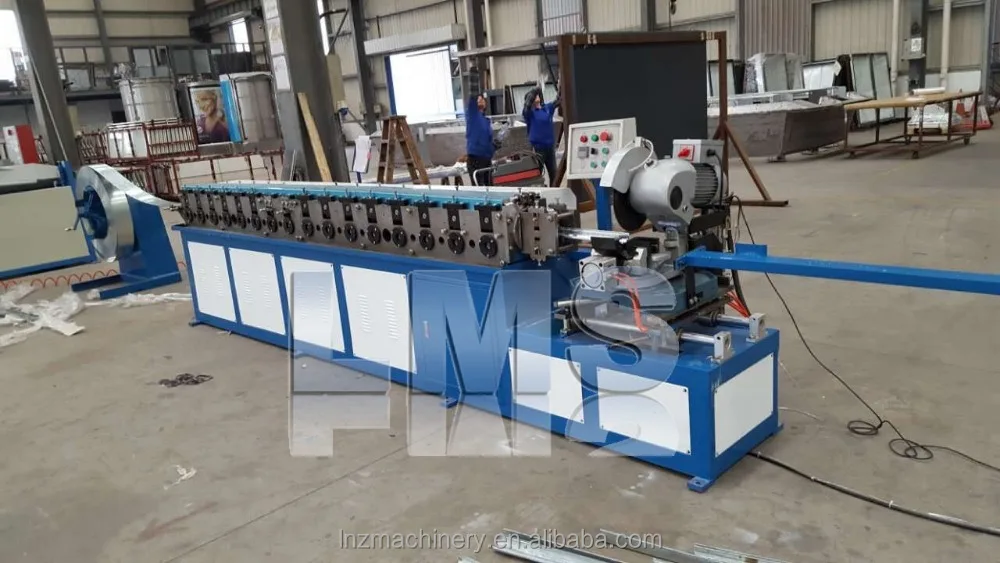

Trans Verse Flanges Duct System roll forming machine

Product Overview

Description

 MACHINE SPECIFICATION

l  WORKING PROCESS

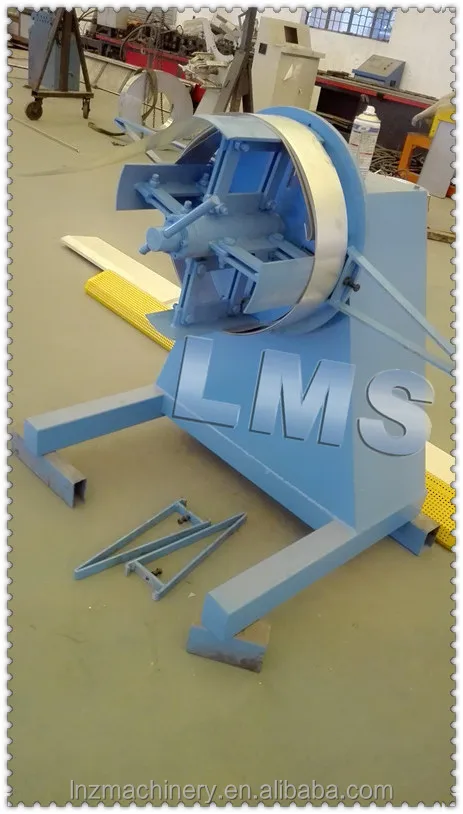

Decoiler— Roll forming — Straightening — Automatic Cutting — Flange product

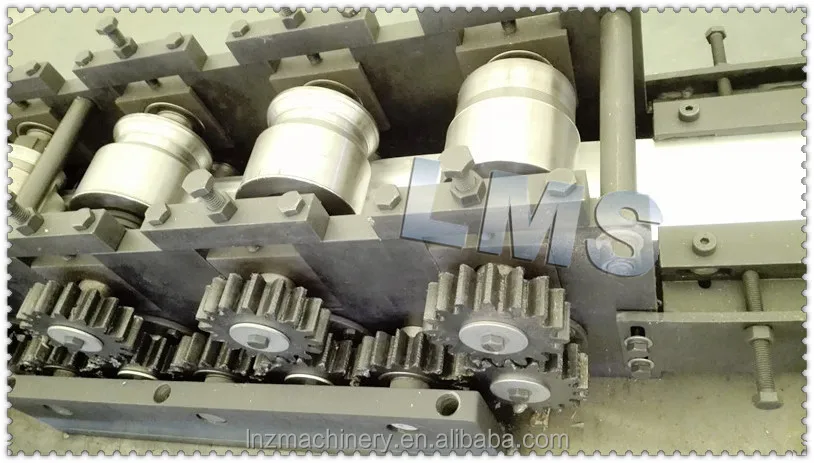

l  Roll Forming



(1)   Rollers:                   15 Sets (no need to change or add)

(2)   Side Wall:                    25mm

(3)   Base Plate:                  16mm

(4)   Roller Material :            Cr12Mov with heat treatment HRC58-60℃

(5)   Main Shaft Diameter:         Ø 38mm

(6)   Upper shaft:                6206

(7)   Down shaft:                  6207

(8)   Feeding :                      With guild wheel

(9)   Motor:                    3kw

(10)   Drive Mode:               250 Reduction gear box

(11)   Straighten  Roller:                1 set

(12)   Cutter:                  HSS

(13)   Cutting mode:                  material stops then cuts

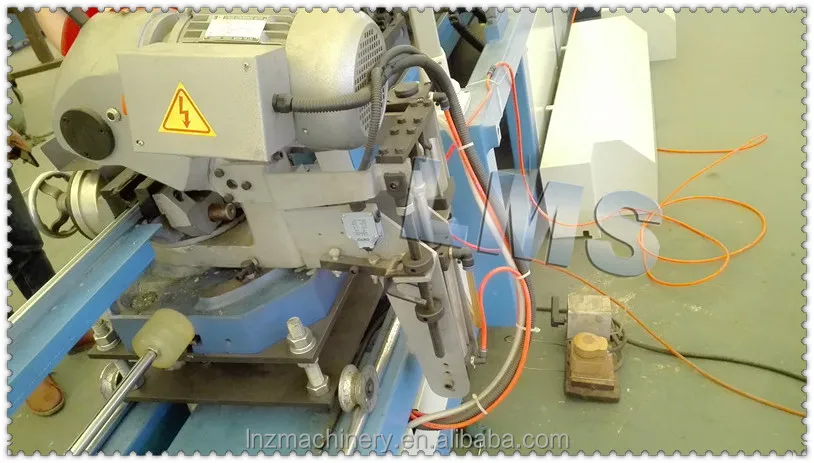

(14)   Cutting power:            1.3/1.8kw

(15)   Length control:                photoelectricity

(16)   Length tolerance:            ±0.5mm

(17)   Run Out Table:                6 meter steel channel

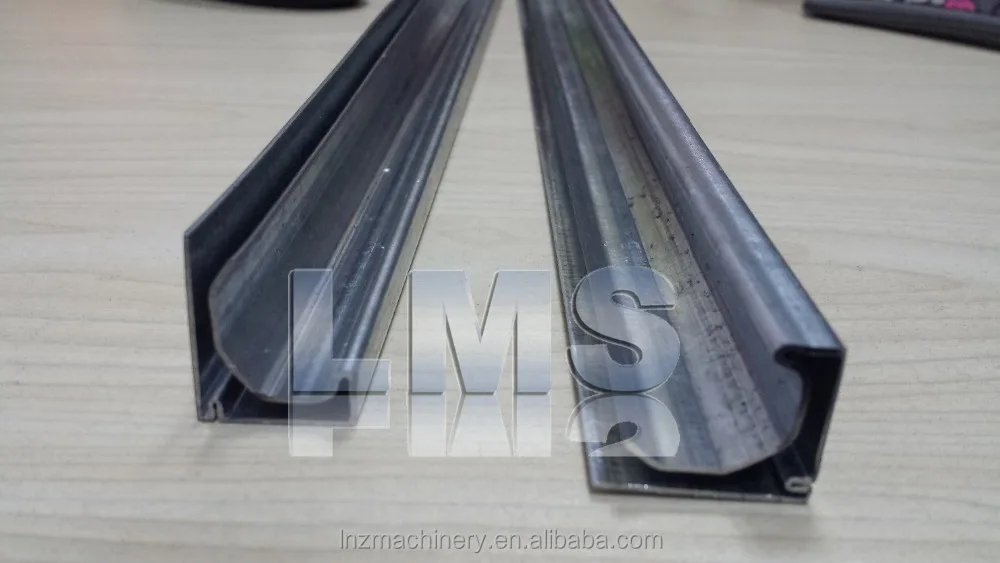

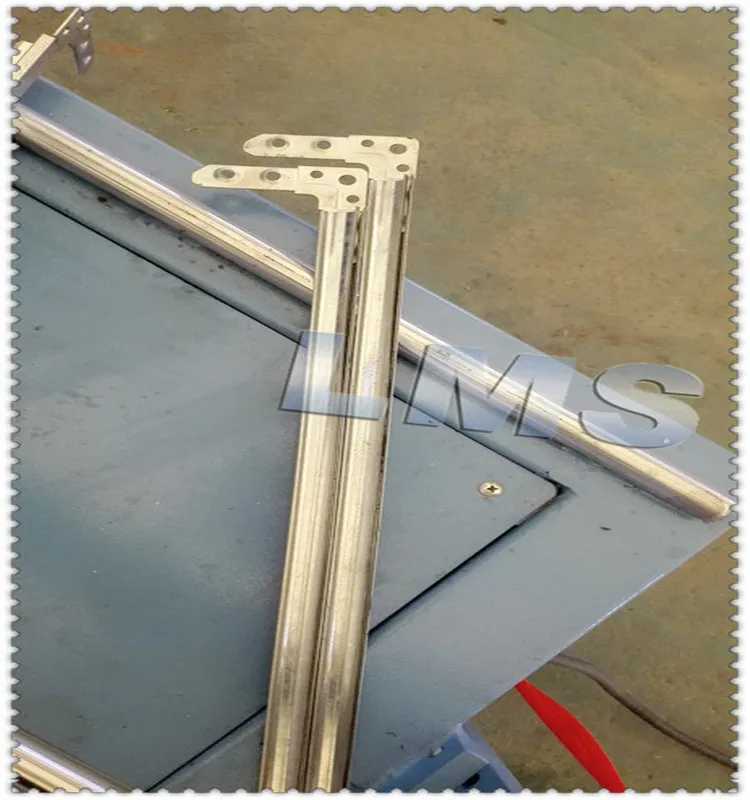

(18)   Finished Flange:              Neutral, without any mark

(19)   Precision:



   it is usd for transverse acresge ventiduct.it's compose of feeding frame.cold roll forming machine and cut roll forming machine and cut-off parts.The cut -off parts separated into gring wheel and non -stop machine shearing sydtem.And Non-Stop machine shearing system can cutoff by end switch,with little burr and suto production.
