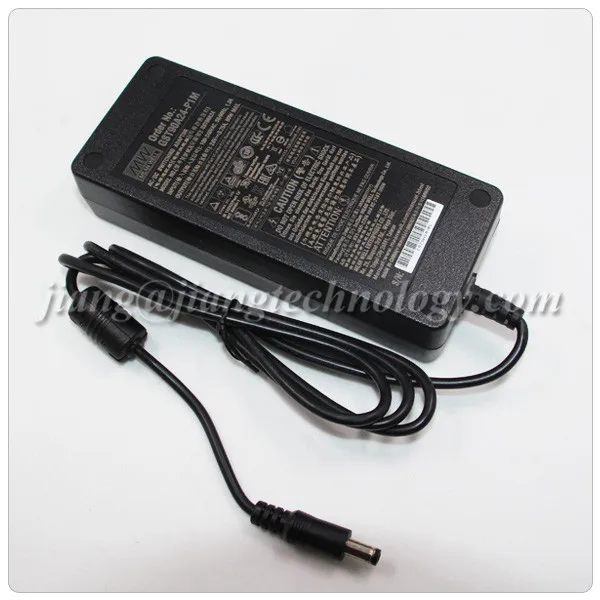

Meanwell GST90A24 P1M питания с одним выходом, 90 Вт 3.75A AC DC промышленная 24V 3.2A Настольный пластиковый корпус импульсный источник питания адаптер
- Category: Power Adapters >>>
- Supplier: Hangzhou Jiang Technology Co. Ltd.
Share on (60662384376):
Product Overview
Description
Please Attention
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]
Certifications
Kindly reminder :
All our certifications are REAL ONE.
NOT FAKE , NOT FAKE , NOT FAKE !!!
PLEASE CONTACT US TO SHOW YOU!!!

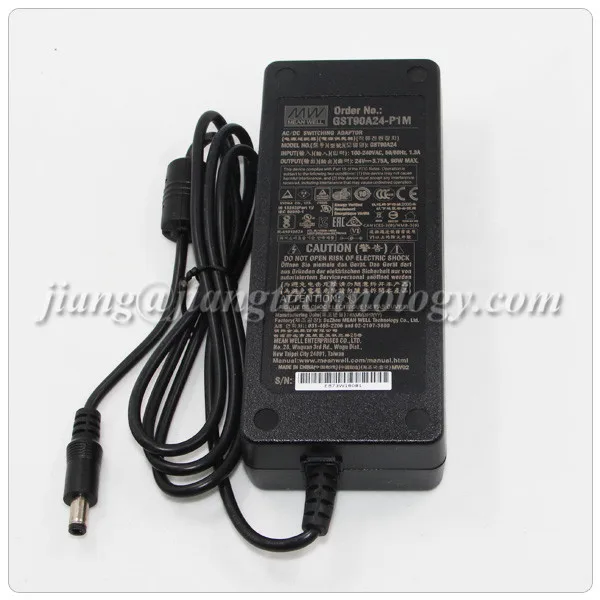

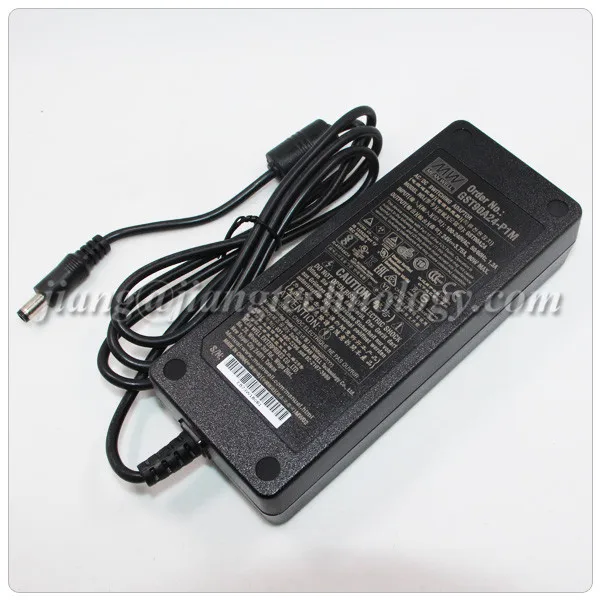

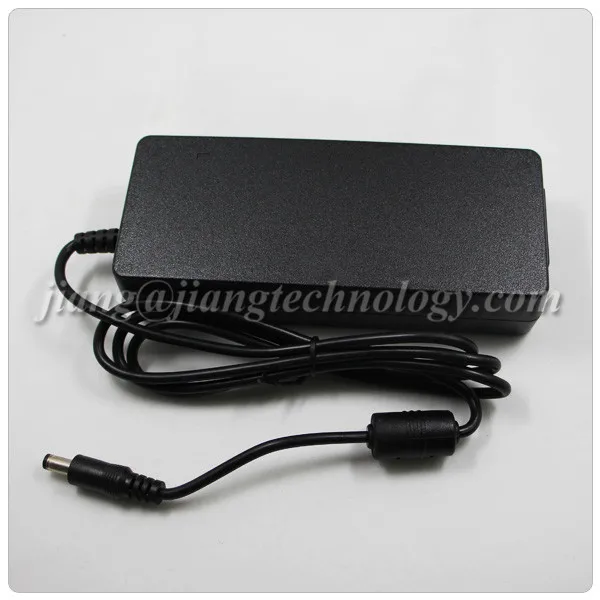

GST90A24-P1M Meanwell Single Output 90W AC DC Industrial Power Adapter 220V 24V
Product Description
Meanwell GST90A24-P1M Single Output 90W 3.75A AC DC Industrial 24V 3.2A Power Adapter
Features:
- Meanwell Adapter 220V 24V
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14
- No load power consumption<0.15W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS and EU ErP and CoC Version 5
- Class I power (with earth pin)
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fully enclosed plastic case
- Pass LPS
- Fanless design with -30~+70℃ working temperature
- LED indicator for power on
- 3 years warranty
Applications:
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
Detail:
| MODEL | GST90A12-P1M | GST90A15-P1M | GST90A19-P1M | GST90A24-P1M | GST90A48-P1M | |
| OUTPUT | SAFETY MODEL NO. | GST90A12-P1M | GST90A15-P1M | GST90A19-P1M | GST90A24-P1M | GST90A48-P1M |
| DC VOLTAGE | 12V | 15V | 19V | 24V | 48V | |
| RATED CURRENT | 6.67A | 6A | 4.74A | 3.75A | 1.87A | |
| CURRENT RANGE | 0 ~ 6.67A | 0 ~ 6A | 0 ~ 4.74A | 0 ~ 3.75A | 0 ~ 1.87A | |
| RATED POWER | 80W | 90W | 90W | 90W | 90W | |
| RIPPLE & NOISE | 120mVp-p | 150mVp-p | 180mVp-p | 200mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±2.5% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±2.5% | |
| SETUP, RISE TIME | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | |||||
| HOLD UP TIME | 20ms / 230VAC 20ms / 115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR | PF>0.91 / 230VAC PF>0.95 / 115VAC at full load | |||||
| EFFICIENCY | 89% | 89.5% | 90% | 90% | 91% | |
| AC CURRENT | 1.3A / 115VAC 0.6A / 230VAC | |||||
| INRUSH CURRENT | 70A / 230VAC | |||||
| LEAKAGE CURRENT | 1mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | ||||
| Protection type : Hiccup mode, recovers automatical ly after fault condition is removed | ||||||
| OVER VOLTAGE | 105 ~ 135% rated output power | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 40°C) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | U60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1,AS/NZS 60950.1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254, GB17625.1 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | |||||
| MTBF | 348.7K hrs min. MIL-HDBK-217F (25°C ) | |||||
| DIMENSION | 145*60*32mm (L*W*H) | |||||
| PACKING | 0.45Kg; 30pcs/14.05Kg/1CUFT | |||||
| CONNECTOR | PLUG | See page 3 ; Other type available by customer requested | ||||
| CABLE | See page 3 ; Other type available by customer requested | |||||
Meanwell GST90A24-P1M Single Output 90W 3.75A AC DC Industrial 24V 3.2A Power Adapter
