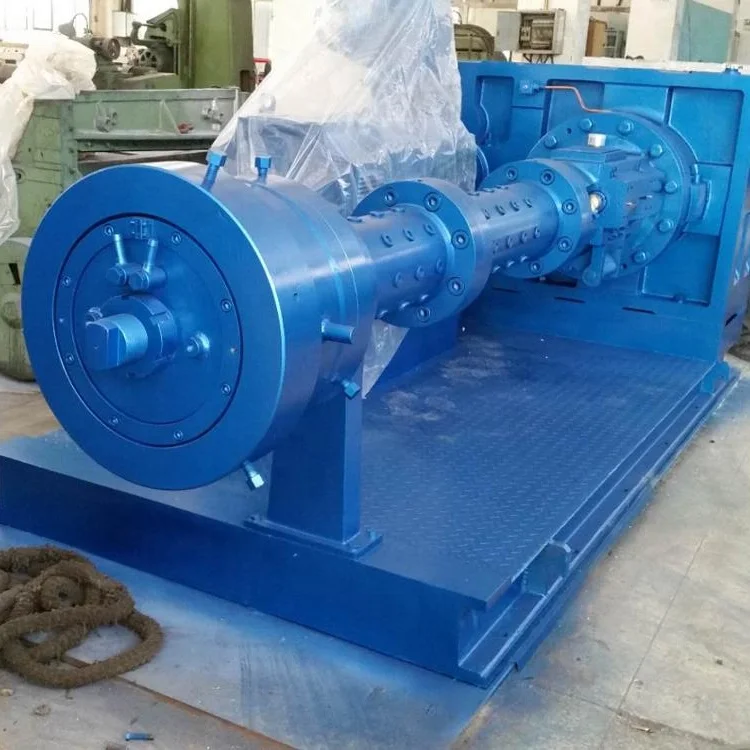

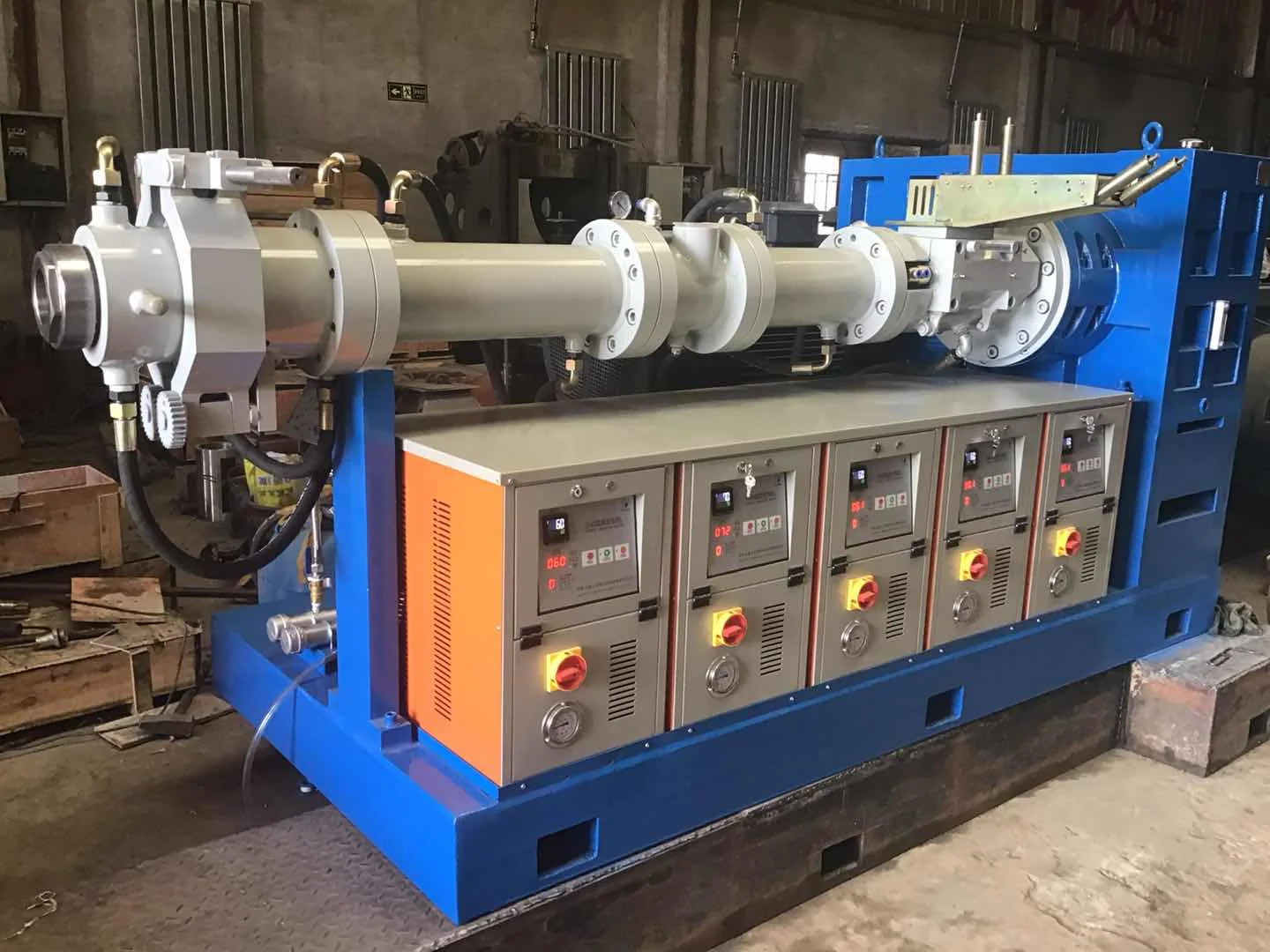

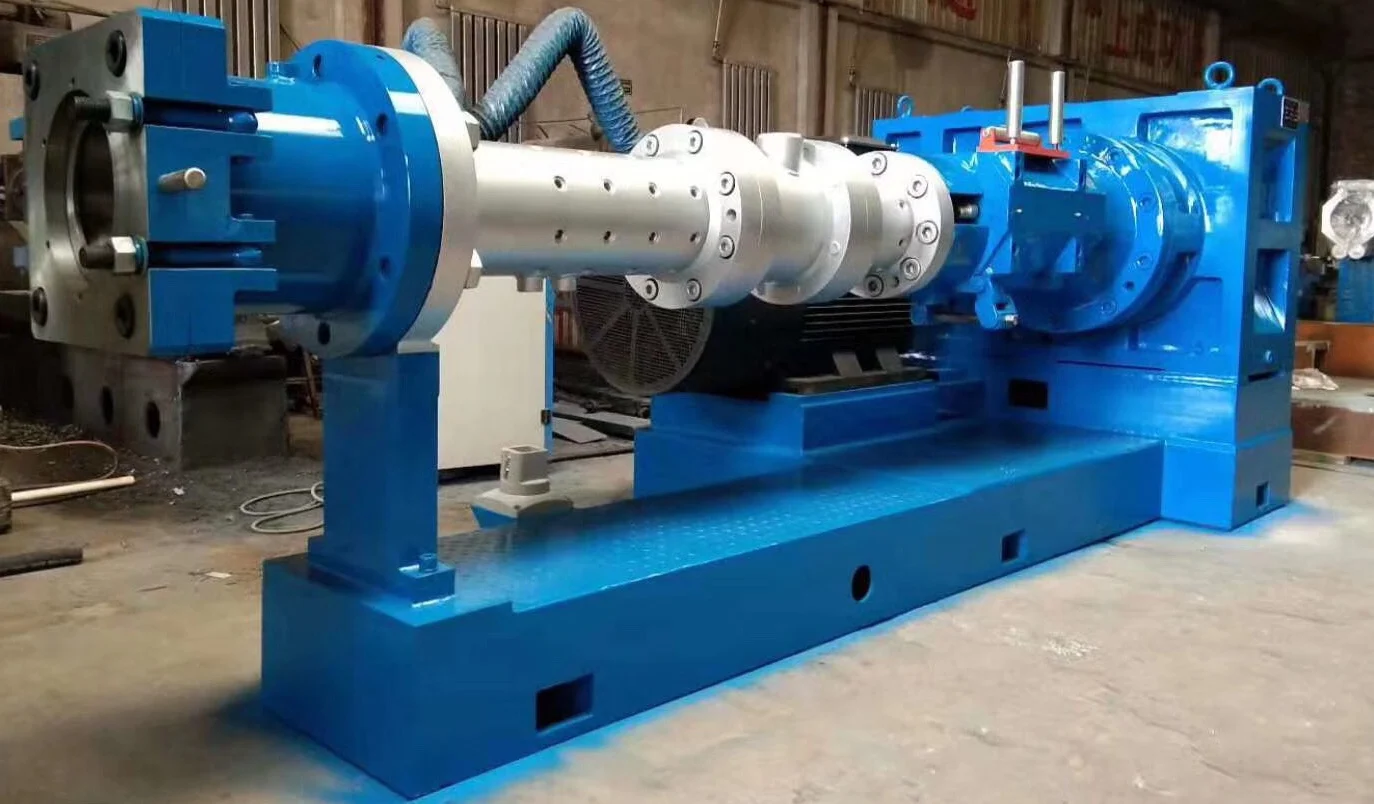

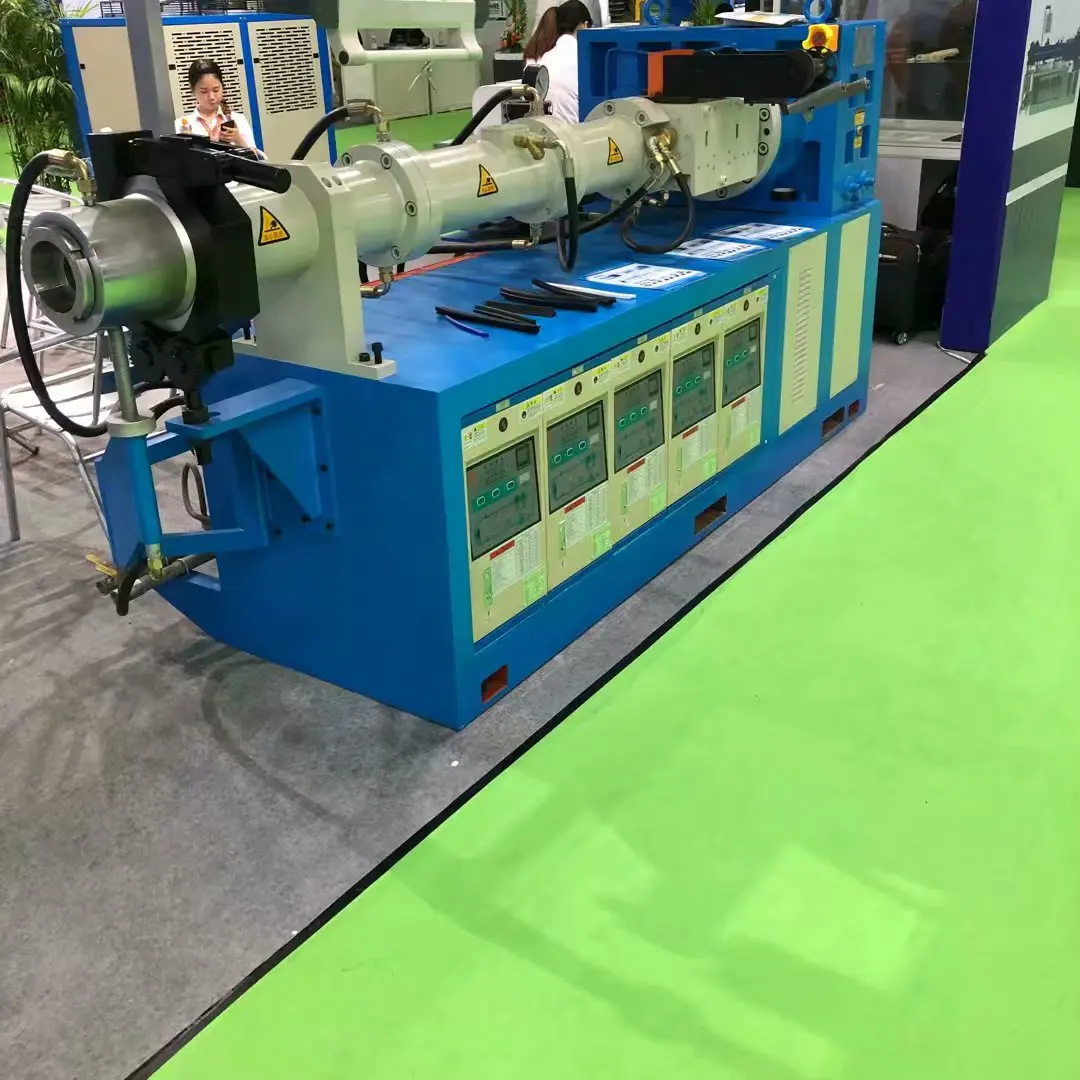

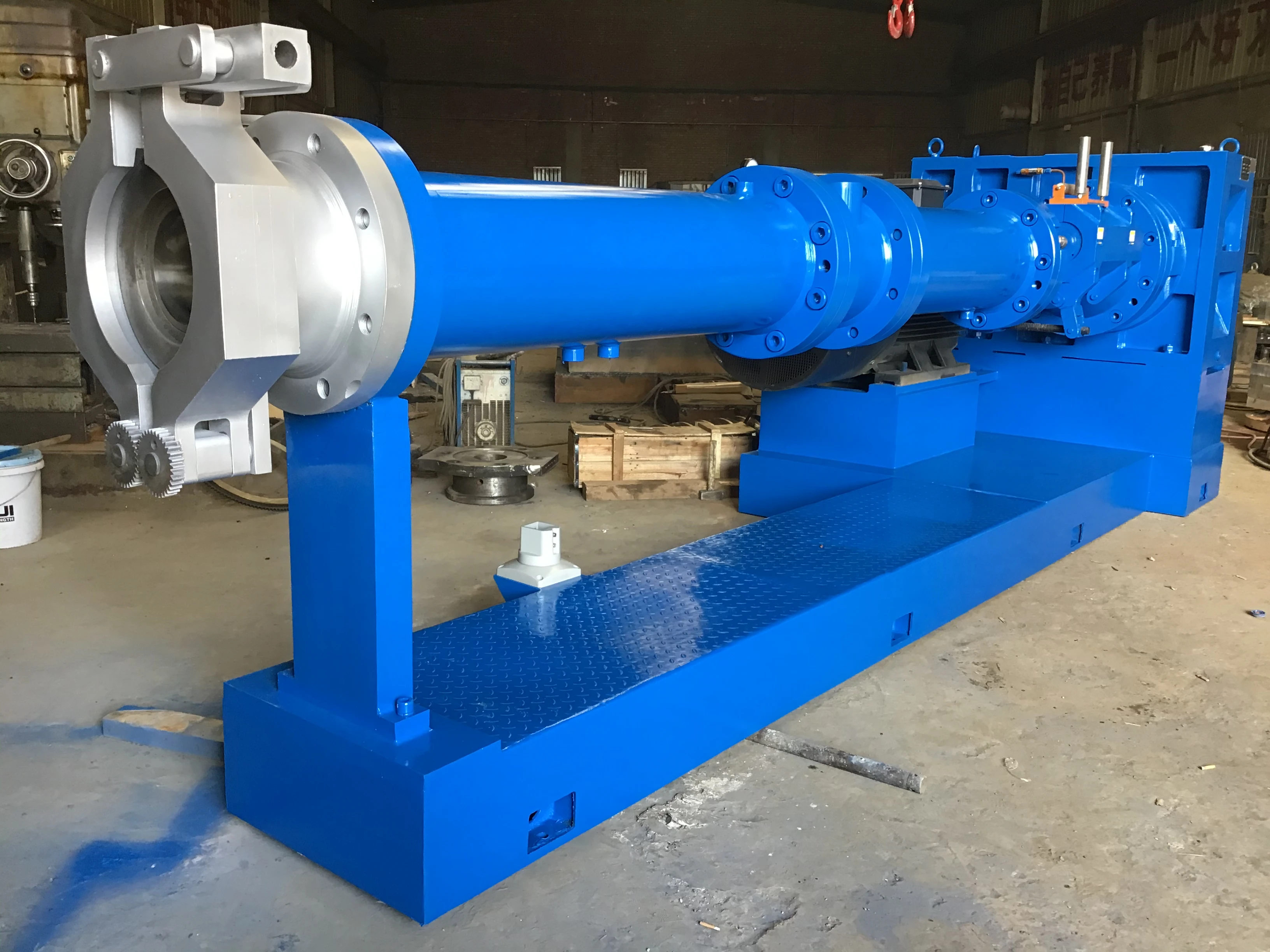

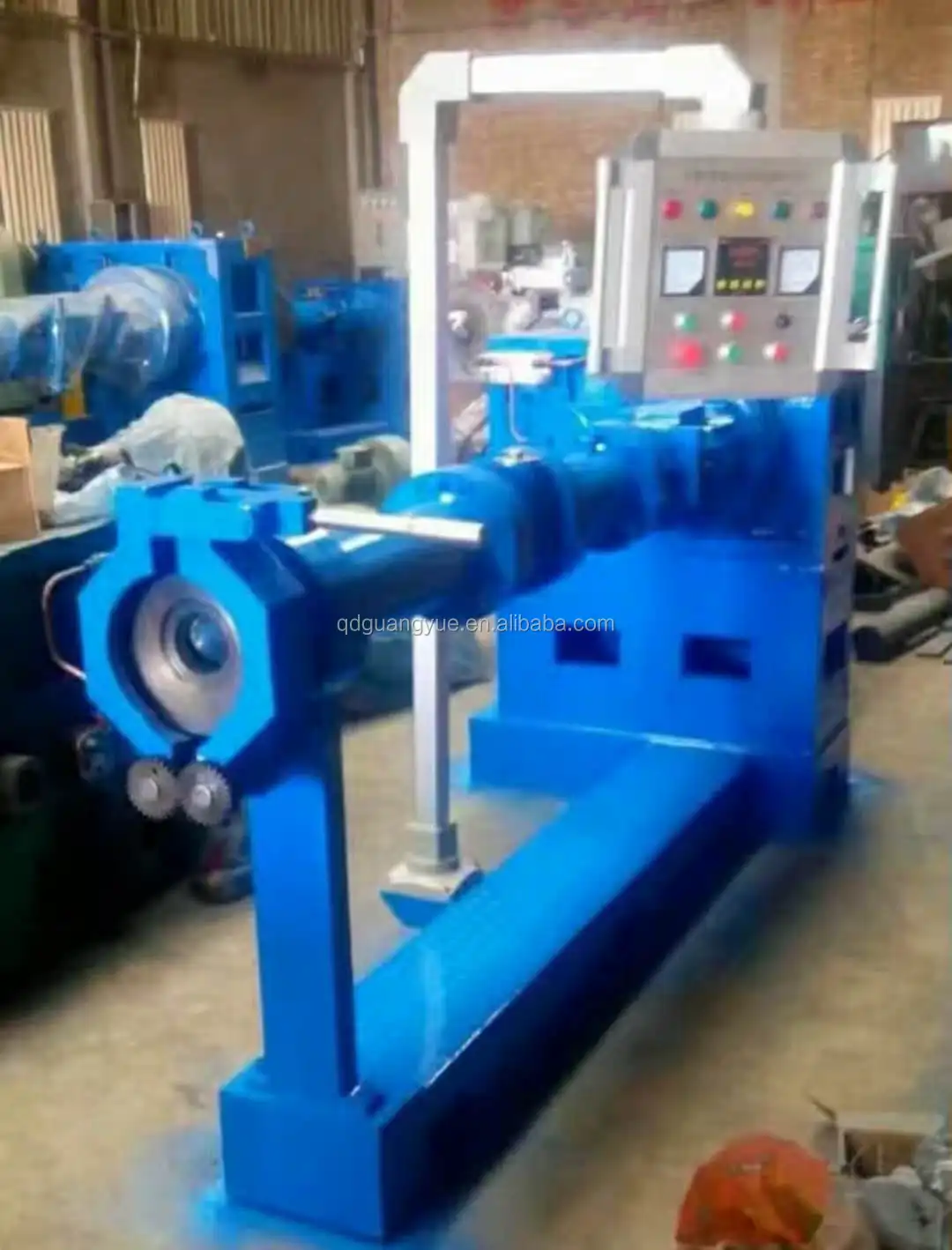

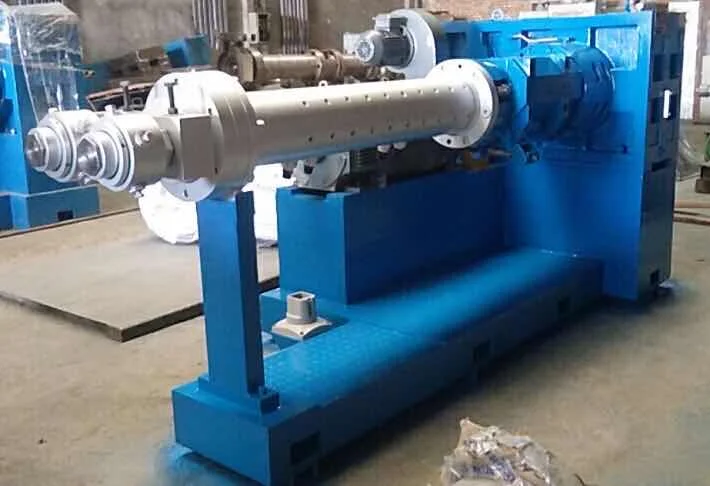

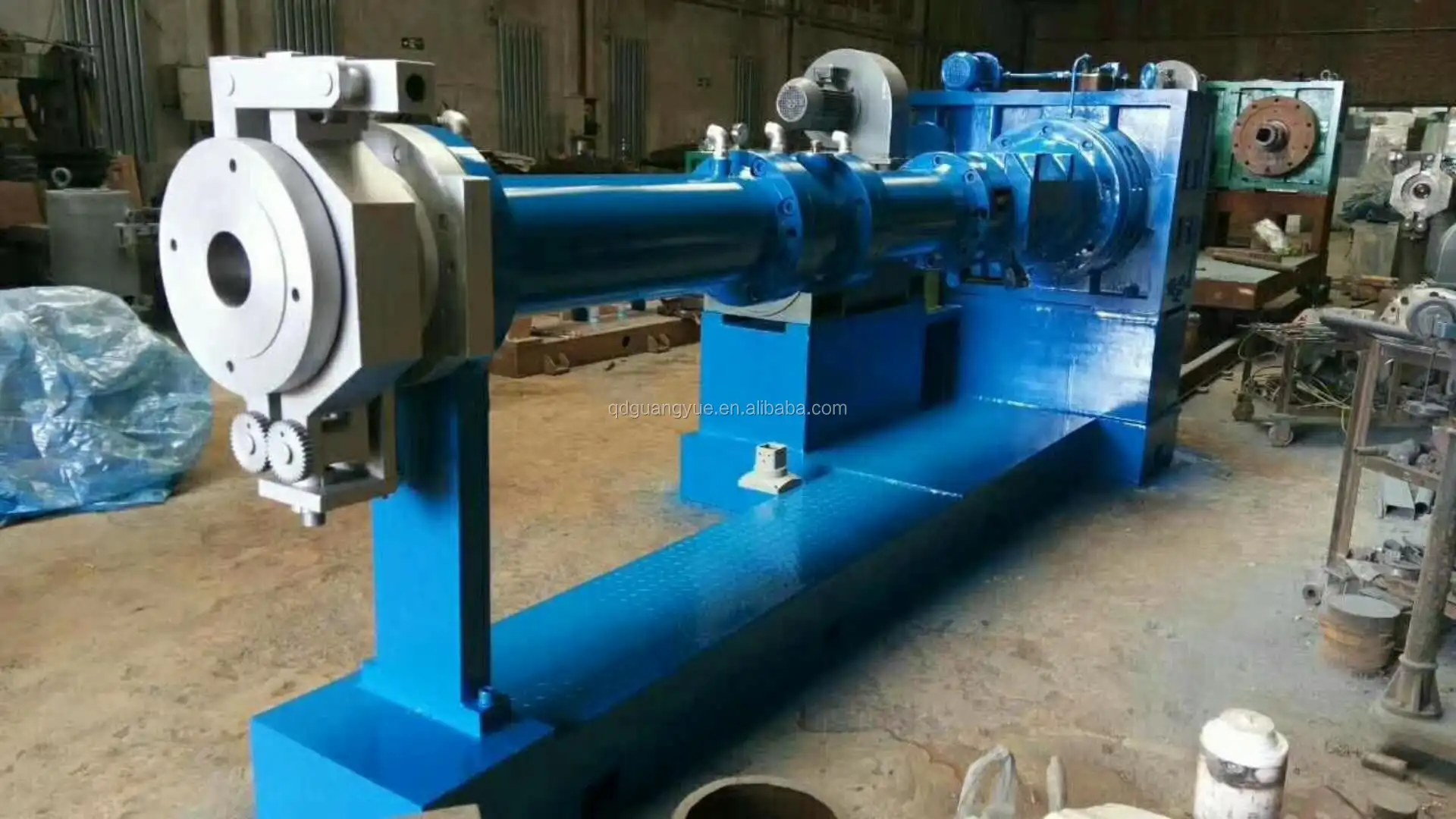

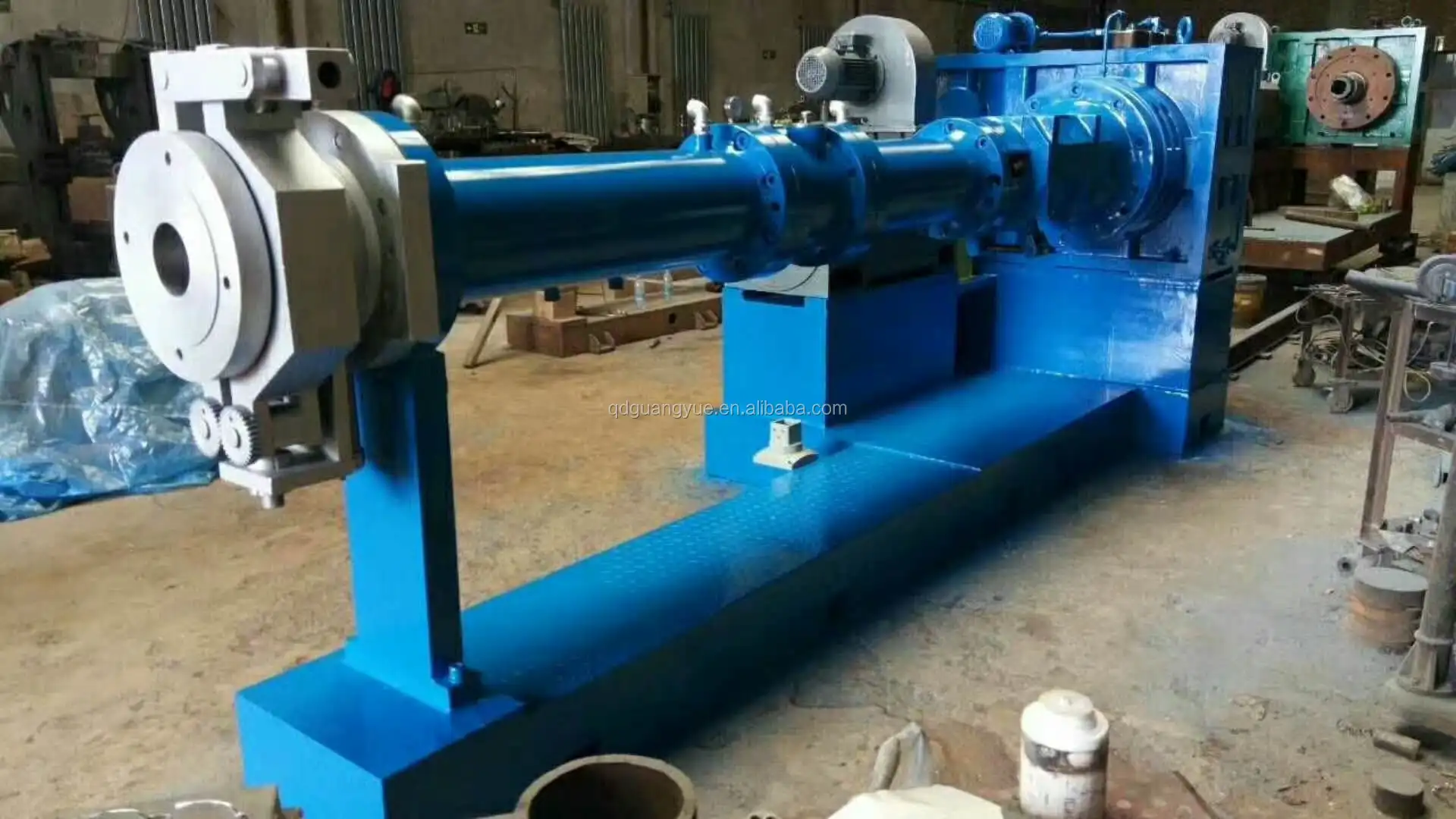

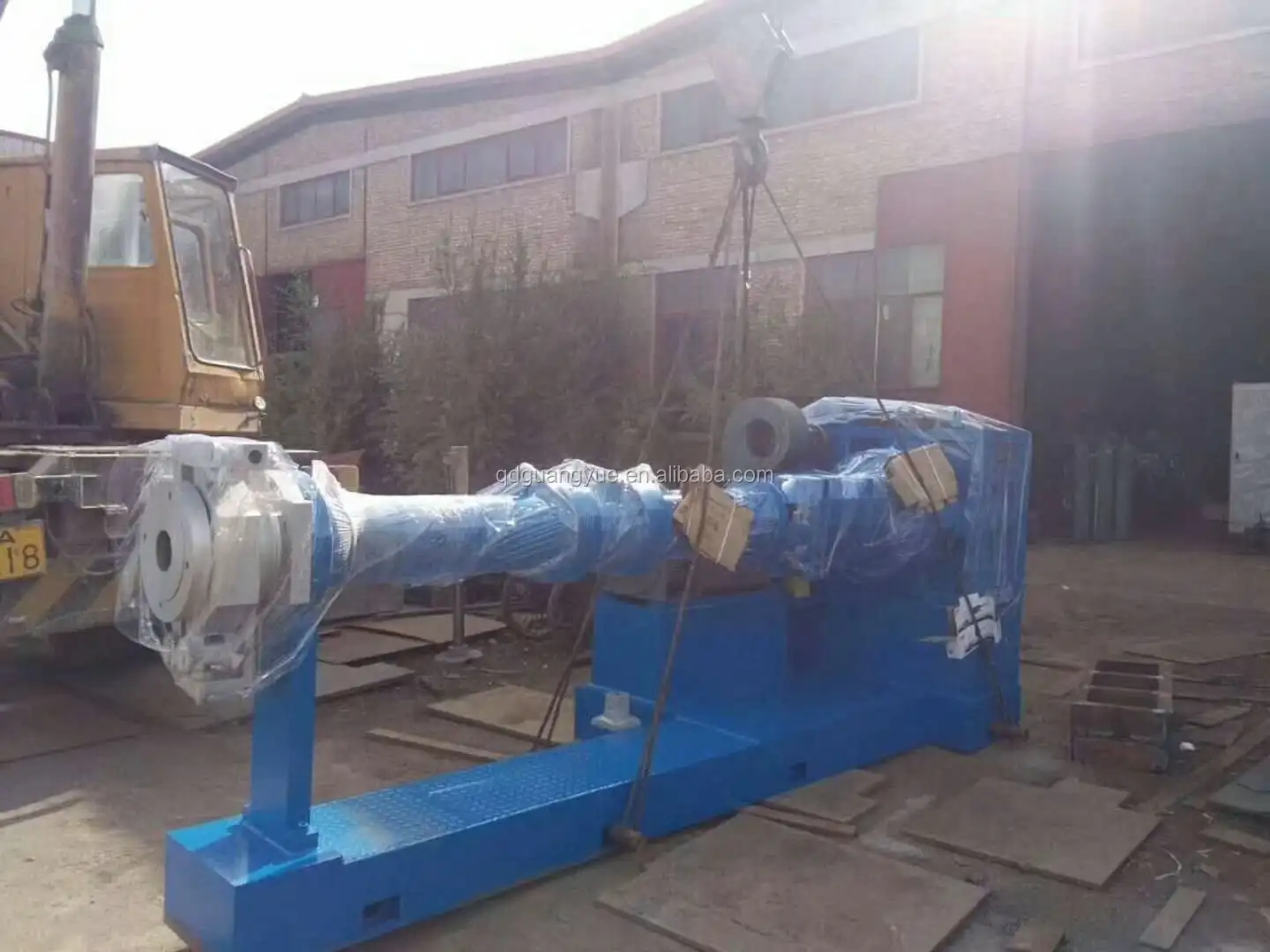

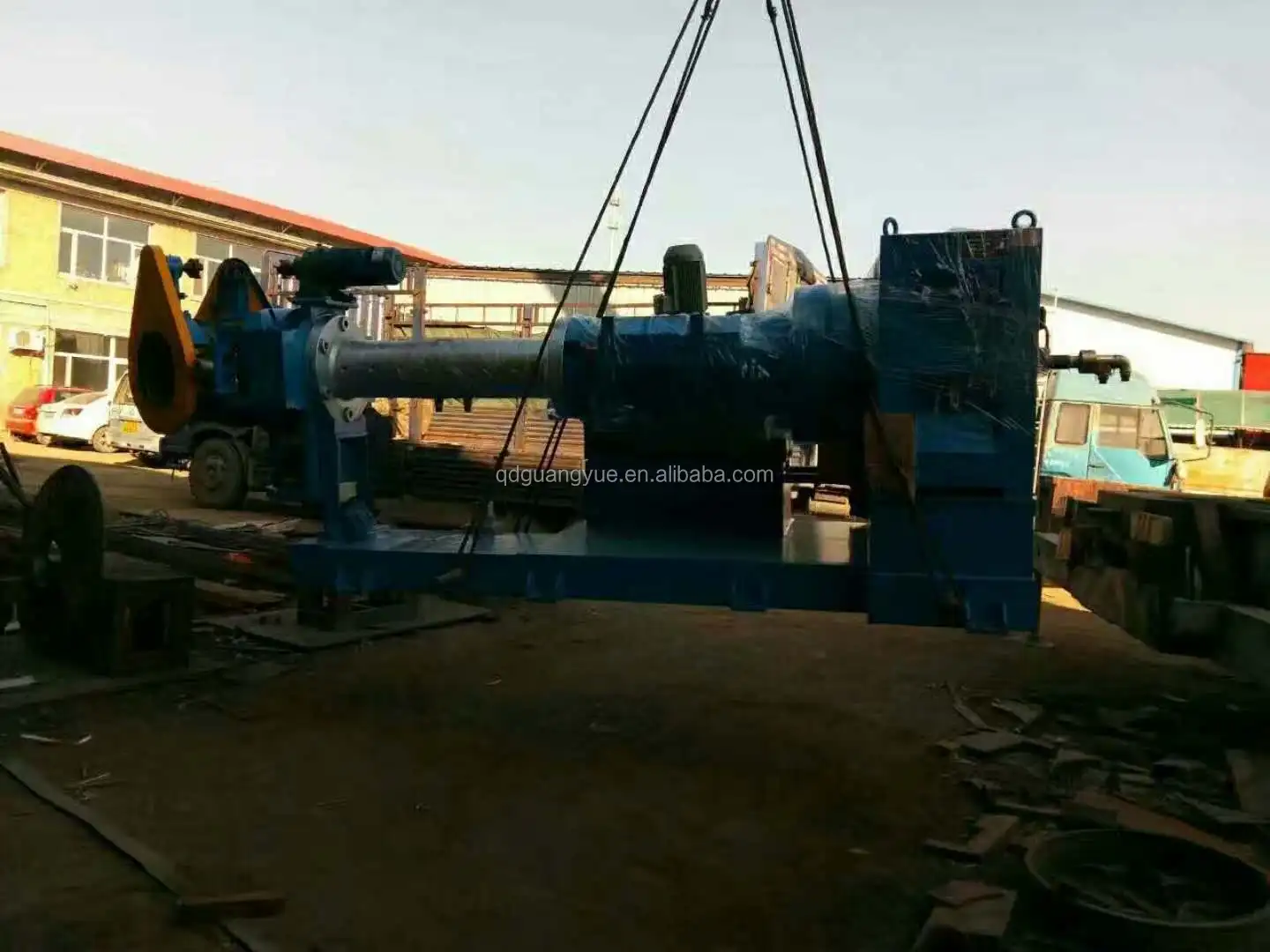

pin barrel cold feed rubber extruder / high quality rubber hose extruder production line
- Category: Rubber Extruders >>>
- Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co. Ltd.
Share on (60662451703):
Product Overview
Description
pin barrel cold feed rubber extruder / high quality rubber hose extruder production line
General Introduction
Generally Hot Feed Rubber Extruder is mainly applicable to shape extruding types of products. It has kinds of extruder heads for covering rubber of hose, electric wire and cable, also extruding types of tread, various different type rubber plate and board, and other rubber products.
The material of all screw shafts and liners is 38CrMoALA high-quality steel, the surface of them is processed by nitrogen treatment and hardness HRC is 6065. Their resistance to wear and corrosion is very good.
Advantages:
Excellent quality;
Flexibility of operation;
High performance-cost ratio
Technical Parameters for Rubber Extruder
Version
Parameters |
XJ-65 |
XJ-85 |
XJ-115 |
XJ-150 |
XJ-200 |
Screw thread form | Double-head equal-depth convergence type | Double-head equal-distance, unequal- depth type | Double-head convergence type | Double-head unequal- depth type | Double-head convergence type |
Screw outer diameter(mm) | 65 | 85 | 115 | 150 | 200 |
Screw length- diameter ratio(L/D) | 4 | 4.3 | 4.8 | 4.43 | 4.35 |
Compression ratio |
| 1.3 | 1.3 | 1.34 |
|
Screw rotational speed(r/min) | 20.27.35.47 | 28.40.56.80 | 33.46.60 | 27-81 | 22.4-67.2 |
Motor power(kw) | 7.5 | 11/15 | 22 | 18.3-55commutator motor | 25-75commutator motor |
Productive capacity(kg/h) | 50-80 | 70-210 | 100-420 | 700-1200 | 1500-2200 |
Steam pressure(Mpa) | 0.2-0.3 | 0.3-0.4 | 0.4-0.6 | 0.6 | 0.6-0.8 |
Cooling water pressure(Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2 | 0.2-0.3 |
Compressed air pressure(Mpa) |
|
|
|
| 0.3-0.6 |
Overall dimension(length*width*height)(mm) | 1630* 604* 1050 | 2050* 700 *1200 | 1630* 604 *1050 | 3411 *814* 1470 | 4564 *1800* 1750 |
Product weight(exclusive of motor head) (kg) | 1200 | 2500 | 3000 | 5000 | 8000 |
