Product Overview

Description


\t\t\t\t\t\t\t\t\tWelcome to HT sensor \t\t\t\t\t\t\t

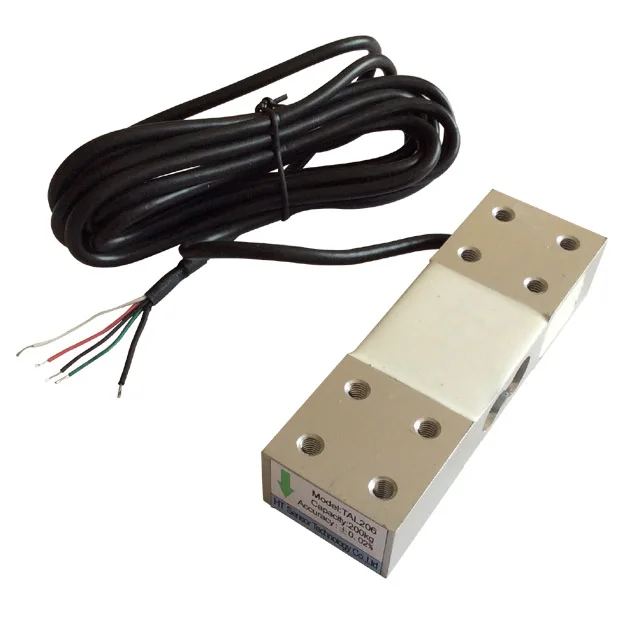

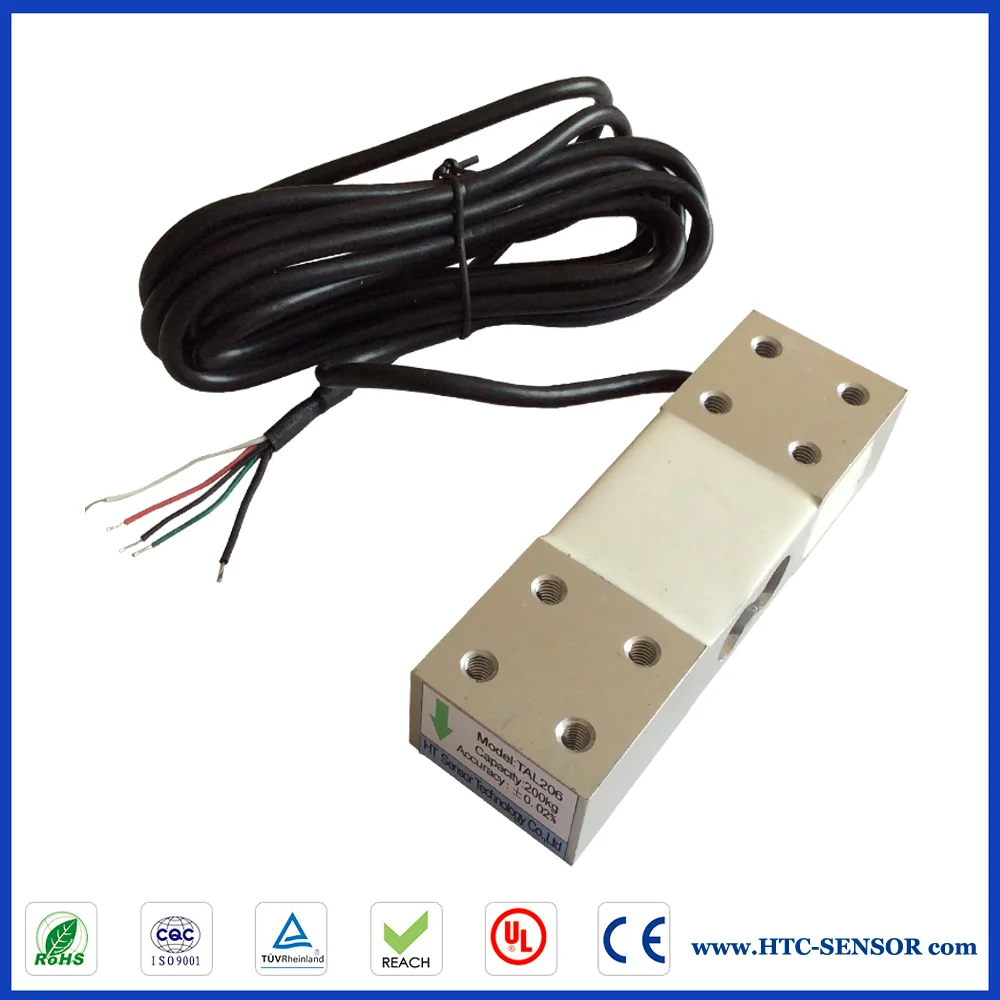

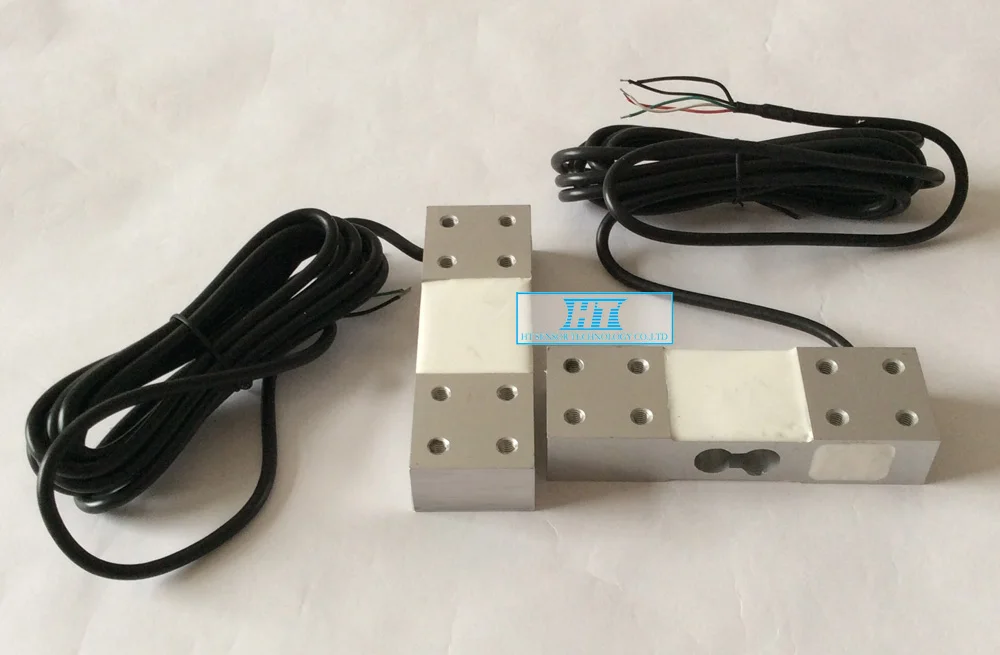

Model No. TAL206

◆Capacity ：20kg, 30kg,50kg,100kg,150kg,200kg,300kg
◆Material: aluminum-Alloy
◆Type: Parallel beam type
◆Defend grade: IP65
◆Recommended platform size:350x400mm
◆Application: electronic price computing scale,electronic weight scale, electronic platform scales , and other electronic weighing devices.

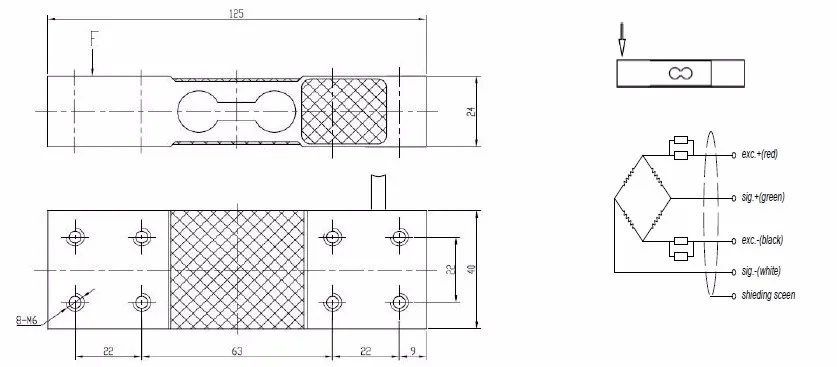

Dimensions
Specifications
\t
capacity
\t
kg
\t
20, 30, 50, 60, 100, 150, 200, 250, 300kg
\t
safe overload
\t
%FS
\t
120
\t
ultimate overload

\t
%FS
\t
150
\t
rated output
\t
mV/V
\t
2.0 ± 0.2
\t
excitation voltage

\t
Vdc
\t
9~ 12
\t
combined error
\t
%FS
\t
± 0.03
\t
zero balance

\t
%FS
\t
± 1.5
\t
non-linearity

\t
%FS
\t
± 0.02
\t
hysteresis

\t
%FS
\t
± 0.02
\t
repeatability

\t
%FS
\t
± 0.02
\t
creep
\t
%FS/30min

\t
± 0.02
\t
input resistance
\t
Ω
\t
406± 10
\t
output resistance

\t
Ω
\t
350 ± 3
\t
insulation resistance
\t
M Ω
\t
≥ 5000 @ 50 Vdc
\t
operating temperature range

\t
℃
\t
-20 ~ +60
\t
compensated temperature range

\t
℃
\t
-10 ~ +40
\t
temperature coefficient of SPAN

\t
%FS/10℃

\t
± 0.02
\t
temperature coefficient of ZERO

\t
%FS/10℃

\t
± 0.03
\t

Electrical    connection
\t

cable
\t
4 core shielded PVC cable, Ø 5.0 × 3m
excitation(+):Red excitation(-):Black signal(+):Green signal(-):White
Packing & Delivery

Packing

Inner packing: 1pcs /plastic bag/ box
Outer packing: standard exporting carton

As the customer's requirements

Delivery

Normal products:  7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc


Related Products

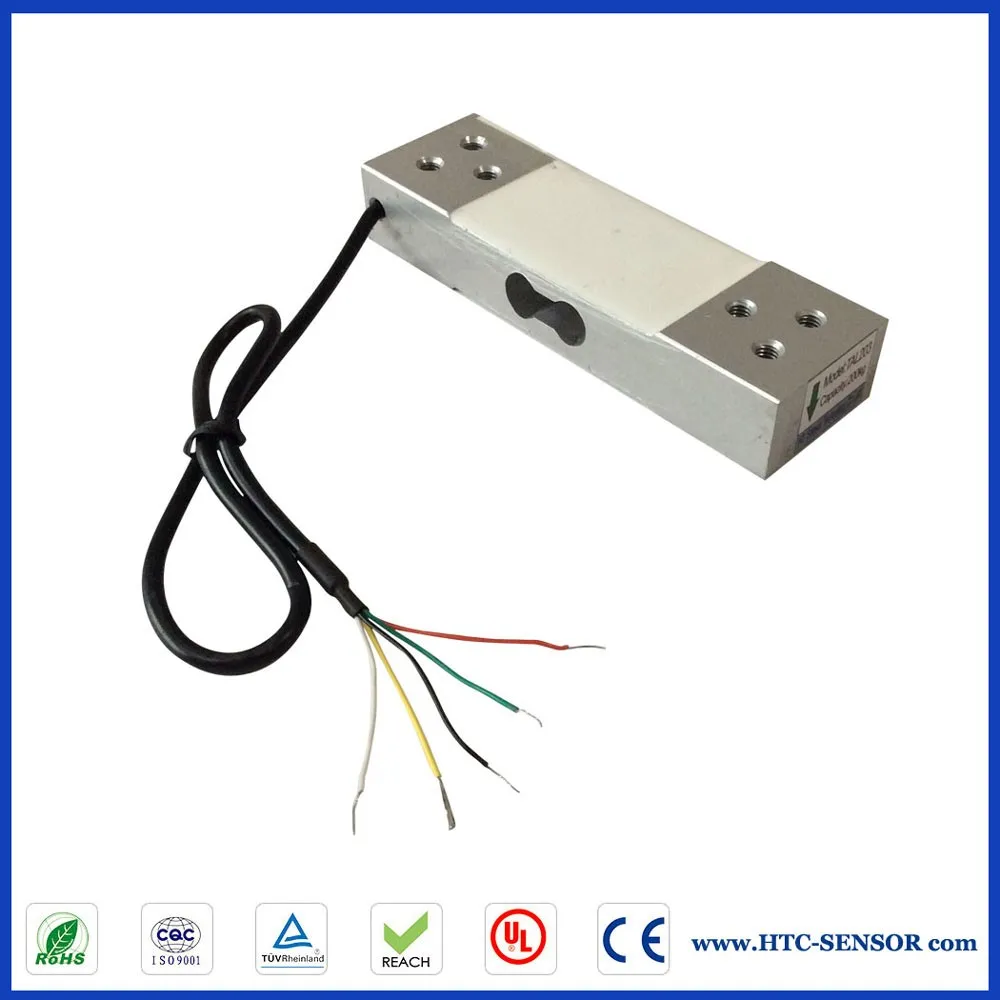

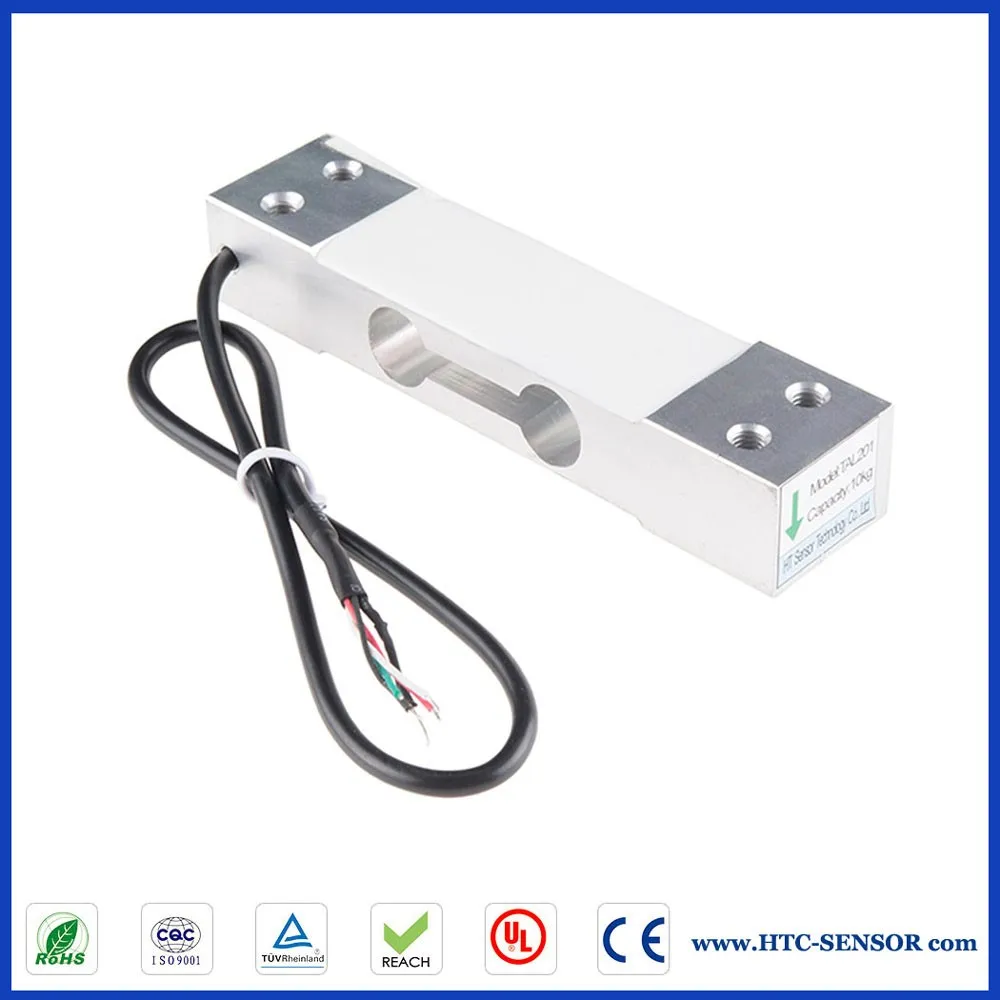

        TAL201 Capacity:3~120kg
