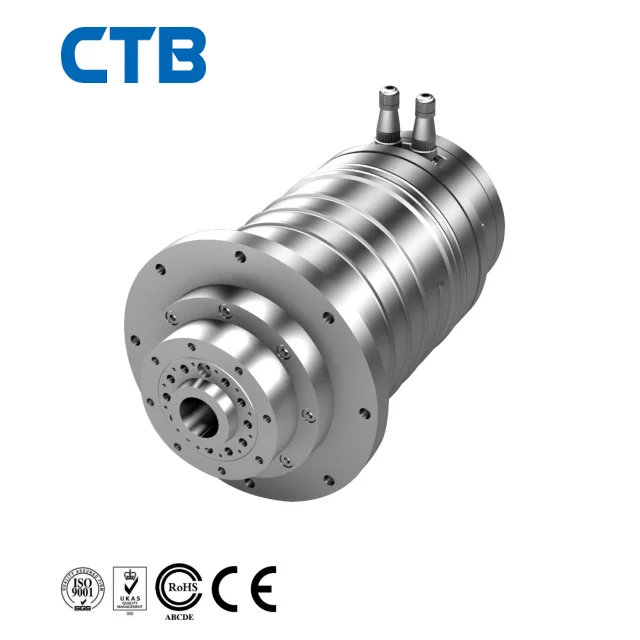

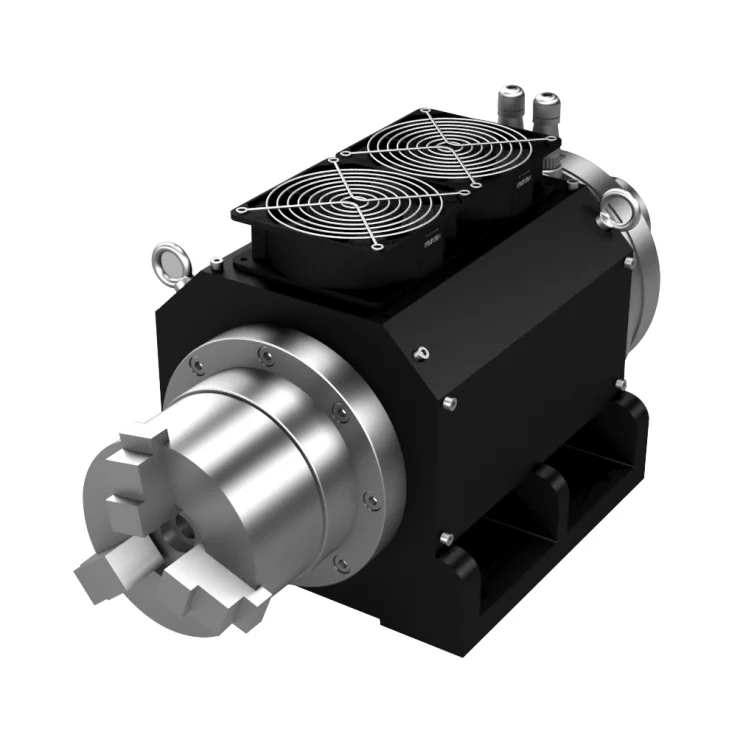

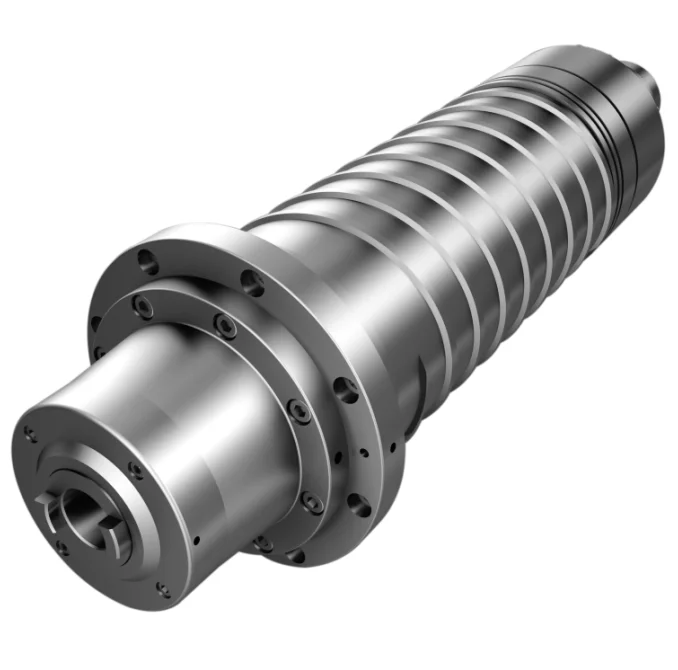

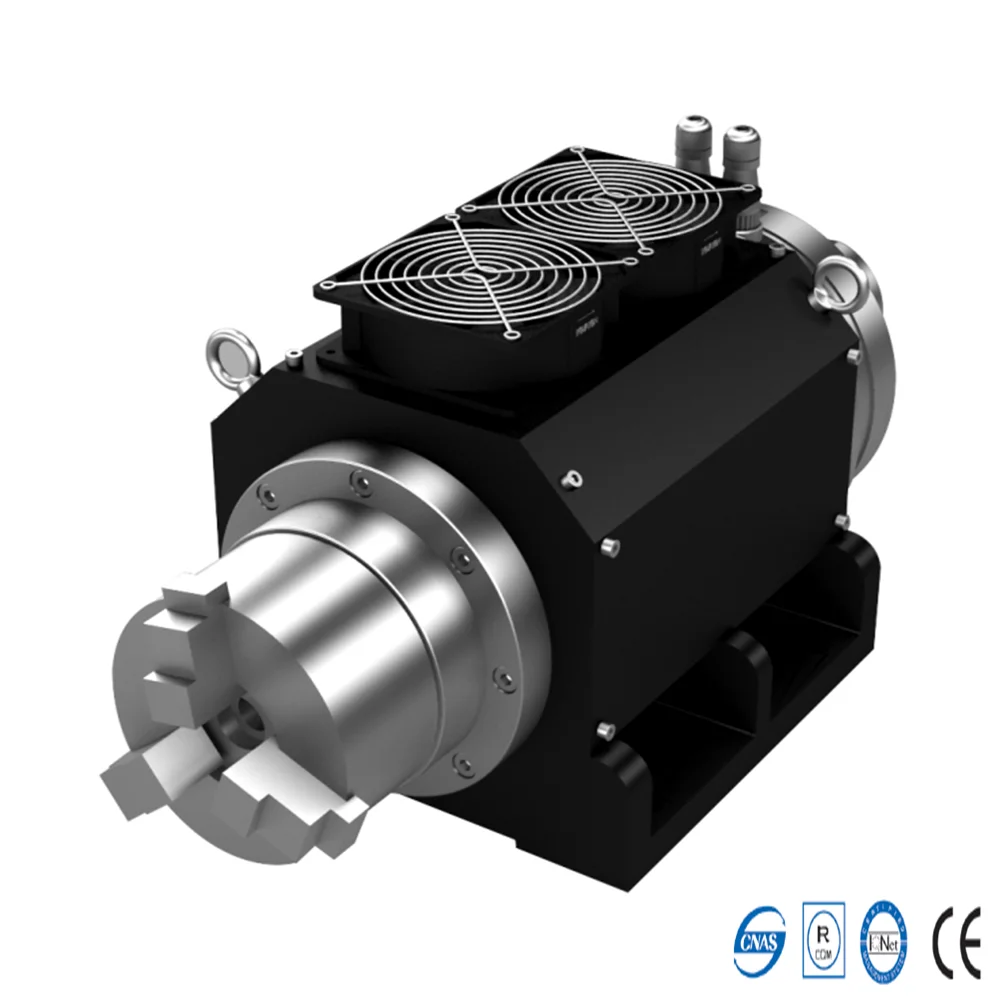

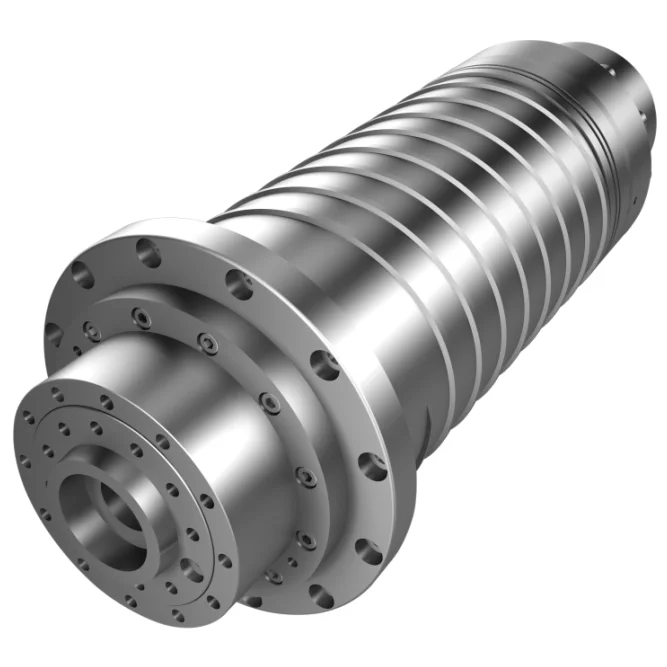

ctb A2-4 cnc turning spindle motor
US $1500-$3100
A2 4 spindle motor router
- Category: Machine Tool Spindle >>>
- Supplier: CTB Co. Ltd.
Share on (60663857784):
Product Overview
Description
Product Description
Performance Index
Model: BCES-A204-45P5-3000/8000 | |||||
Cooling method | Air-cooling | Water cooling | Cooling method | Air-cooling | Water cooling |
Motor type | Star-connection | Motor type | Star-connection | ||
Torque S1 (N.m) | 18 | 24 | Rated speed (rpm) | 3000 | 3000 |
Torque S6 (N.m) | 24 | 35 | Max speed (rpm) | 8000 | 8000 |
Power S1 (kW) | 5.5 | 7.5 | Rated Voltage (V) | 380 | 380 |
Power S6 (kW) | 7.5 | 11 | Rated Current (A) | 11.5 | 15 |
Encoder type | TTL 1VPP MODBUS | Rated frequency (Hz) | 103.6 | 104.4 | |
Temperature sensor | PT3C-51F | Bearing lubrication method | Oil lubrication | ||
