0.5/1ph 2kw air cooled rotary small lab chiller
- Category: Industrial Chiller >>>
- Supplier: Shenzhen Hero-Tech Refrigeration Equipment Co. Ltd.
Share on (60664045184):
Product Overview
Description
Air cooled industrial chiller Technical Specifications
Model | HTI-1/2A | ||
Ambient temperature | 35C | ||
Nominal Cooling Capacity@15C | Kcal/h | 2072 | |
KW | 2.41 | ||
Nominal Cooling Capacity@12C | Kcal/h | 1634 | |
KW | 1.9 | ||
Nominal Cooling Capacity@7C | Kcal/h | 1075 | |
KW | 1.25 | ||
Temperature Set range |
| 7C to 35C | |
Max Power Consumption | KW | 0.915 | |
Power Source |
| 1PH~220V/50HZ | |
Refrigerant | Type |
| R407C |
Control |
| Capillary | |

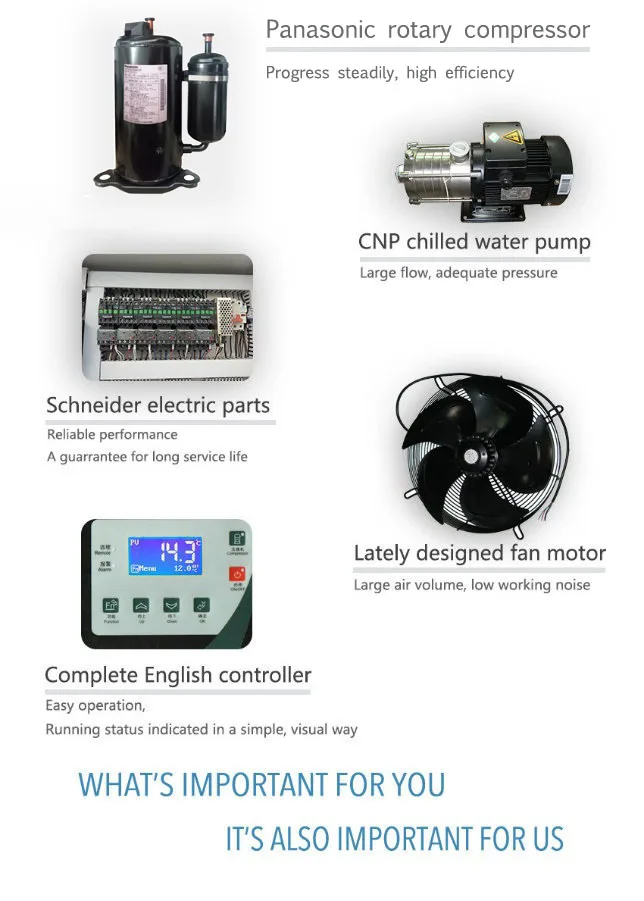

Compressor | Type |
| Hermetic Rotary |
Power | KW | 0.45 | |
Condenser | Type |
| finned copper tube + low noise axial fan |
Fan Motor | KW | 0.095 | |
Air Volume | m3/h | 750 | |
Evaporator | Type |
| SS tank with SS coil |
Coolant Flow | LPM | 10 | |
Inlet and Outlet | Inch | 1/2 | |
Pump | Power | KW | 0.37 |
Head | m | 15 | |
Unit Protection Modules | Motor Overload, High&Low Pressure, Chilled Water Over Temperature,anti-freezing | ||
Dimension | Length | mm | 550 |
Width | mm | 350 | |
Height | mm | 755 | |
Weight | KG | 45 | |
NOTE: The specifications based on the following design conditions:
l Condensing temperature 45C
l Cooling air inlet/outlet temperature: 30℃/38℃
l Chiller should be used under 35C ambient temperature
We reserve the right to modify the specifications without further notice.

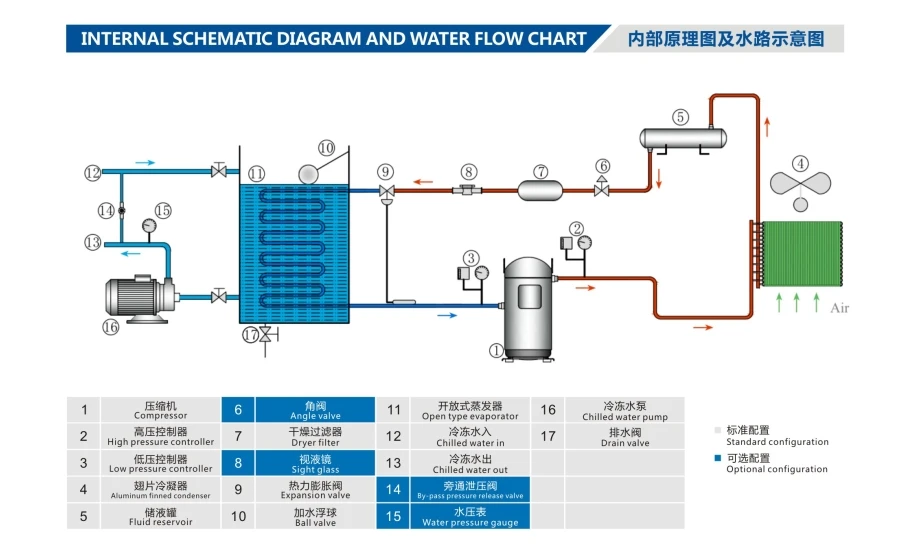

Flow chart
