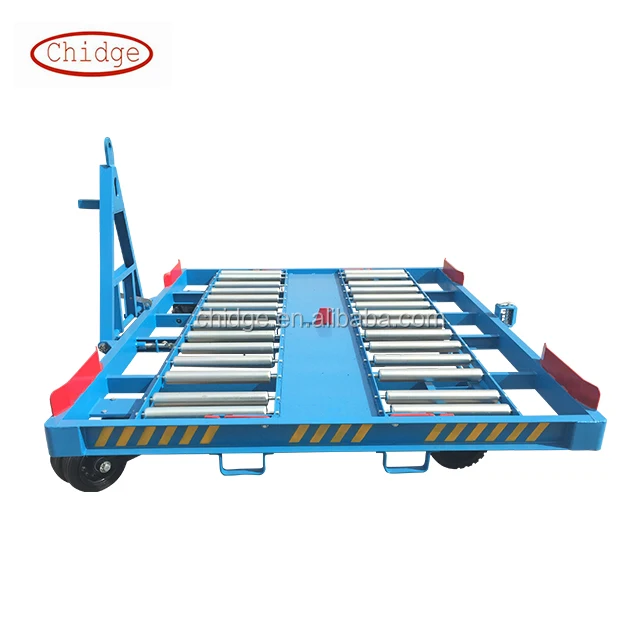

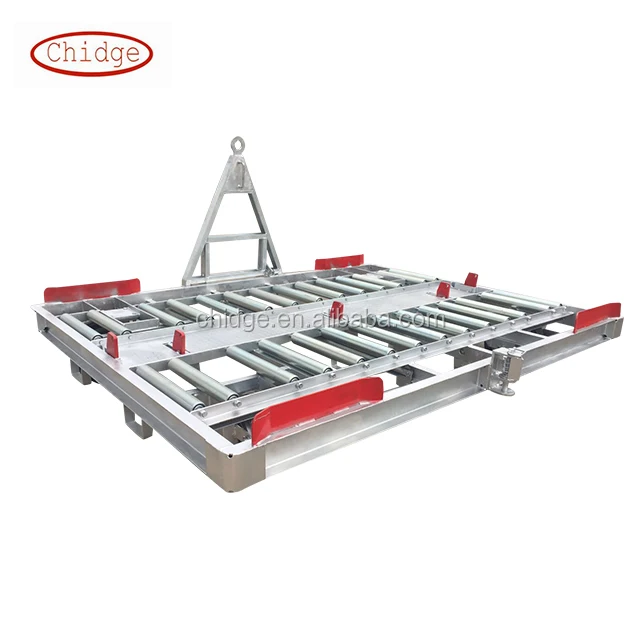

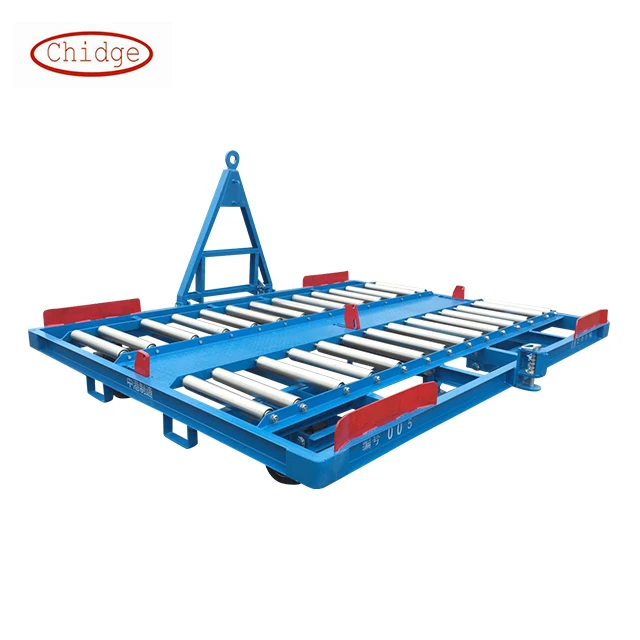

aircrfat ground support equipment 7000kg pallet dolly for airport

Ø Solid rubber tyre for longer life
Ø Loading；The trailer according to the pallet and container size, equipped with fixed limited guide plate on the two side, 3sets
of movable baffles at the both ends and the middle, The movable baffles at both ends are loaded with fall insurance, The boards
can be loaded with.P6P.P1P.PQA pallet, or LD1.2, LD2.2 container.
Ø Four fixed baffles in front and back reinforce the guiding function to prevent the goods from being jammed when the direction of
loading is slightly improper.
Ø The tail is equipped with self locking hook device to prevent the rear car from being decoupled so that the train can be
smoothly connected.
Ø There are two rows of 28 galvanized roller drives, with a decorative walkway in the middle for easy operation.
Ø The mop has dual functions of multi vehicle connection and brake.
Ø Design the right and left fork parking spaces to facilitate the use of forklift truck towing card.

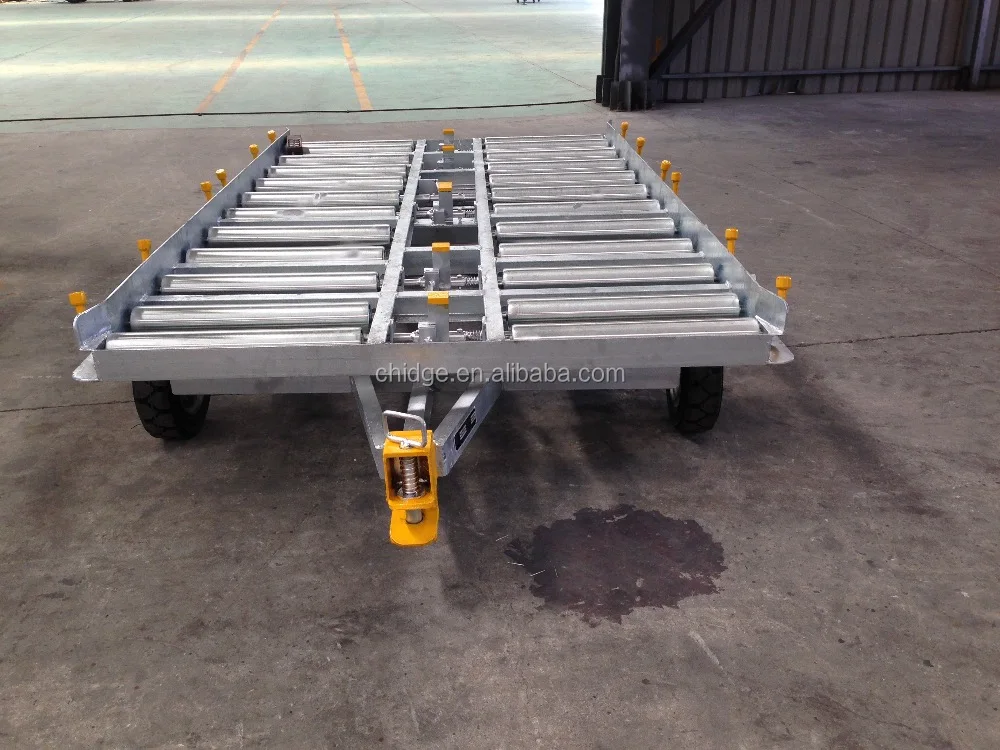

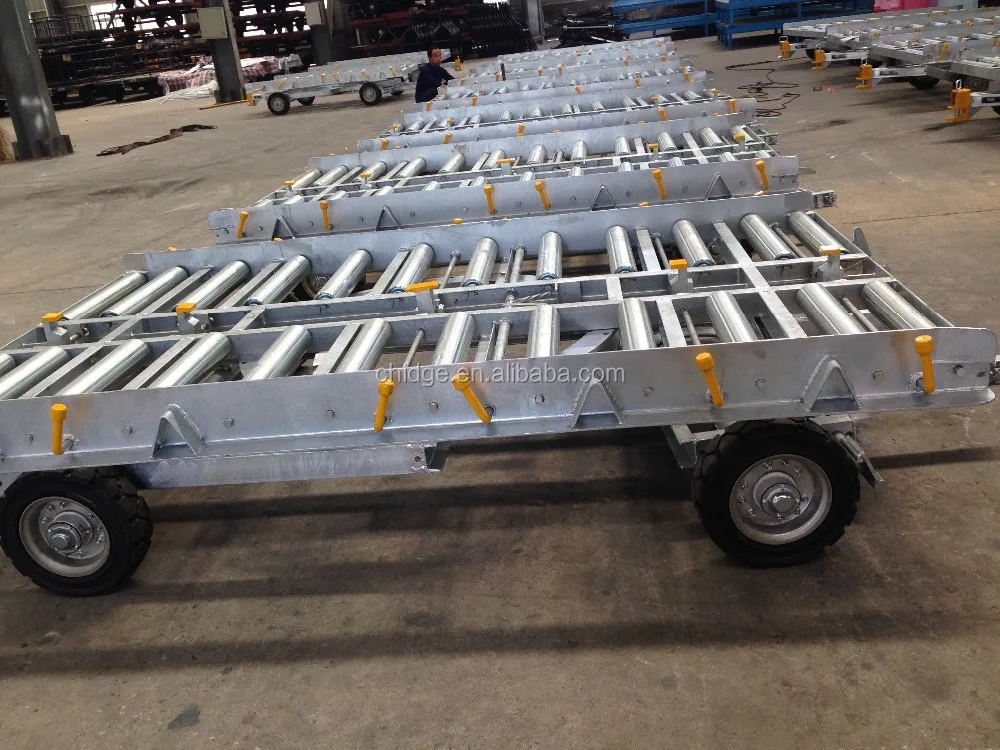

Detailed Images

Packing & Delivery

Size(L*W*H)mm	4135*3400*625
Platform size(L*W*H)mm	3400*2660*508-518
Weight	≥1050Kg
Loading weight	7000Kg
