75 мм стержень глаз линейным приводом позиции путешествия линейный дифференциальный датчик

75 мм стержень глаз линейным приводом позиции путешествия линейный дифференциальный датчик

Category: Sensors >>>
Supplier: HT Sensor Technology Co. Ltd.

Price:70,00 $

Quantity:

Product Overview

Description

Product Description

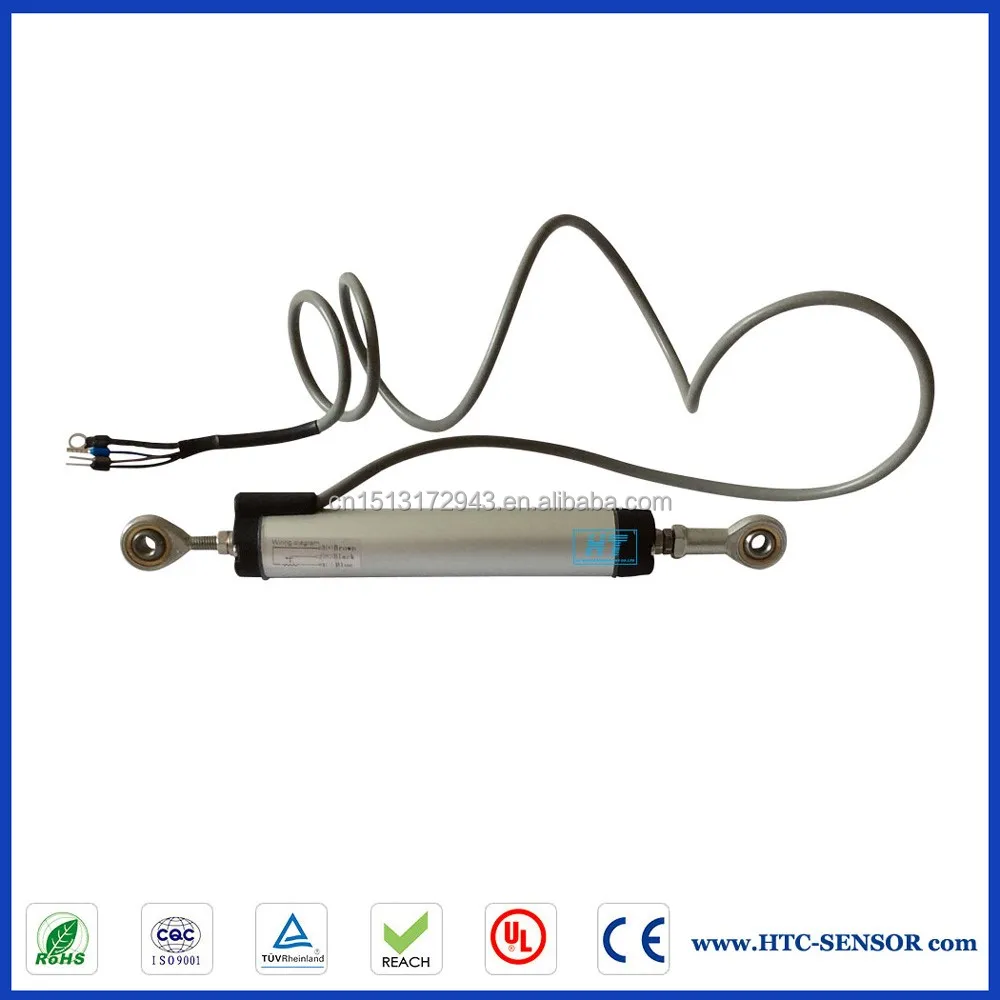

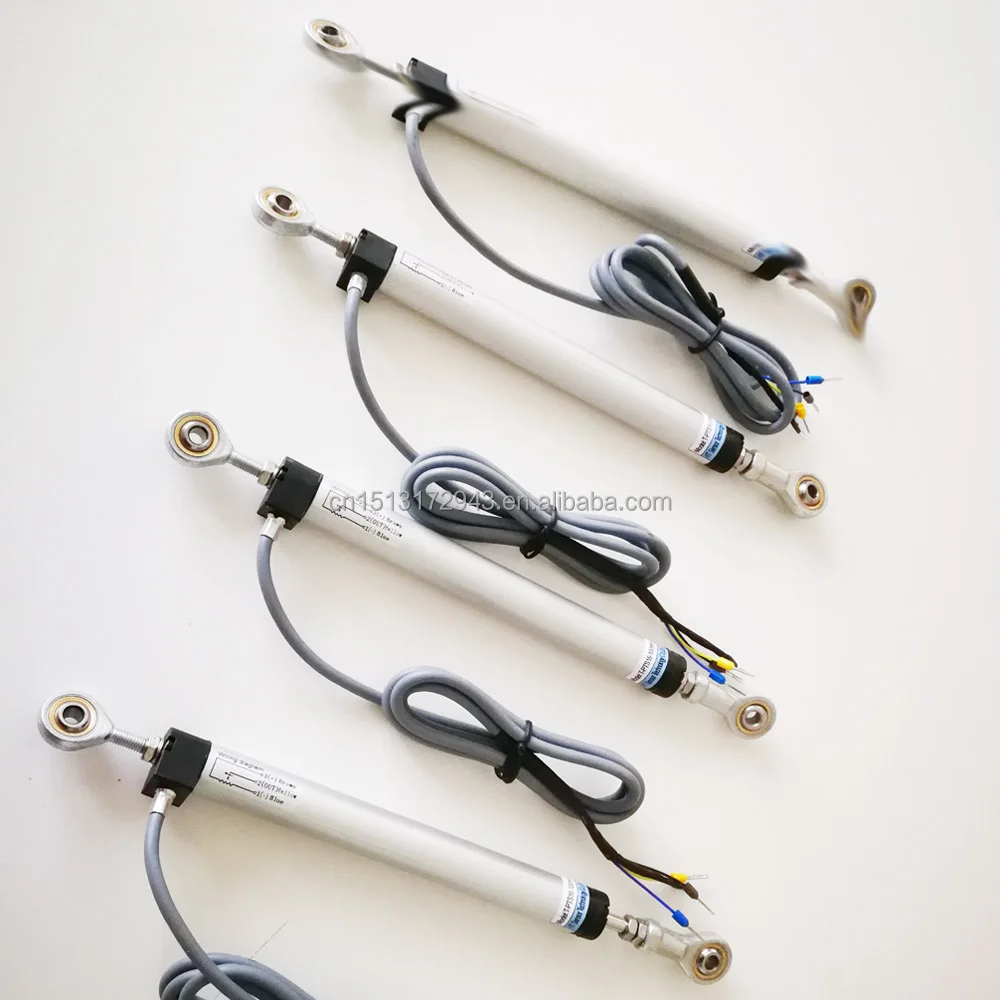

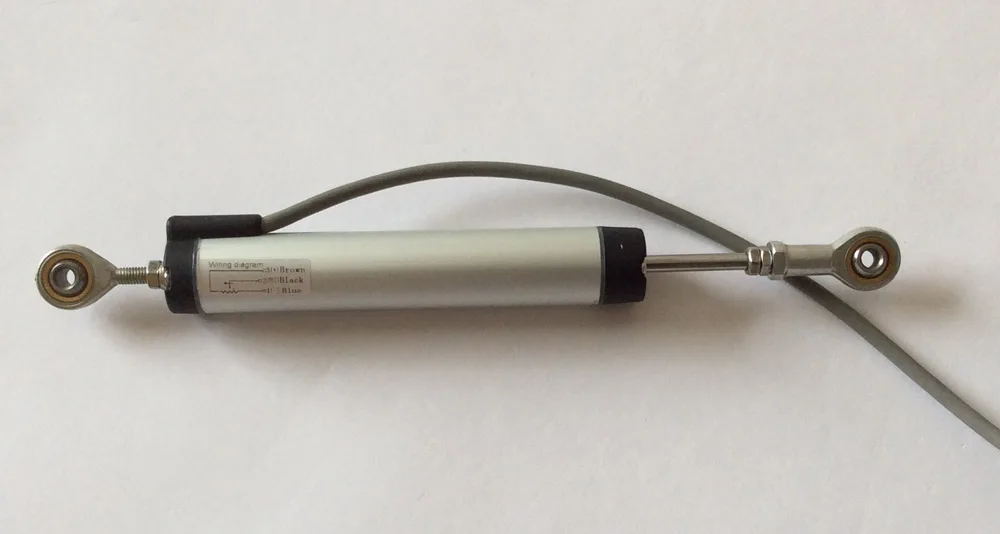

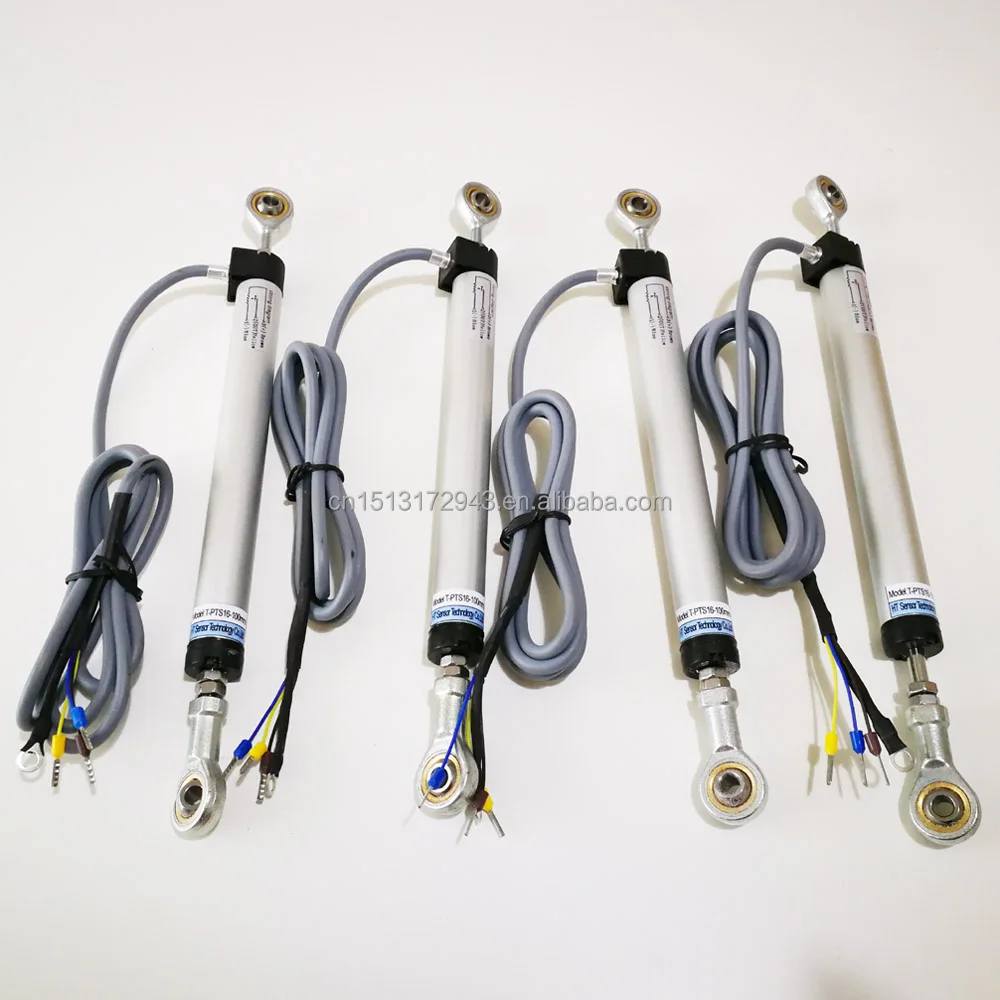

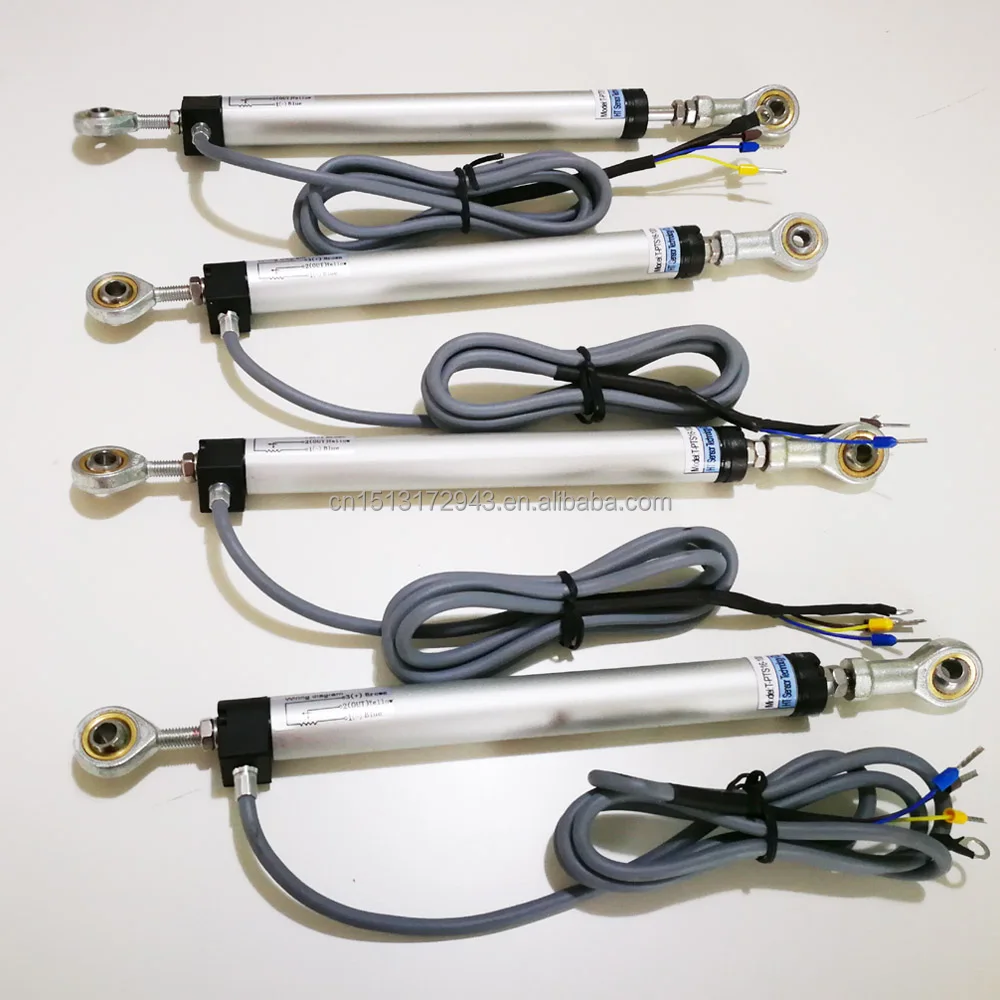

T-TPS POSITION TRAVEL SENSOR

◆T-PTS 10mm~300mm
◆ Rod Eye End Linear Actuated Position Travel Sensor
Application for short range and swinging moments, such like: robots, brick machines,

ceramic machines,sluice gate, footwear machines and so on.

Dimensions

Specifications

\t T-PTS range	\t 10mm	\t 15mm	\t 25mm	\t 50~75mm	\t 100~300mm	\t Stroke Length （mm） 10 15 25 50 75 100 125 150 175 200 225 250 275 300
\t Linear Precision (±%FS)	\t ±0.1%				\t ±0.05%
\t Resistance (±10%)	\t 1ΚΩ				\t 5ΚΩ
\t Effective Stroke	\t range+3mm
\t Resolution	\t Infinite
\t Repeatability Precision	\t 0.01mm
\t Max Speed	\t 5m/S
\t Recommended Current	\t ≤1mA
\t Temperature Range	\t -60℃~+150℃
\t Output	\t 0~100% × input voltage (change with the movement of the rod) resistance output
\t Sensitivity	\t 1
\t Temperature Drift	\t infinitesimal
\t Very long life	\t >1001000000 cycles,>251000000 m

Detailed Image

Packing & Delivery

Packing

Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments

Delivery

Normal products: 7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc
