1.JINHUA clear and transparent epoxy resin AB glue made from basic pure resin and do well in adhesive.
2.Good at UV and yellow resistance,self leveling,without bubble,high brightness.
3.Can be cured at nomal temperature or by heating.
4.Clear,low viscosity,nature defoaming, super transprency and good performance after mixed.
5.Can get any color you want by add pigments.
6.Easy to clean and repair.
7.No ripple,bright in surface,odourless,eco-friendly,nontoxic,waterproof and so on.
Certificate
Application

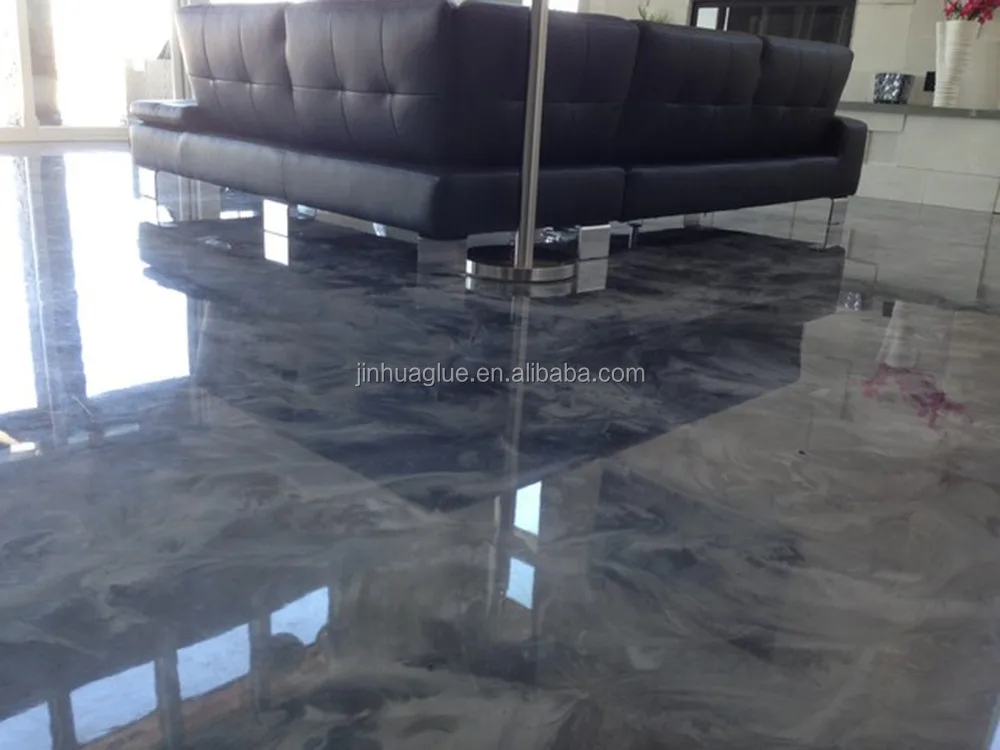

1.Excellent for wood coating,bartop coating,channel letters.
2.Good for billborad,advertising,LED light,potting and sealing on solar panel,craft making and so on.
3.It's also widely used in wood table,bar top coating,ornament decoration,name plate,card,photo frame,sticker,etc... Product Gallery
Features
Properties beforeHardening
Part
113A-1
113B-1
Color
Transparent
Transparent
Specific gravity
1.15
0.96
Viscosity (25℃)
2000-4000CPS
80 MAXCPS
Mixing ratio
A: B = 100:33(weight ratio)
Hardening conditions
25 ℃×8H to 10H or 55℃×1.5H (2 g)
Usable time
25℃×40min (100g)
Operation

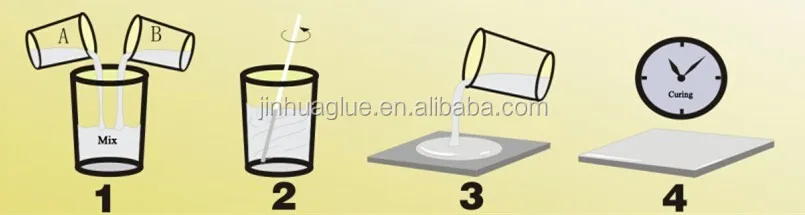

1.Weigh A and B glue according to the given weight ratio into the prepared cleaned container, fully mixed the mixtureagain the container wall by clockwise,place it along for 3 to 5 minutes, and then it can be used.
2.Take the glue according to the usable time and dosage of mixture to avoid wasting. When the temperature is below 15 ℃, please heat A glue to 30 ℃ first and then mix it to the B glue (A glue will be thicken in low temperature ); The glue must be sealed lid after use to avoid rejection caused by moisture absorption.
3.When the relative humidity is higher than 85%, the surface of the cured mixture will absorb moisture in the air, and form a layer of white mist in the surface, so when the relative humidity is higher than 85%, is not suitable for room temperature curing, suggest to use the heat curing.
Properties after Hardening
Hardness, shore D
<85
Withstand voltage, KV/mm
22
Flexural strength, Kg/mm2
28
Volume resistivity, Ohm3
1x1015
Surface resistance, Ohmm2
5X1015
Thermal conductivity, W/M.K
1.36
Induced electric loss, 1KHZ
0.42
Withstand high temperature, ℃
80
Moisture absorption, %
<0.15
Compressive strength, Kg/ mm2
8.4
FAQ
1, Why Choose Jinhuaglue?

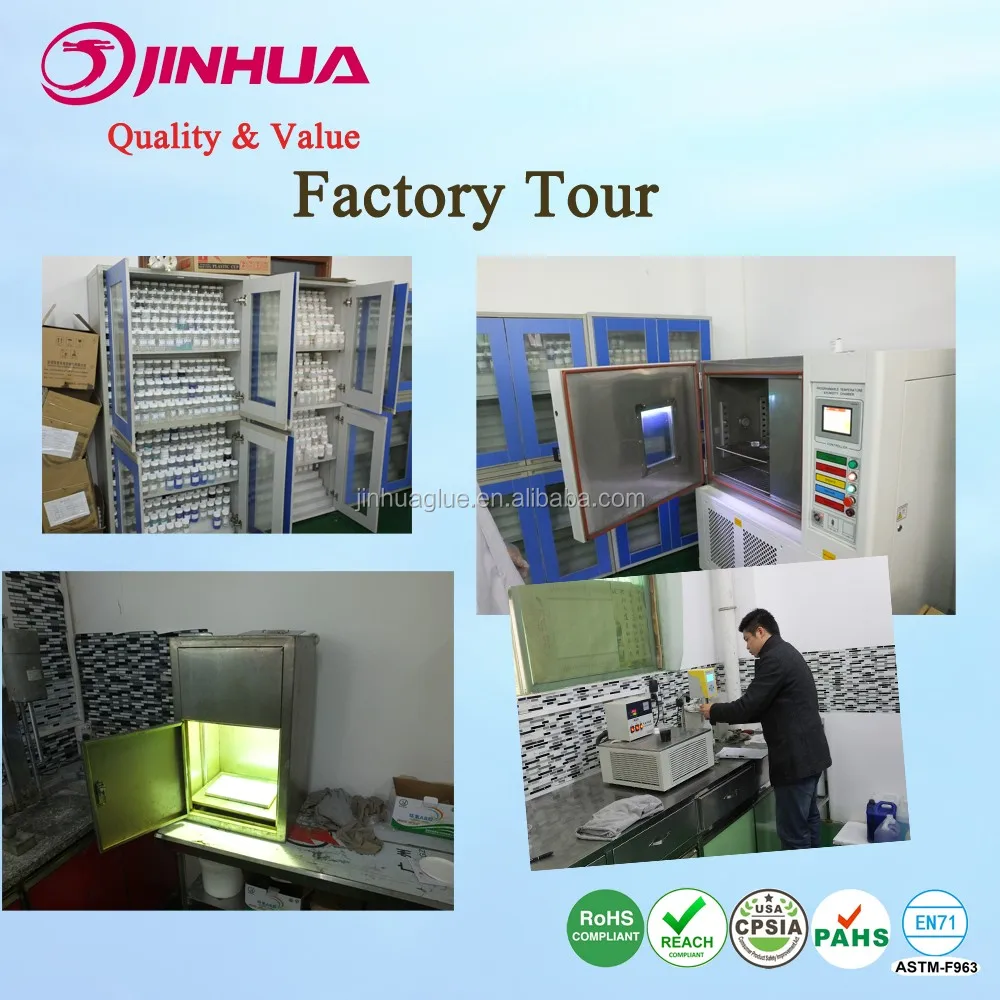

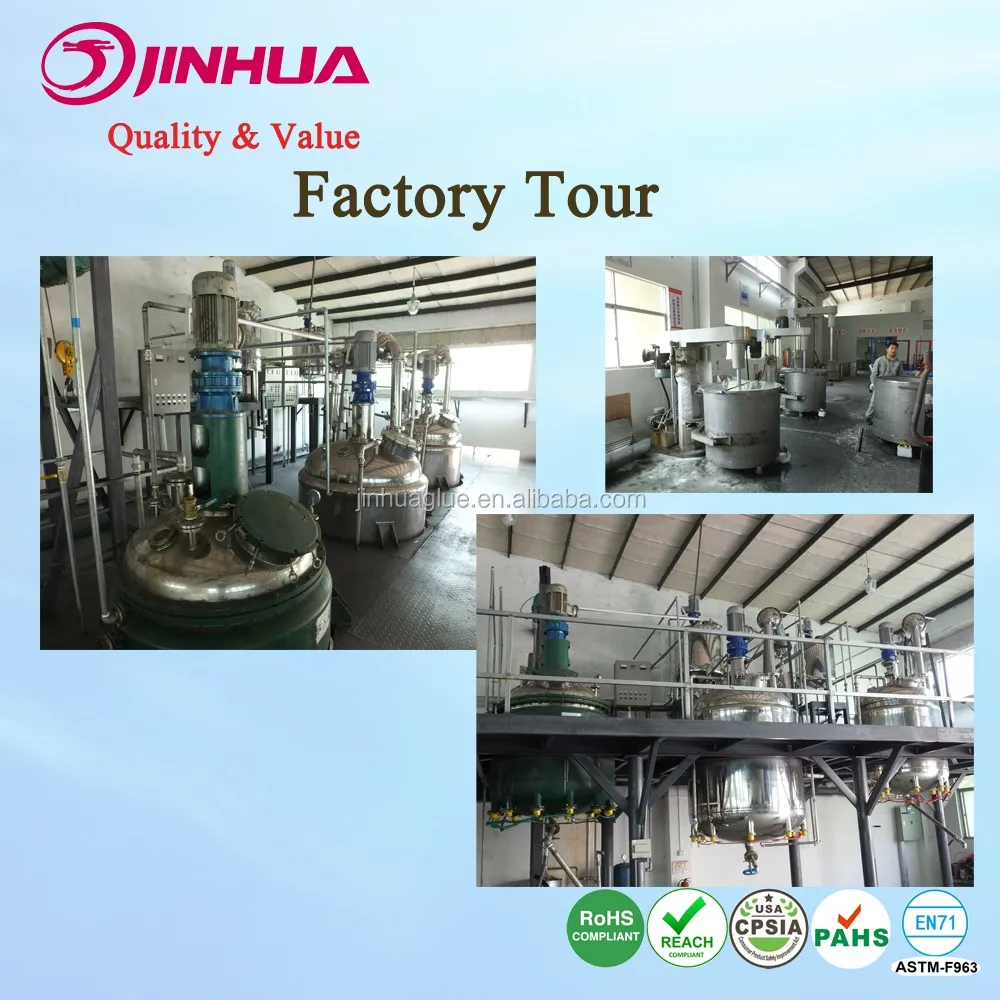

1) Jinhuaglue owns ISO9001-2008 audited factroy of 3500sqm, all the materials are offered by factory directly.
2) Jinhua has R&D team, we accept OEM, and small order is acceptable
3) Jinhua has already ship to over 30 countrys, aboudant experiecnce on the exporting.
4) Jinhua with output of tons per day, ensure the fast on time delivery
5) Jinhua keeps all the samples for each shipment, so that to make the quality trackable.
2, What Kind of Quality Certificate Jinhua has?
1) REACH,
2) Rohs
3) CPSIA
4) ASTM
5) EN71
3 Do Jinhua has MSDS for shipment?
Yes, we do have MSDS for shipment all all our epoxy and PU resin
