12V 24V to 5V 3A 15W Micro Mini Female USB Car Charger Charging Adapter DC DC Step Down Converter Buck Module 12 Volt to 5 Volt
- Category: DC\/DC Converters >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60667345773):
Product Overview
Description
12V 24V to 5V 3A 15W Micro Mini Female USB Car Charger Charging Adapter DC DC Step Down Converter Buck Module 12 Volt to 5 Volt
Product Description
Product Name | Fulree DC DC Converter 12V24V to 5V 3A Micro Mini USB | |
Brand | Fulree | |
Model No. | F35J5V3A1S-XXX (Old:400503) | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 12V 24V | |
Input Voltage Range | DC 8-35V | |
Output | ||
Output Voltage | DC 5V | |
Output Current | auto-adaption 0~3A Max | |
Output Power | 15W Max | |
Conversion Efficiency | 96% | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | < 100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Overheat protection | ||
Reverse Polarity Protection | ||
Application | GPS Navigation, Monitoring, MP3/MP4 DVD,LED bulb lights,phones including iPhone Samsung Electrical appliances, industrial equipment, telecommunications and so on. | |
Certification | CE / RoHS | |
Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |
Product Size (L x W x H) | 46*27*14mm | |
Installation Cable Length | Input 13-14cm / Output 35cm | |
Product Weight | 50g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM Service | Accept OEM logo/label/manual/packing box, Contact Fulree Now! | |
Customized Service | ||
Product Picture

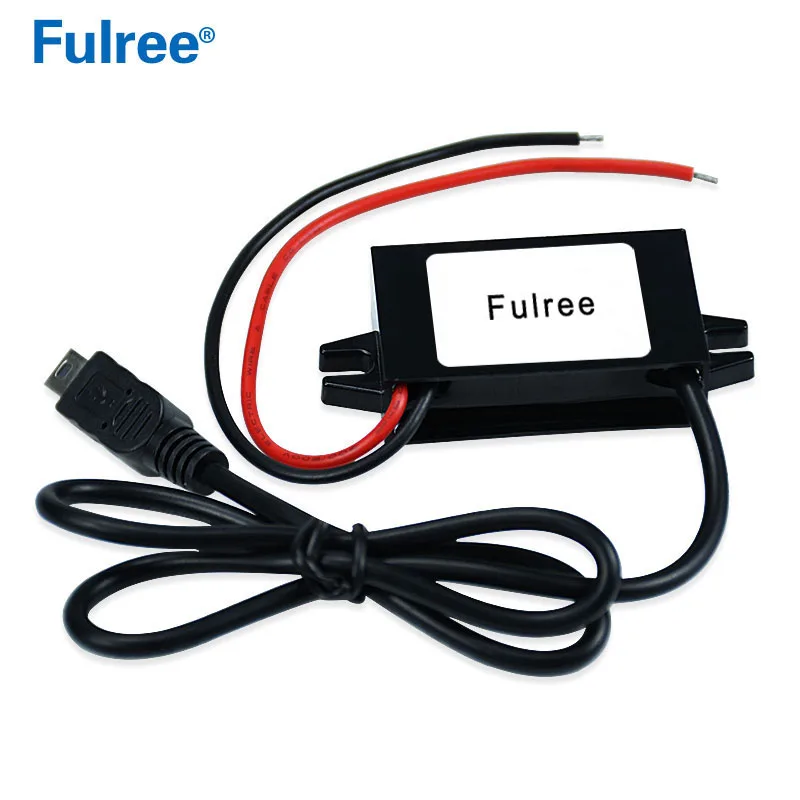

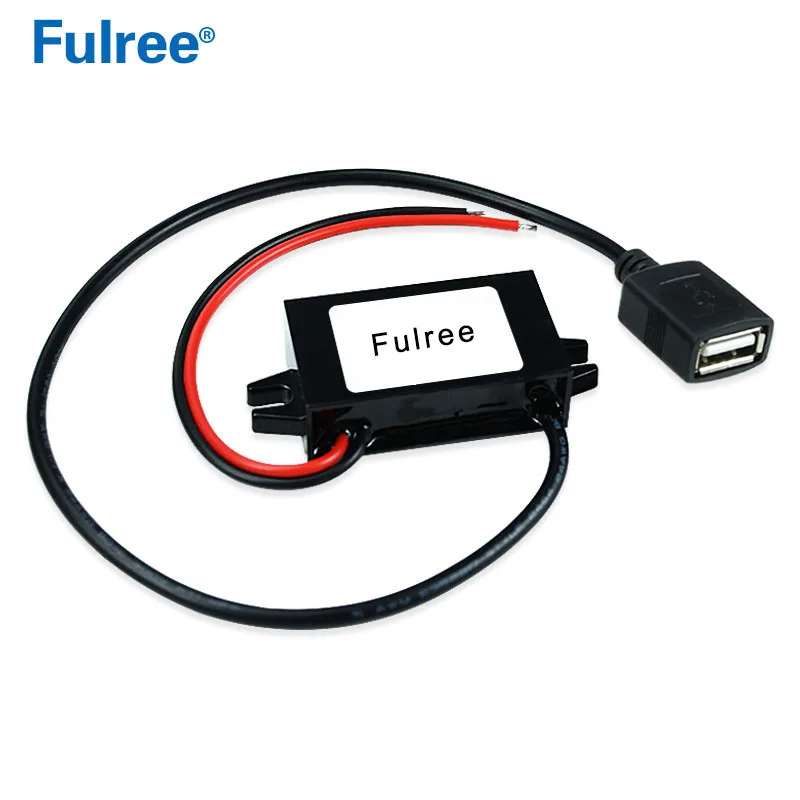

DC DC Converter 12V24V to 5V 3A Output Female USB

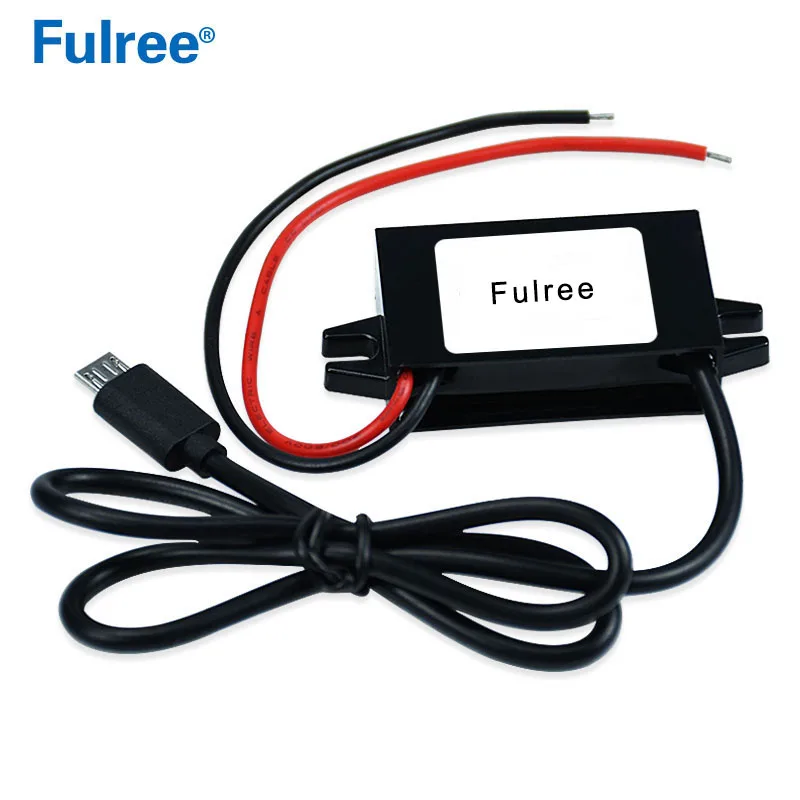

DC DC Converter 12V24V to 5V 3A Output Micro USB
DC DC Converter 12V24V to 5V Output Mini USB

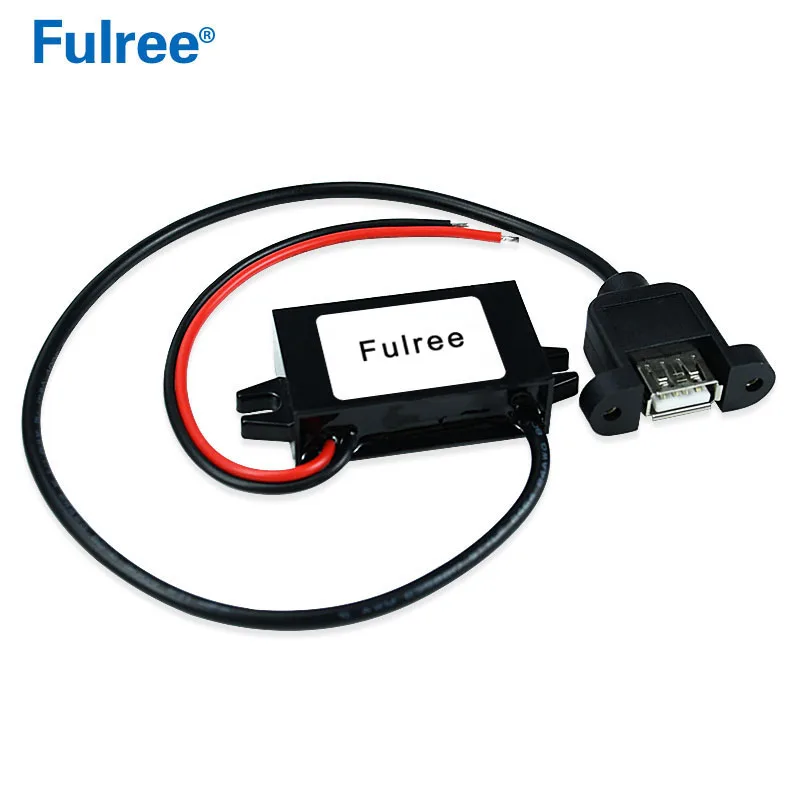

DC DC Converter 12V24V to 5V 3A Output Female USB with Assembling Panel

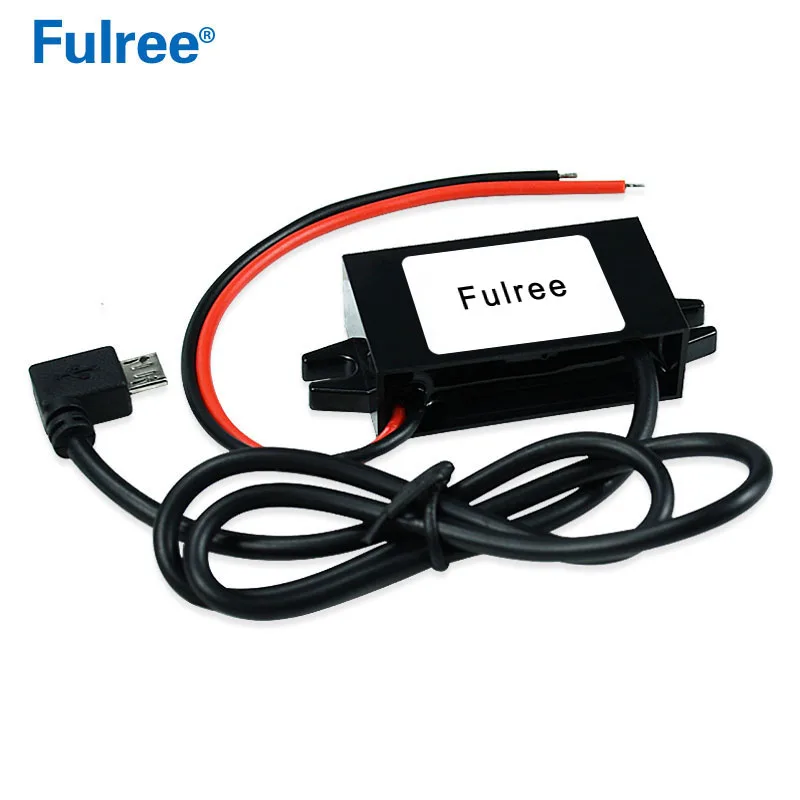

DC DC Converter 12V 24V to 5V 3A 15W Output Micro USB Right Angle
Packaging & Delivery

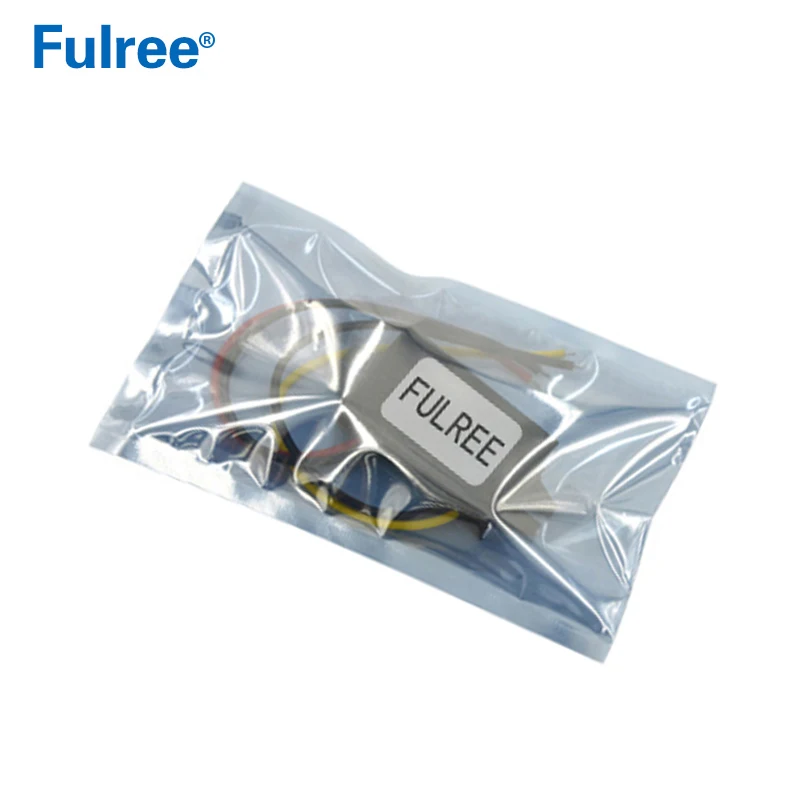

1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
