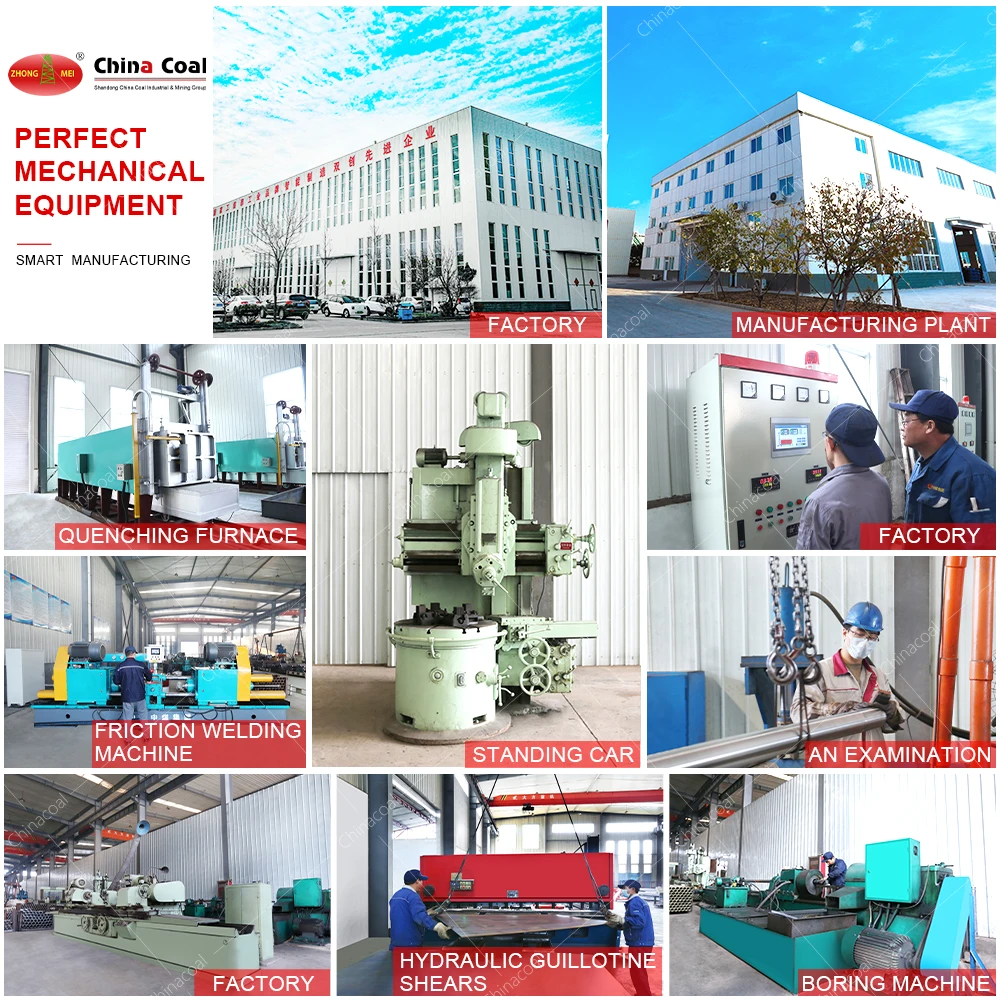

Company Profile
Products Description
Introduction of Hot Sale Self-Walking YD-22 II Rail Tamping Machines Hydraulic Foot Pump Tamping Machine Railway Ballast Tamper
YD-22 rail tamping machine it can be used in the domestic I type and dish Tamping operation can be carried out on the track of type-I concrete sleeper, and also on various foreign concrete sleeper and steel sleeper lines.The technical performance is higher than that of the old tamping machine.This machine is suitable for tamping after large and medium repair of different types of rail and concrete sleeper.zmwm15
Product Paramenters
Parameters of Hot Sale Self-Walking YD-22 II Rail Tamping Machines Hydraulic Foot Pump Tamping Machine Railway Ballast Tamper
Motivation | ||
SF190 diesel engine power | 7KW;RPM:2300rpm | |
GX270 gasoline engine power | 6.6kw, RPM: 3600rpm | |
hydraulic system working pressure | 5 ~ 6Mpa | |
vibration frequency | 66.7hz | |
Excitation force | 22kN | |
maximum insertion force | 16kN | |
clip strength | 6.5kN*2 | |
depth of insertion | 110mm and 10mm (below the bottom surface of sleeper) | |
Production efficiency | ≥ 270 pieces / (Group hour) | |
Net weight | water cooled diesel engine: 455kg; | |
gasoline engine: 300kg | ||
Dimensions | water cooled diesel engine:1300*750* 1600mm; | |
Gasoline engine:1390*750* 1600mm | ||
Track gauge of running frame | 1435mm | |
Details Images

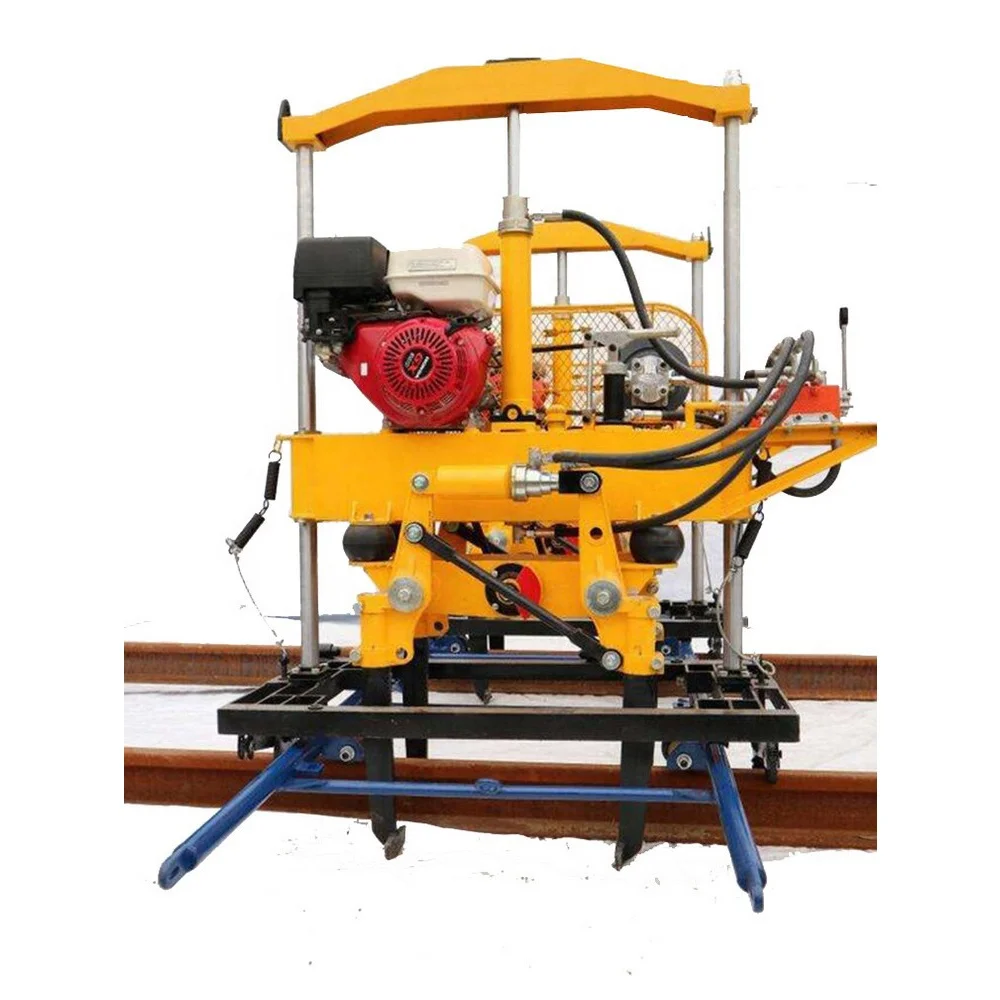

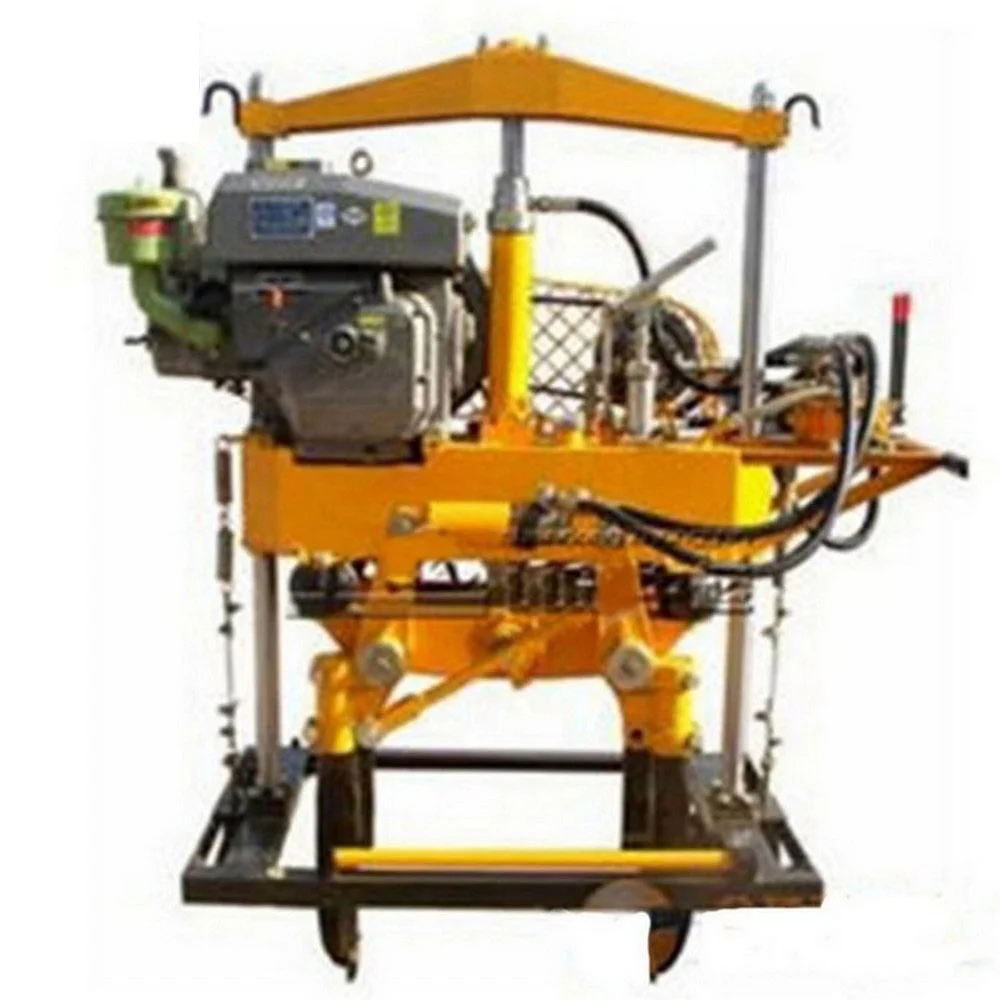

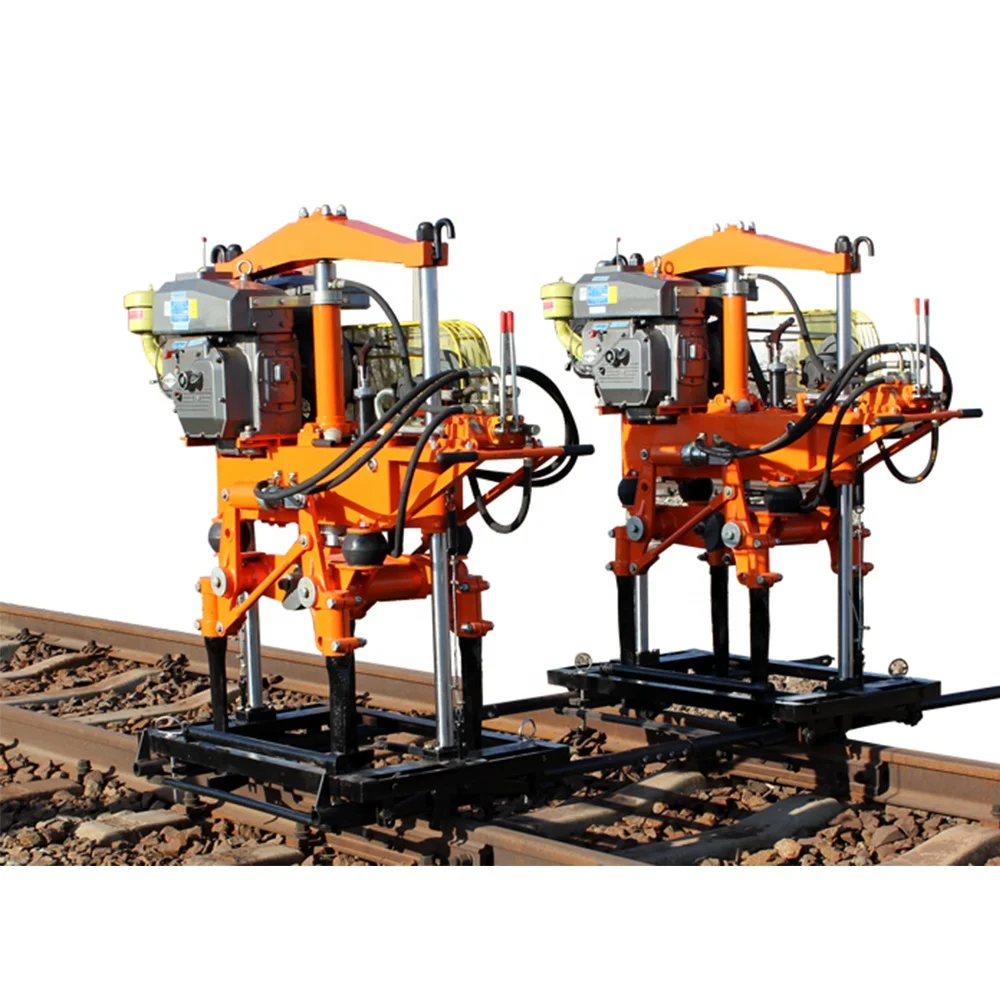

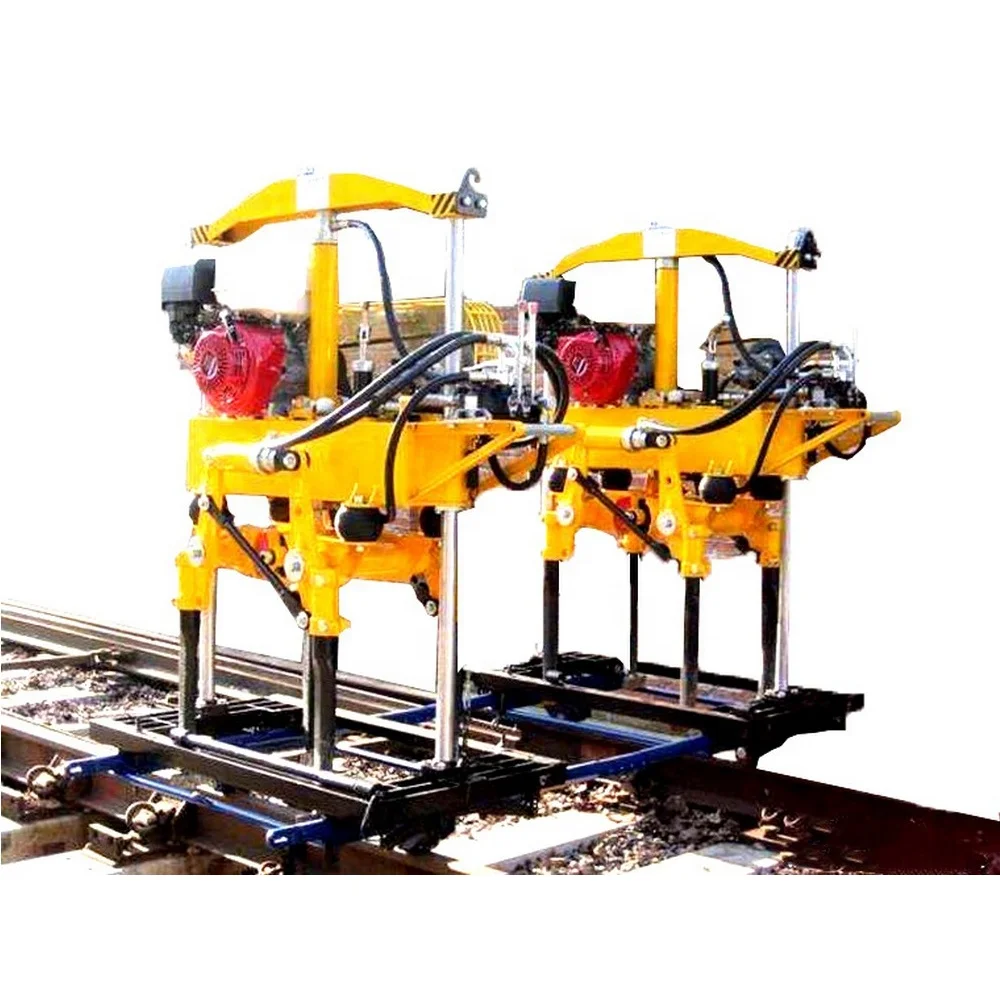

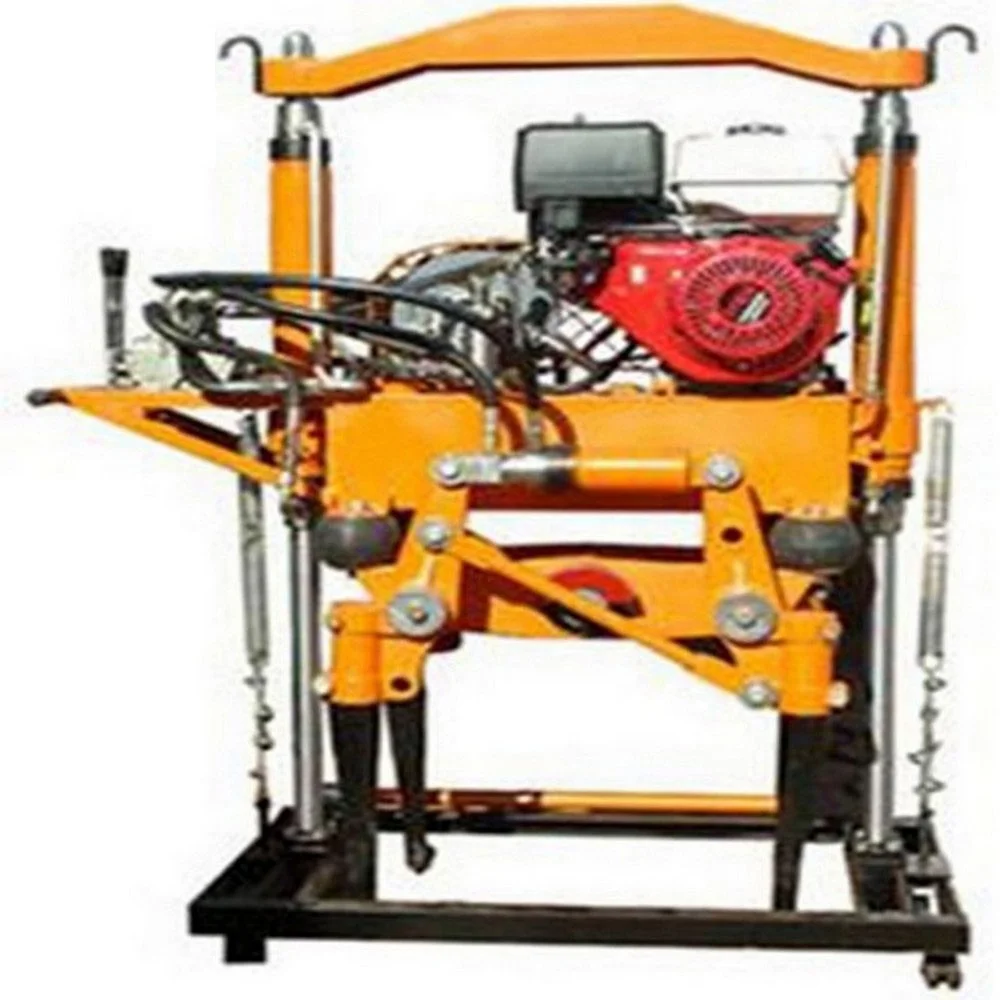

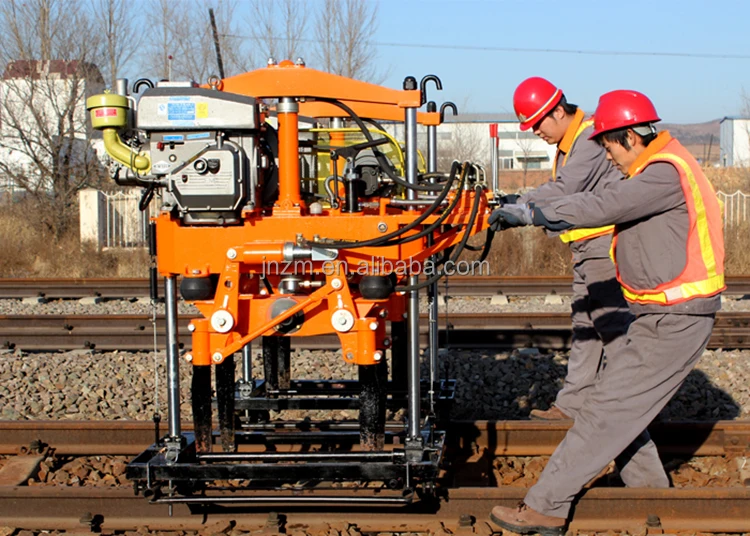

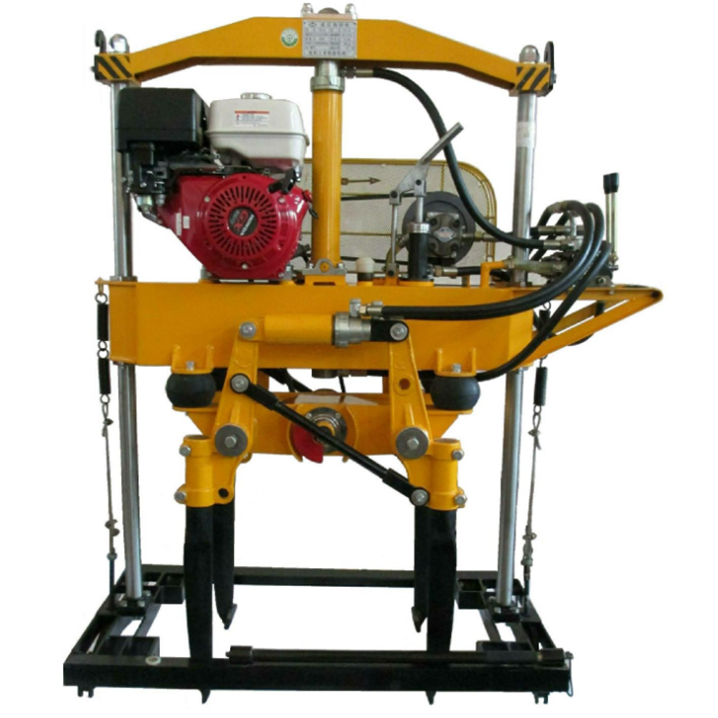

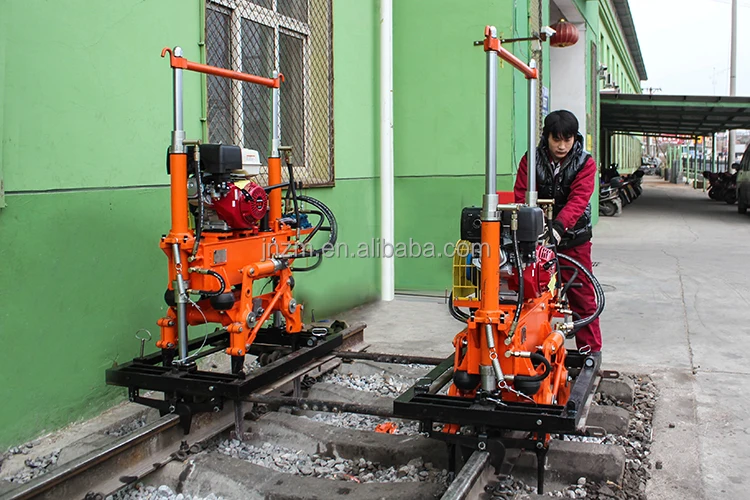

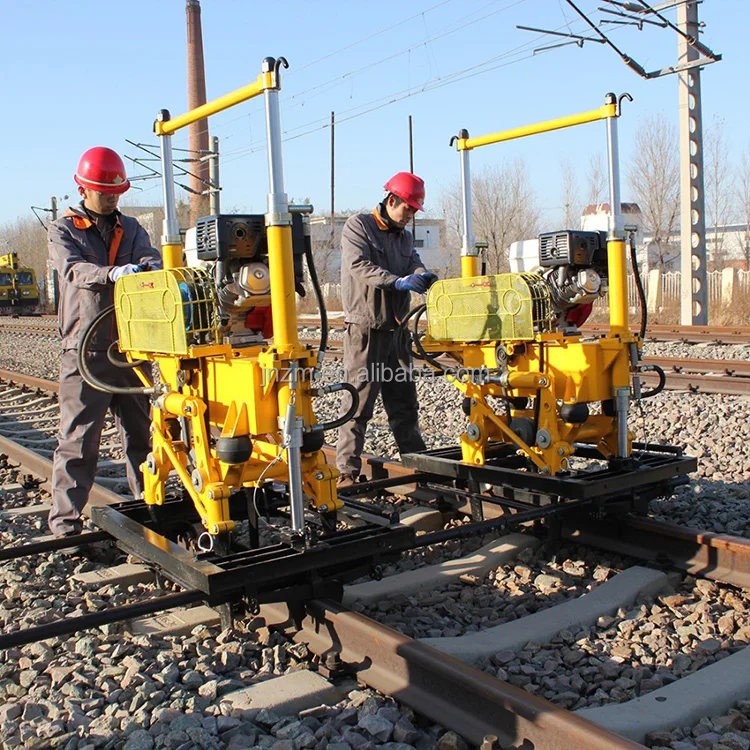

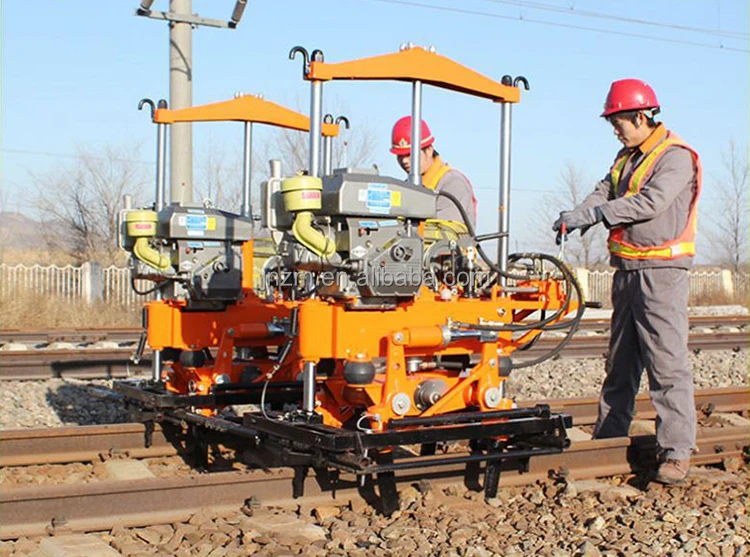

Photos of Hot Sale Self-Walking YD-22 II Rail Tamping Machines Hydraulic Foot Pump Tamping Machine Railway Ballast Tamper
