Food grade stainless steel double filter for fruit juice drink plant
Product Description

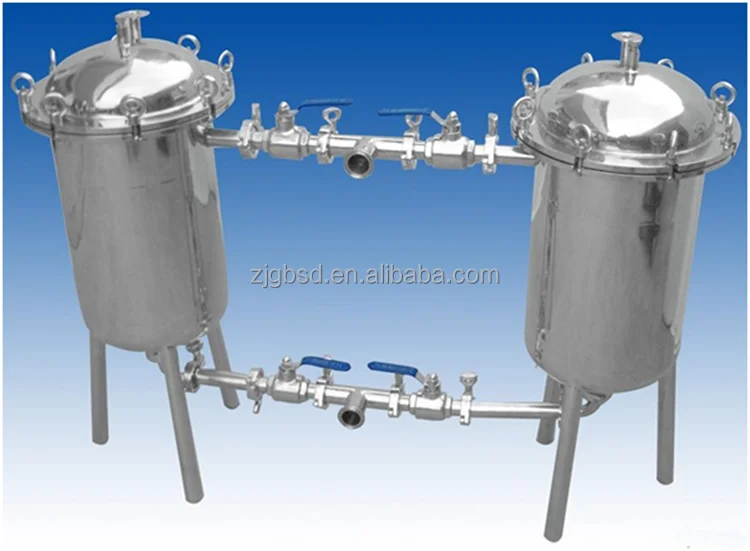

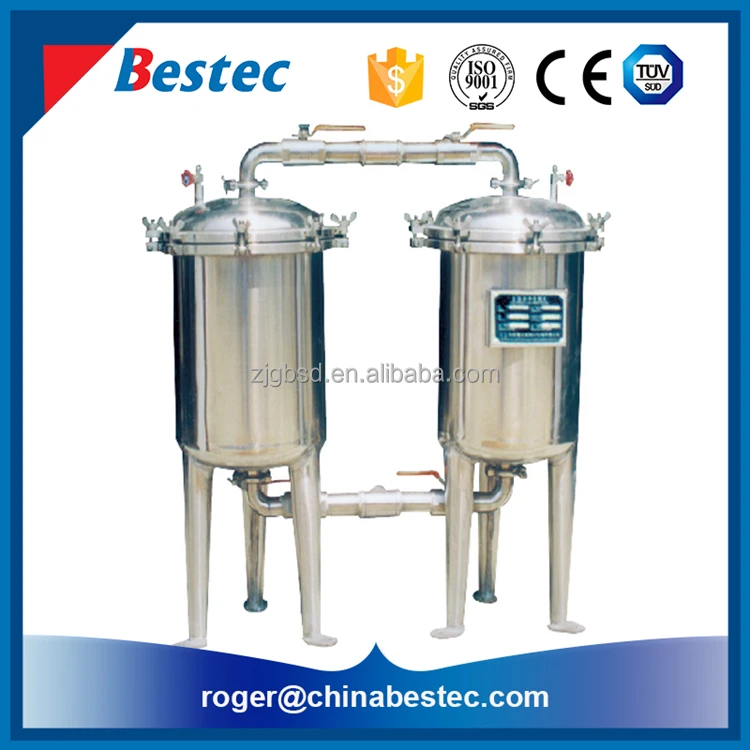

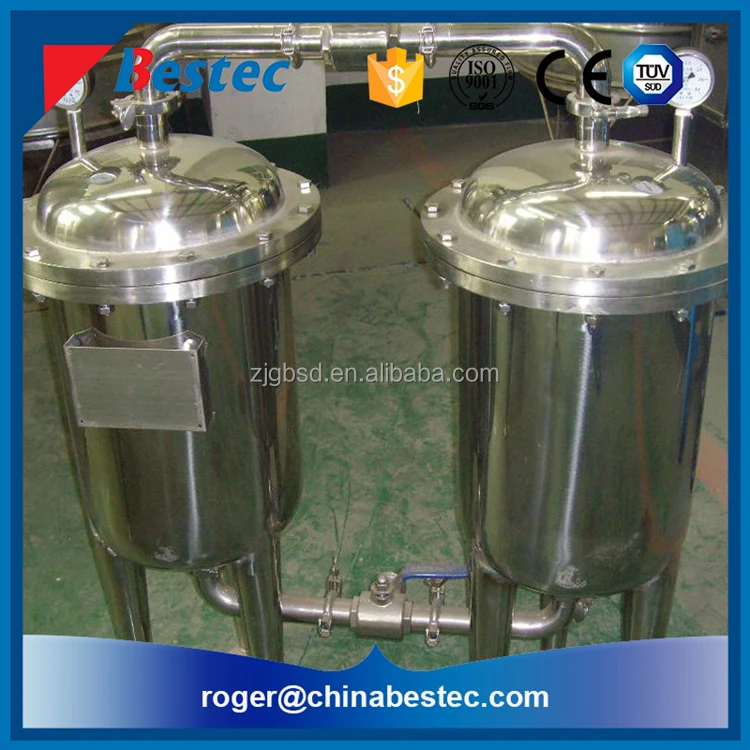

Double filter, also known as double-switch filter, which is composed of two parallel stainless steel filter with a reasonable structure, well sealing,easy operation and many other advantages,multipurpose filtration equipment with wide range of applications. can filter out particles larger than 1μ diameter, and can replace the filter bag quickly and easily, filter almost no material consumption, making down the operating costs.
1.It is mainly used to get rid of various invisible impurities in the beverage,medicine, juice, milk, drinks.
2.All adopt high-quality SUS304, it is that two round cylinders make up, inner and outer surfaces are all well polished.
3.Equipped for removing the purification of different in visible solid impurity average, oral liquid, etc.,
4.Two filters are used alternately, can change the filter screen without shutting off.
5.Suitable for producing in long time.
1. The device is made of stainless steel, is composed of two cylinder, single-line stainless steel welded structure, internal and external surface finish, top with purge valve to release the gas use at work. Pipe joints connected together using the expansion by 0.3Mpa water pressure test, three external thread cocks hoist flexible, compact device structure, convenient operation, easy maintenance.

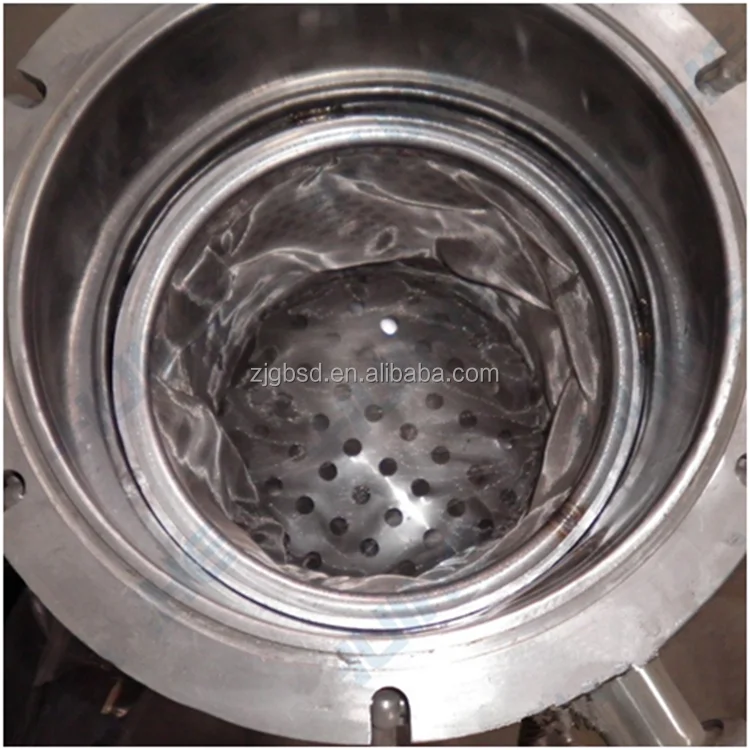

2. Inner and outer surfaces are all well polished, cartridge built with stainless steel strainer and strainer basket support; top with purge valve, when the inner emission filter for filtering air role. Cover and cartridge connecting with quick open structure, more convenient cleaning (replacement) filters, three adjustable feet enable smooth filter placed on the ground. The loose connection or connecting pipe clamp connection, access to materials using the ball valve opening and closing valves, pressure temperature, easy operation, no material liquid leak, more healthy.
