Прямоугольный SMT разъем для эжектора IDC с шагом 2,0 мм
- Category: Headers & Wire Housings >>>
- Supplier: Cixi Lechuan Import And Export Co. Ltd.
Share on (60670528459):
Product Overview
Description
Product Description
Product Name | 10/14/16/18/20/22/24/26/30/34/40/44/50Pin Pitch 2.0mm(0.079") Long and Short Ejector Header Straight/Right Angle/SMT |
Material | Insulator: Glass filled PBT,UL94V-0 |
Contacts: Brass | |
Plating: Contact Gold and Weld Tin over Nickel | |
Color | Black |
Electrical Characteristic | Contact Resistance:20MΩmax ,at DC 100mA |
Insulator Resistance: 1000MΩmin ,at 500V DC | |
Withstanding Voltage:1000V AC/rms 50Hz for 1 minute | |
Current Rating: 1.5 Amp | |
Environment | Operating Temperature: -40℃~+105℃ |

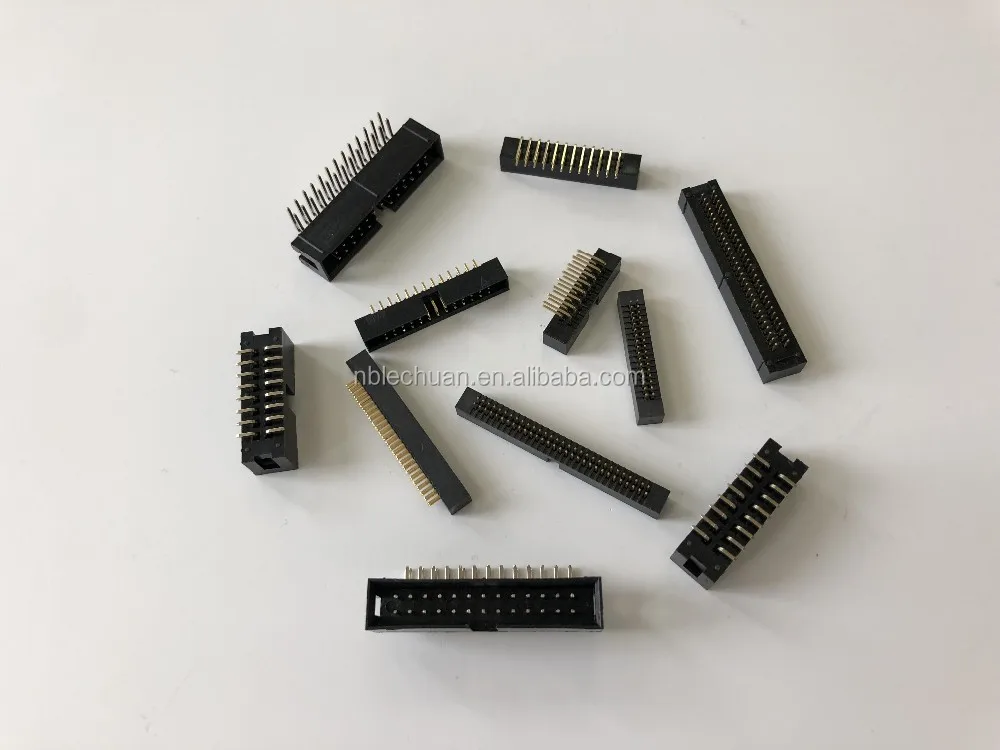

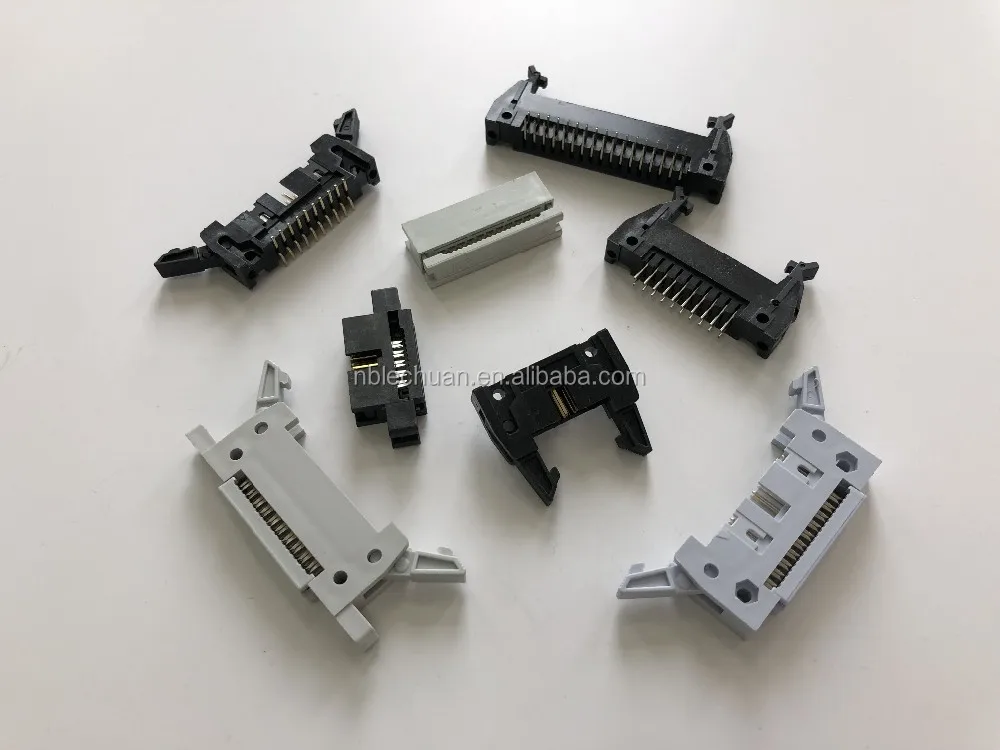

Products Show
Our Company
Workshop
Automation assembling line
Workshop
Automation assembling line
Packing & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, Freight cost should be collected.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
