IMEI changeable 16 ports multi sim gsm modem Quectel M35 Bulk sms modem 16 sim card multi port modem pool
- Category: Modems >>>
- Supplier: Shenzhen Yun Da Tong Technology Co. Ltd.
Share on (60670594850):
Product Overview
Description

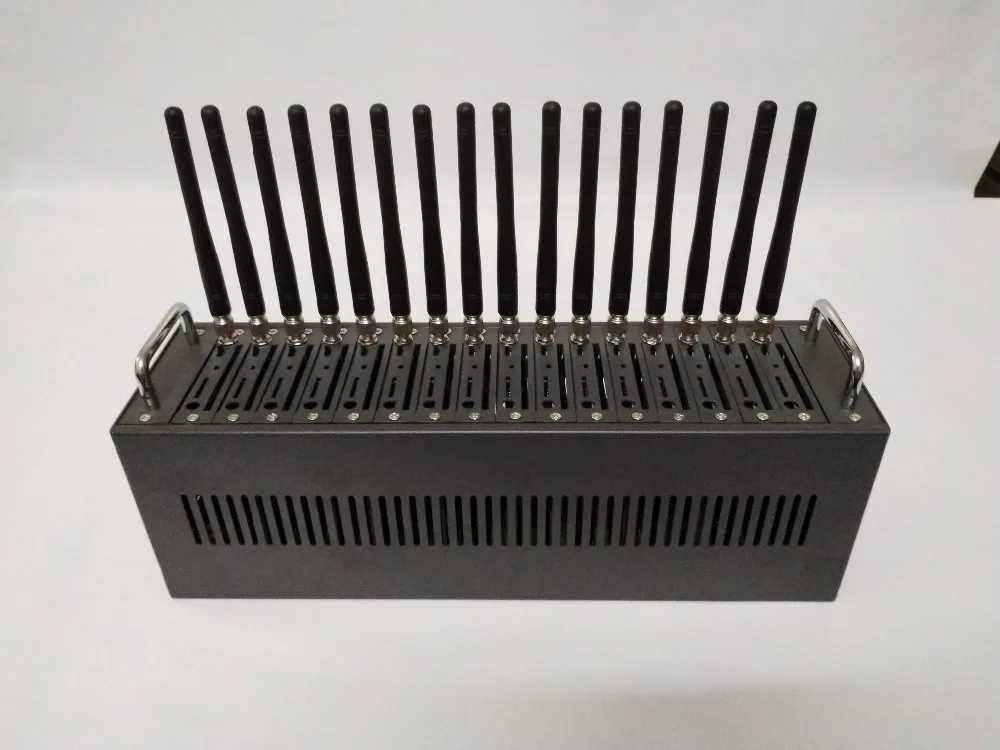

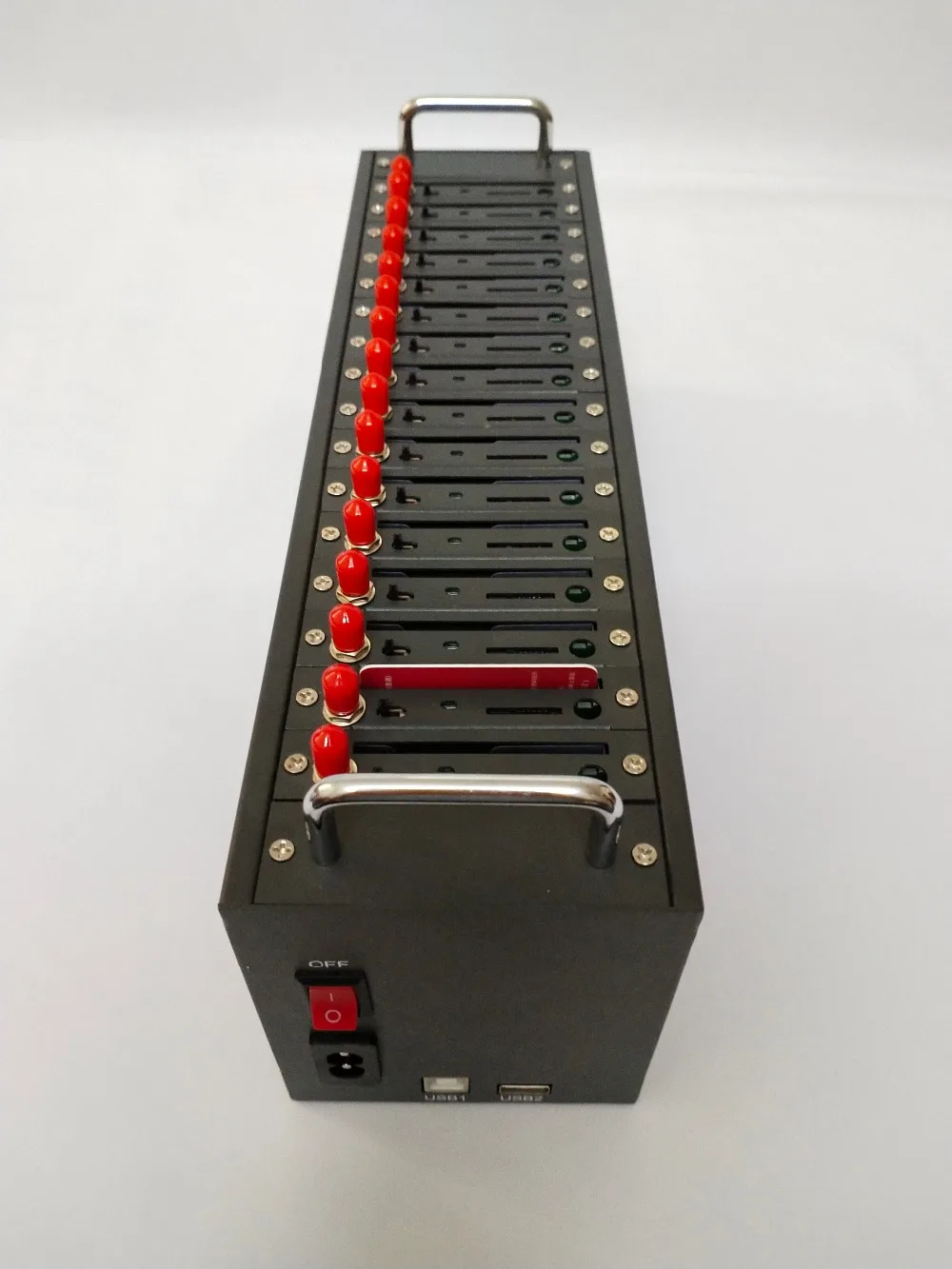

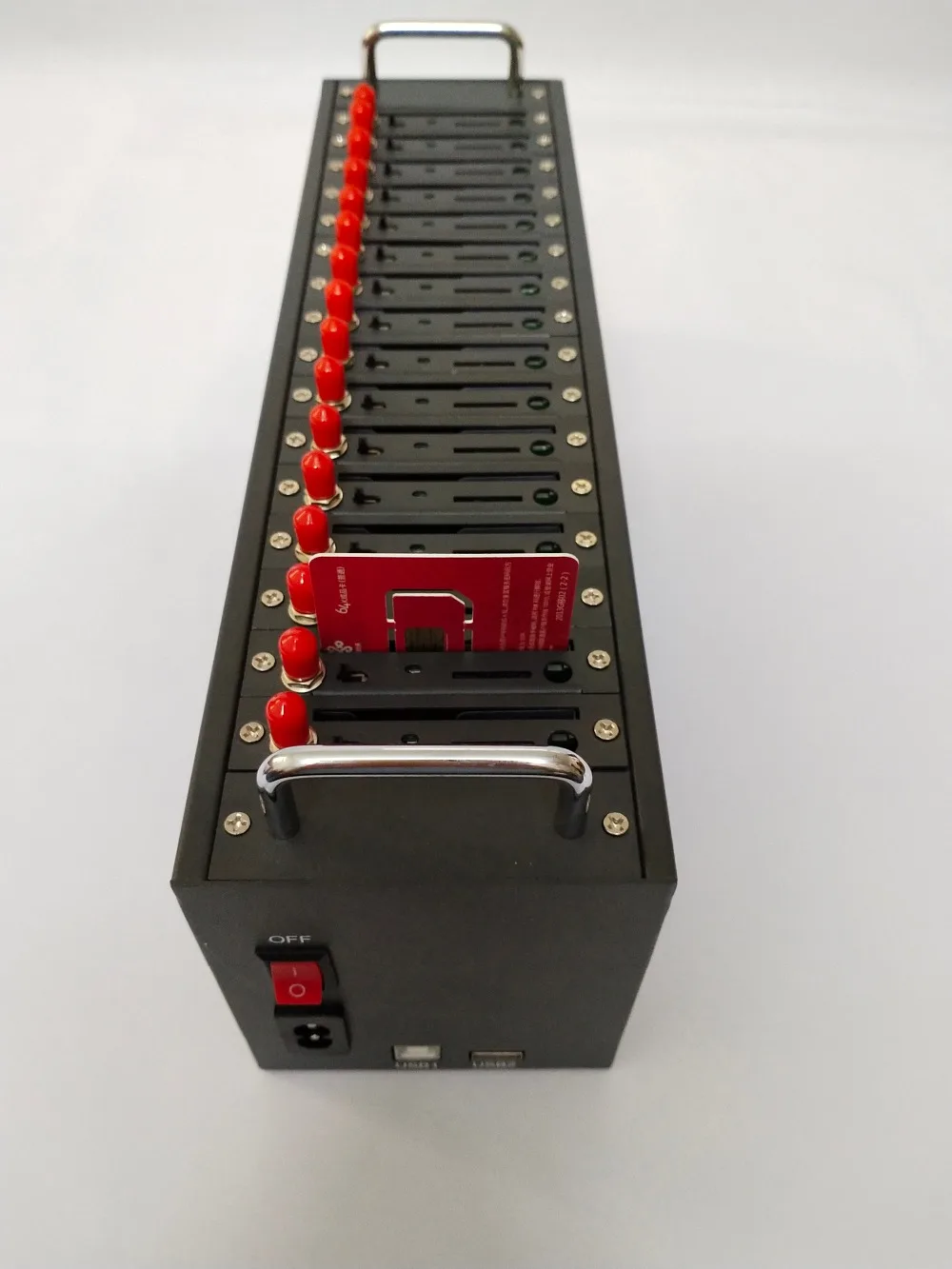

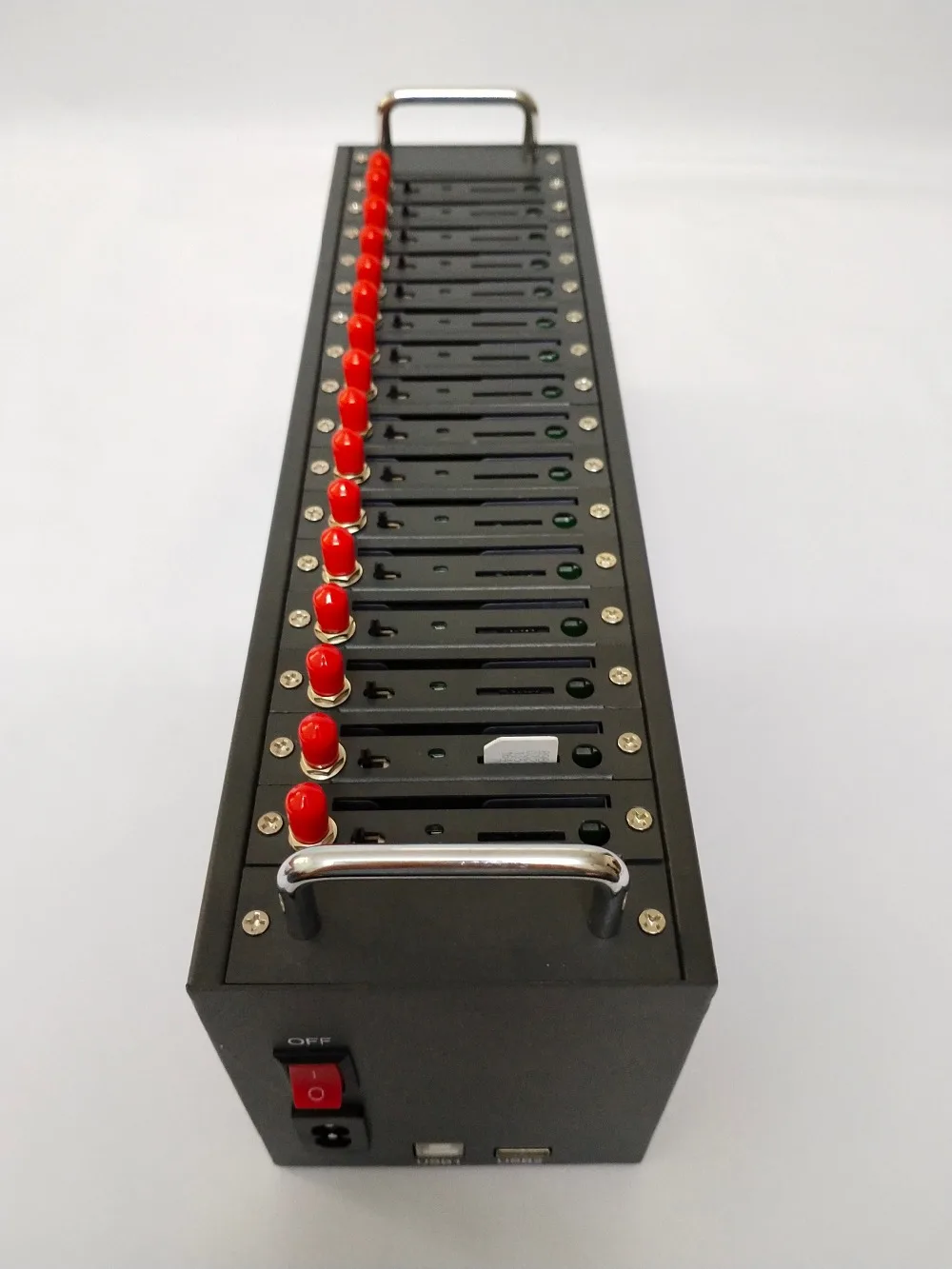

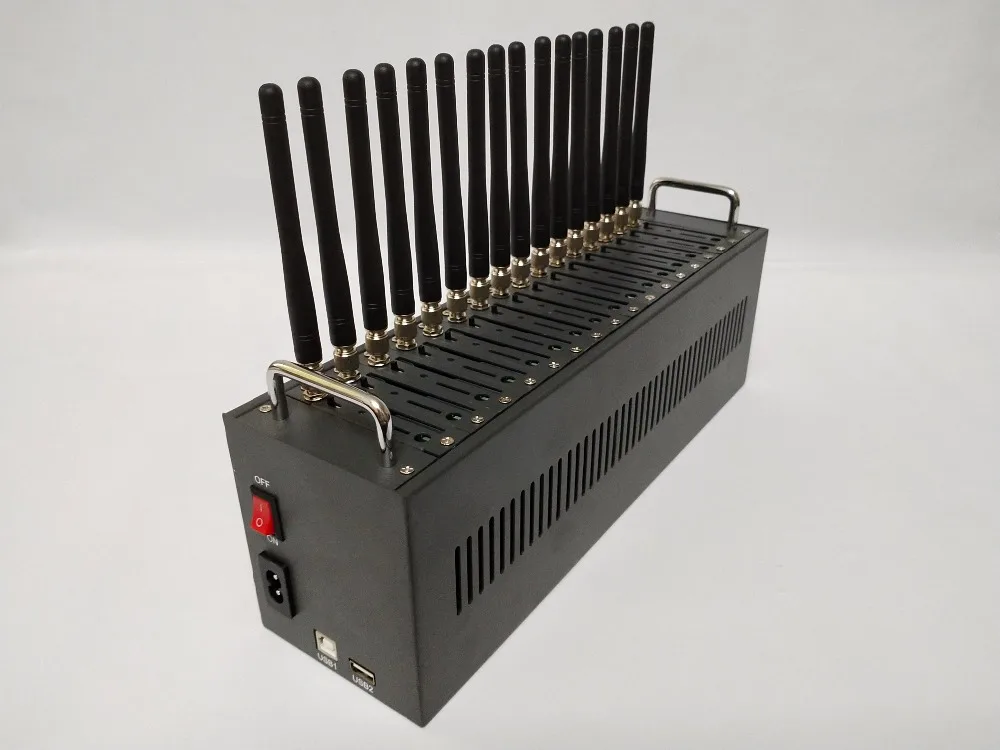

IMEI changeable 16 ports multi sim gsm modem Quectel M35 Bulk sms modem 16 sim card multi-port modem pool
Send and receive text messages from your computer with our powerful SMS Gateway. Refreshingly simple, fast and very low cost
Technical specifications
Product Performance:
Quad-band GSM modem (EG-SM850/900/1800/1900MHZ applied
To the data fax voice and messaging applications, has been certified
By all of its design and development of the ETSI GSM Phase2 standard
(General Tele- Phone)
Output power:
*Class4(2w@900MHz)
*Class1(1w1800/1900MHz)
Input voltage:
5V-32V
Product Size:
74x54x25mm product
Temperature Range:
-20 c- +55 C Working state
-20 c +70 C storing state
Interface
UCB connection through small mouth
Interface support:
*AT command used for the control (GSM07.07 and 07.05)
*link bit rate from 300 to 115,200 bits/s
*Automatic bit rate (300 to 38,400 bit/s)
*through micro – FIT$ Plug power connector
*SMA antenna interface
*Down the SIM card memory
Included Accessories

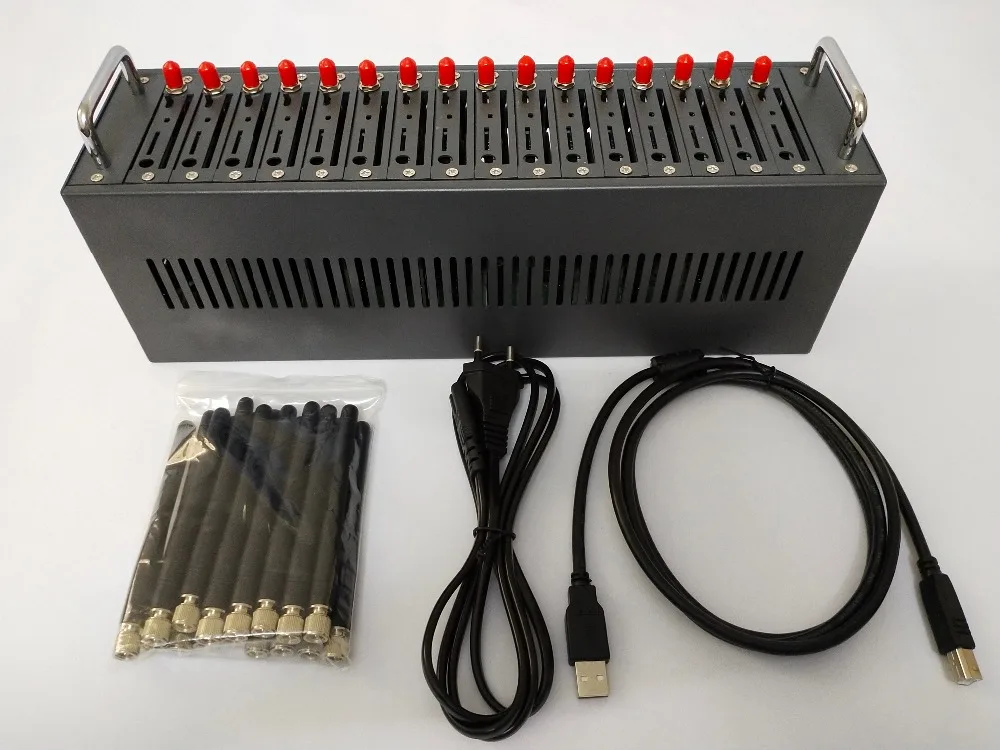

Power Adapter , data cable ( USB )antenna
Input current:
5mA standby , 140 mA @ 12V calls in the state GSM900MHz
5ma standby,100 mA,100mA @ 12V calls in the state GSM1800/1900MHz
Features:
Bulk SMS - 9600 SMS Per hour
Bulk Voice Call
Automatic Mobile Recharge Function
Support USSD Code( Balance Checker)
Support Success/Failed SMS Count (Rotation)
Support Sucess/Failed Call Function (Rotation)
Support Time Based Rotation
Support Bulk Call Usages
Support IMEI Change function
Support Missed Call
Support DTMF Tone
Support ALL Sim Tool Kits
Support OTOMAX Recharge Software
Support Airfly Softwares ( SMS Softwares)
Basic Characteristics
Quad Band GSM Modem: 850/900/1800/1900Mhz (worldwide use)
Just like 16 single-channel equipments work at the same time
Can insert 16 sim cards (big or small)
M35 GSM Modem supportchange imei by AT command
Send about 2000 sms per port per hour
Connection with the computer through a data line can be integrated with serial 8
Compatible with OS: Linux / XP / Vista / WIN7 / WIN8 etc.
How to change the M35 module gsm modem imei
- Use putty to login the module
- Input the at command ATE1 to echo display
- //WRITE:AT+EGMR=1, 7, "359231033480797" this at command will change the module imei to 359231033480797, and pls notice that you have to use the correct imei number if not the imei will be changed back to factory after reboot.
How to make a call
- Login the module and plugin the earphone in the module.
- Input the at command ATE1 to echo display
- Use at command ATD to make a call. Such as you want to dial 10086 then you need fill at command ATD10086; then you can hear the ring from the earphone. You can use at commandATH to handup a call.
Notice:
- This M35 gsm modem will blink every 2 seconds when it works normally.
- It blinks one time one second without signal. If like this please change the working module's sim card to this module to check.
- Please turn off the module power to change the sim card.
How to Install the modem pool ?
1. Make sure power cable connect device,
2. Insert SIM card, make sure chipset connect with card reader
3.Use USB 2.0 Cable connect computer, follow prompts to install driver
4. Turn on power, red LED light, all red light flashing stands equipment begins work
You can install and check the details with bellow url
//www.smsdeliverer.com/download/SMSDeliverER2.672.exe
