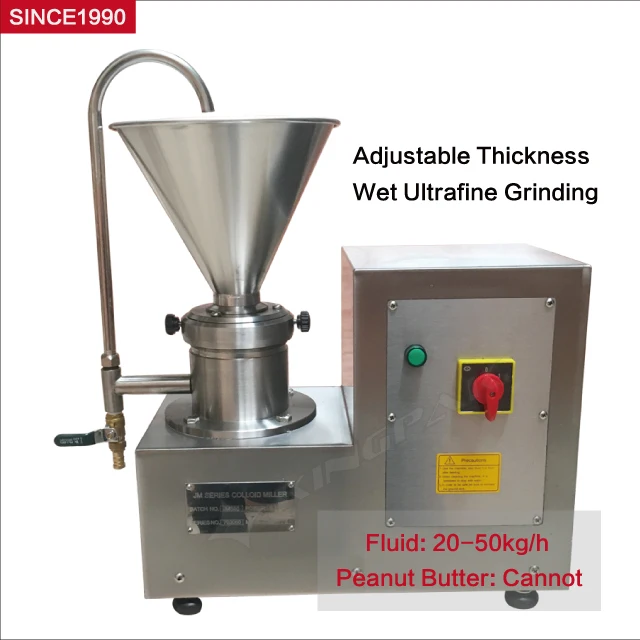

Laboratory Emulsifying Colloid Mill Liquid Mixing Soy Milk Making Machine Stainless Steel Grinding Parts
You May Also Like
Parameters
♦Specifications
Name

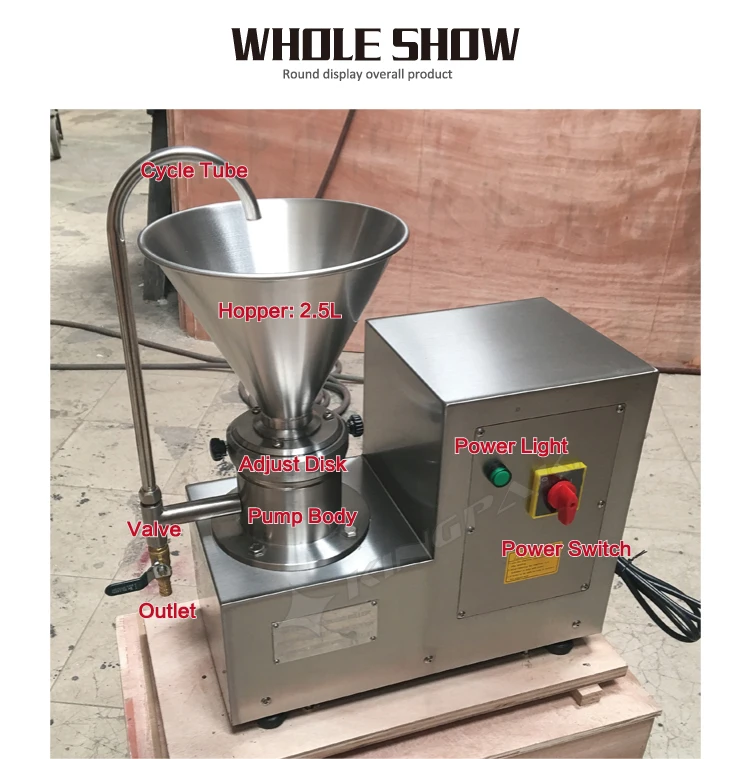

Emulsifying Colloid Mill Machine
Model
JMS-50 Split-Body
JM-50 Vertical
Base Housings
Stainless Steel
Paint
Supply
220V 50Hz
220V 50Hz
Power
0.75KW
0.55KW
Fineness
50-100mesh
50-100mesh
Output
20-50kg/h
10-30kg/h

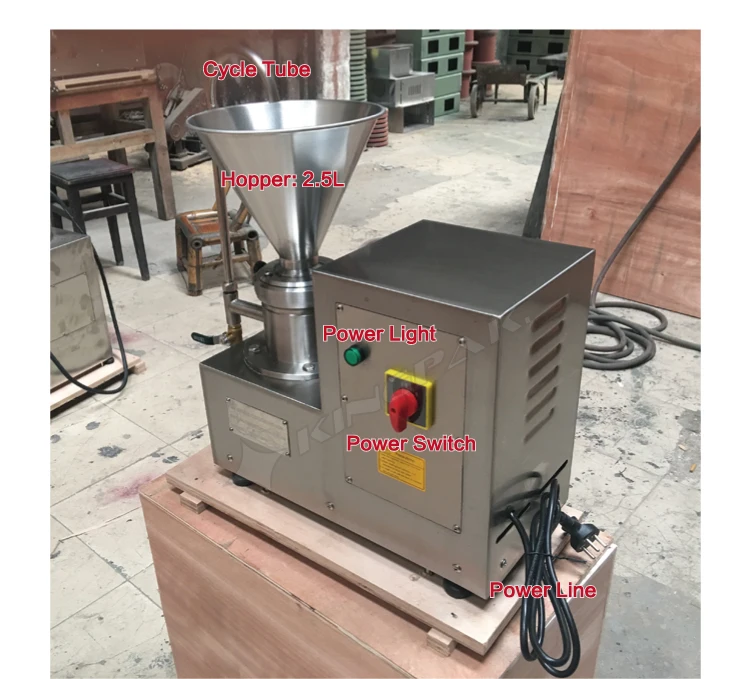

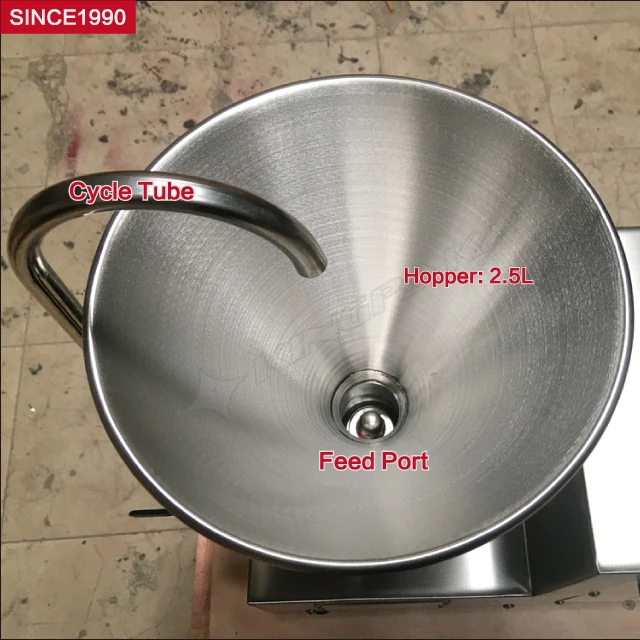

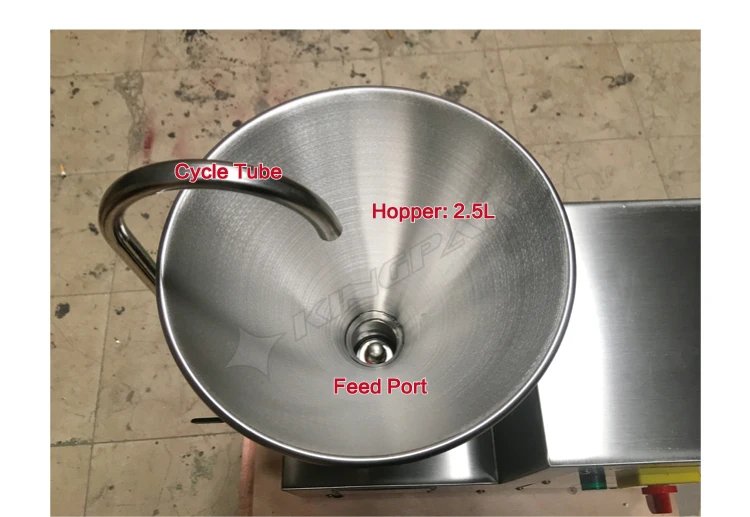

Hopper
2.5L
2.5L
Weight
35kg
19kg
Machine size
40*20*47cm
22*22*53cm
Package Size
50*27*49cm
30*30*60cm
Note: Due to the escalating changes emulsifying colloid mill machine, the above technical parameters for reference only, to prevail in kind, please understand!
Introduction
♦Working Principle
- Through the relative movement of different geometric shapes of static and static grinding, the material being processed under the action of gas pressure and centrifugal force, by the strong shear, friction, impact, high frequency vibration, vortex and other complex forces, the material is effectively Dispersed, broken, emulsified, homogeneous, evenly mixed, so as to get the ideal fine products.
♦Overview
- JMS50 type can only be grinding soy milk, mung bean soup, liquid emulsion, liquid-liquid mixture or other materials experimental test results. Small models, low yield, suitable for shops, individuals and laboratories.
- Emulsifying colloid mill machine is a wet ultrafine particle grinding treatment equipment, with crushing, emulsification, mixing, dispersion, homogenization, stirring and other functions, suitable for all types of emulsion or paste media materials, processing material viscosity density can be greater than 10,000 centipoise.
- Finished fineness of granular material up to 50-150MESH after treatment with colloid mill is the ideal equipment for integrated processing such as ultrafine comminution. It can replace and better than stone mill, sand mill, ball mill, milk machine, emulsifier, Machine, crusher and so on.
♦Performance Feature

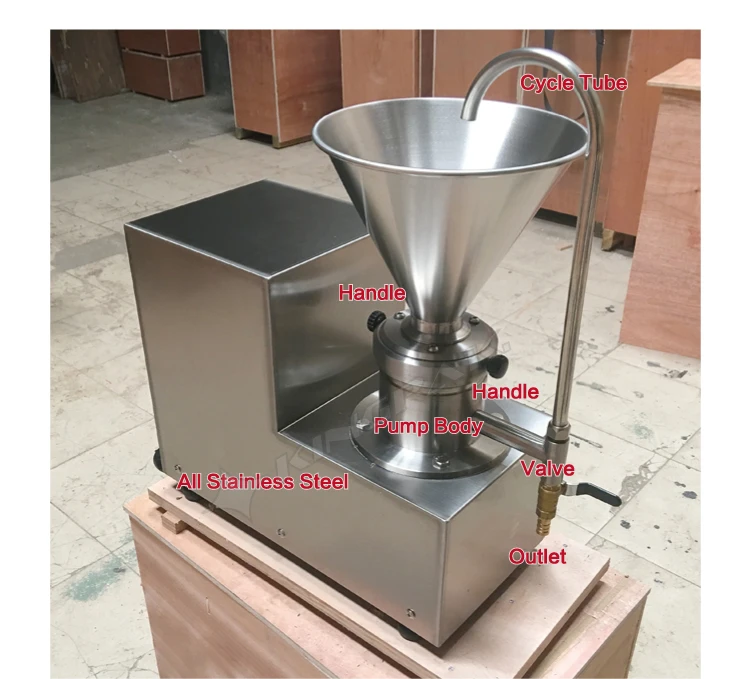

1. Contact with the material are made of stainless steel, corrosion resistance, in harsh environments can be a long time continuous and stable work.
2. Static and static grinding, with special treatment, grinding high hardness, high precision, grinding fine, durable long life

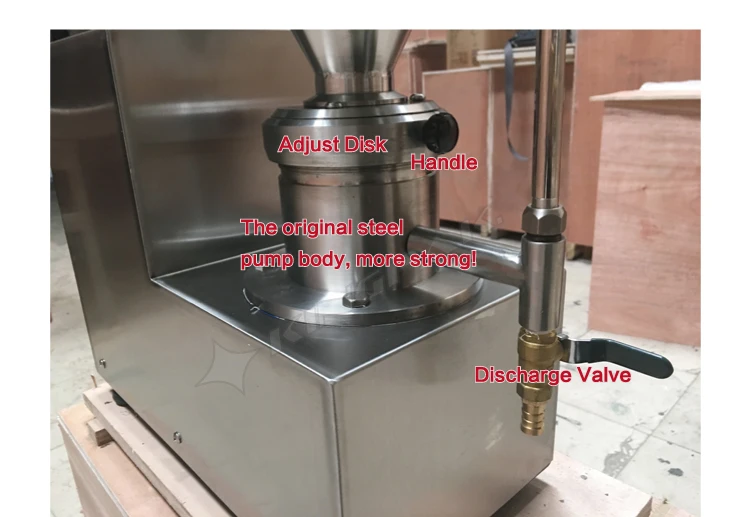

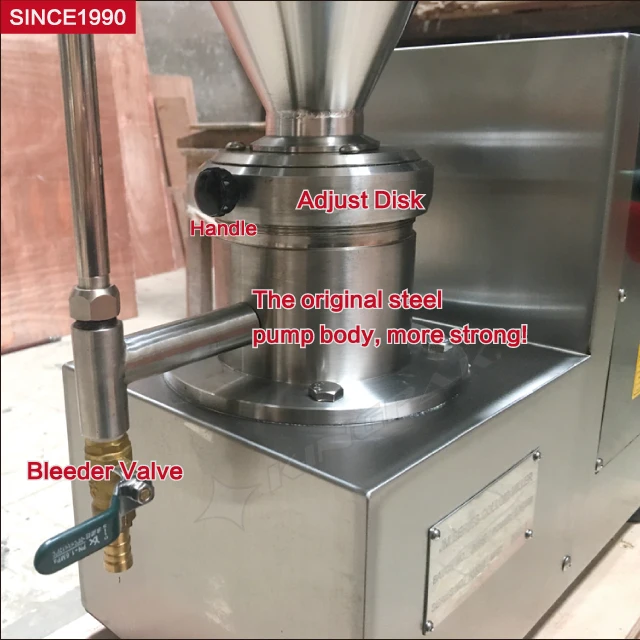

3. Pump body, adjust the disk, cover, etc. are made of raw steel, high density, no sand holes, more durable.
4. The machine uses non-contact bushing seal, with anti-leakage, maintenance-free features.

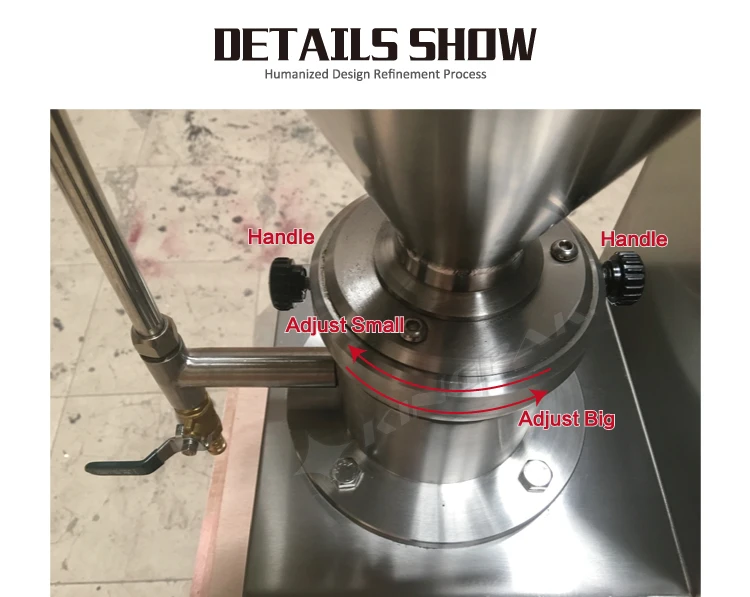

5. Adjust the disc can be adjusted thickness, easy to operate. Standard copper coil motor with long service life.
♦Applications
This series of colloid mill can produce the following products:
1. Food Industry: liquid and paste emulsifying, liquid-powder mixing, liquid-liquid mixing, meat mixing and emulsifying, fruit and vegetable grinding, fruit tea, chocolate refining, soy milk, mung bean milk, rice milk, peanut butter, tahini sesame paste, chili sauce, almond paste, cream mixing, jam, fruit juice, soybean paste, bean paste, liquid spices, dairy products and so on.
2. Chemical Industry: paint, pigment, dye, coating, catalyst, asphalt, adhesive, detergent all kinds of syrup, nutrient solution, all kinds of ointment, cod liver oil, royal jelly and so on.
