To Scrap Incinerated IC Chips For Gold Wires, Non Chemical Ram Gold Recovery Processor

Product Overview

Description

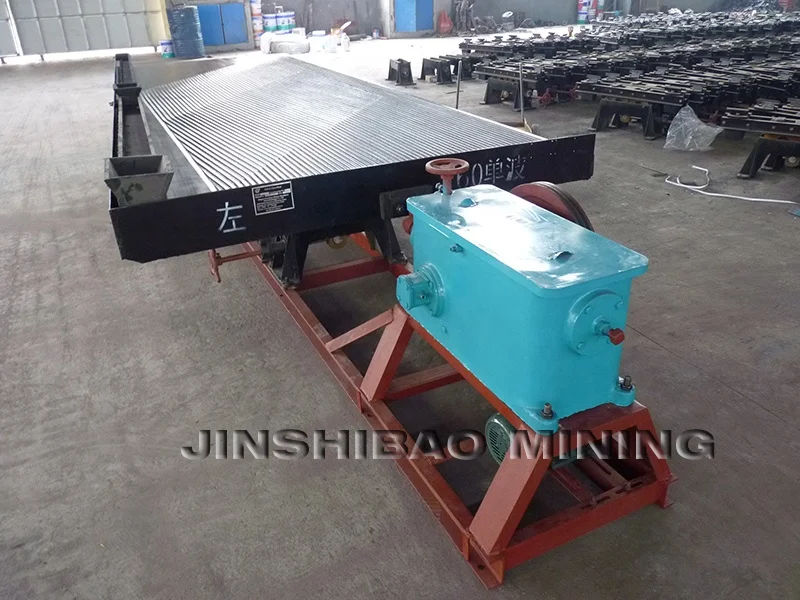

Non Chemical Ram Gold Recovery Processor



Application of Ram Gold Recovery



Concentrating gold bonding wires from incinerated IC chips on one of our small shaker tables using only water (NO CHEMICALS!!)

The table did a great job recovering the free gold bonding wires. These wires are ~ 30-40 microns in thickness so they are very very fine.

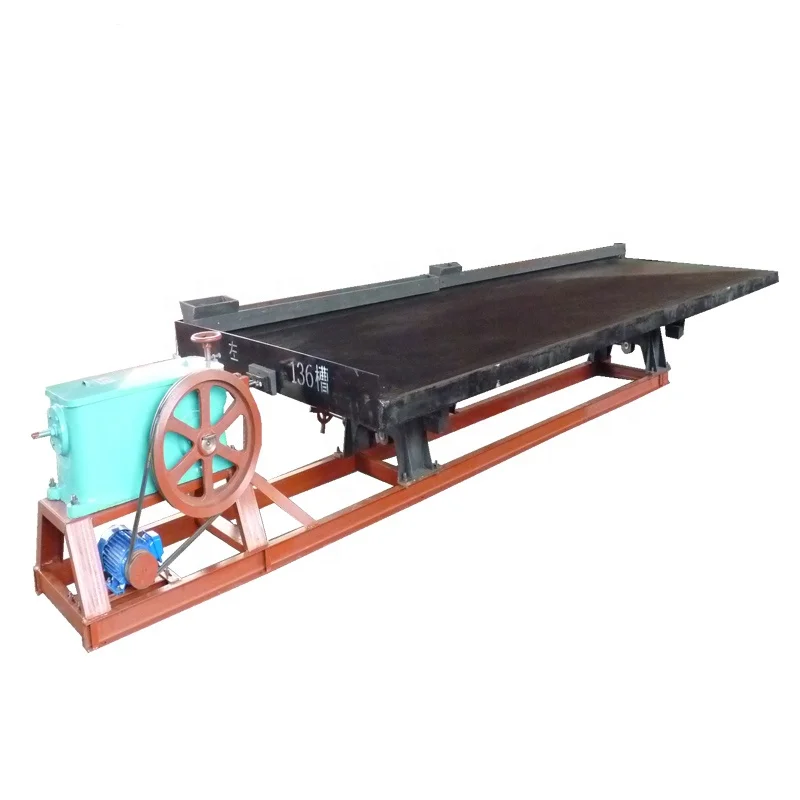

Gold Ram Gold Recovery, Table Concentrator
the raw ram shall be crushed and ground into powder firstly, then the powder could be sent to the shaking table directly to get what we want.

Gold Ram Gold Recovery, Table Concentrator





Features of Ram Gold Recovery



The Ram Gold Recovery has following advantages:

• High recovery ratio


• High concentration ratio


• Easy installation


• Simple operation


• Deck constructed of fiber glass


• Three different decks to choose


• Long working life


• Adjustable stroke length and speed

 Gold Ram Gold Recovery, Table Concentrator

How to Select Table of Ram Gold Recovery



Our jinshibao Ram Gold Recovery have THREE different deck designs available:

(1) The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm;

(2) The fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;

(3) The slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

 Gold Ram Gold Recovery, Table Concentrator



Structure of Ram Gold Recovery

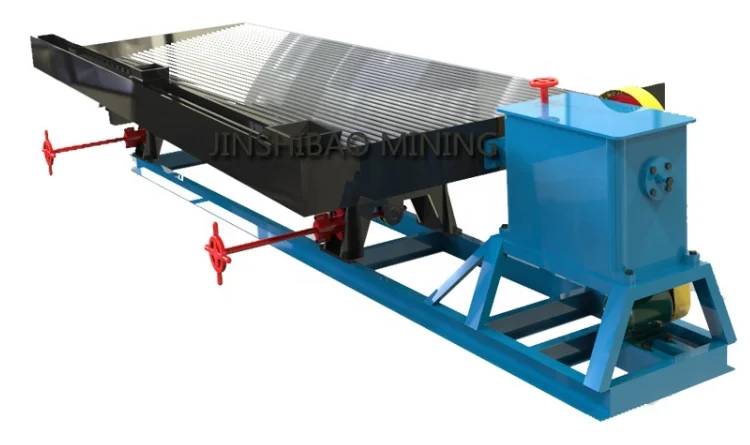

The following drawing shows the structure of the Ram Gold Recovery:



Head Motion

6-S Ram Gold Recovery are furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.
Gold Ram Gold Recovery, Table Concentrator
Decks

The decks of Ram Gold Recovery are constructed of steel framework and covered 16mm fiberglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.

Feed and Water Box

For the jinshibao Ram Gold Recovery, A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Gold Ram Gold Recovery, Table Concentrator
Support device

We mainly have three supporting device types for the Ram Gold Recovery:

• #28 channel steel type support Gold Ram Gold Recovery, Table Concentrator


• #10 channel steel type support Gold Ram Gold Recovery, Table Concentrator


• #8 channel steel type support Gold Ram Gold Recovery, Table Concentrator

 You could also build the cement support foundation if you do not need to move the Ram Gold Recovery.



Technical Specs of Ram Gold Recovery



Below are the main specifications of the Ram Gold Recovery



Model Performance		LS4500	LY3000	LY2100	LY1100
Screen Size(mm)		4500× 1850× 1560	3000× 1620× 1100	2100× 1050× 850	1100× 500× 430
Horizontal Slope	Degree	0-5	0-10	0-8	0-10
Feeding Range(mm)	Sand  ore	-2	-2	-2	-2
	slime	-0.074	-0.1	-0.074	-0.074
Feeding Density	%	10-30	10-30	10-30	10-30
Capacity (t/h)	Sand ore	0.5-1.8	0.7-1.5	0.4-0.8	0.1-0.2
	slime	0.5-0.8	0.4-1	0.3-0.5	0.05-0.1
Water consumption	t/h	0.4-0.7	0.3-1.5	0.2-1	0.1-0.5
Motor power	kw	1.1	1.1	1.1	0.55
Dimension (mm) L× W × H		5600× 1850× 860	4075× 1320× 780	3040× 1050× 1020	1530× 500× 800
Deck Weight(kg)		370	310	180	50

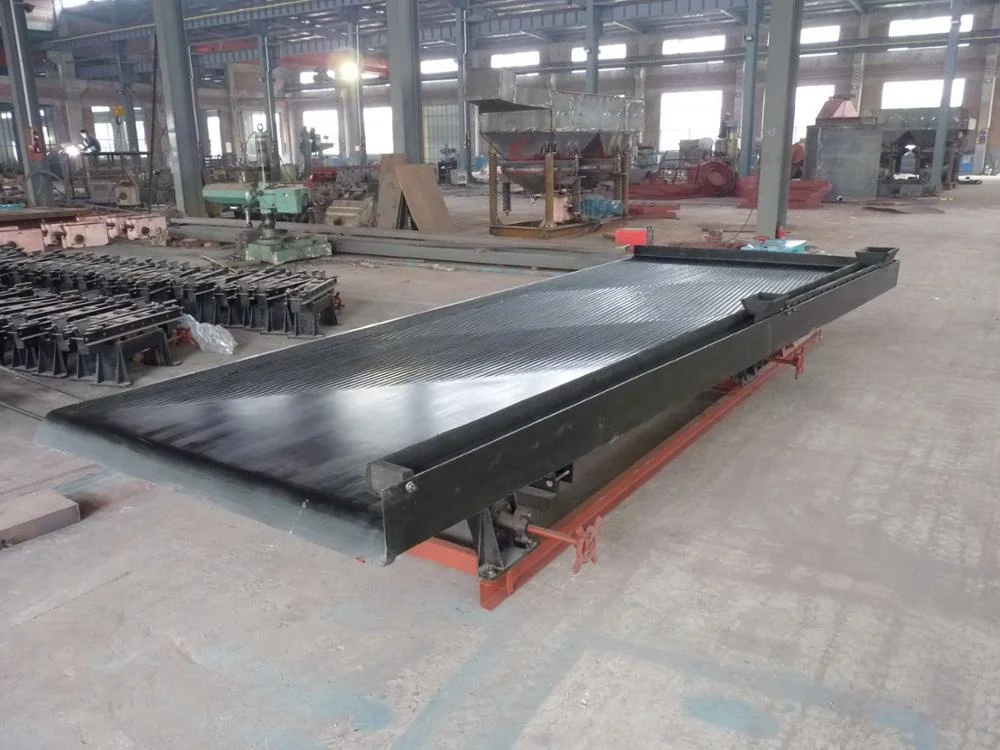

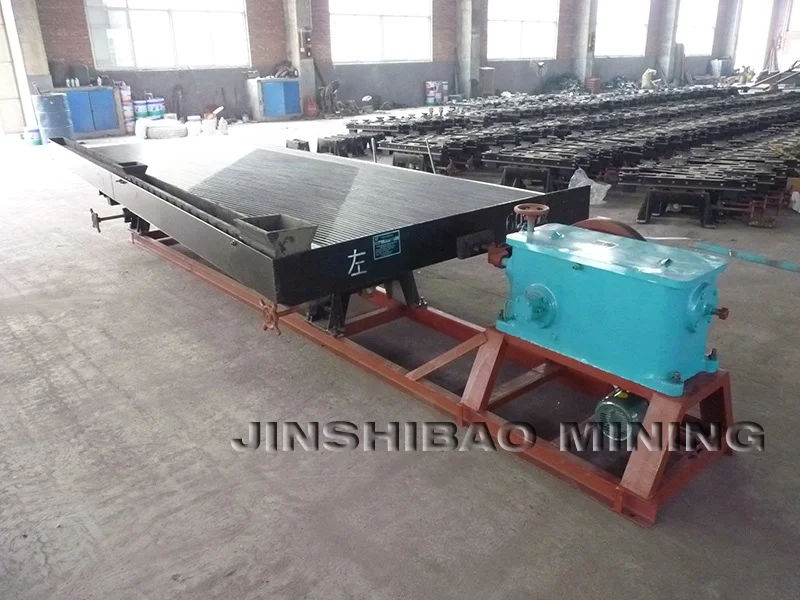

More pictures of Ram Gold Recovery



Below are the main parts of one set of Ram Gold Recovery:







Engineering cases of Ram Gold Recovery



Our Ram Gold Recoverys are widely applied on different mining sites home and abroard.







•  LCL: If the Ram Gold Recovery is shipped by bulk, it is always packed in steel frame.

When the quantity is one set, the Ram Gold Recovery is installed up and packed in steel frame inside and plywood outside.

When the quantity is more than 1 set, the Ram Gold Recoverys are not installed up and packed in steel frames separately.







•  FCL: If the Ram Gold Recovery is shipped in container, it will be loaded in the container as belows without installation.

The purpose why do not install up them is to save the volume. The volume of one set of installed up LS4500 Ram Gold Recovery is about 10 cubic meters.







Customer service of Ram Gold Recovery



We could service you the complete line from the raw ore to get the final concentrates as below:







Transaction terms of Ram Gold Recovery



Payment Terms of Ram Gold Recovery

• We usually accept T/T, L/C

• T/T: 30% of total amount as deposit, 70% balance before delivery.

• We will take pictures of finished products to you before delivery.

Way of Packing of Ram Gold Recovery

• FCL & LCL export standard container 20/40 feet.

• FCL: Sea-worthy package. Machines are fixed in container; spare parts are packed in wooden boxes.

• LCL: Machines are packed in steel frame with plywood boxes. Customized package is available.

Shipping of Ram Gold Recovery

• By sea shipment

MSK/MSC/APL/EMC/PIL and so on

• By air shipment

• By courier express

The lab equipment could be delivered by the courier express, such as UPS, DHL etc.
