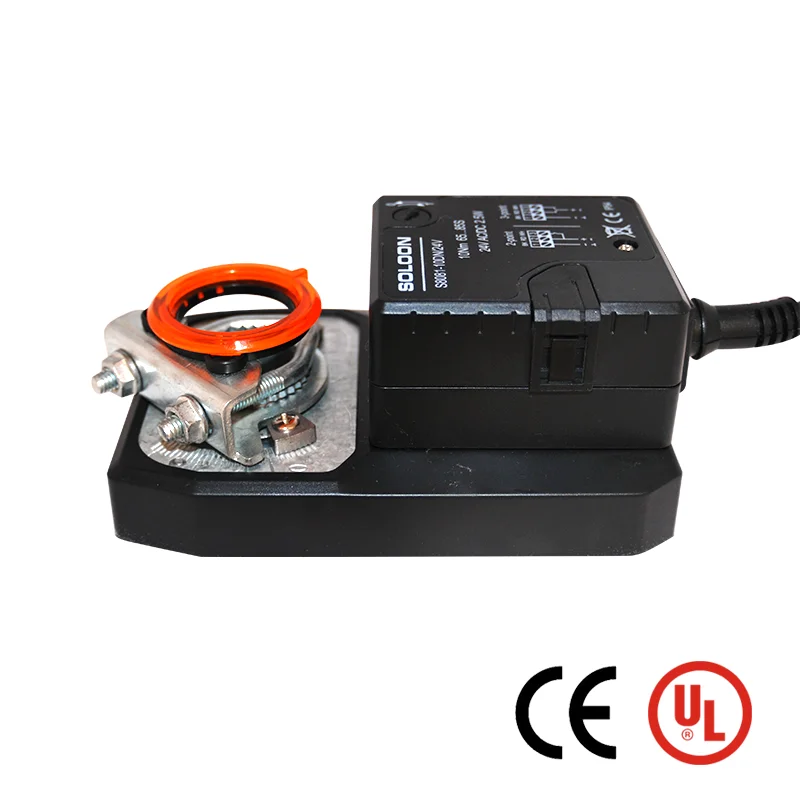

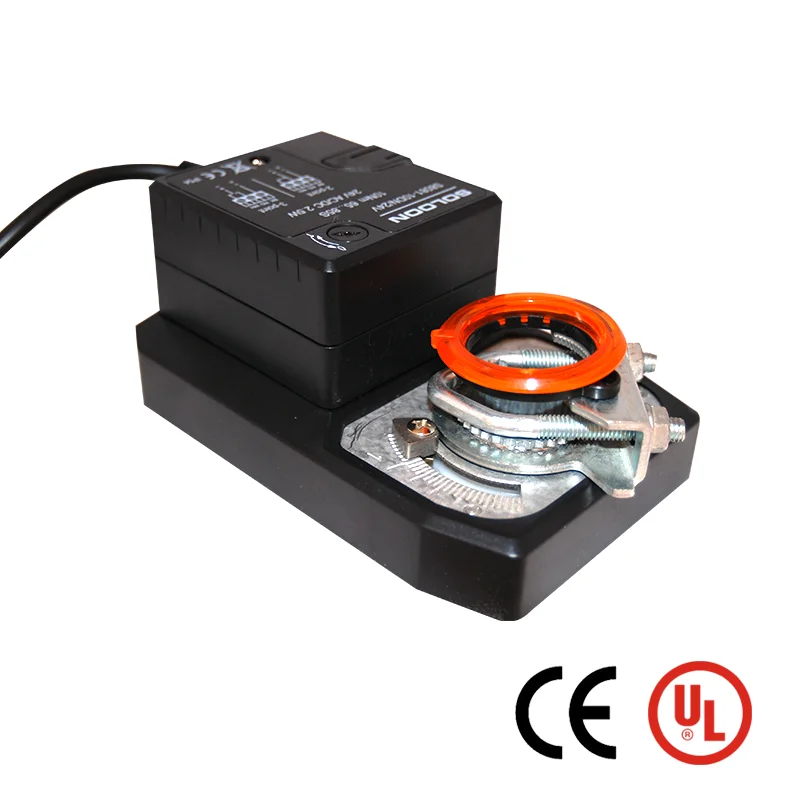

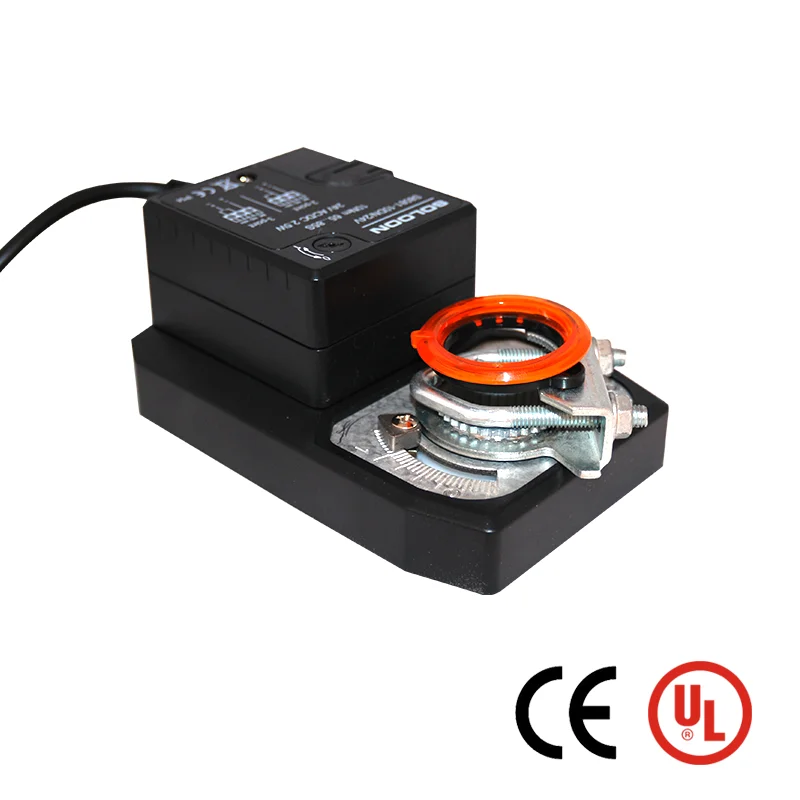

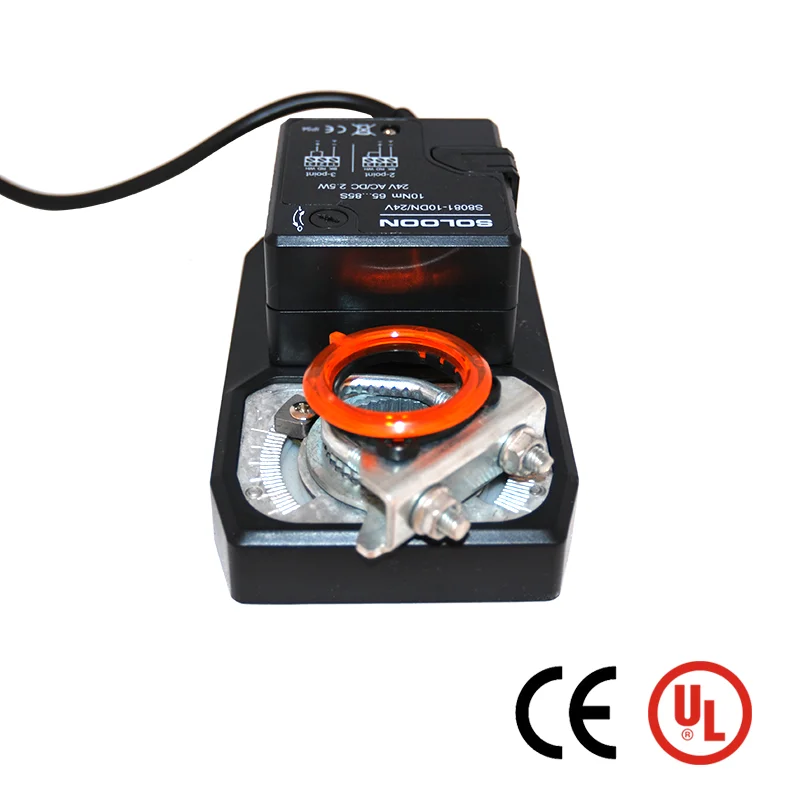

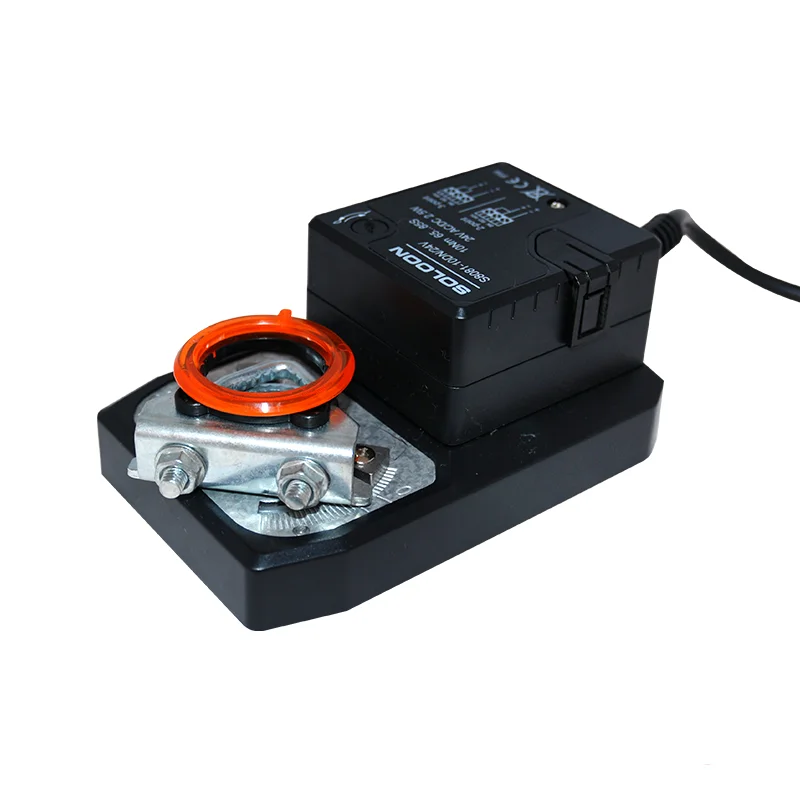

Новый тип 20NM 24V модуляции демпфер моторный общий привод заслонки
- Category: HVAC Systems & Parts >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60671867458):
Product Overview
Description
Product Description
Technical Specification
| Item | S8081-20AN/24V |
| Torque | 20Nm |
| Damper Area | 4m2 |
| Running Time | 125~135S |
| Power Supply | AC/DC24V 50/60Hz |
| Operating Power Consumption | 3.5W |
| Control Signal | 0-10V |
| Weight | 1.0Kg |
| Angle of Rotation | 0~90°(Max 93º) |
Auxiliary Switch Rating | 3(1.5)Amp 250V |
Life Cycle | >70000 cycles |
Noise Level | Max 45dB |
IP Protection | IP54 |
Temperature | -20~+50℃ |
Humidity | 5~95%RH |
Storage Temperature | -40~+70℃ |
| Certificate | CE & UL |
Wiring Diagram:
Outline Size:
24V
