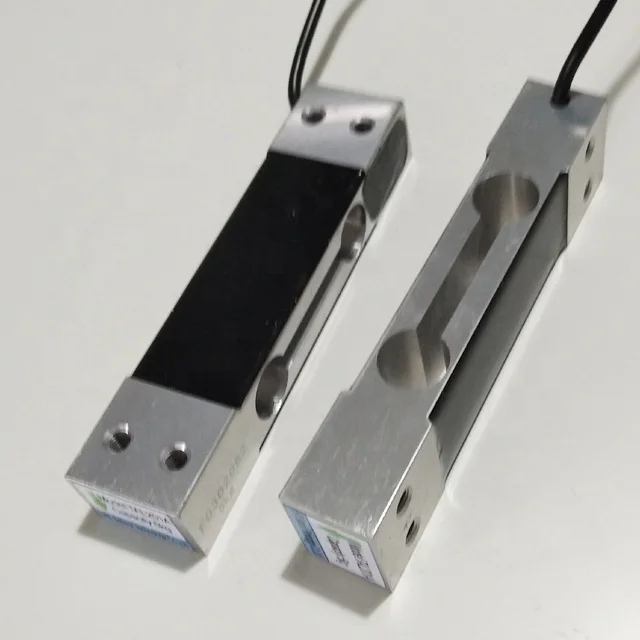

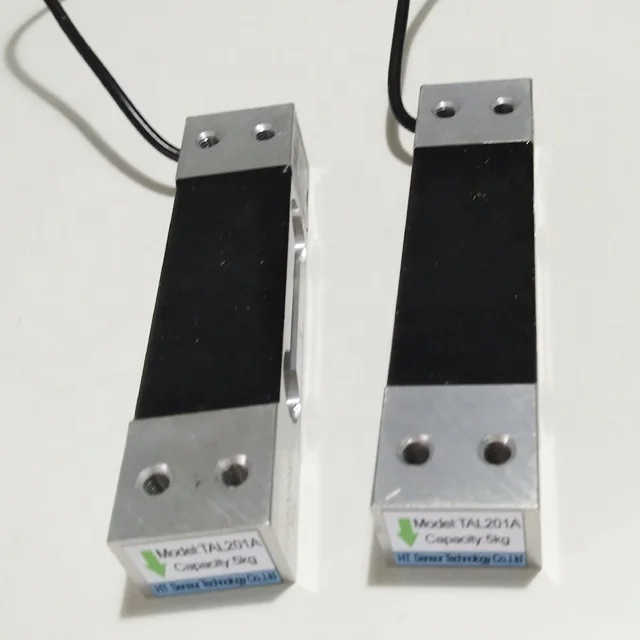

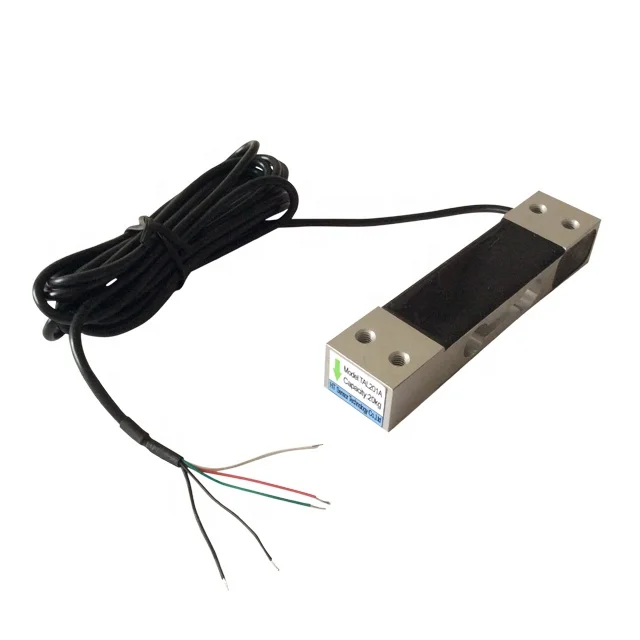

15kg TAL201A moisture proof IP68 load cell sensor

Share on (60672025972):


Price:$15.95

Quantity:


Product Overview

Description


Moistureproof sensor

◆Capacity :3~120kg
◆Material: aluminum-alloy
◆Type: Parallel beam type
◆Defend grade: IP68 waterproof
◆Recommended platform size:250x350mm
◆Application: electronic price computing scale, electronic counting scale, electronic balance and other electronic weighing devices


Product Introduction

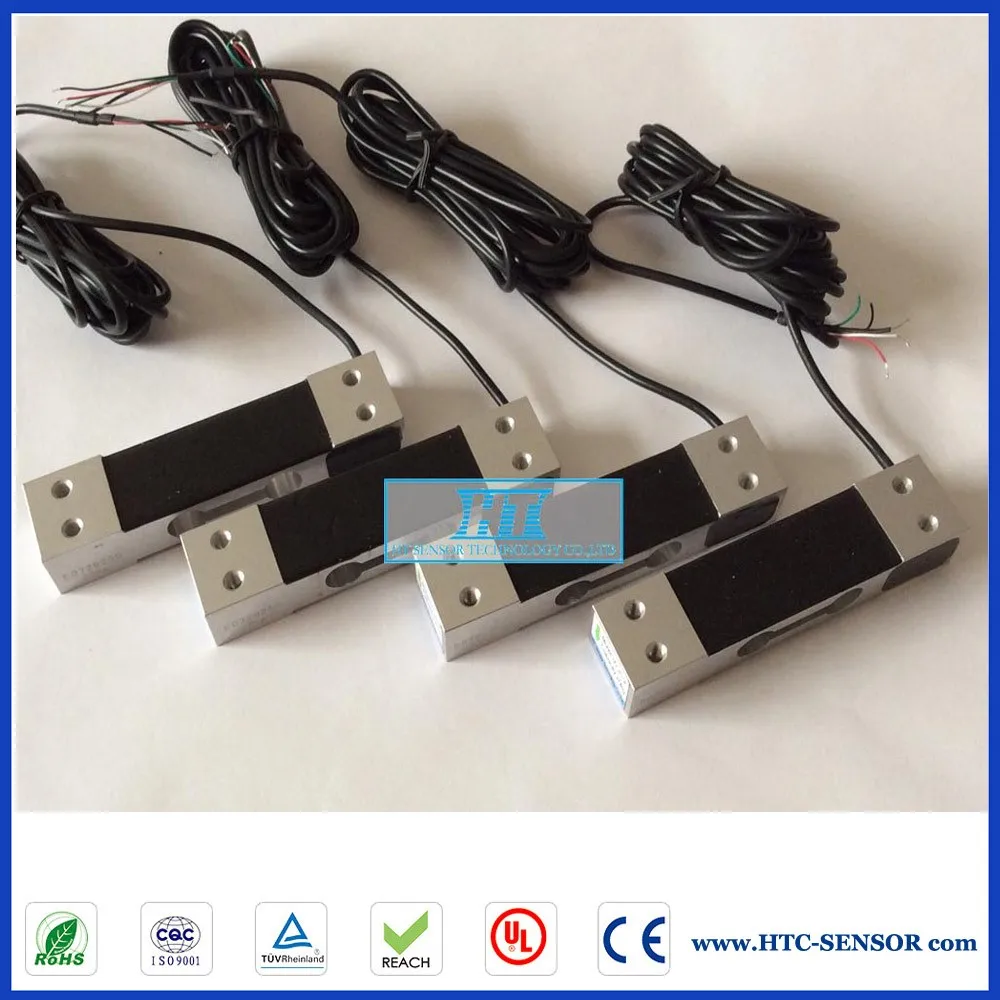

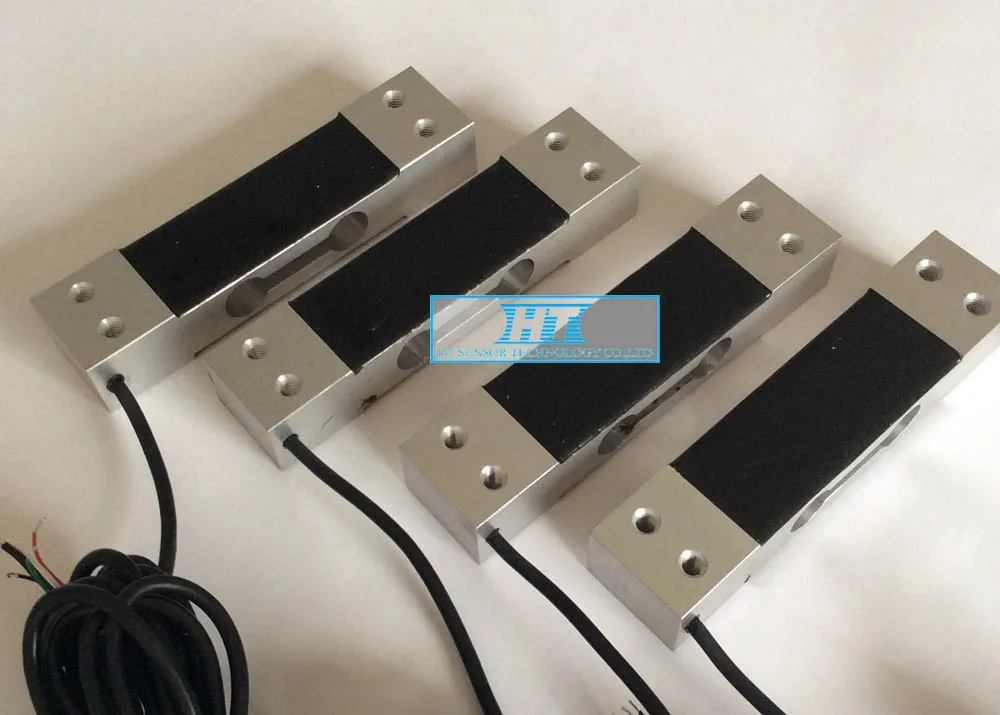

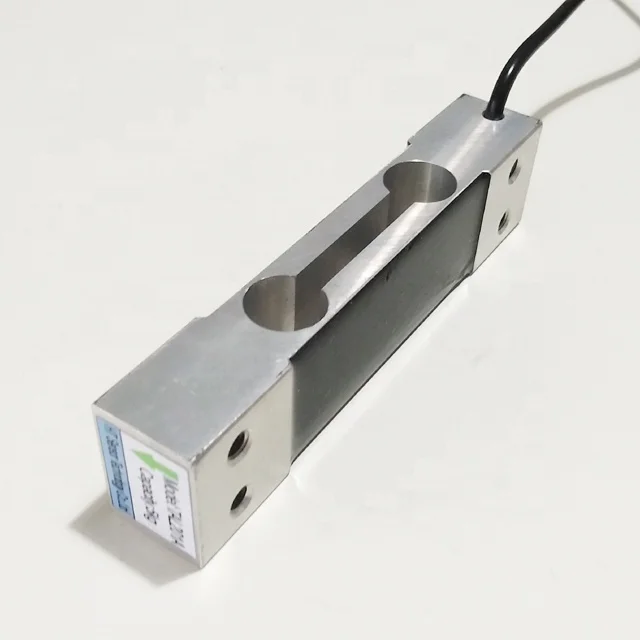

TAL201A  Moisture proof load cell sensor



Product Parameters
\t
\t
\t
Capacity:
\t
3,5,10,20,25,30,40,50,100,120kg
\t
rated output:
\t
2.0 ± 0.2m V/V
\t
excitation voltage
\t
9 ~ 12Vdc
\t
combined error
\t
± 0.05%FS
\t
input resistance
\t
405 ± 10
\t
Electrical connection
\t
4 core shielded PVC cable, Ø 4.5 × 42cm
\t

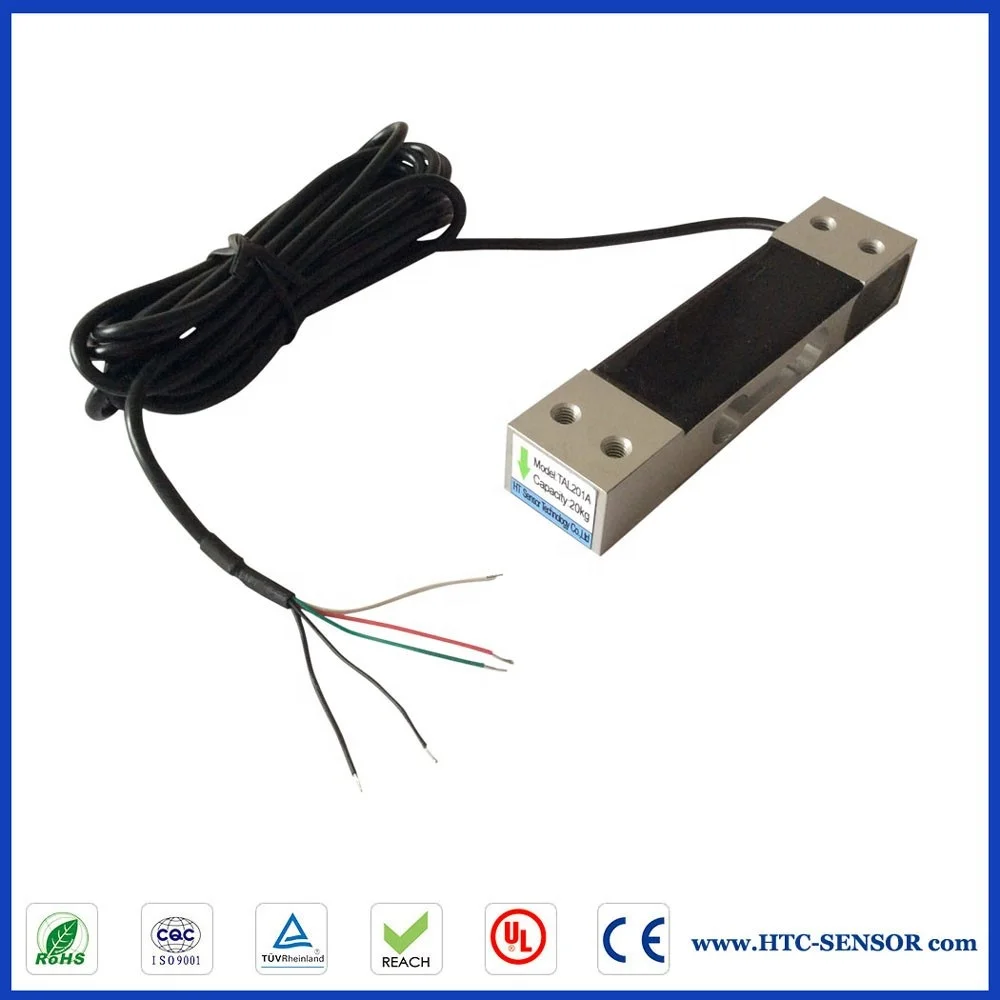

excitation(+):Red excitation(-):Black signal(+):Green signal(-):White,                   Shield wire: yellow
\t
operating temperature range
\t
-10 ~ +55℃
Product Packing
Main Products

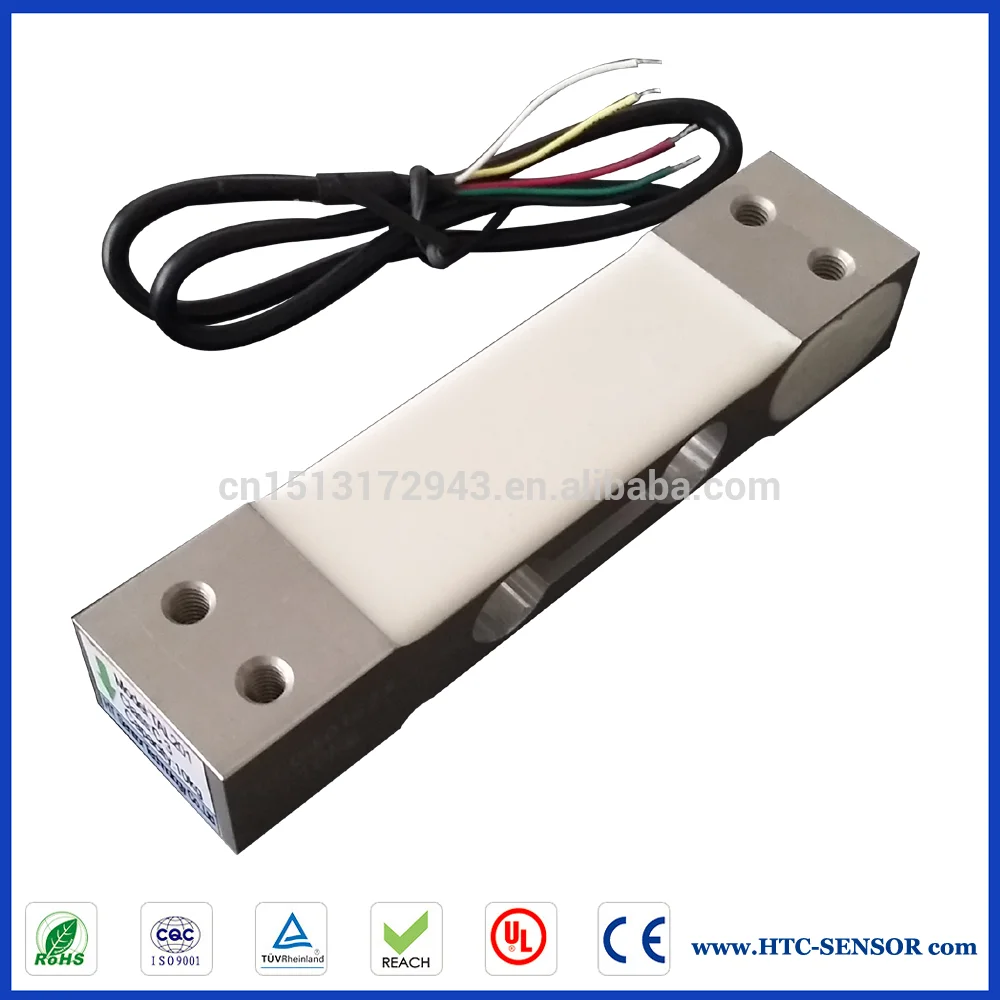

TAL201   Parallel beam  load cell

Capacity: 3kg~120kg

Dimension: 120x 30x 22mm

Cable: 4-cores shiled PVC cable

TAL201C High accuracy load cell

Capacity: 3~120kg

Dimension: 120x 30x 22mm

Accuracy: C3

TAL203 Parallel beam load cell

Capacity: 25kg~200kg

Dimension: 130x 40 x 22mm

Cable: 4-cores shiled PVC cable

TAL205 Parallel beam load cell

Capacity:100Kg~1000Kg

Dimension: 191 X 76 X 43mm

Recommended platform size: 600x600mm

TAL226 Miniature load cell

Capacity: 0.5kg~25kg

Dimension:70 x 15 x 22mm

Cable: 4 cores shield PVC cable

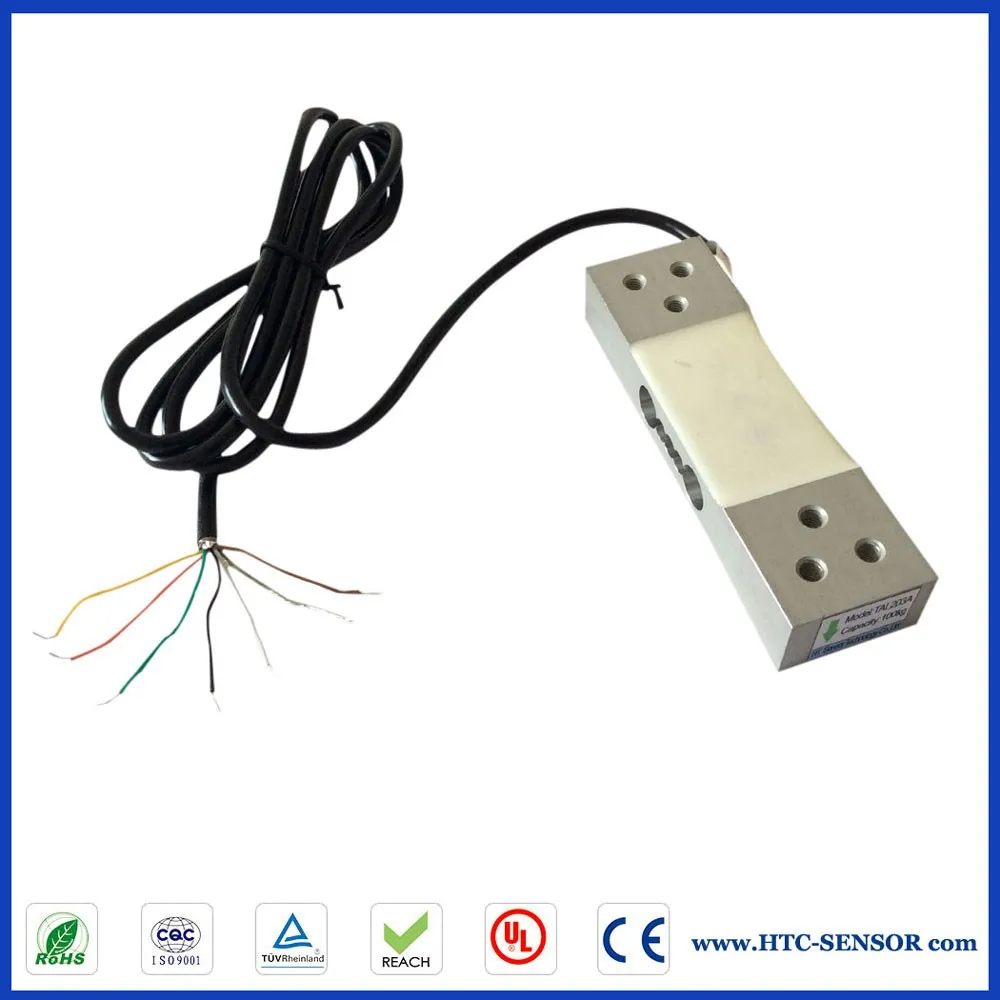

TAL203A Parallel beam load cell

Capacity: 25kg~200kg

Dimension:130 x 40 x 22mm

Cable: 6 cores shield PVC cable

TAL206 Parallel beam load cell

Capacity:20Kg~300Kg
Dimension: 125 X 40 X 24mm

Recommended platform size: 350x400mm.

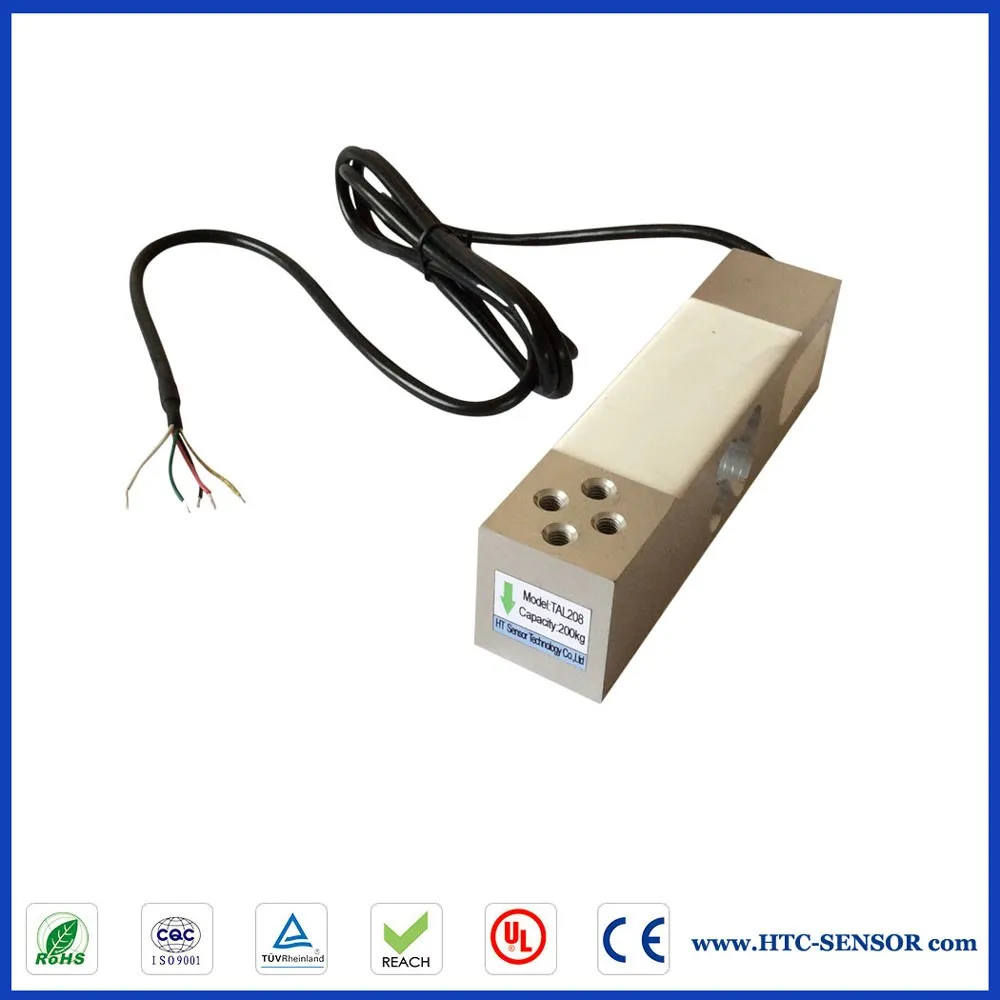

TAL208 Parallel beam load cell

Capacity:30Kg~500Kg
Dimension: 150 X 35 X 40mm
Recommended platform size: 400x400mm.

TAL214A Parallel beam load cell

Capacity:60Kg~500Kg
Dimension: 150 X 30 X 40mm-8-M8
Recommended platform size: 400x400mm.
