High Speed Electronic Jacquard Loom Professional Manufacturer Textile Machinery

Product Overview

Description

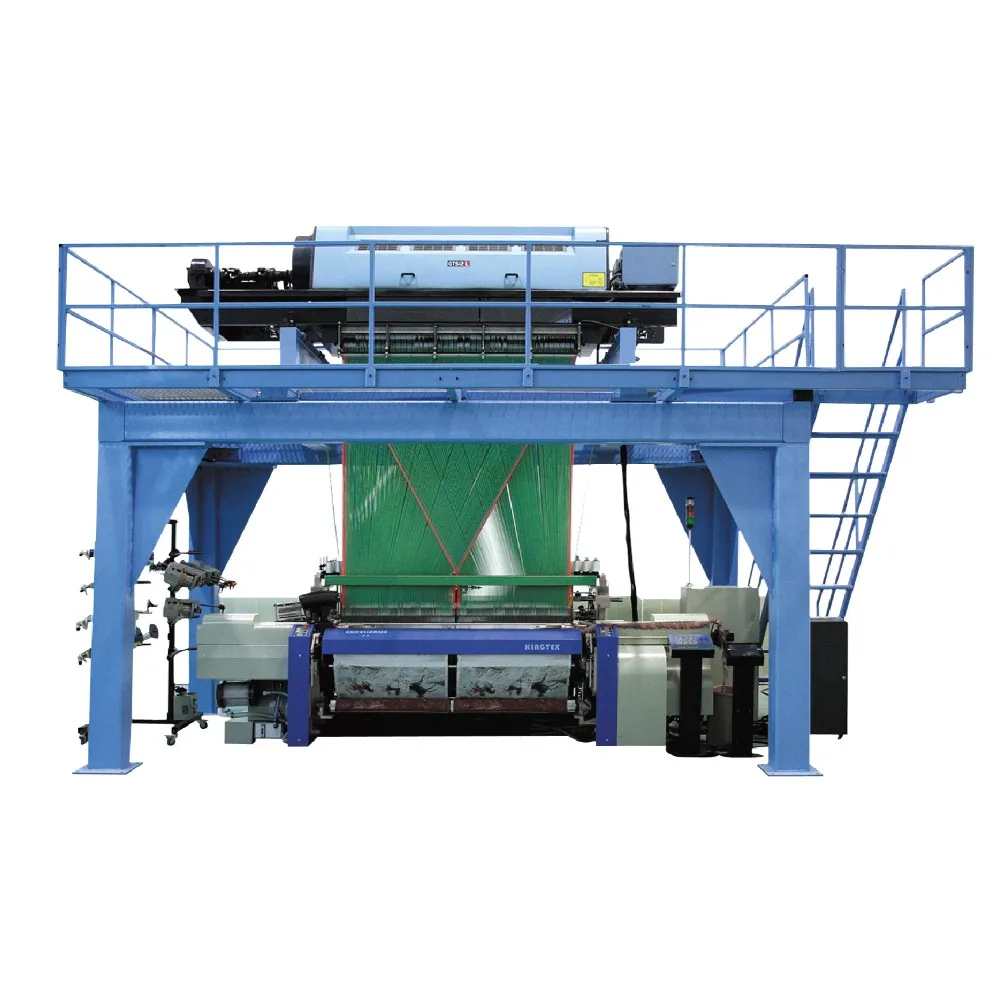

HYRL-1738 High Speed Electronic Jacquard Rapier Loom

Product Use:

   HYRL-1738 High speed electronic jacquard rapier loom is mainly used for weaving kinds of jacquard decorative cloth, sofa cloth, trademark, necktie and terry  towel made of natural fibre ( e.g. cotton, wool, silk, flax), artificial fibre and synthetic fibre.

Product Features:

  It is a high-speed electronic jacquard loom.  It has Features fast, steady and flexible,,for it adopt high speed electronic jacquard . All different flower can be designed by the software and can be manufacture by this rapier loom .





Major Technical Parameters:

Reed Width	190/230/250/280/320/360 cm
SPeed	350-500 RPM
Yarn Count	Cotton7Ne-60Ne wool12Nm-100Nm chemical fiber1000D-65D
Tallest into the latitude rate(m/min)	1120
Rolling-up	Mechanic roll-up or electronic roll-up
Let-off	Mechanic let-off or electronic let-off
Beam flange diameter	800mm,1000mm
Max. rolling diameter	600mm
Weft-selection	2-8 colors pick-at-will
Head needles	1344 needles 2688needles 6144needles 12228 needles
Power	Electricity consumption of machine<5.5kw
Control	Micro-computer control, Chinese LCD screen display

 We can manufacture according to customer requirements
