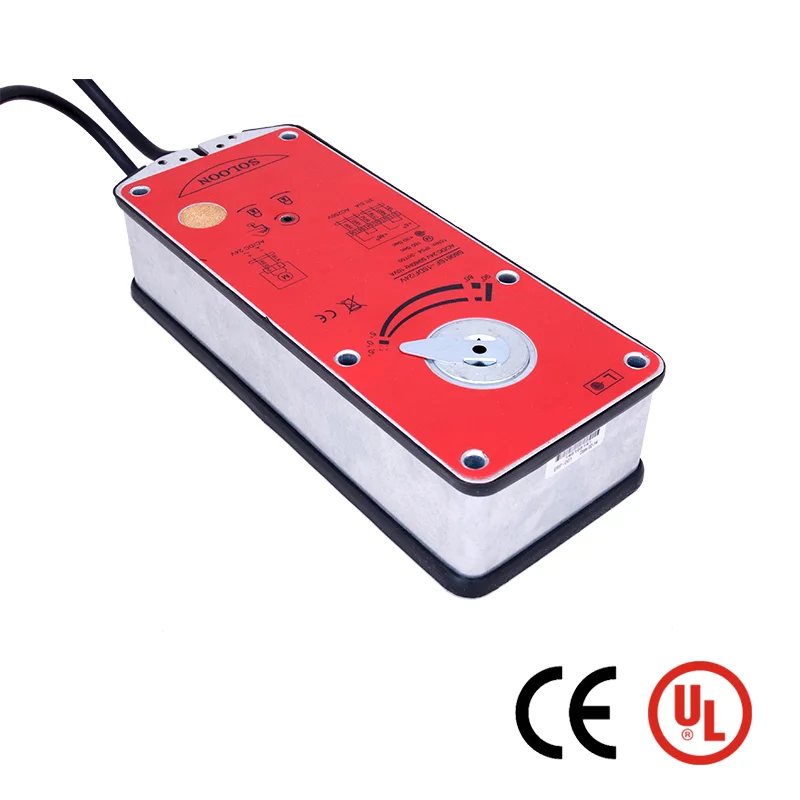

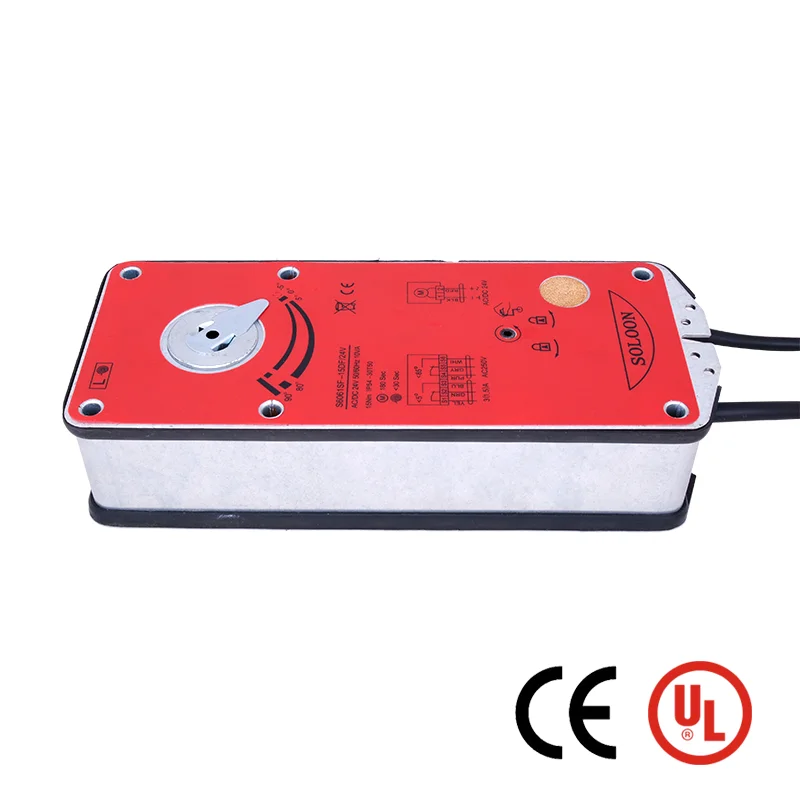

Модулирующий актуатор пожарного дыма 15 Нм 24 В CE для системы HVAC
- Category: HVAC Systems & Parts >>>
- Supplier: Soloon Controls (Beijing) Co. Ltd.
Share on (60672340283):
Product Overview
Description
Product Description
Technical Specification
| Item | S6061SF-15AF(S)/24V |
| Torque | 15NM |
| Damper Area | 3m2 |
| Running Time | Motor 100S;Spring return 20S |
| Power Supply | 24VAC/DC 50/60Hz
|
| Operating Power Consumption | 6W |
| Wire Size | 7VA |

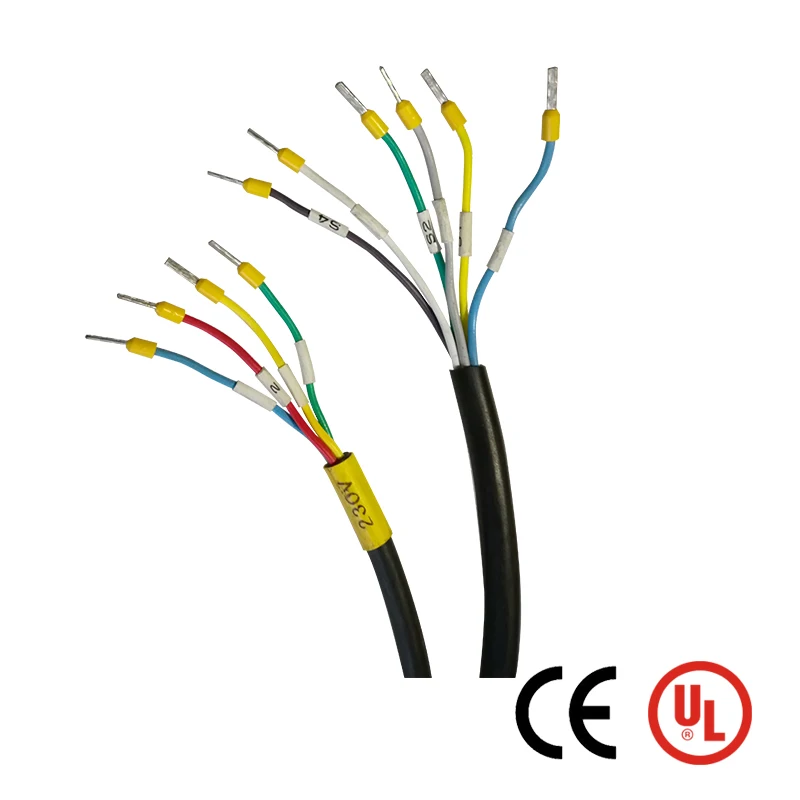

Connection cable | 1m cable 2*0.75 m2 Auxiliary switch (F):1m cable 6*0.5 m2 |
| Control Signal | 0~10V |
| Angle of Rotation | 0~90°(max 93º) |
Auxiliary Switch Rating | 3(1.5)Amp 250V |
Life Cycle | >70000 |
Noise Level | 50dB(A) and 62dB(A) |
Electric level | Ⅲ
|
IP Protection | IP54 |
Temperature | -20~+50℃ |
Humidity | 5~95%RH |
Storage Temperature | -40~+70℃ |
| Certificate | CE & UL |

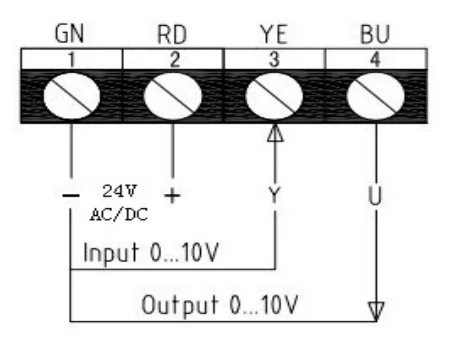

Wiring diagram: Auxiliary switch:

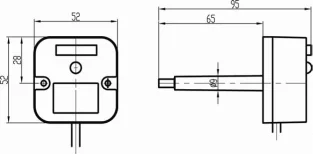

Outline Size:

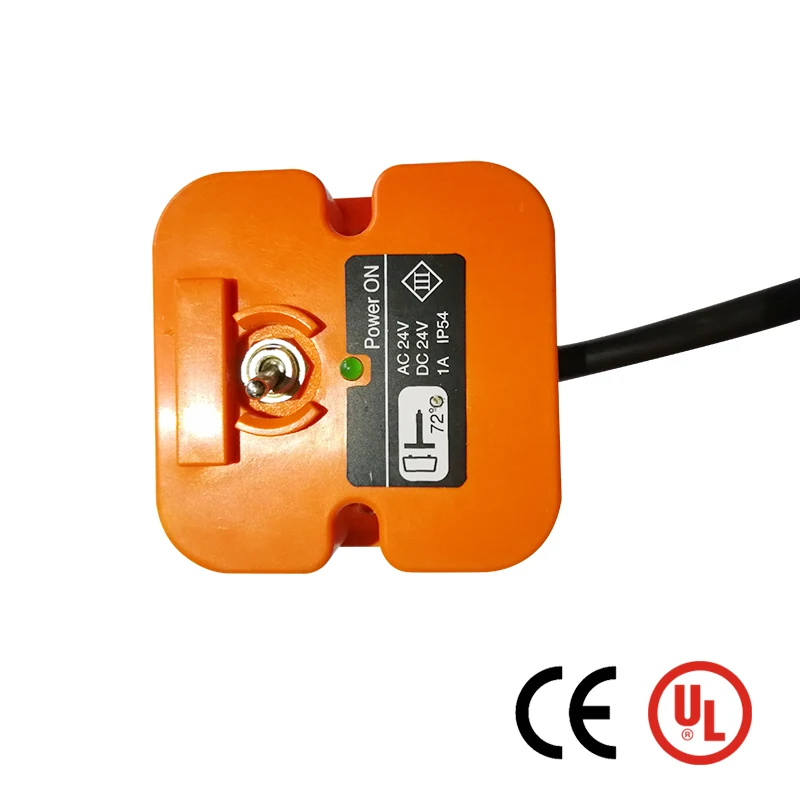

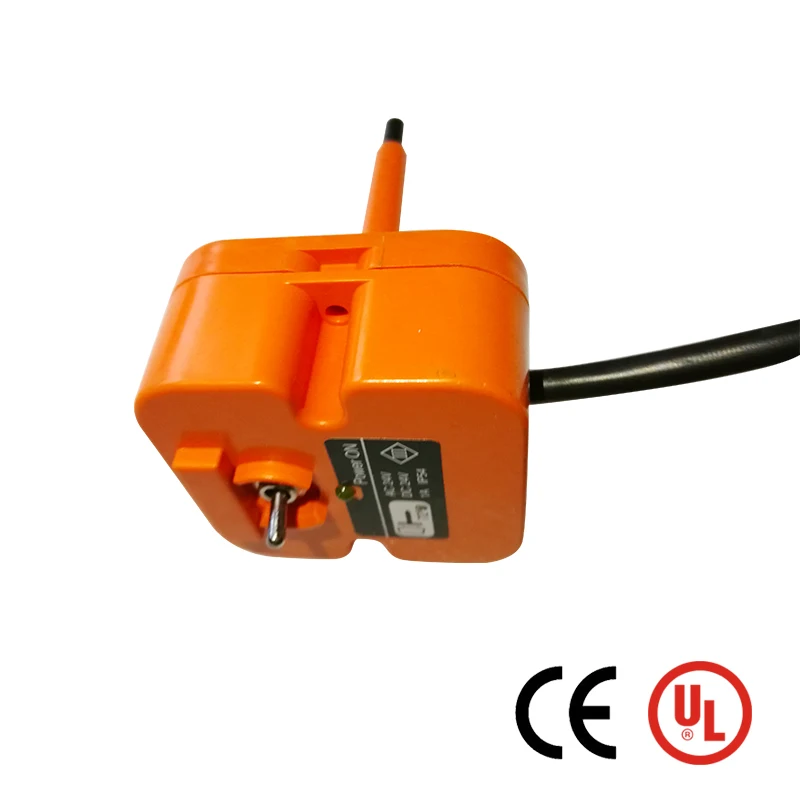

72℃ thermal sensor
