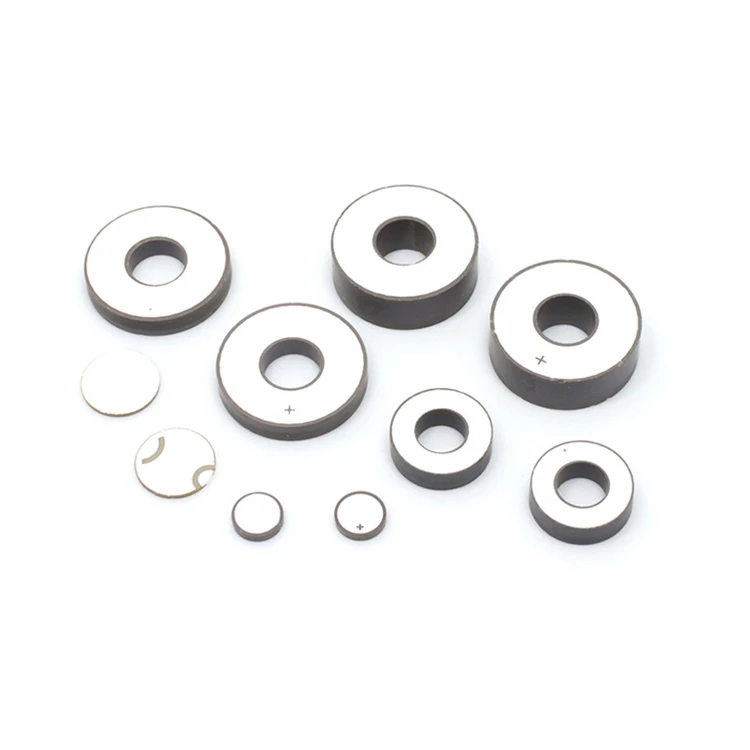

JIAKANG Ceramic Piezoelectric Ring for Ultrasonic Welding
- Category: Electrical Ceramics >>>
- Supplier: Zhejiang Jiakang Electronics Co. Ltd.
Share on (60672589097):
Product Overview
Description
Items | Unit | Content |
Resonant frequency (Fr) | kHz | 142±2.5 |
Bandwidth(DF) | kHz | ≥11 |
Resonant impedance (Zr) | Ω | ≤40 |
Static capacitance (C0) | pF | 320±20% |
You are here:Home >>Piezoelectric Ultrasonic Transducer >>Piezoelectric Ultrasonic Disc>>
JIAKANG Ceramic Piezoelectric Ring for Ultrasonic Welding
Product Description
| |||||||||||||||||
Electrical Specifications | |||||||||||||||||
| |||||||||||||||||

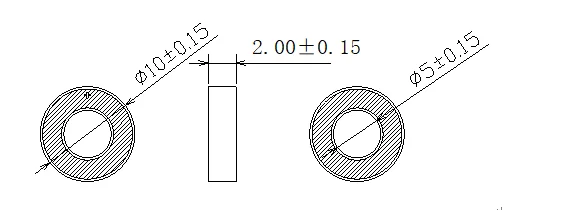

| Appearance and Dimensions |
 |
| Packing | ||||||||||||||
Note:Each package has 4 inner boxes,each box has 1250 pieces of elements. | ||||||||||||||
TEST | |
Test Conditions | |
Parts shall be measured under a condition (Temp.:25℃±5℃, Humidity: 40%~70% R.H.). | |
Test procedure | |
Item | Test procedure |
Resonant frequency (Fr) | Measuring thickness vibration mode, Impedance analyzer or Network analyzer |
Band width(DF) | |
| Resonant impedance (Rr) | |
Static capacitance (C0) | Digital electric bridge or impedance analyzer,1kHz/1V |
| Loss(tgδ) | Impedance analyzer |
d33 | d33 Quasi static measuring instrument |
Other dimension in mass production: Both PZT4 and PZT8 material are available!
| ||||||||||||||||||||
Company Information
Piezo Ceramic Ring are widely used in the ultrasonic cleaning, welding, cutting and so on. We have both the PZT4 and PZT 8 ceramic available. Customized service is also available!
We have been in the research and development of PZT materials and products nearly 30 years.We are director of Piezoelectric Ceramic Device Specialized Committee, in charge of drawing China’s “The 11th Five-year Plan” and “The 12th Five-year Plan” for development of piezoceramics. Chooosing us will make your developping process earlier and faster. |
FAQ
Q1:Are you a manufacturer or a trading company?
A1: We have been specialized in the piezo ceramic related products manufacturing for 31 years.
Q2:Where is your factory located?
A2: Factory address: No.1188,Jiahang Road,Jiaxing City , Zhejiang Province,China.
Q3: What's your company MOQ?
A3: Small quantity also available.
Q4: What's the payment way?
A4: T/T, western union, credit card etc.
Q5: Can you send a sample for us to test ?
A5: Yes, most samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.
Q6:What is your shipping way?
A6: We support DHL, UPS, FedEx, EMS.
