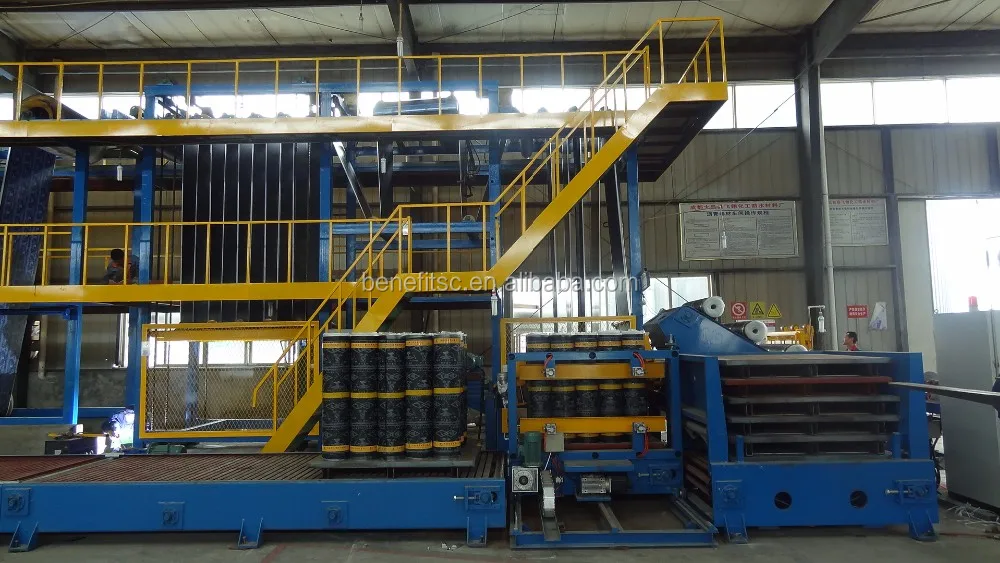

Modified Bitumen Waterproof Membrane Making Machine

Product Overview

Description

Modified Bitumen Waterproof Membrane Making Machine Production Line,waterproof membrane machine

Description:



Features of SBS Modified Bitumen Membrane Production Line :
1.Flexibility of designmeet different products demand

2.Versatility: can produce different carcass, different cladding, different base material, the thickness of a variety of different modified bitumen membrane

3.Second inunction technology: adjustable carcass in the membrane of the position, so as to ensure the construction of membrane

4.Cooling directly and indirectly with the use of cooling: Suspension sink cooling, and comprehensively improve the efficiency of cooling

5.Photoelectric automatic corrective institutions to guarantee in the matrix

6.carcass mill use of advanced super shear force of the mill and modified significantly reduce the time

7.electronic weighing measures is used to batch system to control the product quality and enhance stability

8.Efficient unique structure of the agitation mixed system, which embodies a highly shear force and scraping of  the wall so that to avoid dirt.

9.Efficient dust, the flue gas treatment system: condensation, filtration, adsorption processing, is a full compliance with environmental requirements

10.All synchronous Frequency Control, PLC control system: less maintenance, operation of low-cost, simple operation, a high degree of automation, equipment running high reliability rate, the rate of qualified products are> 90%.



Five parts of waterproof membrane machine





1.Coiled material production line



By means of batching system,measured out the material which needed for production line, and the formula is adhered to the forming film or the tire base cloth, and a system device for producing the required coil type is formed after forming, extruding, laminating and sanding the roller.





 2.Bitumen modification preparation system



The raw materials (such as powder, powder, asphalt, oil, heavy oil) rationing by a certain proportion, mixing tank after high temperature mixing to form waterproof material type, and the material conveying system delivered to the system of production forming system device.





3.Thermal oil heating system



By means of the boiler combustion (oil, gas, coal) or electric heating system, heating the circulation conducting oil, and control the temperature of the heat conduction oil , provide the required production temperature to material distribution system,conveying system and production system tosystem device .





4.Cooling water recycling system

This system, also called the circulating cooling system, refers to the system for the dust handling of the production, molding, material distribution, cooling, cooling and environmental protection of water through the water in the circulating pool:\u0081for cooling water plate and the water cooling roll forming production system, to cool the waterproofing products."For some material rationing system temperature requirements for cooling the materials.Smoke more in environmental protection system of spray tower for reasonable treatment.





5.Lampblack management system



This system is also called the environmental protection system, is aimed at collecting the substantial smoke in the production process from forming system and distribution system this two systems,and through the electric oil trap / light oil trap (filter oil) of the environmental protection system,activated carbon (adsorption the toxic and harmful gases such as CO and SO₂ ) ,then through the spray tower (filtered particles) from non-toxic gas chimney(CO).



Technical Paremeter



ITEM		APP/SBS Modified Bitumen Membrane Production Line Technical Parameters
Capacity ,m2/year		For 3mm-thick products ,the annual output of  various modified bitumen waterproofing  membrane can be 10 millions sqm per year , with 250 annual manufacturing days per year , 2 working shifts per day and 8 hour working time per shift
Width		1000mm
Reinforcement		Polyester mat ,fiberglass, compound
Modified materials		SBS,APP,Rubber powder
Facing materials		Self-adhesive ,Silver sand ,Slate flakes ,PE film ,Aluminum foil ,etc
Linear speed		5-60m/min(adjustable)





Finished product images



Application



Company Information

Changzhou Benefit Waterproof Equipment Co.,Ltd,established in 1990, is a professional manufacturer which is specialized in researching, producing, marketing and service waterproof equipment. As a private-owned enterprise,Our company is a famous supplier in the line of waterproof equipment in China, also an important supplier in the international markets. On the basis of absorbing foreign advanced science and technology, our factory has developed various kinds of advanced waterproof equipment plants, and has got many national patents. The factory is strictly in accordance with international quality system to ensure product quality. Our factory pursues the enterprise culture of sincere, realistic and innovation, adheres to the service goal of honesty,customer-oriented and win-win situation. We are looking forward to cooperating with you.





FAQ



1. How about the delivery time?

Lead time is 2 months for large order quantity(Over 100,000 square meters) after placing the order;Delivery time: 3 months by sea



2. What's the acceptable payment term?

T/T, L/C

3. What's the MOQ?
We can regulate it accordingly



4. How to deal with the sample charge?
The sample is free, we only charge the freight and we will return the freight fee after placing the

order .



5. Can you produce the product according to customers' requirements ?
Sure, we are a professional manufacturer, OEM and ODM are both welcome.



6. Can you tell me your main customers?
That's our customers' privacy, we should protect their information.At the same time, please be rest assured that your information is also safe here.
