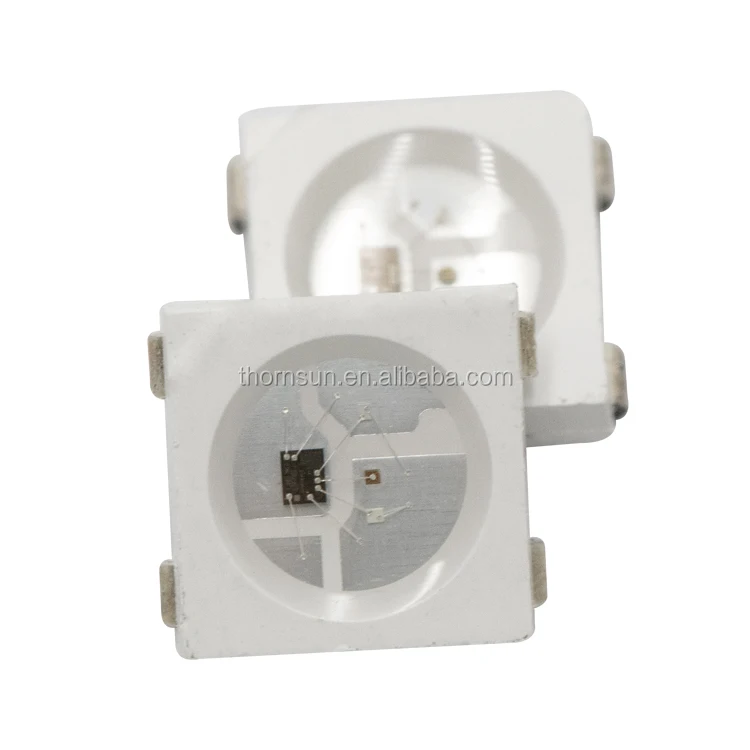

Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point. Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s. Cascading port transmission signal by single line.When the refresh rate is 30fps, low speed model cascade number are not less than 512 points, high speed mode not less than1024 points.
Product Details
component: 256pcs 5050 LEDs and 256pcs 0603 capacitors.
process: At first solder paste was printed on these pad of FPC through stencil by printer. Then components were placed on the solder paste by mounter. At last,PFC and components were connected through melted solder in reflow oven.After cooling zone of reflow oven ,excellent soldering formed.

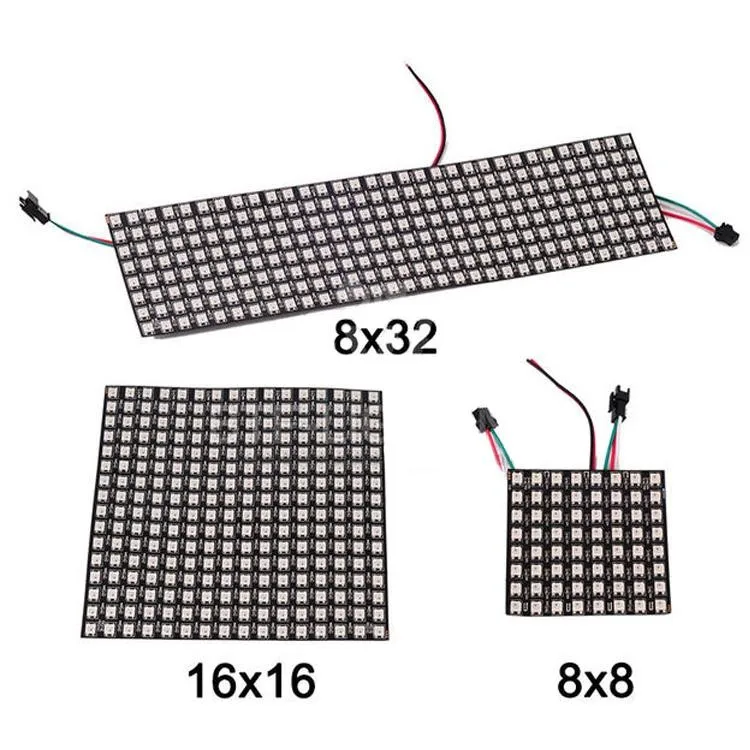

8x8 and 8x32 led matrix
We also have 8x8 and 8x32 led matrix panel. 8x8 matrix is 64 pixels,diameter is 80mm x80 mm,power tating is 19.2w.8x32 matrix is 256 pixels,diameter is 80mm x320 mm,power rating is 76.8w. their base structure and principle of work same as 16x16 matrix.
Model
TS-8X8 pixels-WS2812- led matix
TS-16X16 pixels-WS2812- led matix
TS-8X32 pixels-WS2812- led matix
LED Light Source
SMD5050 RGB(built-in IC)
SMD5050 RGB(built-in IC)
SMD5050 RGB(built-in IC)
Bulb Watt
19.2W
76.8W
76.8W
Input Voltage
DC 5V
DC 5V
DC 5V
