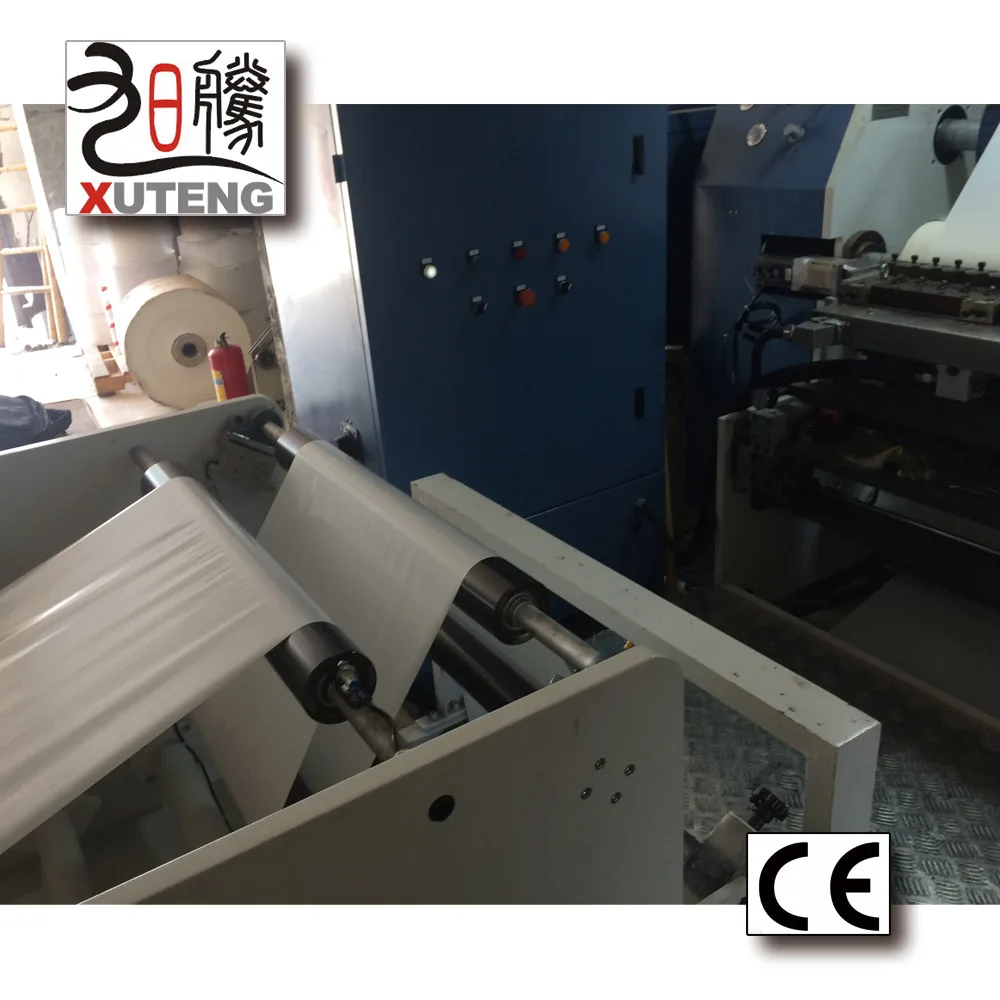

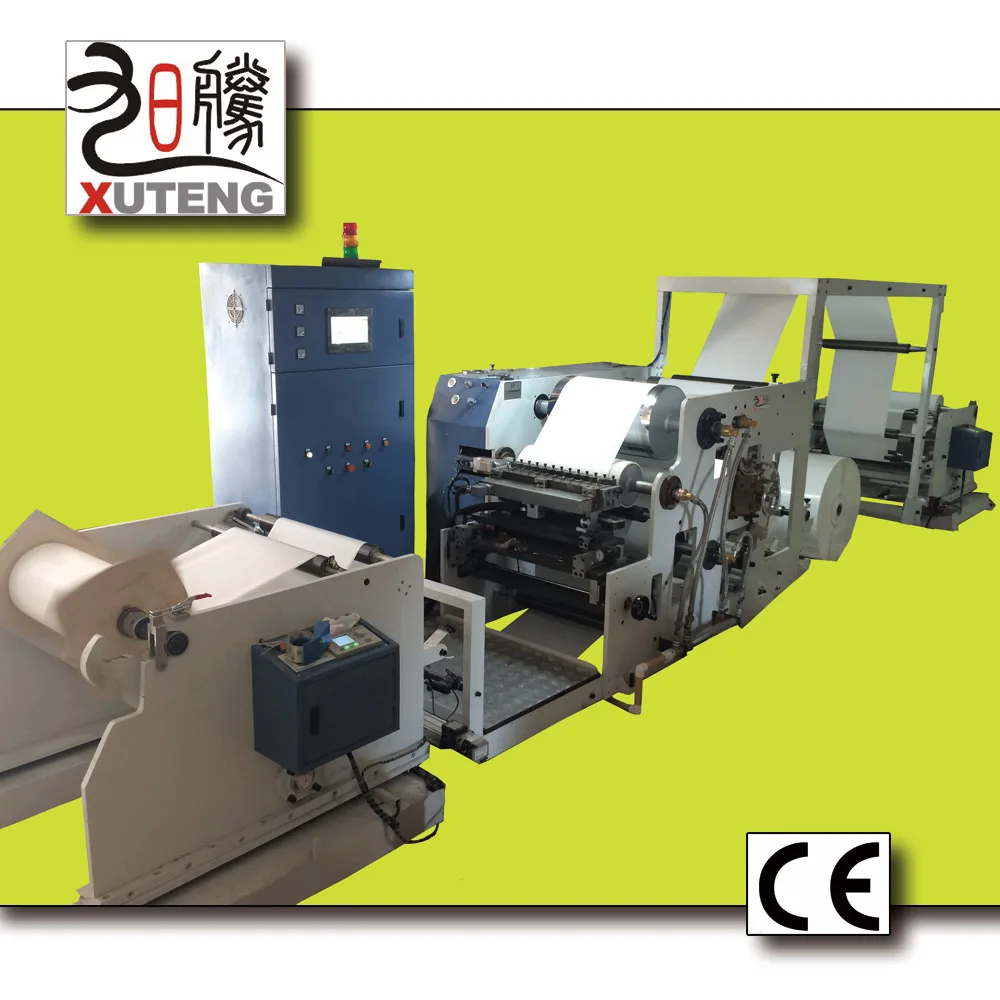

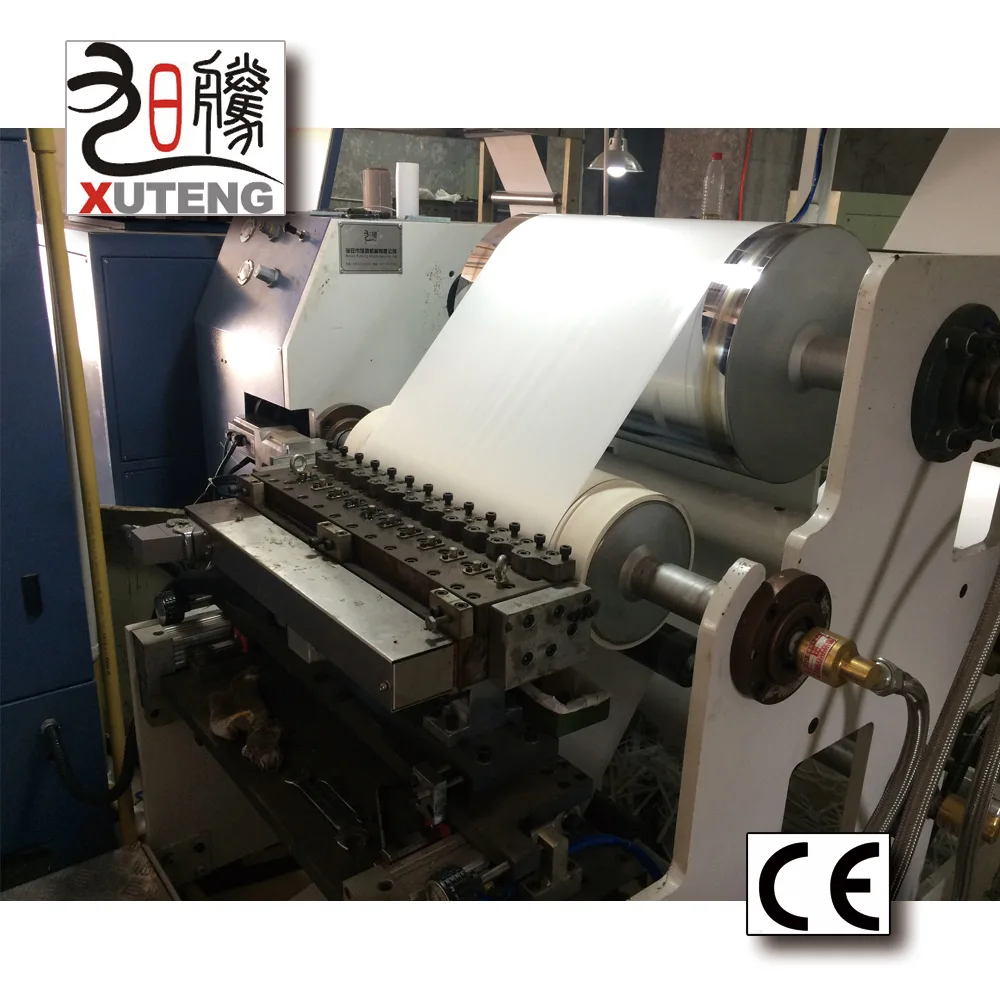

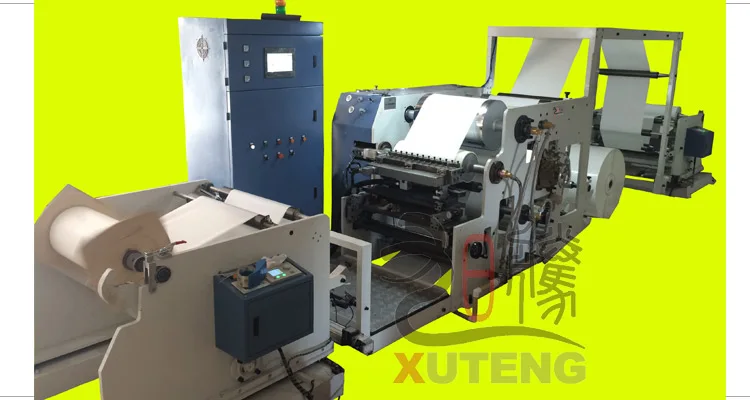

Hot melt thermal paper coating machine

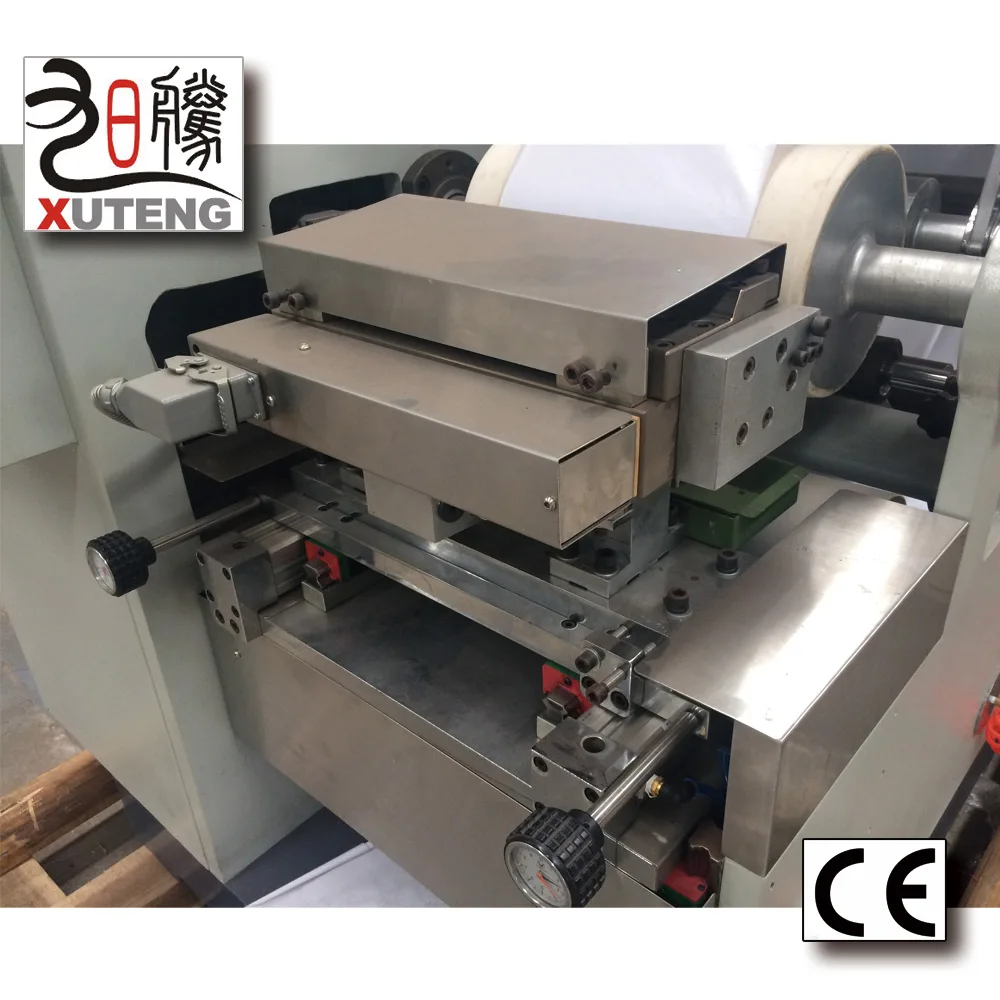

1, Using no scratch coating head with newest rotating bar, uniform coating, smooth surface.

2, 150m/min high-speed design has reached the international advanced level

3, Rewinding adopts independent servo motor, rewinding with even tension, small heating, and low  fault.

4, Loading and unloading materials work with hydraulic lifting device for unwinding and rewinding, labor-saving, easy to operate.

5, Unwinding adopts automatic photoelectric correction, automatic constant tension control, the composite more smooth, no wrikles, no curling.

6, Whole machine adopts PLC touch screen control, just need to set coating width and coating thickness, PLC automatically calculate the amount of glue supply, click the start button to realize a key to start the machine work.





Technical parameters

Model	WHT600
Coating width	600mm
Coating weight	10-80g/m2
Coating speed	150m/min
Unwind device	2sets
Unwind Diameter	1000mm
Rewind device	1set(two position)
Rewind Diameter	1000mm
Max temperature	230℃
Length of machine	12000mm
Height of machine	2500mm





Applied range

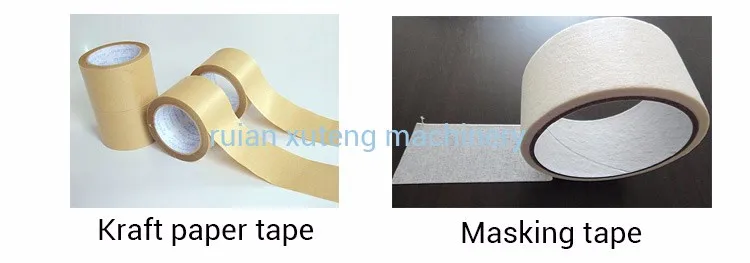

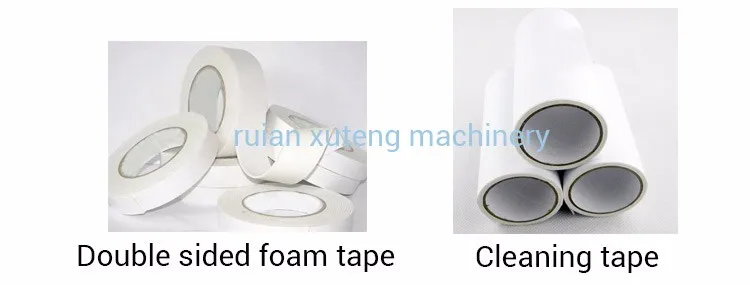

WHT600 Thermal paper Hot Melt Coating Machine,mainly used for coating composite of hot melt self-adhesive and hot melt pressure sensitive adhesive,suitable for making Label Thermal Paper ,paper tape, Adhesive sticker, self-adhesive paper , Electronic label adhesive tape and so on.
