Автоматическая машина для высечки концевых труб, Насечки для труб на продажу, машина для высечки металлических труб

Product Overview

Description

Automatic pipe end notching machine, pipe notchers for sale, metal pipe notching machine



Main specifications:

1.It can punch in 0°-180°.
2.This machine may punch in clockwise or in counterclockwise.
3.Both straight and curving pipe can be processed.
4.Compared with punch, it has wider machining scope, is safer to operate, easier to change mould and has lower noise.

Technical parameters:

Host Motor	5HP 380V 5HP 380V
Machining Range	12.7-60*2.0t A3 material tube, (round, oval tube)
Power	Hydraulic
Appearance	2050*1150*1450mm
Weight	850kg
Capacity	500-600/h (depending on diameter size)
Accessories	Clamping mold*1, Notching cutter mold*1

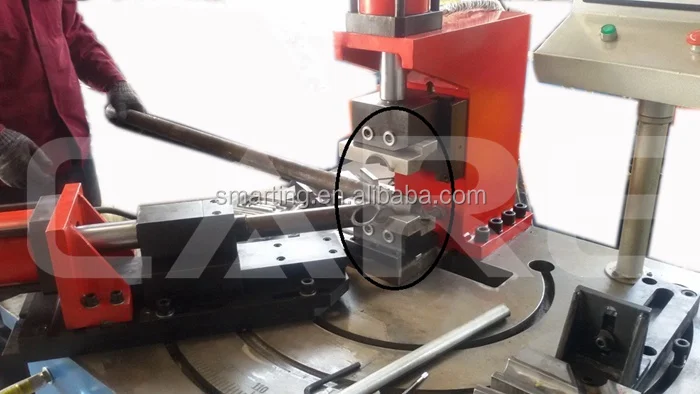

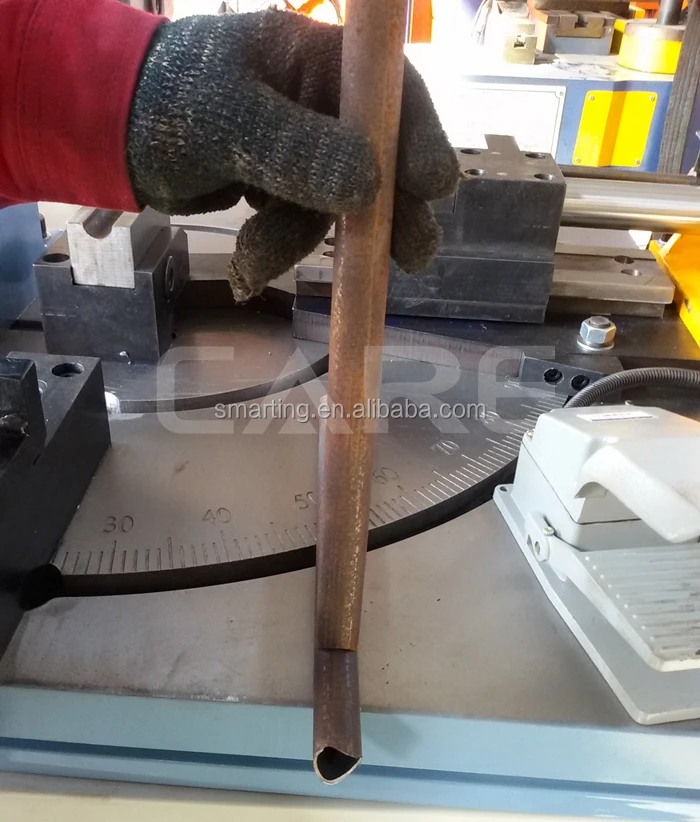

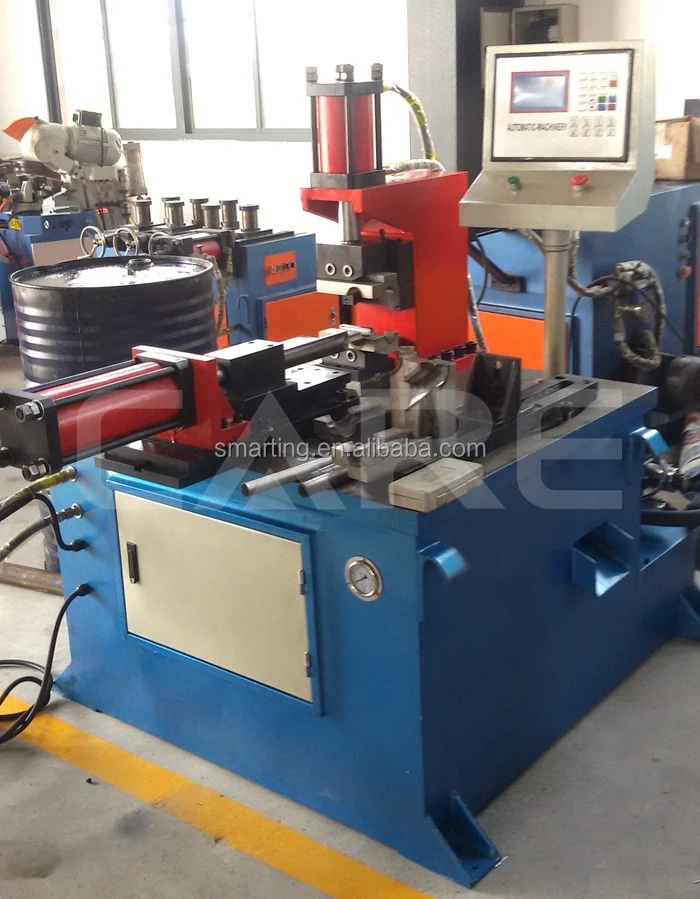

Machine photo

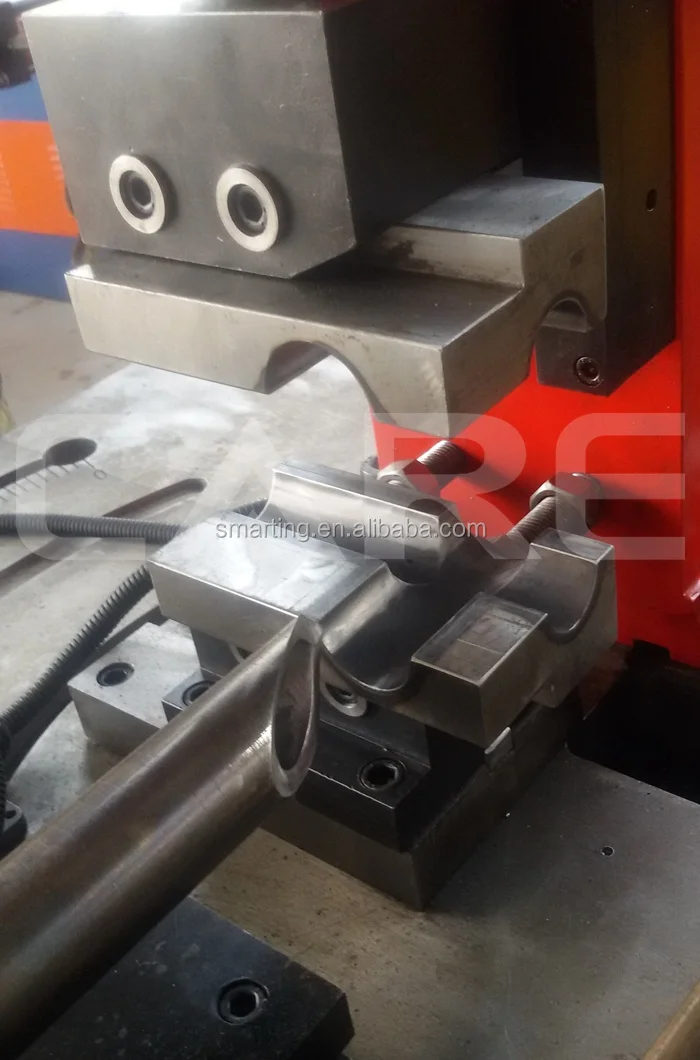

Main parts

To know information, please contact us at any time.
